JB-Lighting | P10 | LED Moving Head Profile Spot | 330W | 8,000 – 15,000 lm | CMY | 29 dB(A) | 18 gobos | 4.4° – 60° | 18 kg | CRI ≥92 – ≥70

JB-Lighting P10 Profile Spot: power, precision and silence all in one

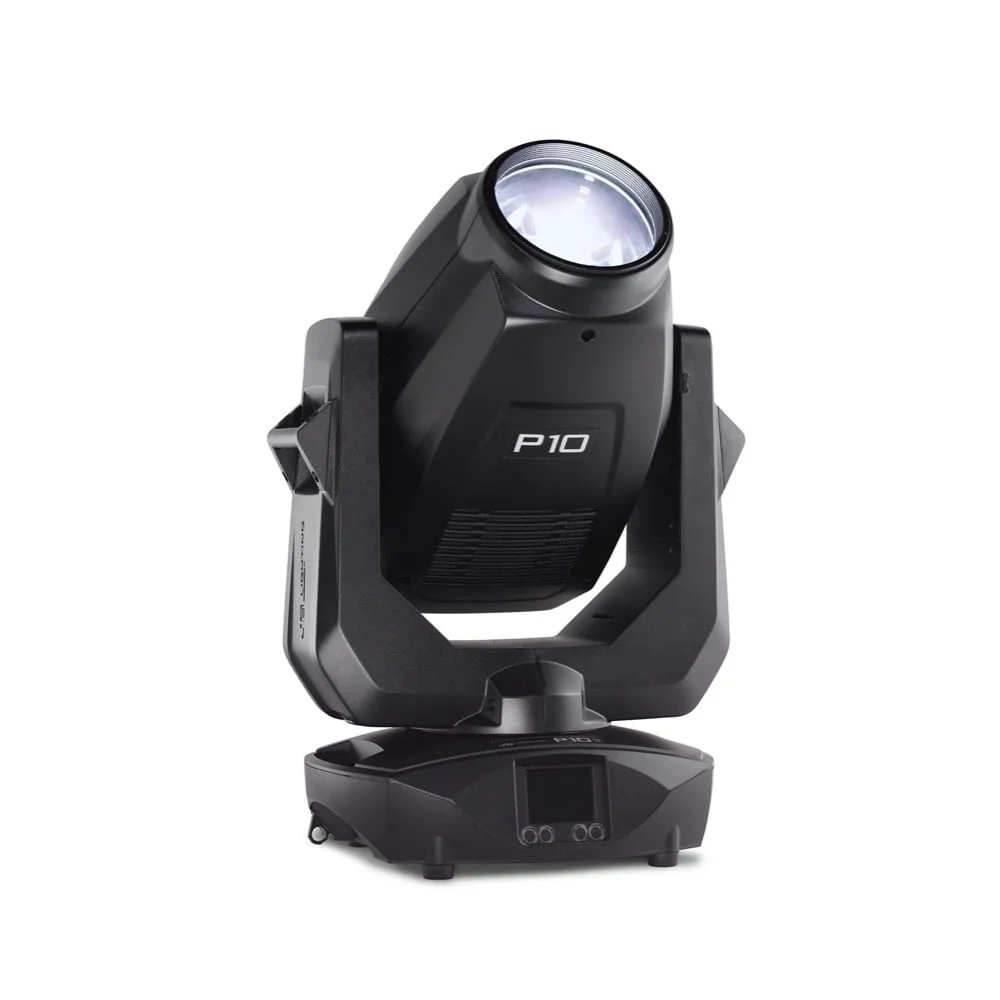

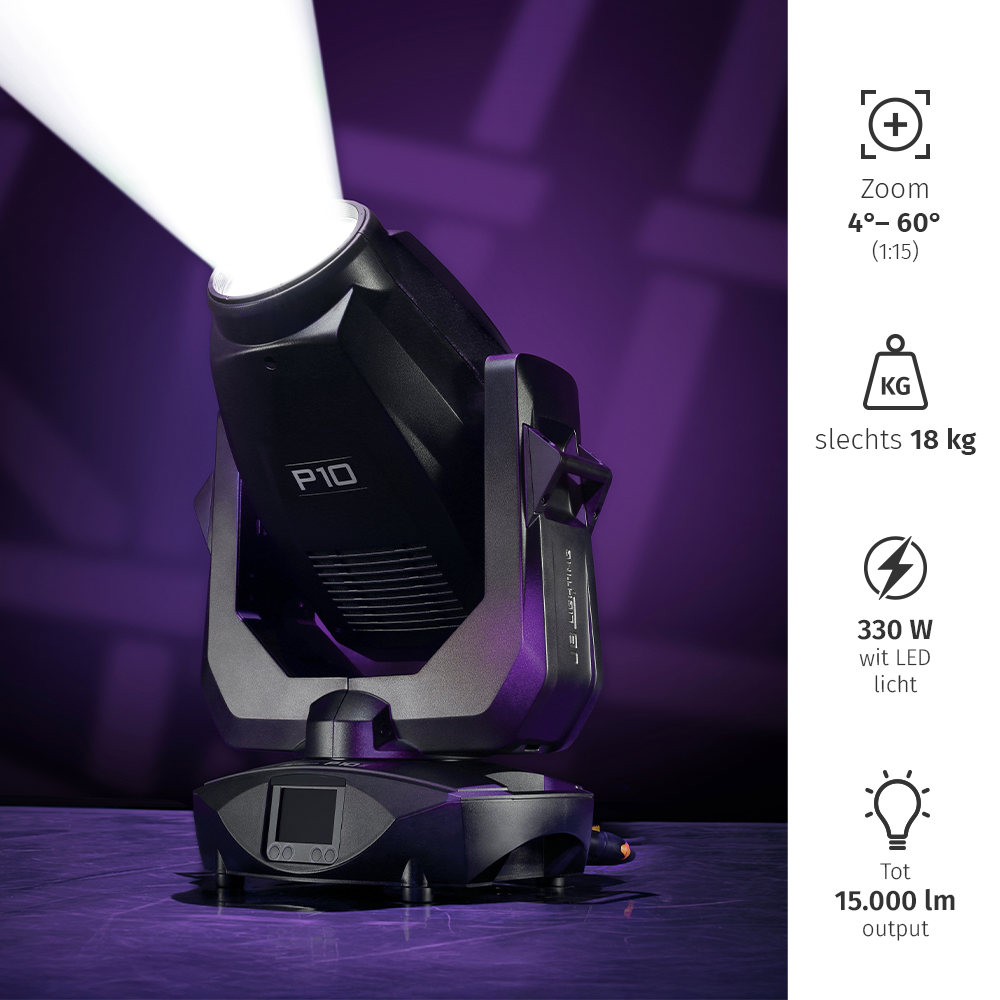

The JB-Lighting P10 Profile Spot is an impressive LED moving head that combines its compact size with unprecedented power, quiet operation and advanced features. With its 330W white LED light source, CMY colour mixing and excellent zoom range from 4° to 60°, this profile spot is the perfect choice for those seeking flexibility, reliability and quality. Thanks to its modest weight of just 18 kg, the P10 is easy to handle, in both temporary and permanent setups.

Compact, quiet and powerful

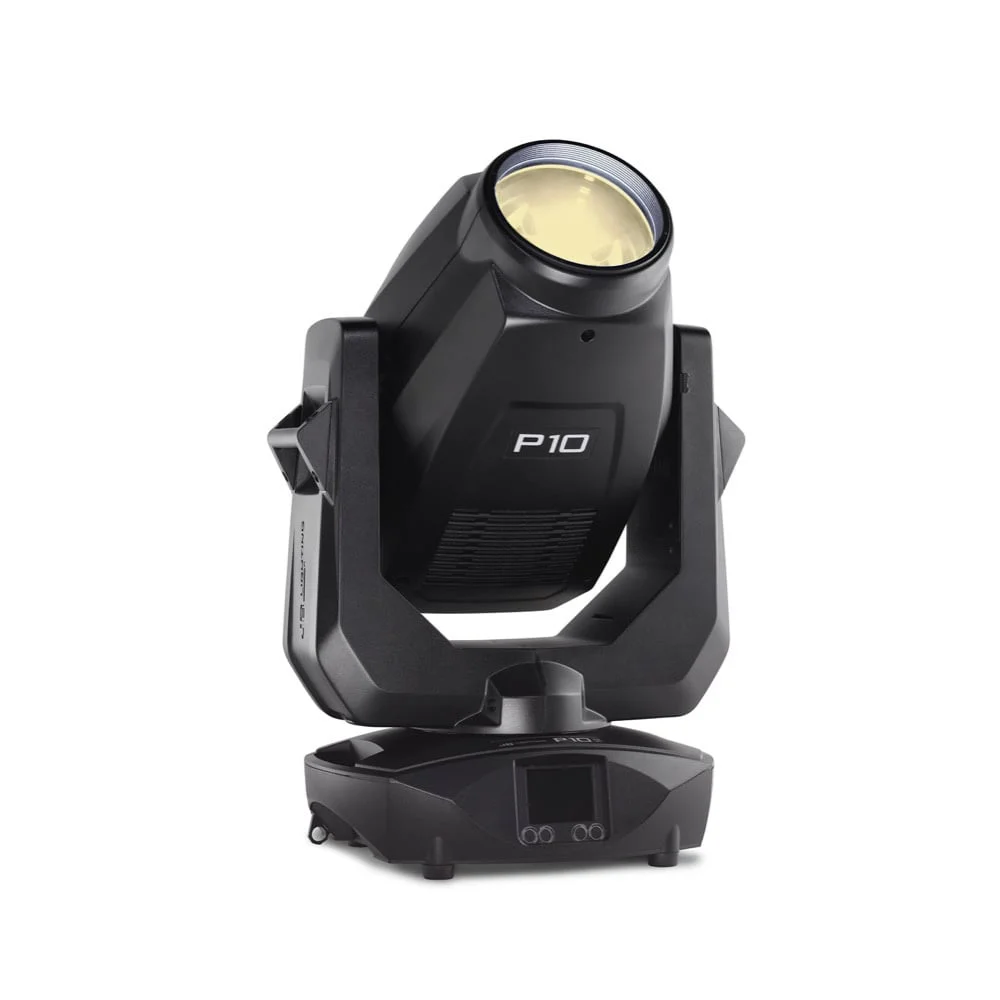

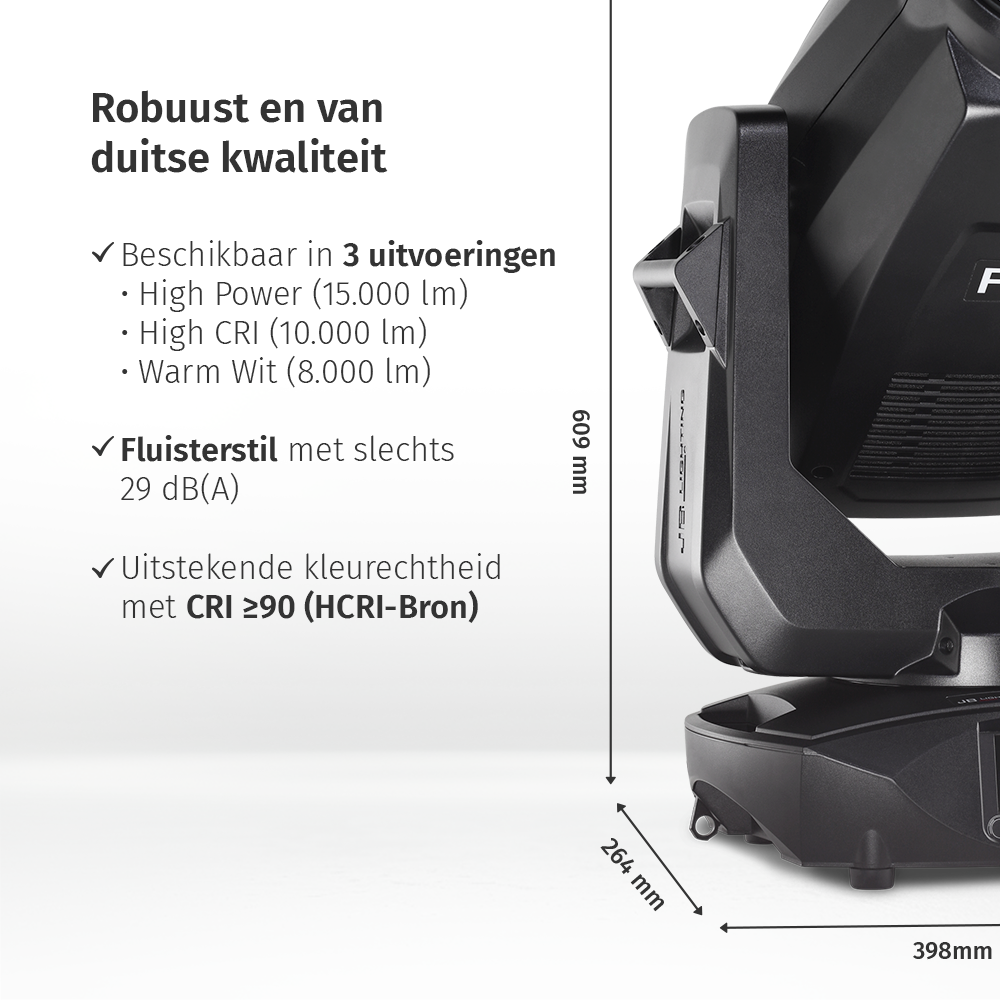

The P10 from JB-Lighting is a surprise: despite its small size, it delivers a light output of up to 15,000 lumens (HP model), without ever becoming noisy. At just 29 dB(A), it is virtually whisper-quiet, making it ideal for sound-sensitive environments such as theatres and TV studios. The high-quality LED source is available in various versions: High Power (6800 K), High CRI (5800 K) and Warm White (3200 K), each with its own unique light quality and applications.

Unprecedented control with framing module

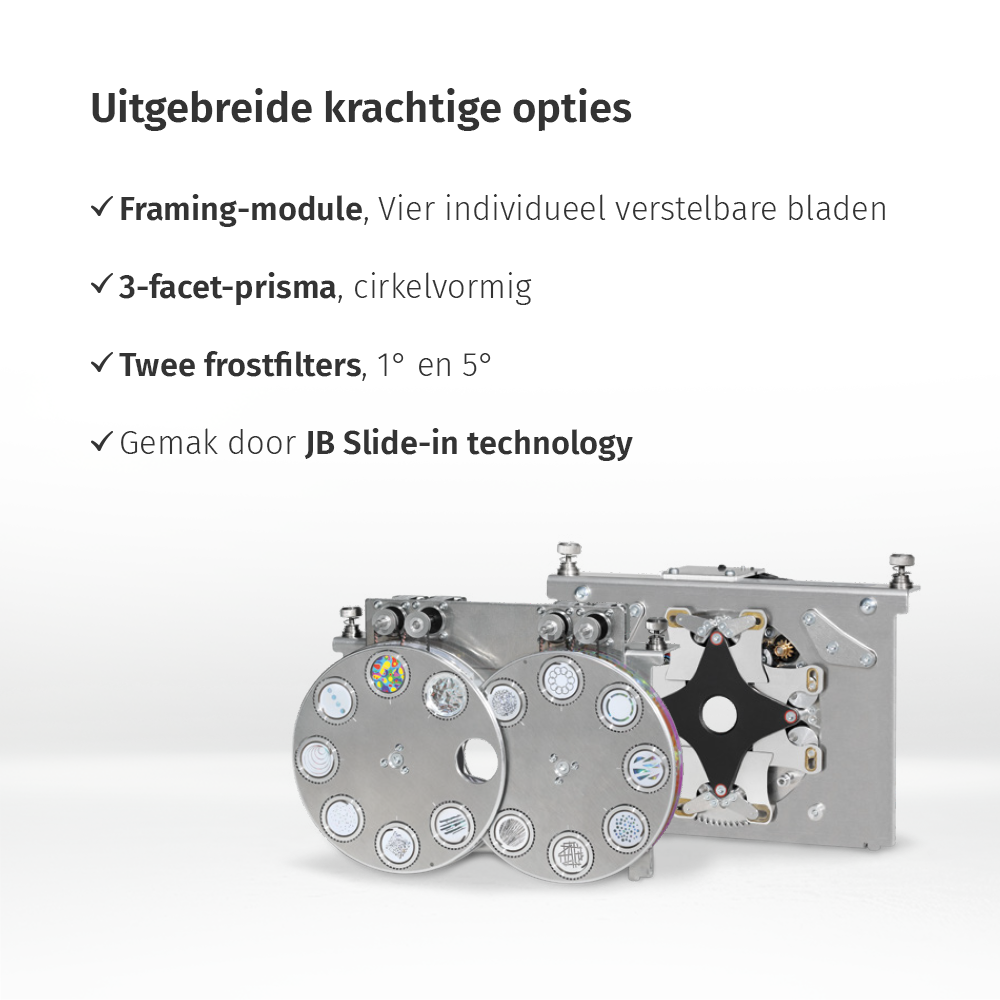

What really sets the P10 apart is the integrated framing module. This module can be rotated through 130° and is equipped with four individually adjustable blades, each with a rotation angle of ±30°. This allows you to create precise, creative shapes and shadows. Exactly what you need for artistic lighting or projections with sharp definition. What’s more, the whole system works perfectly with the frost filters for smooth transitions.

Impressive effects

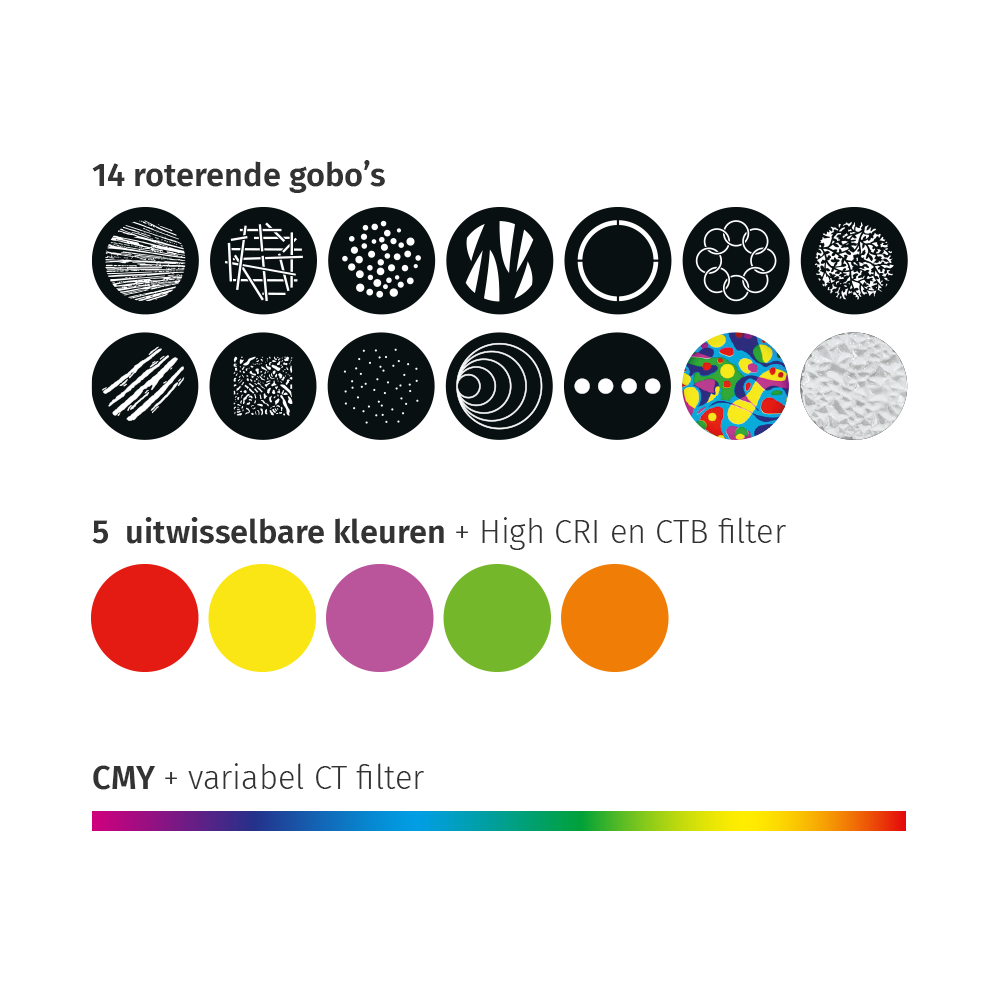

With two rotating gobo wheels (14 gobos in total), a five-colour wheel, CMY colour mixing and multiple correction filters, the P10 Profile offers an arsenal of visual effects. The 3-facet prism projections are not only rotatable but can also be combined with zoom and frost filters for layered visual impact. Thanks to the electronic iris, dimmer and shutter, all transitions are smooth and professional.

Pros and cons

Pros
Powerful output of up to 15,000 lumens with razor-sharp projection;
Whisper-quiet operation at just 29 dB(A), ideal for studio and theatre use;
Blade set with individually adjustable blades for creative shaping;
Wide zoom range from 4° to 60° for versatile use from spot to wash;
Lightweight (18 kg) and easy to handle with four integrated handles;

Cons
No IP rating, so less suitable for outdoor use without protection;
No integrated battery power supply for fully wireless use;
Higher price bracket than entry-level models without a framing module;

Technology with an eye for detail

The P10 features JB’s own Slide-In technology: gobo changes and maintenance can be carried out without tools. The high light quality (CRI up to ≥92 in the WW version) makes this profile spotlight ideal for applications where true-to-life colour rendering is crucial. The various camera modes (100 Hz, 120 Hz, 600 Hz, 3 kHz) also guarantee flicker-free operation for video recordings.

Robust design for every application

Whether it’s a touring production or a permanent installation in a studio or theatre, the P10 is at home anywhere. Thanks to its robust housing, transport lock and sturdy Camloc® suspension systems, it remains reliable even in harsh conditions. Furthermore, the fixture supports all common protocols such as DMX, Art-Net, sACN and wireless CRMX.

Specification summary

• 330W white LED source (HP, HC or WW version)
• Light output up to 15,000 lumens (HP)
• Zoom: 4°–60° (1:15)
• Framing module: 130° rotation + 4 individually adjustable blades
• CMY colour mixing + 5-colour wheel
• 2 gobo wheels (14 gobos)
• 2 continuously adjustable frost filters
• 3-facet prism, sparkle effect
• Weight: 18 kg
• Noise level: just 29 dB(A)
• Wireless DMX (LumenRadio CRMX)
• Pan 540°, Tilt 280°
• Neutrik powerCON TRUE1, etherCON, 5-pin XLR

Applications

• Theatres
  Thanks to its quiet operation and precise framing module, it is perfect for stage lighting with minimal distraction.
• Television studios
  Flicker-free operation and high CRI make it ideal for filming with true-to-life colours.
• Live productions & concerts
  Powerful output, wide zoom and effect capabilities ensure an impressive show.
• Museums & exhibitions
  Thanks to its precise projection and silent operation, it is also suitable for atmospheric, long-term illumination of objects.

Conclusion

The JB-Lighting P10 Profile is an impressive all-rounder in the profile spotlight segment. It combines power, precision, silence and flexibility in a compact and robust housing. With its extensive effect options, accurate framing module and whisper-quiet operation, the P10 is an excellent choice for any professional lighting designer or technician. Whether for fixed installations or mobile applications, with the P10 you are choosing quality and reliability, made in Germany.

Request a free demo of the JB-Lighting P10 Profile via our contact page, or email [email protected] for more information.
