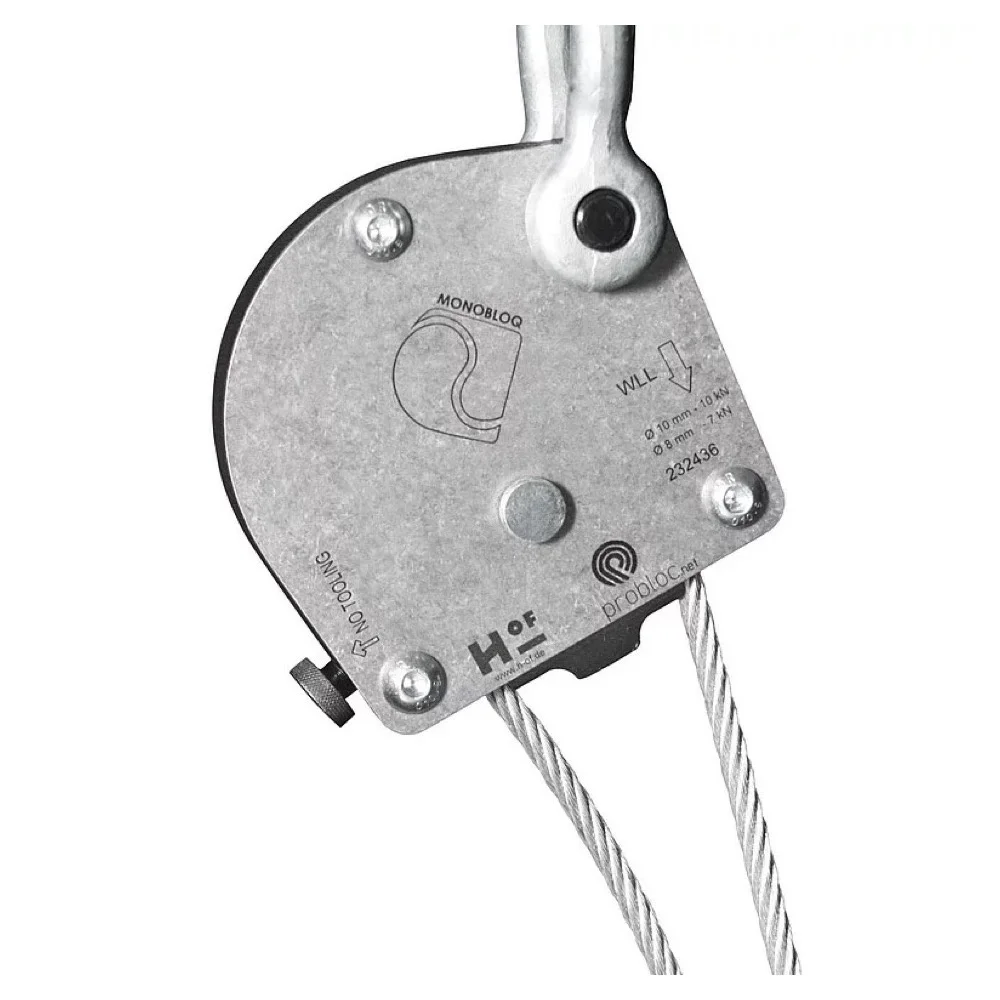

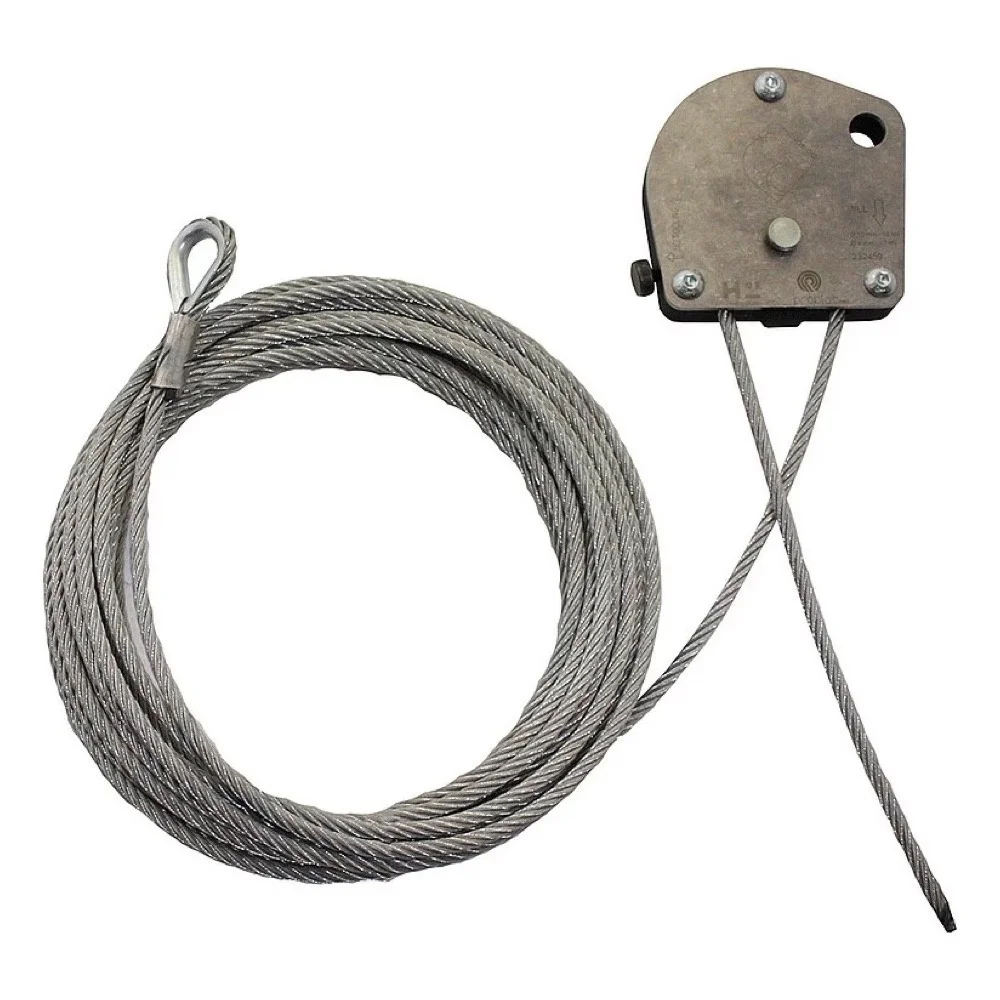

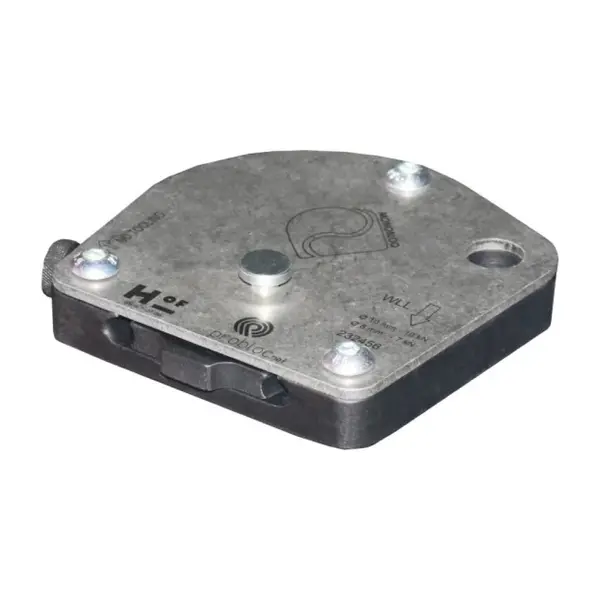

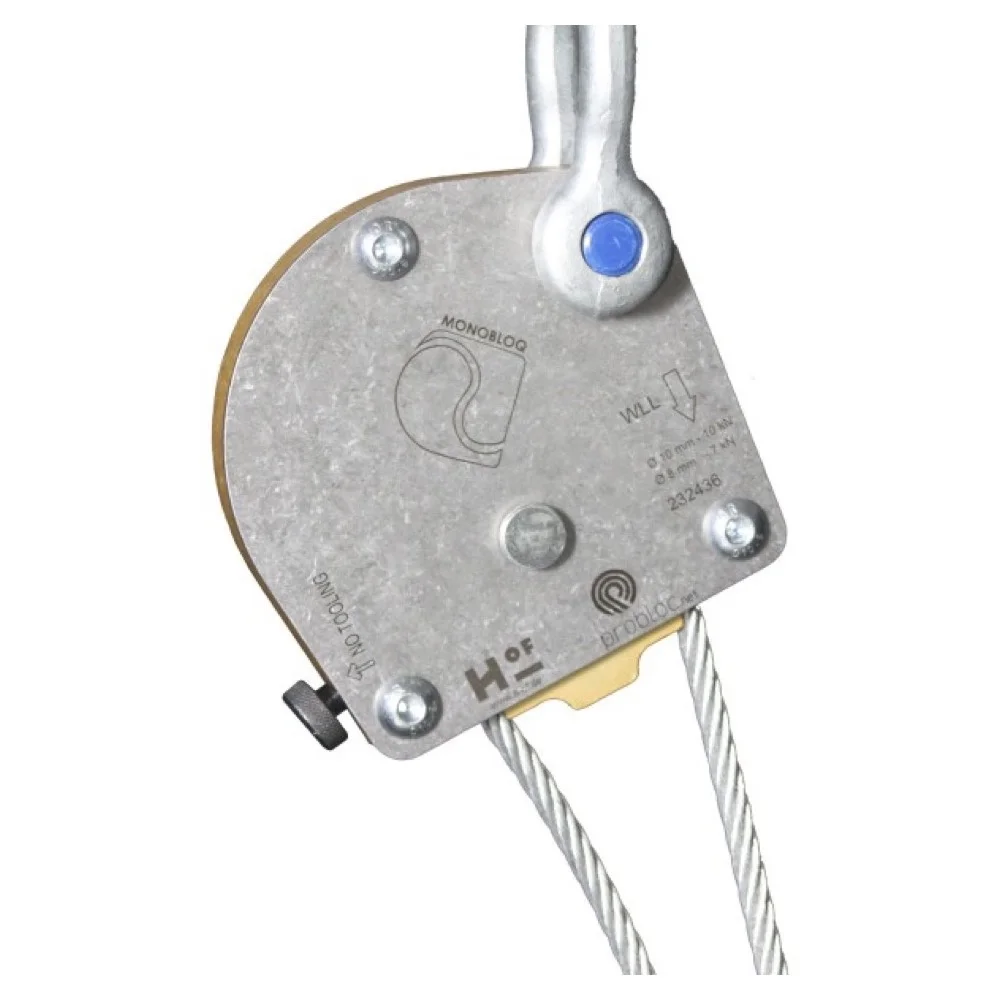

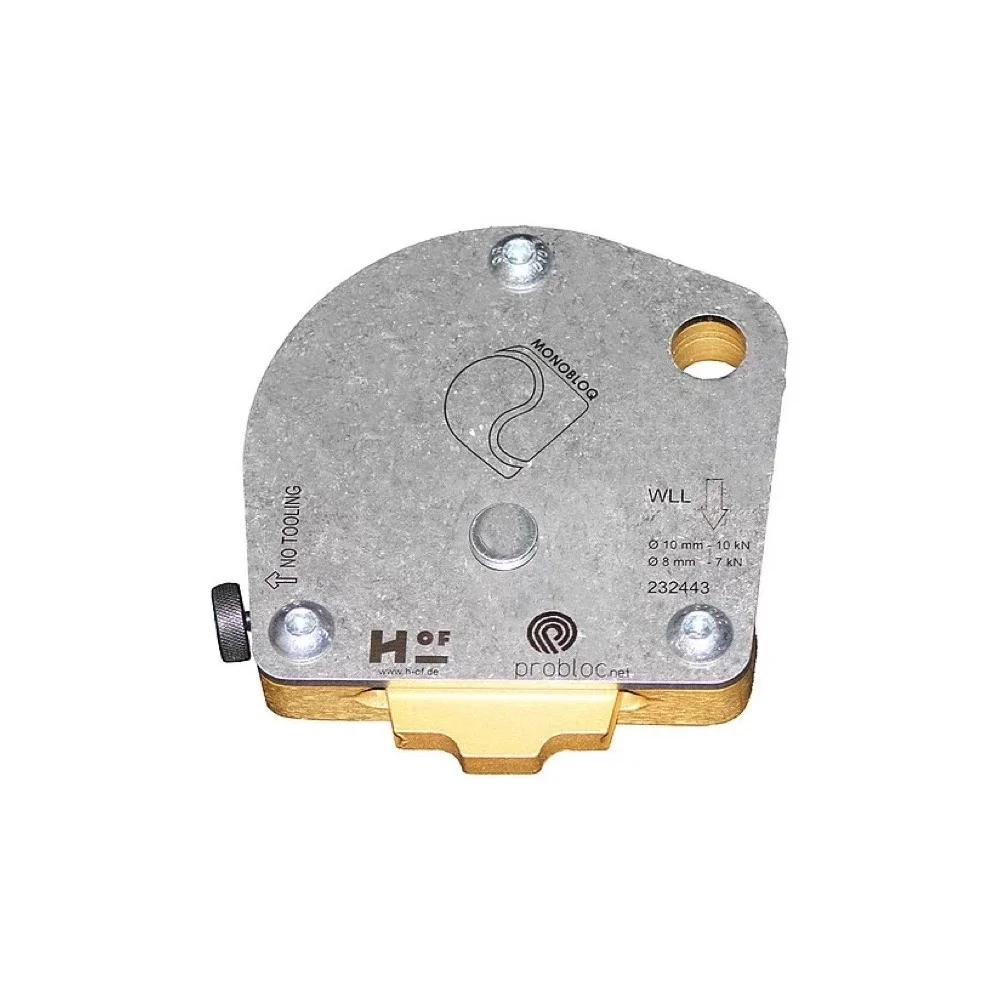

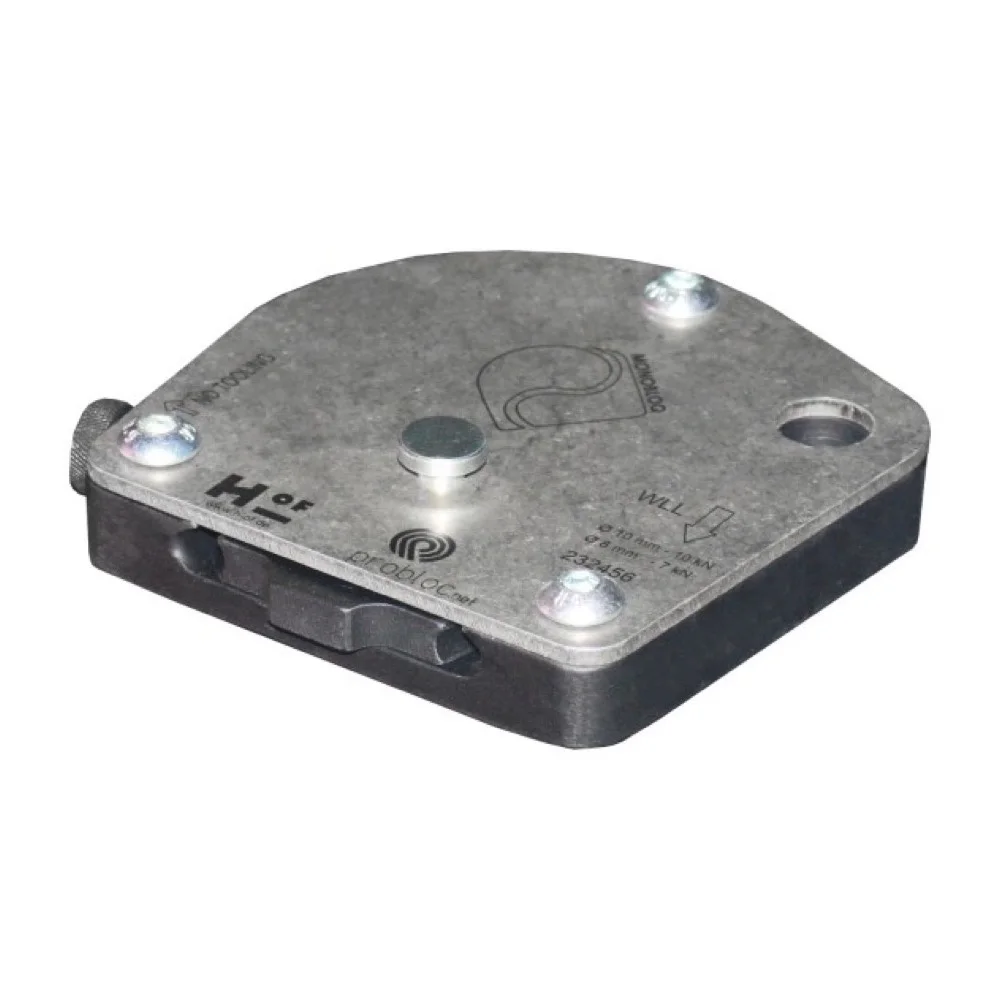

HOF | Monobloq for cable | Cable thickness: 8 or 10mm | Colour: Gold or Black

HOF | Monobloq for cable | Cable thickness: 8 or 10mm | Colour: Gold or Black

When you are going to hoist and need multiple attachment points to do so, you need to construct a bridle. You then need two or more cables and the length of these cables determines the precise location of the hoisting point. So to get to the right location each time in different situations, you need a whole collection of cables of different lengths. HOF's Monobloq avoids this and saves you a lot of time installing bridles.

Positioning bridles

All you need are single steel cables (of any length), each with a Monobloq to create a flexible suspension point. The patented system allows positioning in seconds and you can thus position up to 8 bridles per hour. Once the Monobloq hangs from the coupler, the length of the cable can be adjusted with two hands. The cable length can then be fixed without the use of tools.

Monobloq load capacity

There are two different Monobloq versions on: one for 8mm steel cables and one for 10mm steel cables. To work with each of these diameters, the corresponding pressure wedge must be used.
In both cases, installation is done in the same way. The Monobloq for 8mm has a maximum load capacity of ±700kg and the 10mm version ±1,000kg.

A lifting sling in seconds

The HOF Monobloq provides a significant simplification for rigging bridles. There is no need to bring steels and chains of different lengths and the time savings are considerable. The HOF Monobloq will be available soon. Don't hesitate to get in touch to experiment with it yourself .

Phone: + 31 85 40 15 92 9 E-mail: [email protected]

Specifications:

• Max. load (WLL): 10kN ~ 1000kg / 7kN ~ 700kg
• Dimensions: 145 x 145 x 25 mm
• Weight: 1550 g
• Material body: Al 7075-56
• Material cams: Al 7075-56
• Material covers: AlSl 304
• Tightening torque: 57 Nm
• screw quality: 10.9
