JB-Lighting | P10 | Wash LED Moving Head | 330W | 8,000 – 15,000 lm | CMY | 29 dB(A) | 7 gobos | 12° – 70° | 17 kg | CRI ≥92 – ≥70

JB-Lighting P10 Wash: Compact, fully-featured and powerful

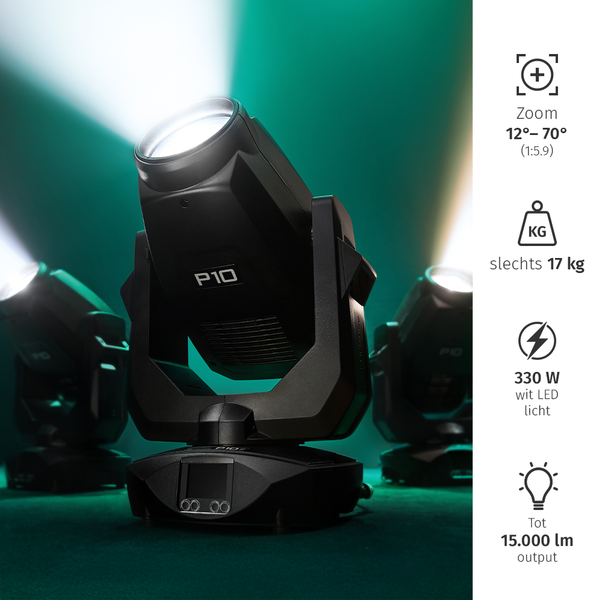

The JB-Lighting P10 Wash is the lightweight all-rounder among professional LED wash lights. Weighing just 17 kg, with a surprisingly powerful output of up to 15,000 lumens and a range of creative functions, this Fresnel washer is suitable for any application. Whether for festivals, theatres, TV studios or trade fairs: the P10 Wash is at home anywhere.

What immediately stands out is the impressive zoom range of 12° to 70°, allowing you to switch from a focused beam to a wide wash in an instant. Add to that an extensive set of blades, a set of rotating gobos, CMY colour mixing and various correction filters, and you have a creative lighting tool that feels much bigger than its compact size would suggest.

Compact powerhouse with great potential

The P10 Wash is available in three light colours (HP, HC and WW) and comes standard with both linear CTO and CTB filters. This allows you to effortlessly adjust the colour temperature for any setting. The High Power version offers up to 15,000 lumens of output at a colour temperature of 7200 K, whilst the High CRI variant delivers a colour rendering index of ≥90 and the Warm White version excels in warm tones with a CRI of ≥92.

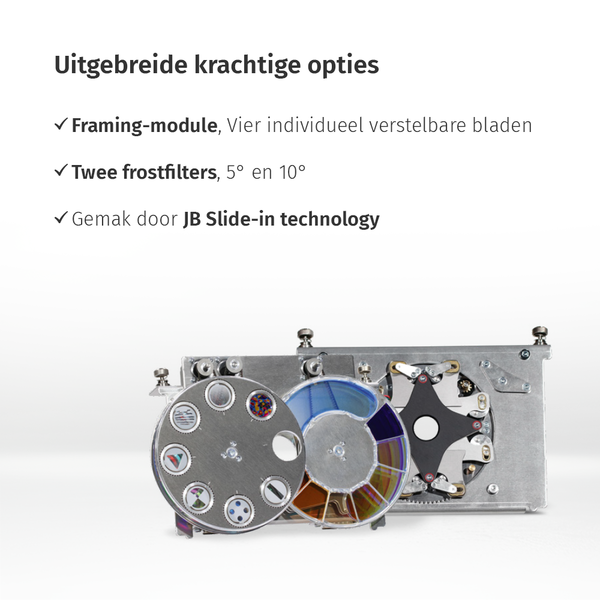

In addition, the fixture features a blade set with four individually movable and rotatable blades. The module itself can be rotated by 130°, allowing you to shape or frame the light perfectly.

Inspiring effects and colours

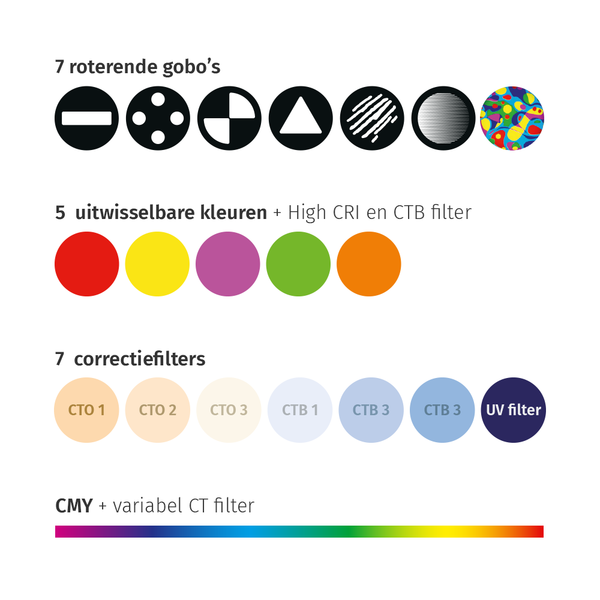

In creative terms, the JB-Lighting P10 offers a surprising amount. Think of a colour wheel with five vibrant colours and a CRI filter, a second wheel with seven colour correction filters (including three CTBs, three CTOs and UV), and a gobo wheel with seven rotating gobos, including a gradient gobo to prevent hotspots.

Thanks to two continuously adjustable frost filters (soft edge and flood frost), you can make the image even more diffuse when needed. There is also a lightning-fast iris and electronic dimming and shuttering for dynamic scenes.

Pros and cons

Pros

Extremely compact and lightweight (just 17 kg), ideal for quick set-ups
Wide zoom range from 12° to 70°, suitable for a wide range of applications
Complete colour control with CMY, CTO and CTB filters
Extensive effect options with gobos, blade set and frost filters
Quiet in operation at just 29 dB(A), also suitable for noise-sensitive environments

Cons

Lower light output than larger models, less suitable for very large stages
Gobos specifically designed for wash use, so less graphic detail than with profile spotlights
No animation wheel or effect wheel available

Applications

The JB-Lighting P10 Wash is ideal for:

• Theatre and stage: soft projections, quiet operation, flexible light pattern.
• Events and festivals: compact, quick to set up, surprisingly powerful.
• Trade fairs and exhibitions: natural white light and colour correction for object lighting.
• Television productions: flicker-free operation and adjustable colour temperature.

Summary of specifications

• LED source: 330 W white LED
• Colour temperatures: HP: 7200 K, HC: 6000 K, WW: 3200 K
• Output: Up to 15,000 lumens (HP)
• Zoom: 12° – 70°
• Gobos: 7 rotating gobos
• Colour correction filters: 7 pieces (CTB/CTO/UV)
• Frost filters: Soft edge and flood frost
• CRI: ≥70 to ≥92 depending on model

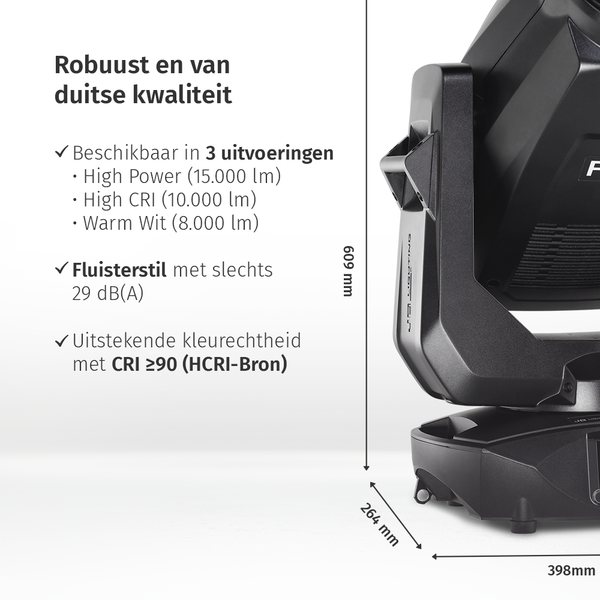

• Dimensions: 398 x 609 x 264 mm
• Weight: 17 kg
• Noise: 29 dB(A)

Conclusion

The JB-Lighting P10 Wash proves that great performance doesn’t always have to come from large housings. This compact Fresnel wash light combines a powerful light output with flexible colour control, creative effects and quiet operation, ideal for productions where mobility and quality must go hand in hand.

Curious to find out what the P10 Wash can do for your production? Request a no-obligation demo today via [email protected] or the contact form on our website.
