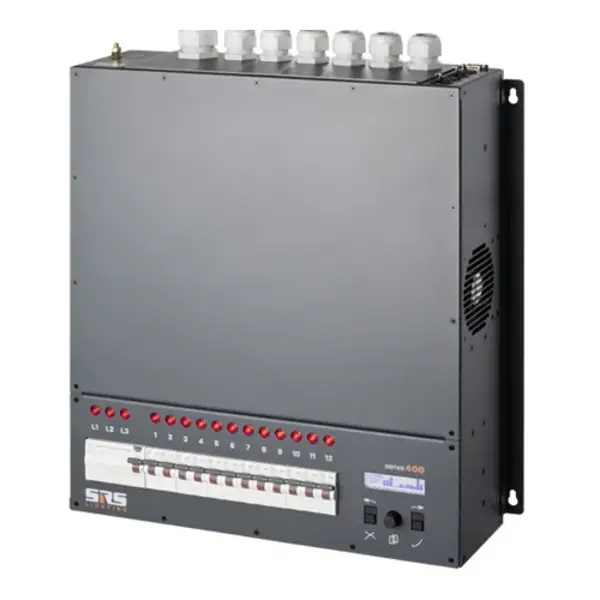

SRS Lighting | DDPG1213B-8-WM | Wall dimmer 12-channel DDP | Circuit breakers: RCBO | Power: 13A | Main: Main switch | DMX 3+5pin | Excluding backplate

Wall dimmer 12-channel DDP with RCBO

The Wall Dimmer 12-channel NDP with Network and RCBO is a very compact wall dimmer with fast dimmer response, 400uS rise-time, at an affordable price.

SRS Light started designing the 12-channel dimmer packs in 1992, which went into production in 1994. The current generation DDP is directly derived from these. The dimmers are distinguished by a smart cooling system and are suitable for continuous use. The most advanced dimmers from 1 to 12 channels all have the same internal qualities. All dimmers therefore have a rise time of 400uS. This results in less vibrating filaments, yielding a longer lamp life and lower noise production. All SRS Light dimmers come with at least a 2-year warranty.

You can order this dimmer separately with a connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate.

Would you like a dimmer installation (installation or tour version) to your specification? That is of course possible! For this, it is useful to let us know your exact requirements.

Specifications

• available in 10A, 13A or 16A version

• 30mA earth leakage or main switch on fixed voltage

• 1P or 1P Neutral circuit breakers

• Both with 3 pin DMX and 5 pin

• Both DMX and analogue can be used simultaneously.

• Available with the following connection:
  Schuko
  Socapex
  Harting

• Weight 28 kg

• Dimensions HxWxD 490x481x132 mm

• 5-year warranty!
