GIS LP | LP500-LVD8+ | 500kg | LV | 400V | D8+
GIS LP | LP500-LVD8+ | 500kg | LV | 400V | D8+
Article code LP500-08-LVD8+
14 in stock
In stock delivery time 1 to 3 working days
GIS LP | LP500-16-LVD8+ | 500kg | LV | 400V | D8+ Read more
Description

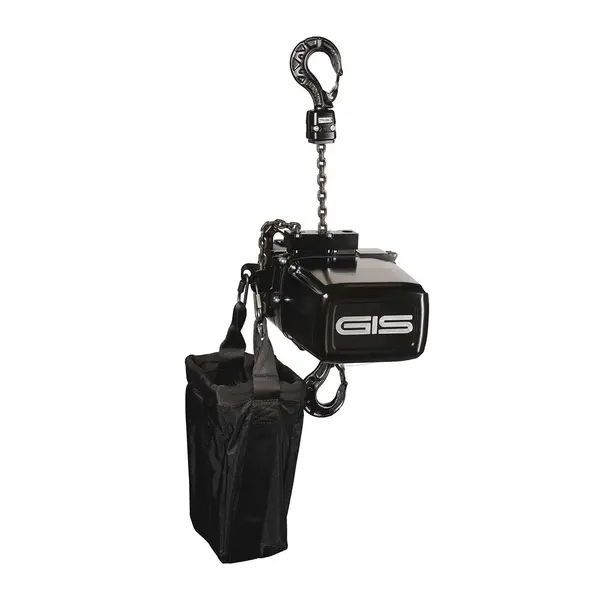

GIS electric chain hoist D8plus;Safety factor 8:1 in accordance with DIN56950:2012; Double brake; Low Voltage with limit switches; Model LP, 1 chain strand; Operating voltage: 400V-3Ph-50Hz; Working load: 0.5t; Class EN14492 (ISO): A5; < 125'000 C (M5; duty 40%); Lifting speed: 4m/min; Lifting height: 24m; IP class: IP65; With hook suspension; Also equipped with: -4pin red 16A CEE plug on 0.8m cable -4pin yellow CEE plug on 0.8m cable -Chain bag
Specifications
Power supply | 400 VAC 3 Phase |
Type of control | LV |
Power connector in | CEE4P 16 A |
Speed | 4m/min |
Lifting height | Different heights |
WLL | 0.5t |
