DMT | FI Install Series | Permant outdoor - 64 x 72 cm
Description

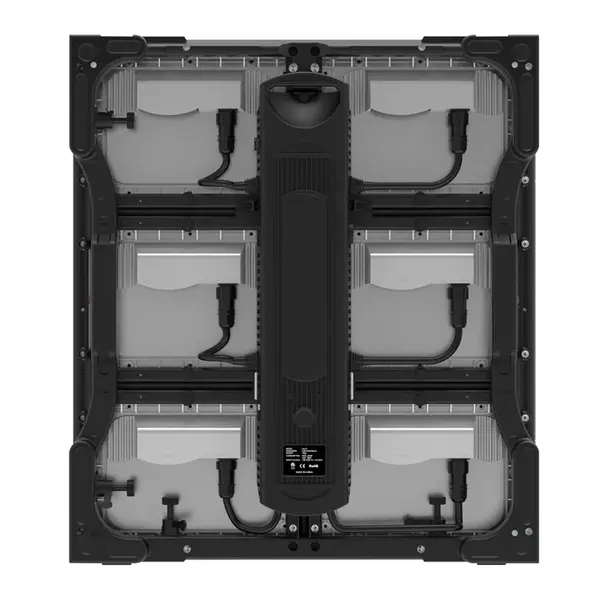

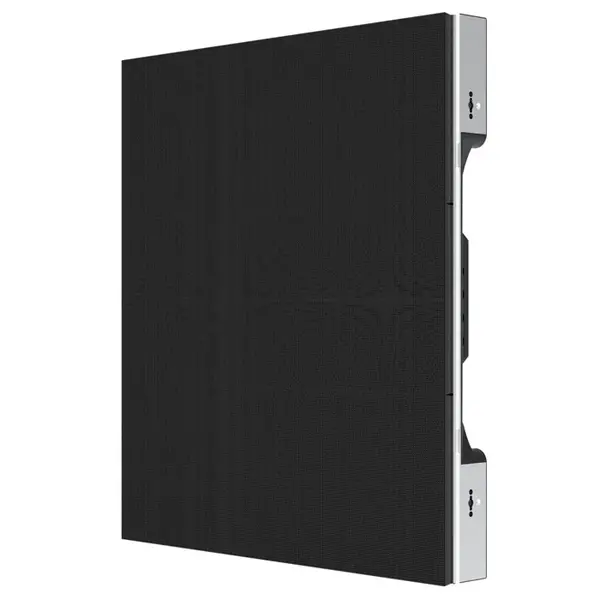

The DMT Pixelscreen FI-6 with a 6.67 mm pixel pitch and a brightness level of 5500 Nits is the ideal screen for stadiums, outdoor advertising or signage solutions due to its IP-65 front-rating and IP-54 back-rating. It is very well equipped for outdoor use and preferably as a permanently installed screen. The modular design of the screen within a lightweight aluminium frame ensures seamless screen set-up while providing convection cooling. The cabinets are designed with fast locks for quick and efficient mounting. The LED modules within the screens are hot swappable and controllable from the back of the screen. Each screen is equipped with a Novastar receiver card that ensures a stable and reliable operating system.Technical specifications
Pixel Pitch Horizontal: 6.67 mm
Pixel Pitch Vertical: 6.67 mm
Horizontal Resolution Panel: 96 px
Vertical Resolution Panel: 108 px
Viewing Angle Horizontally: 110°
Viewing Angle Vertically: 110°
Transparency: 0 %
LED Type: Black Frame
Brightness: 5500 nits
Operating System: Novastar
Screen Refresh Rate: 1920 Hz
Input Voltage: 100-240 V AC 50-60 Hz
Power Consumption: 260 W
Average Power Consumption: 85 W
Power Connector In: powerCON TRUE1
Power Connector Out: powerCON TRUE1
Data Connector In: etherCON
Data Connector Out: etherCON
Width Panel: 640 mm
Height Panel: 720 mm
Depth Panel: 113 mm
Weight: 19 kg
IP Value: IP65
Maintenance: Rear service
Suspension Vertical Max.: 10 pcs
Locking System: Fast Lock System
