DMT | 101261 | VT301 - HDMI Matrix Extender Set | Expandable Long-distance Video Signal Solution

The DMT VT-series is a new, comprehensive range of video tools, suitable for various applications. Due to the user-friendly design, all models are easy to operate and integrate in almost any video configuration. Exhibitions, events, conferences, or fixed installation projects, the DMT VT-Series offers you the right video tools for the job.

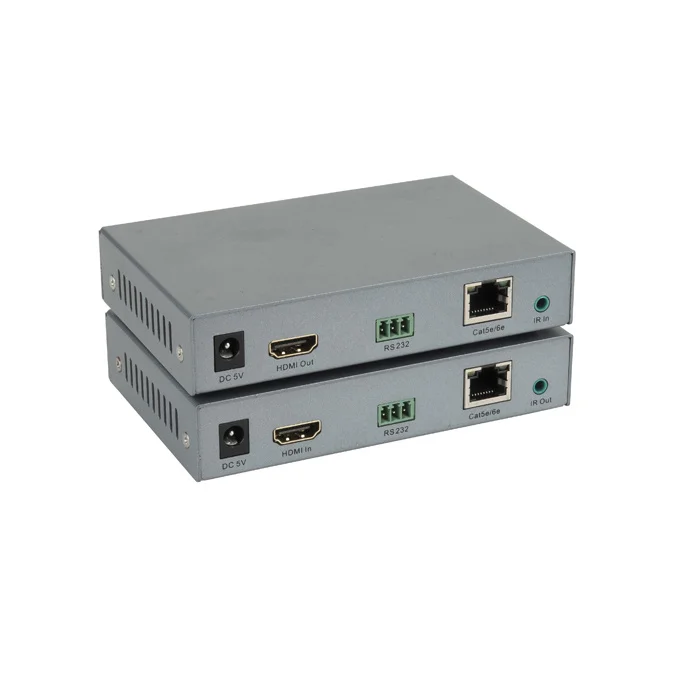

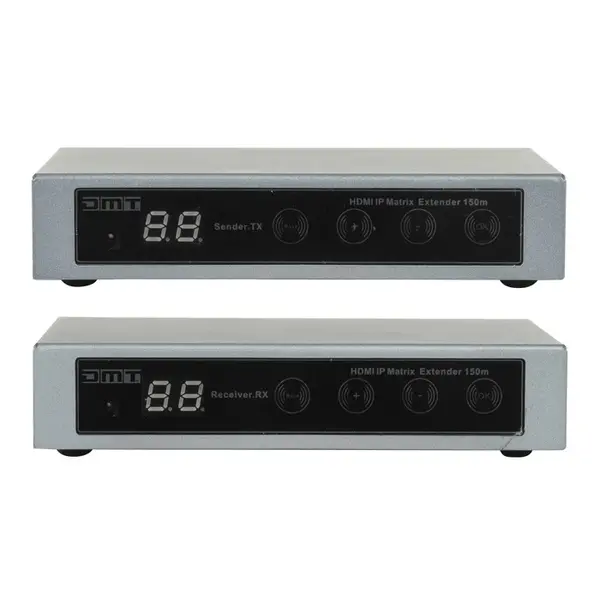

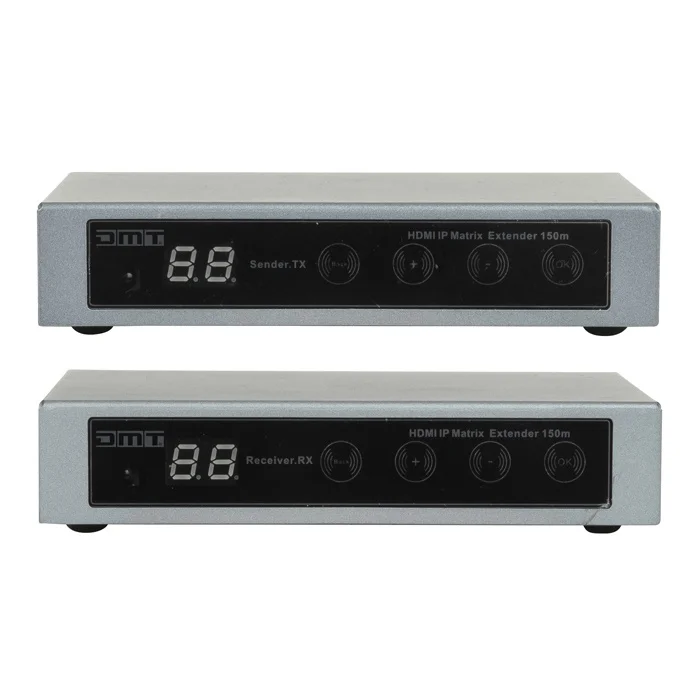

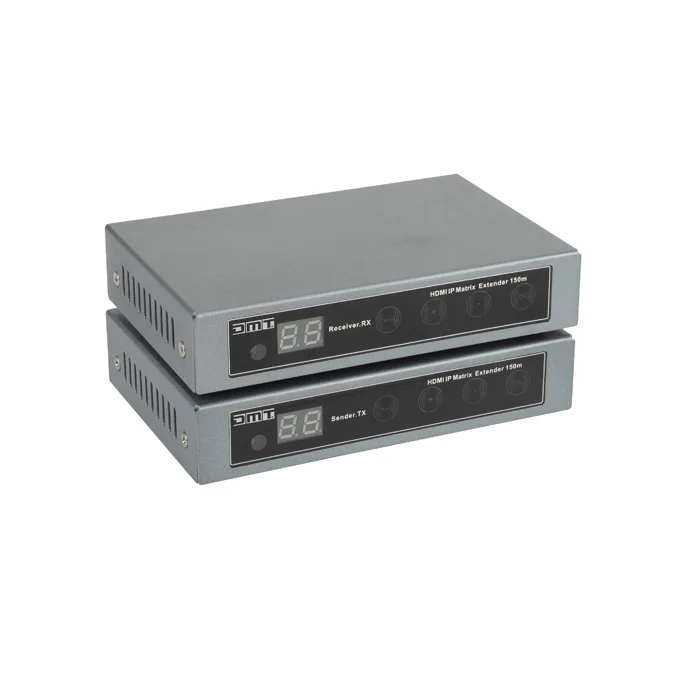

The DMT VT301 HDMI Matrix Extender Set is a flexible long-distance video signal solution (network), consisting of a single sender and receiver unit. The network can be extended, allowing the connection of multiple HDMI video sources to multiple displays / televisions et cetera within one network. The sender and receiver units can be controlled manually or by using an included infrared remote. It offers IR signal transmission and supports a resolution up to 1920 x 1080P @60 Hz.

You'll have the option to order additional receivers (VT301-R) if your setup requires extra receiver units on different positions. Any HDMI switch can be used to attach multiple devices to one single receiver.

Please note that a network switch is required when bridging a distance of more than 100 metres.

Technical specifications
HDMI 1.2: 1
IR Port: 1
HDMI 1.2 (Out): 1
IR Port (Out): 1
Maximum Input Resolution: 1920 x 1080
Maximum Output Resolution: 1920 x 1080
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 4 W
Power Connector In: Low Voltage DC plug
