DAP | Xi-5 | Passive 5" installation speaker

The DAP Xi series offers passive installation speakers for decent bass and clear Hi-Fi sound in indoor venues. It is a perfect audio solution in places like pubs, restaurants and shops. You can mount them tightly against a wall or ceiling thanks to multiple available mounting options and recessed speaker connector. The Xi speakers' design is solid and practical. The high-quality Celestion HF drivers meet the demands of today's audio enthusiast.

Xi speakers can be mounted close to a wall or ceiling with an optional U-shaped mounting bracket and compact speaker wall bracket. The speakers can be placed horizontally or vertically, as the horn of the Xi-8 and Xi-10 can be rotated up to 90 degrees. To do so, you need to remove the grill. This can be easily removed as it is mounted on a magnet.

Our latest version is not only equipped with a speaker input and output connector, but also with a green terminal connector. This is a more simple and cost-effective solution for setting up a fixed audio system.

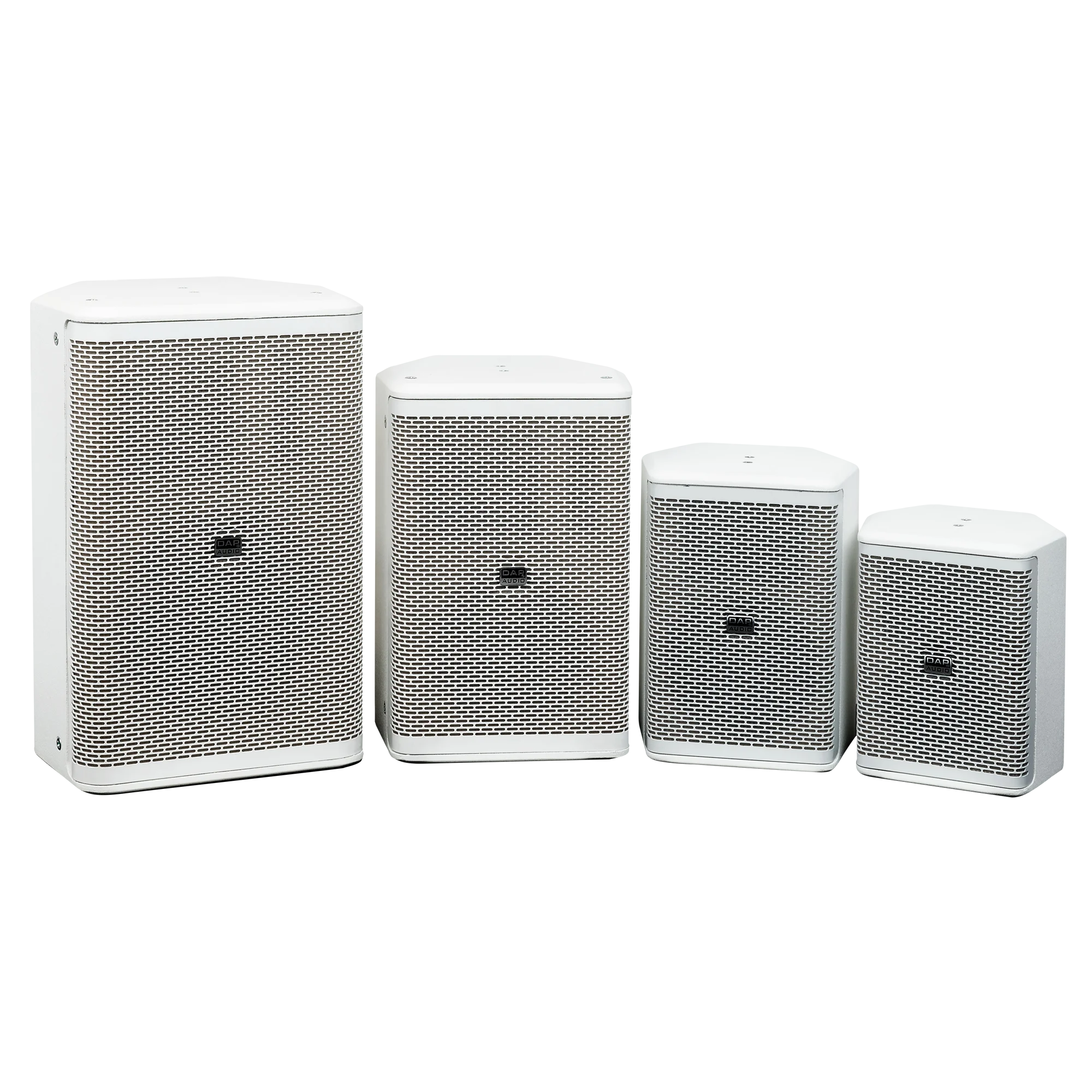

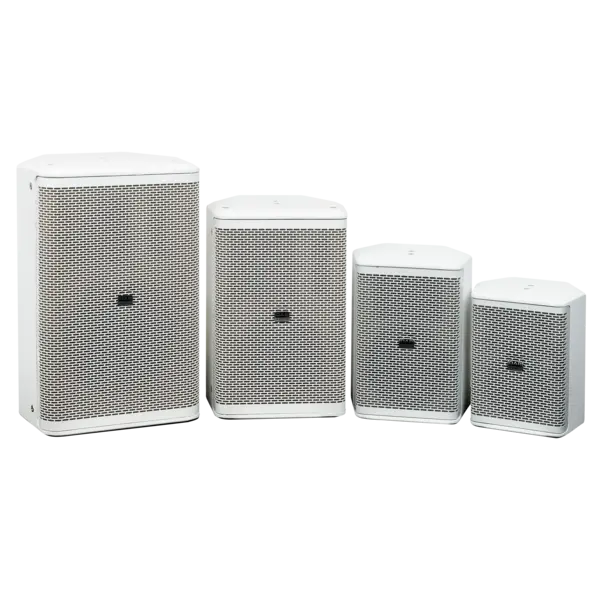

The Xi series consists of 5-inch to 10-inch full-range 2-way speakers. There are also 12-inch and 2x 8-inch Xi subwoofers available for adding natural bass response under high pressure. All models are available in black and white to suit any environment. Interested in our DAP Xi series? Then contact us now for free advice and receive an offer you can't refuse, or check out our product pages for more information.

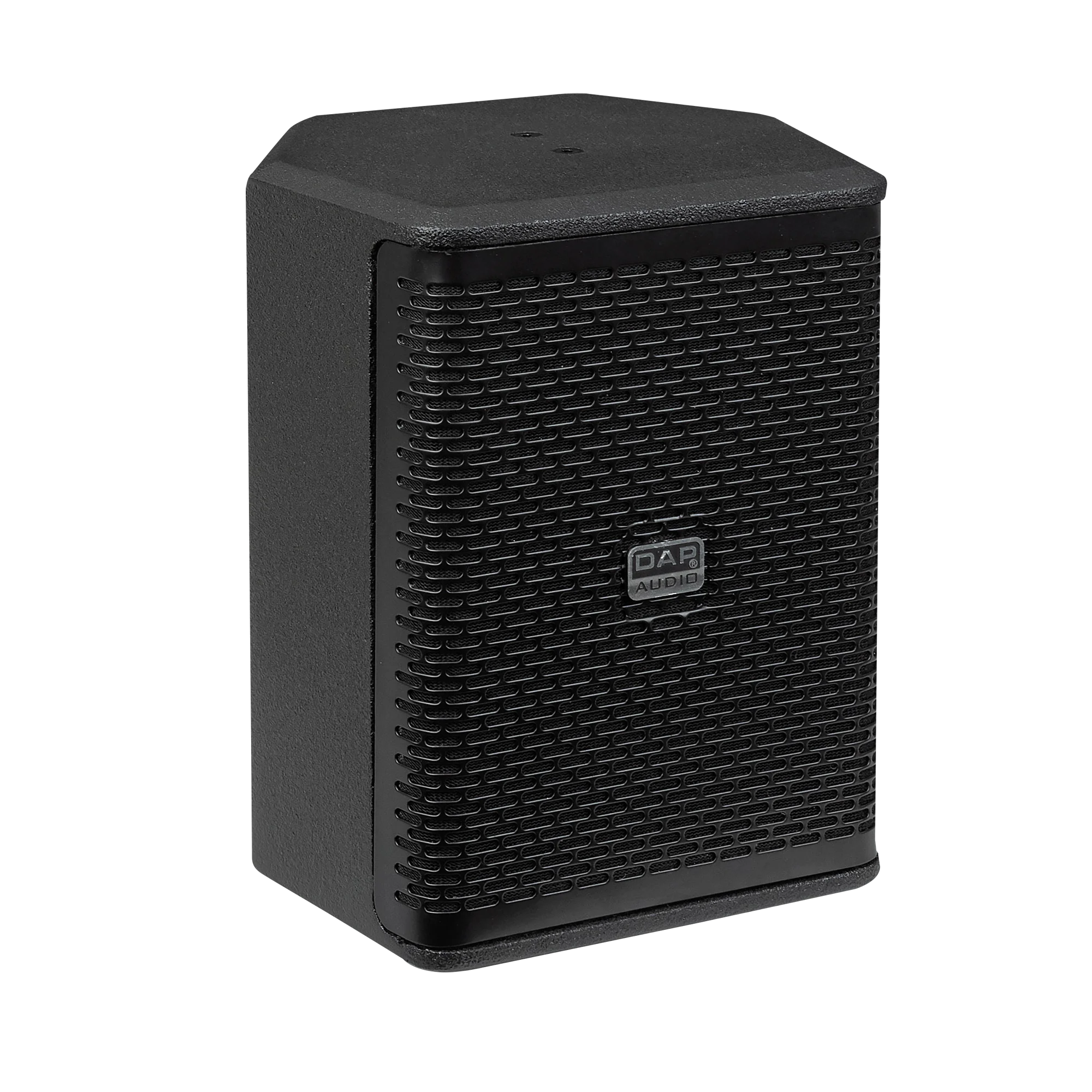

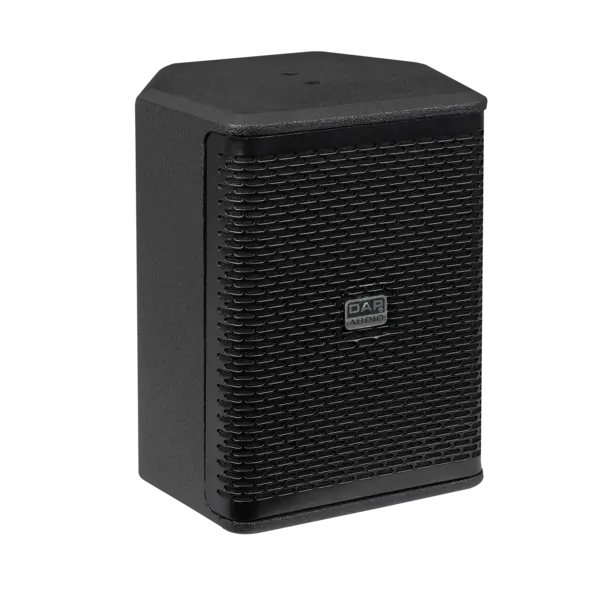

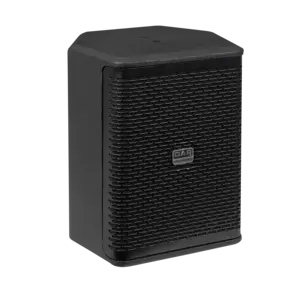

The DAP Xi-5 is an elegant 5.25-inch passive installation speaker with a 1" Celestion HF driver for clear Hi-Fi sound. It is mainly suitable for small to larger fixed installations in indoor venues. Its ingenious design, with recessed 4-pin speaker connector, easily removable grill with magnet attachment and rotatable logo, is perfect for various applications. So you can position it both horizontally and vertically and have a choice of mounting options.

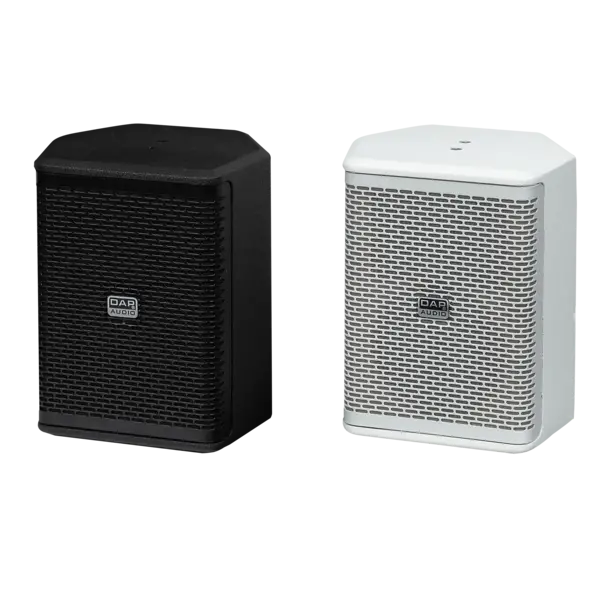

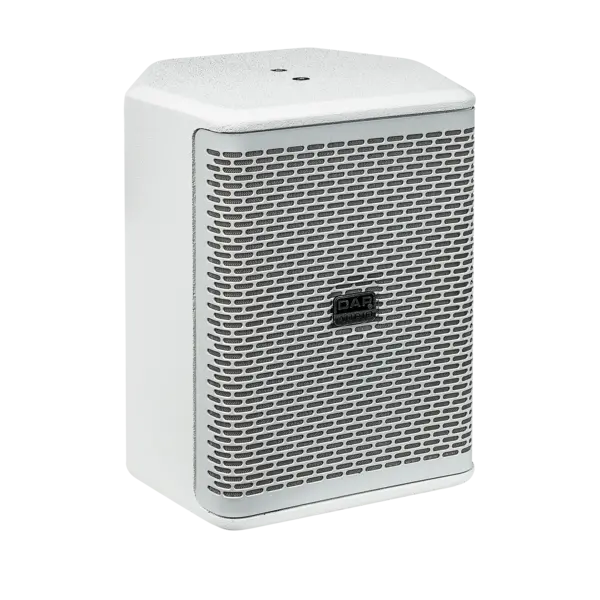

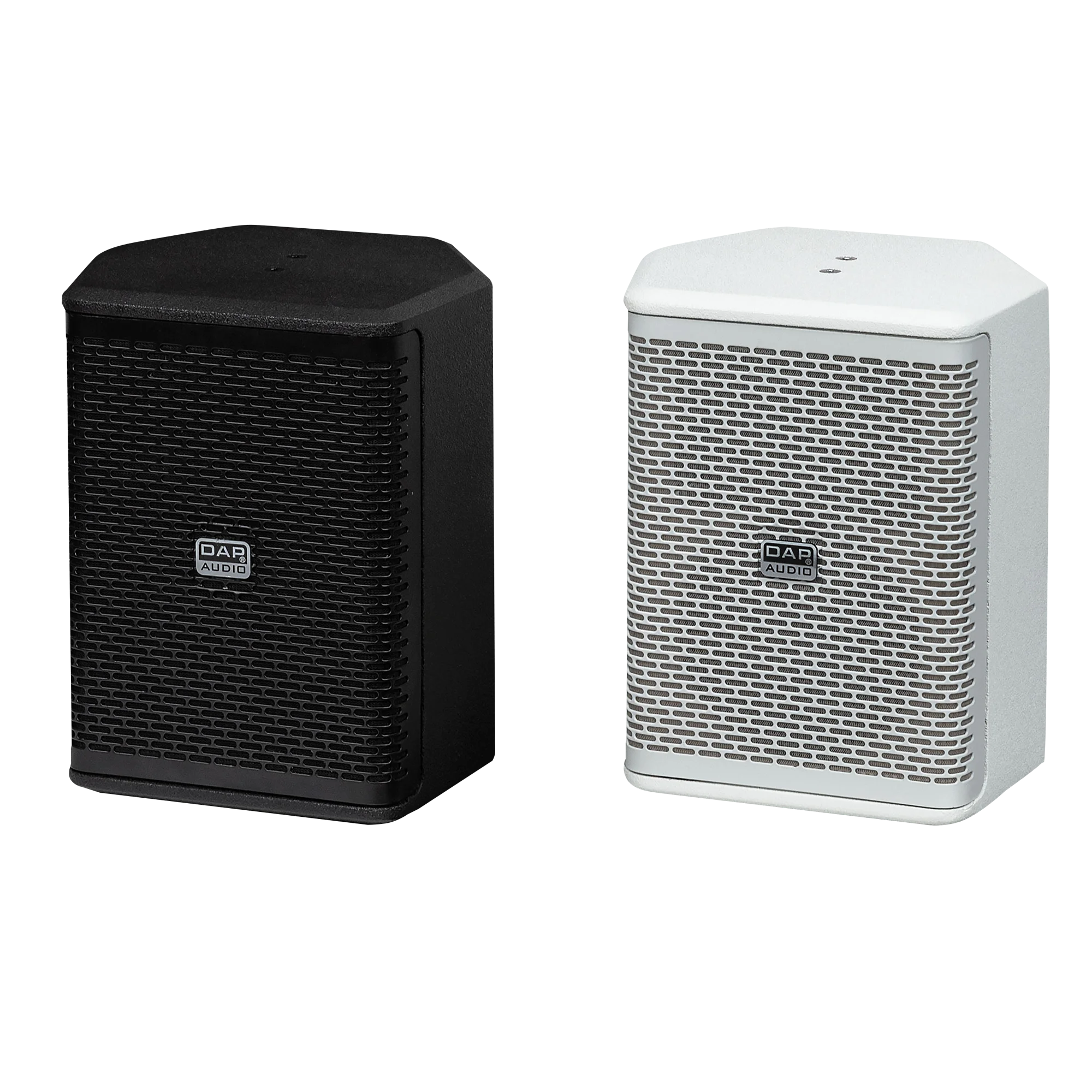

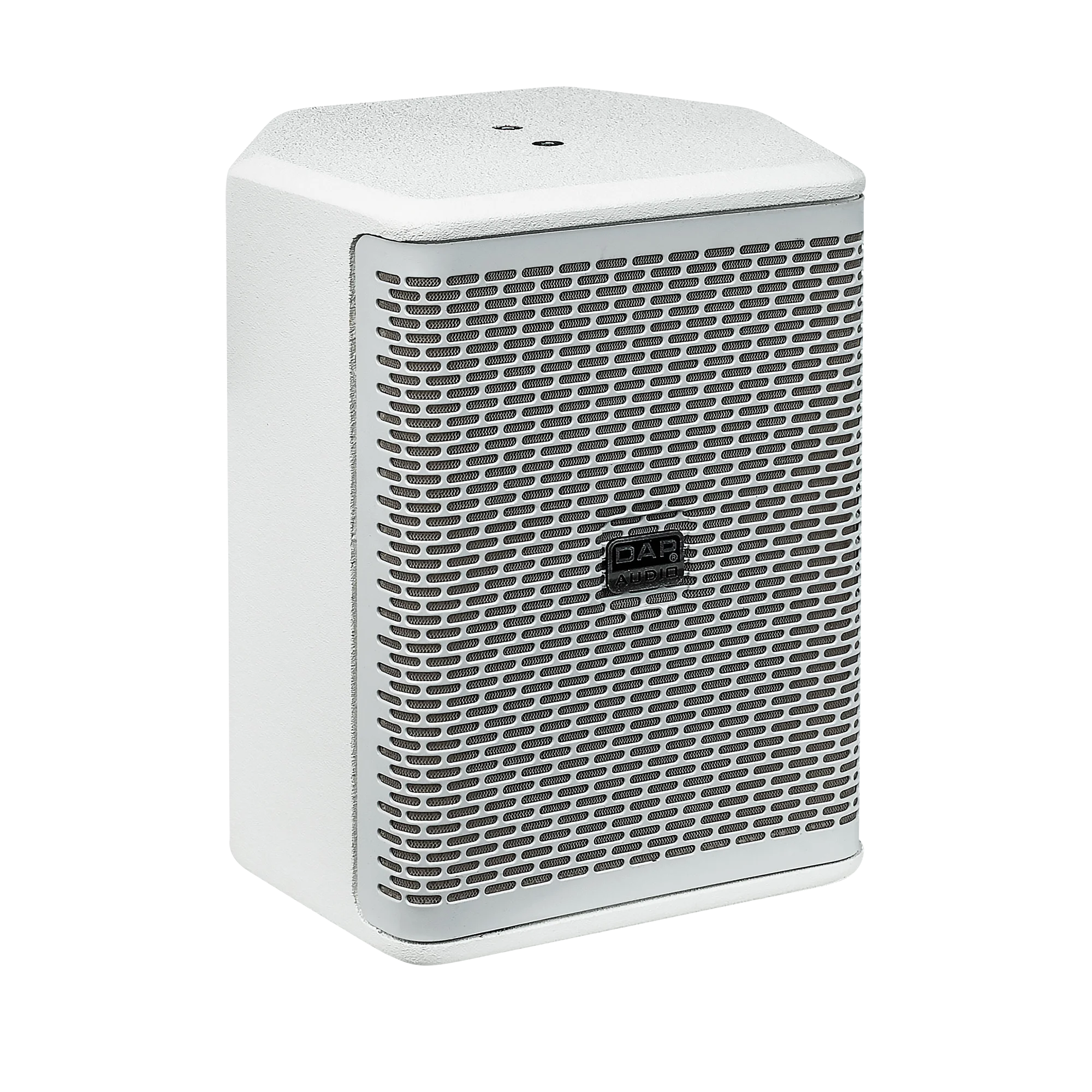

You can place the DAP Xi-5 directly on a ceiling or wall using a U-shaped mounting bracket or compact speaker wall bracket. This full-range 2-way speaker is not only versatile, as it fits in any room. Thus, it is available in black and white versions and suitable for larger installations due to its ability to connect to an audio infrastructure up to 16 ohms.

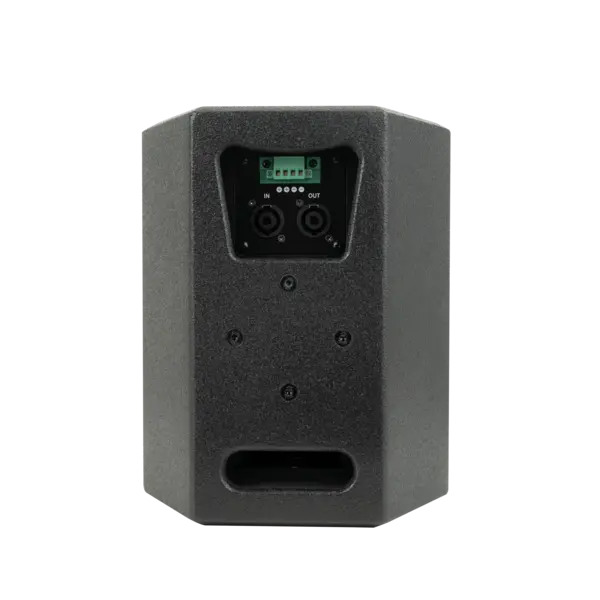

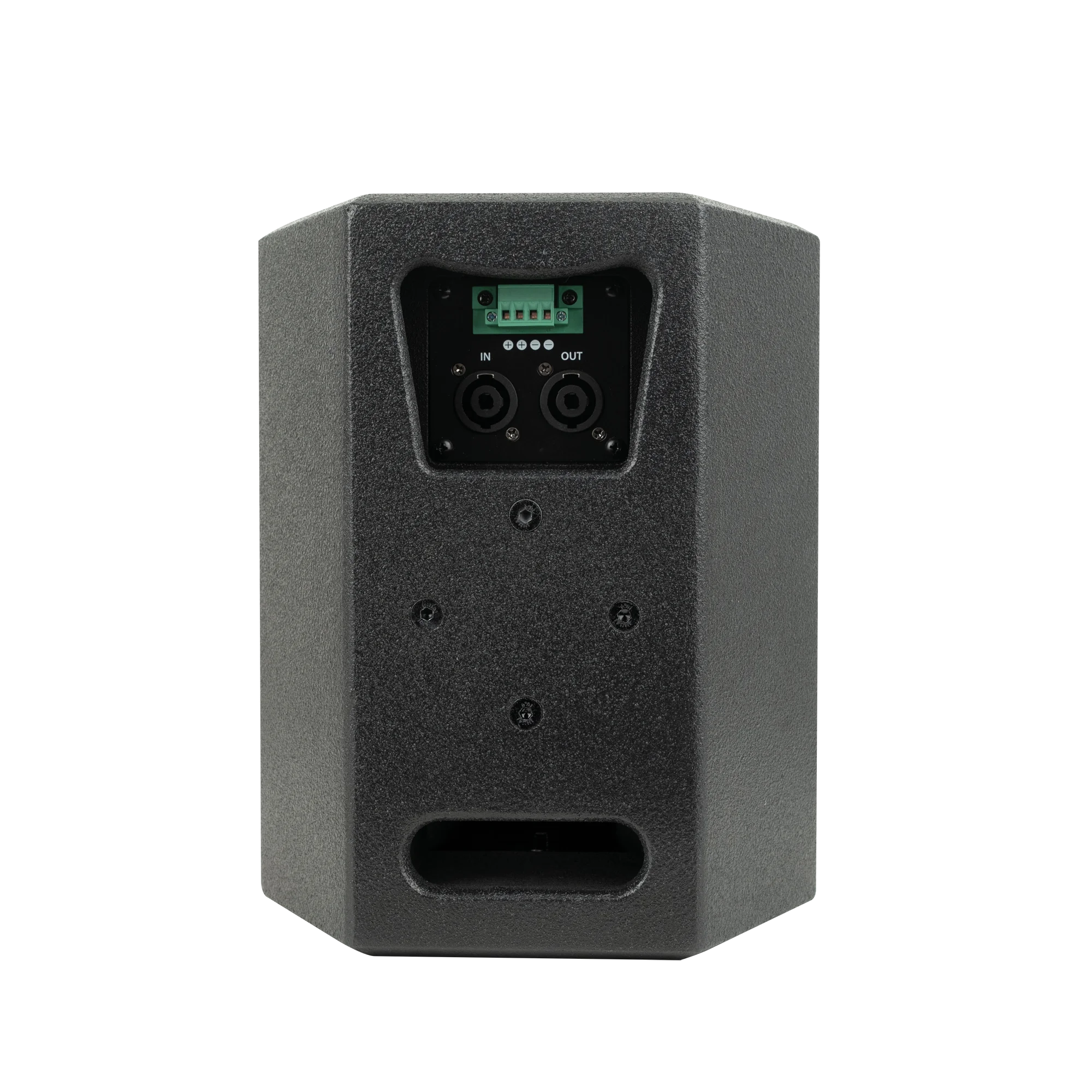

You can connect the speaker using a 4-pin Speaker cable or green terminal connector for quick and cost-effective installation.

Technical specifications
RMS input power: 125 W
Peak input power: 500 W
Passive input connector: Speaker Connector 4 pole / Terminal
Speaker system: 2-way
Speaker sensitivity (1W/1m): 93 dB
Speaker impedance: 16 Ω
Max. SPL / m: 120 dB
Frequency response minimum: 80 Hz
Frequency response maximum: 20000 Hz
Frequency response (-10dB) minimum: 80 Hz
Frequency response (-10dB) maximum: 20000 Hz
Low driver diameter: 5.25"
Low driver voice coil: 1.5"
High driver diameter: 1"
High driver voice coil: 1"
Radiation horizontally: 90°
Radiation vertically: 60°
Height (mm): 275 mm
Width (mm): 205 mm
Length (mm): 225 mm
Material: Plywood
Weight: 5.1 kg
IP rating: IP20 (indoor use only)
Rotatable horn: No
