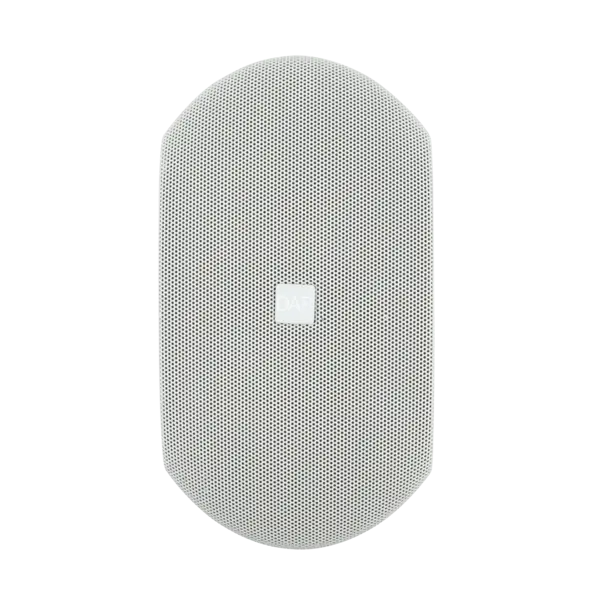

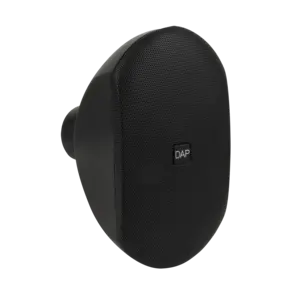

DAP | WMS4T | passive 4" design wall speaker | 100V

The DAP WMS loudspeaker range has been designed with versatility in mind. With 4-inch and 6-inch models available, they are suitable for use in a wide variety of places, including shops, bars, restaurants and even clubs.

Thanks to the included wall-mount plate, the DAP WMS speakers are extremely easy to install. The speakers can be mounted horizontally or vertically, and thanks to the ball joint, they can be easily rotated and set in a particular position. The DAP logo on the front of the speaker is also rotatable, so it always looks right.

Each model is available in 16-ohm and 100V versions. The 100V versions have a multiple current tap setting at the rear, so the volume can be easily adjusted to suit other components in the system. Clear, full sound is guaranteed with all models thanks to the speakers' 2-way system.

The DAP WMS speakers have a robust IP54-rated ABS enclosure, which protects the speaker from dust and splash water ingress. This means they can also be used in humid environments and sheltered outdoor locations.

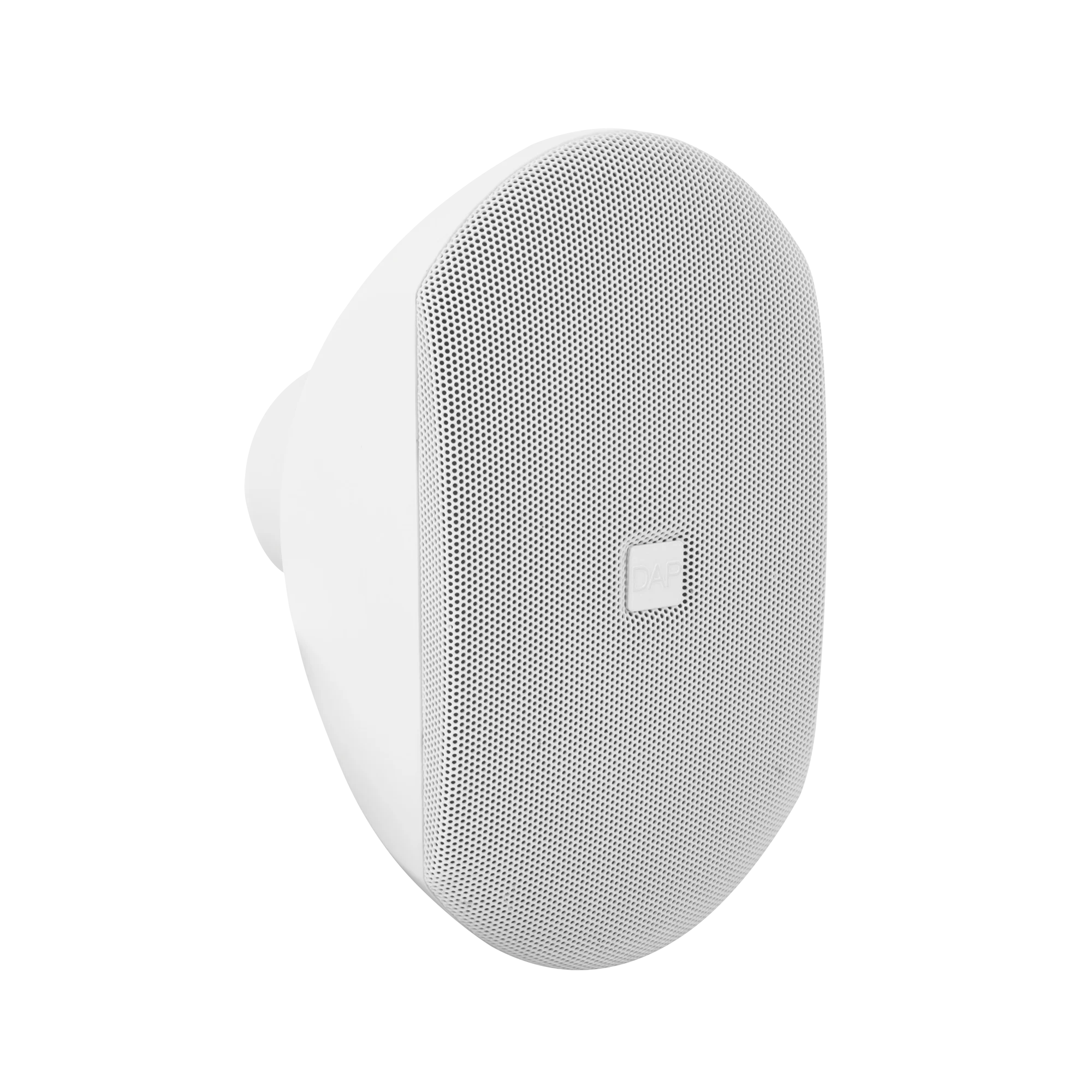

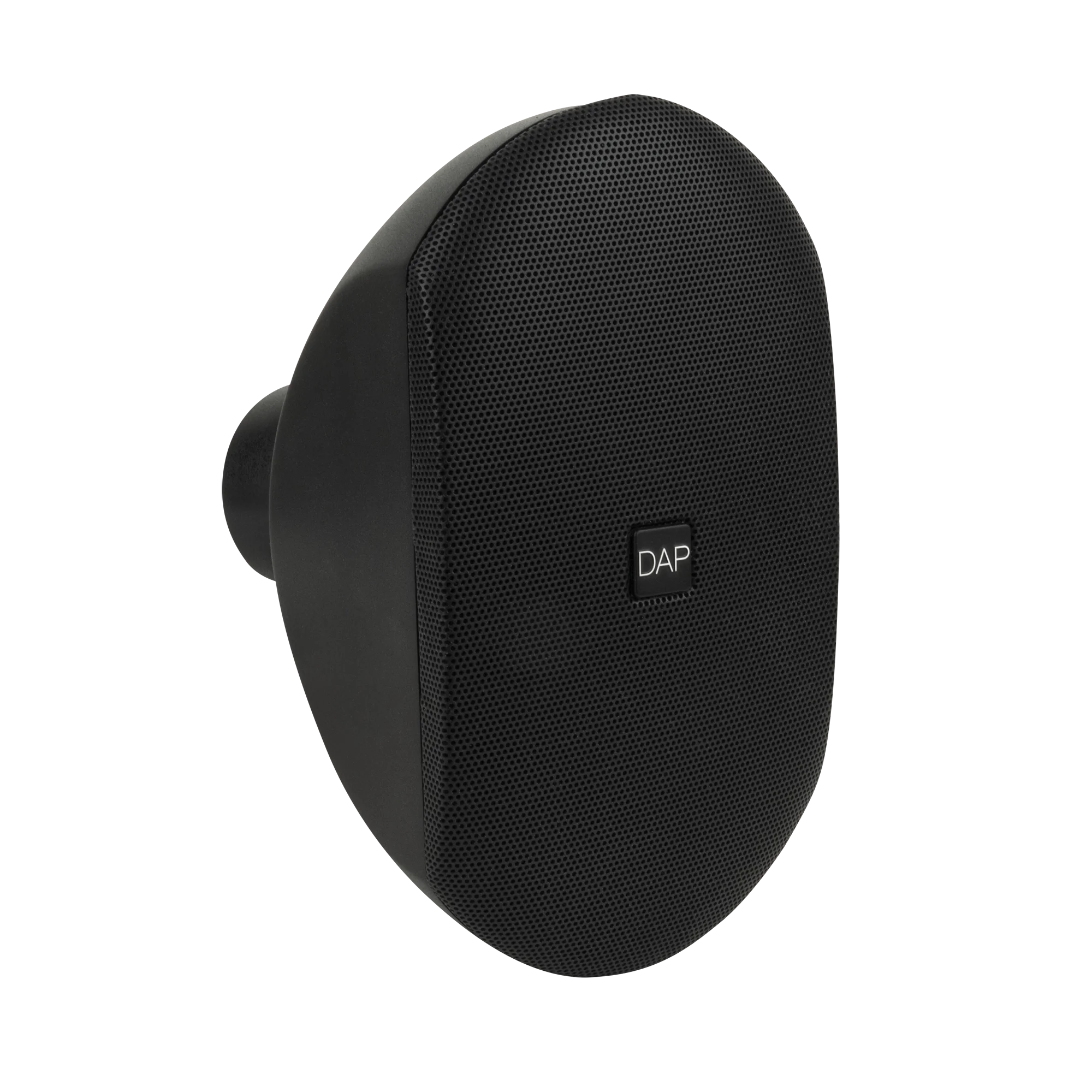

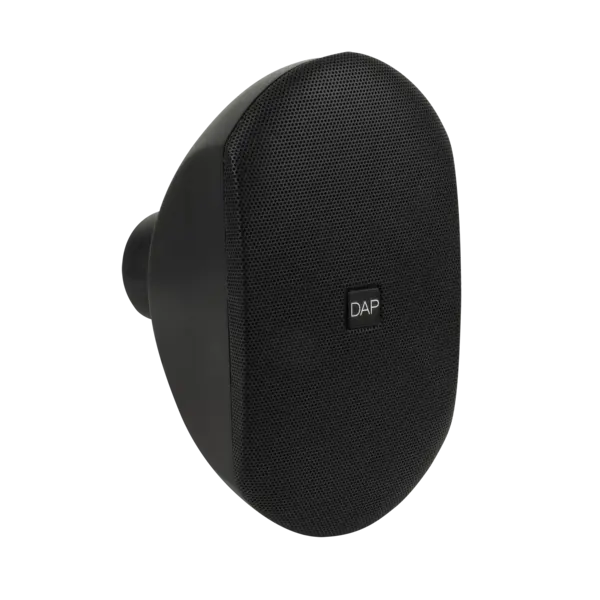

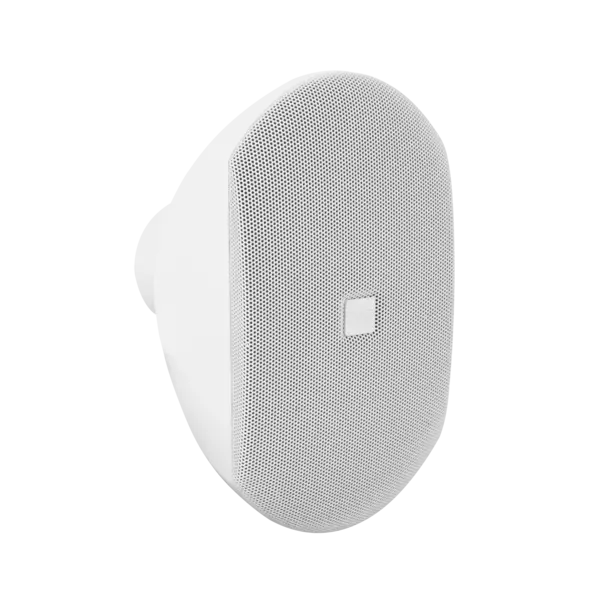

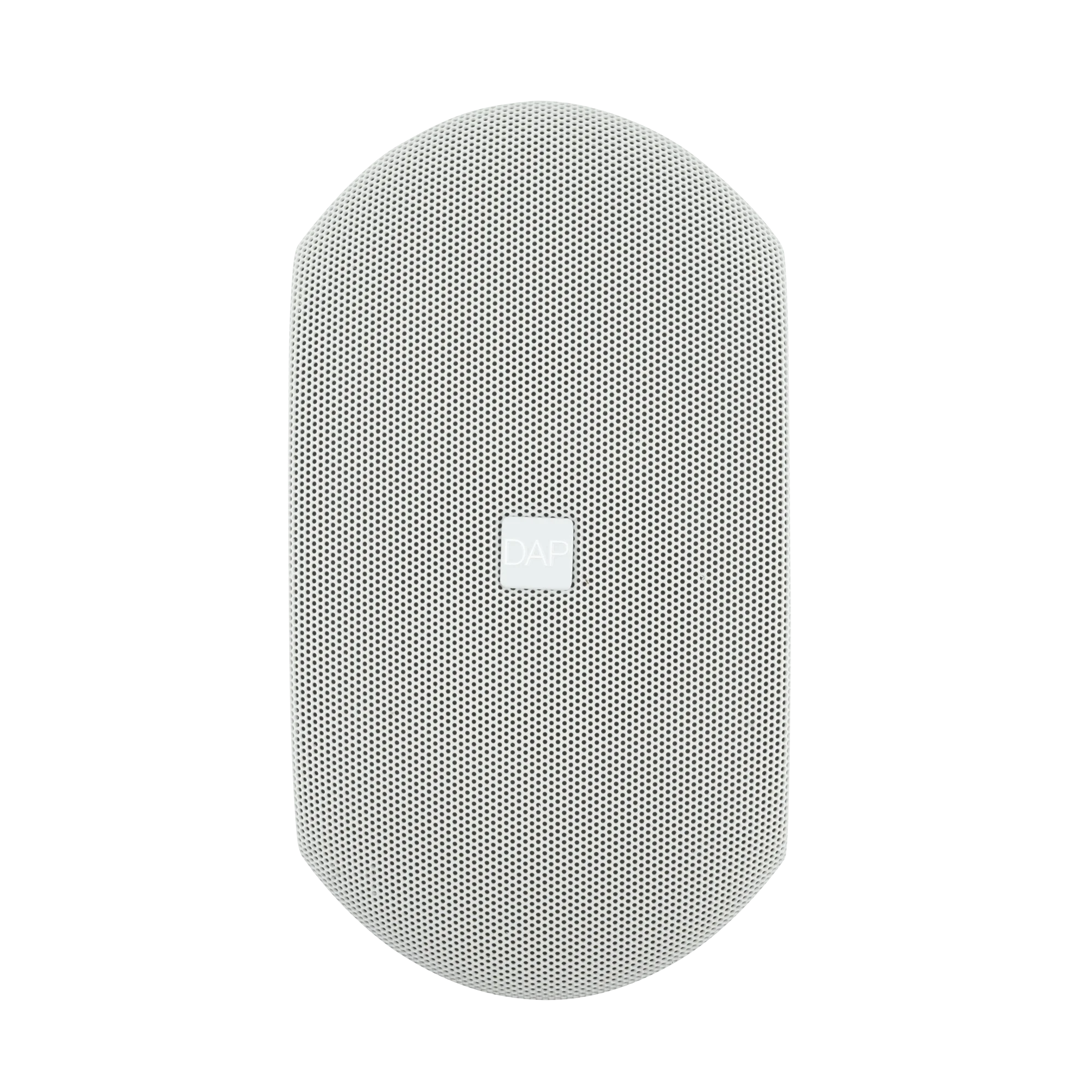

Available in both black and white, the stylish DAP WMS speakers fit beautifully into any environment.

The DAP WMS4T is a 4-inch design wall speaker suitable for 100 V audio installations. Thanks to the smart design of this speaker, mounting using the included wall mounting plate is very easy. This is very beneficial for installers to get the job done quickly. In addition, it is a versatile design speaker that has a ball joint, allowing it to be easily tilted over 30° in both horizontal and vertical directions and rotated over 90°. Therefore, the DAP logo on the front can also be rotated. Due to its quick, easy installation and versatile applicability, you will see this type of speaker a lot in public spaces, such as shops, restaurants and even clubs.

The WMS4T features a 2-way system and therefore has a clear full-range sound. With a maximum RMS power of 20 watts (80 W peak), it can produce an SPL of up to 98.5 dB at 1 metre distance. Volume can be adjusted to match the volume of other components in the system as multiple power taps are present on the transformer.

A sturdy ABS enclosure protects against penetrating dust and splash water. This allows you to use the speakers even in damp places and sheltered outdoor locations, such as a canopy.

Technical specifications
RMS input power: 20 W
Peak input power: 80 W
Transformer: 70+100 V
Line transformer steps: 2.5 / 5 / 7.5 / 15 W

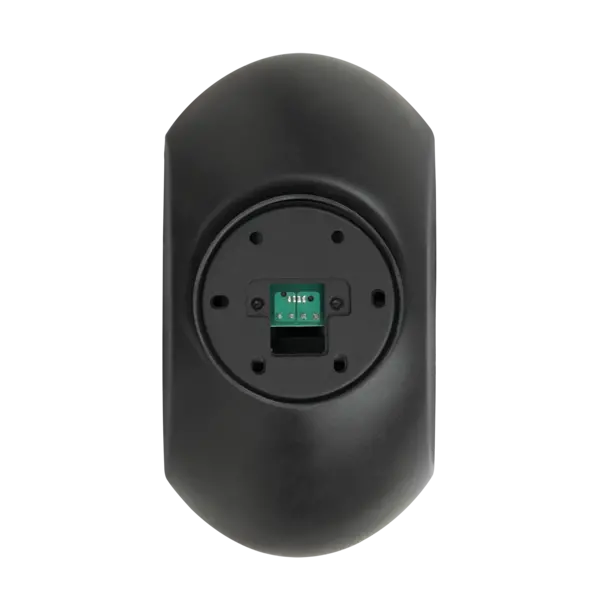

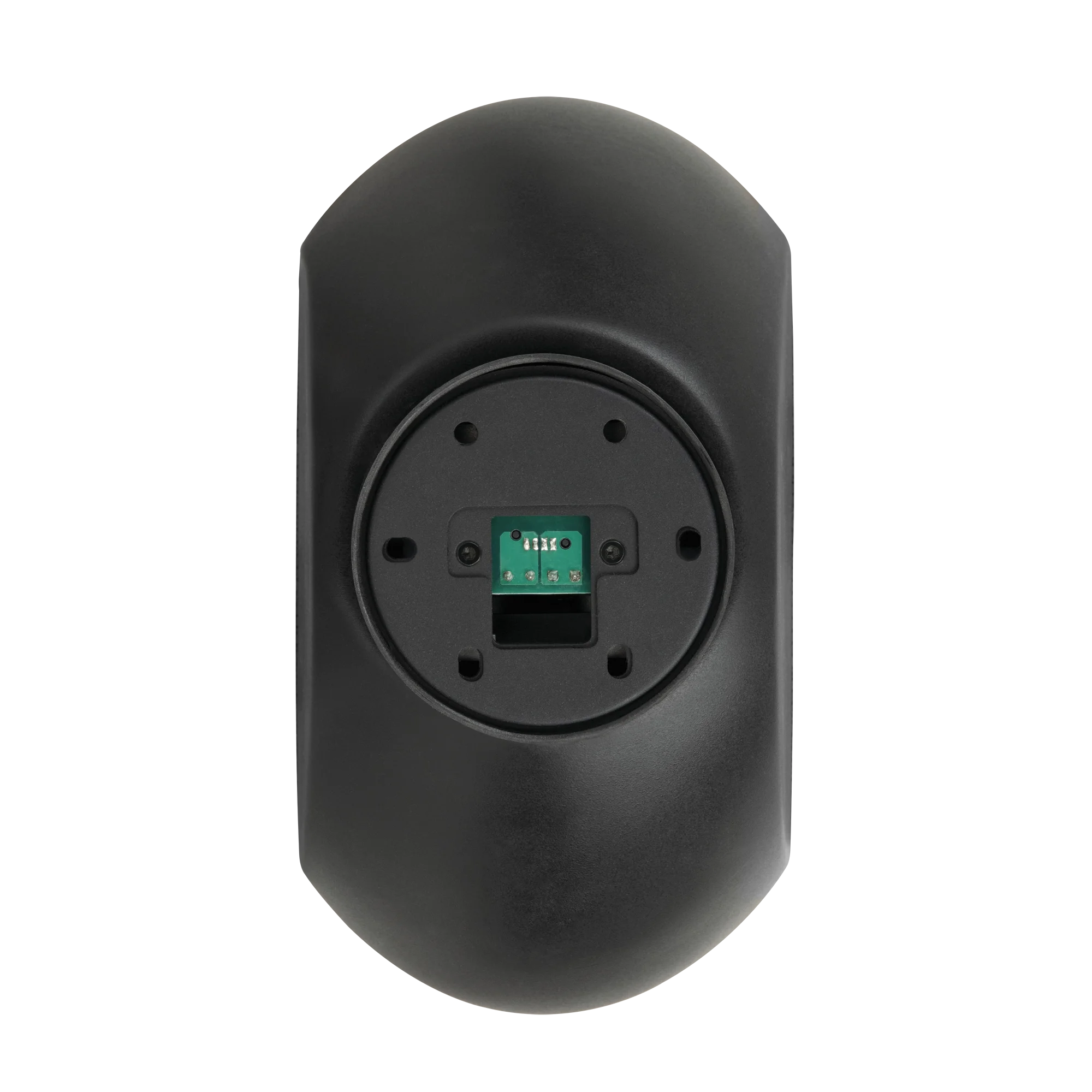

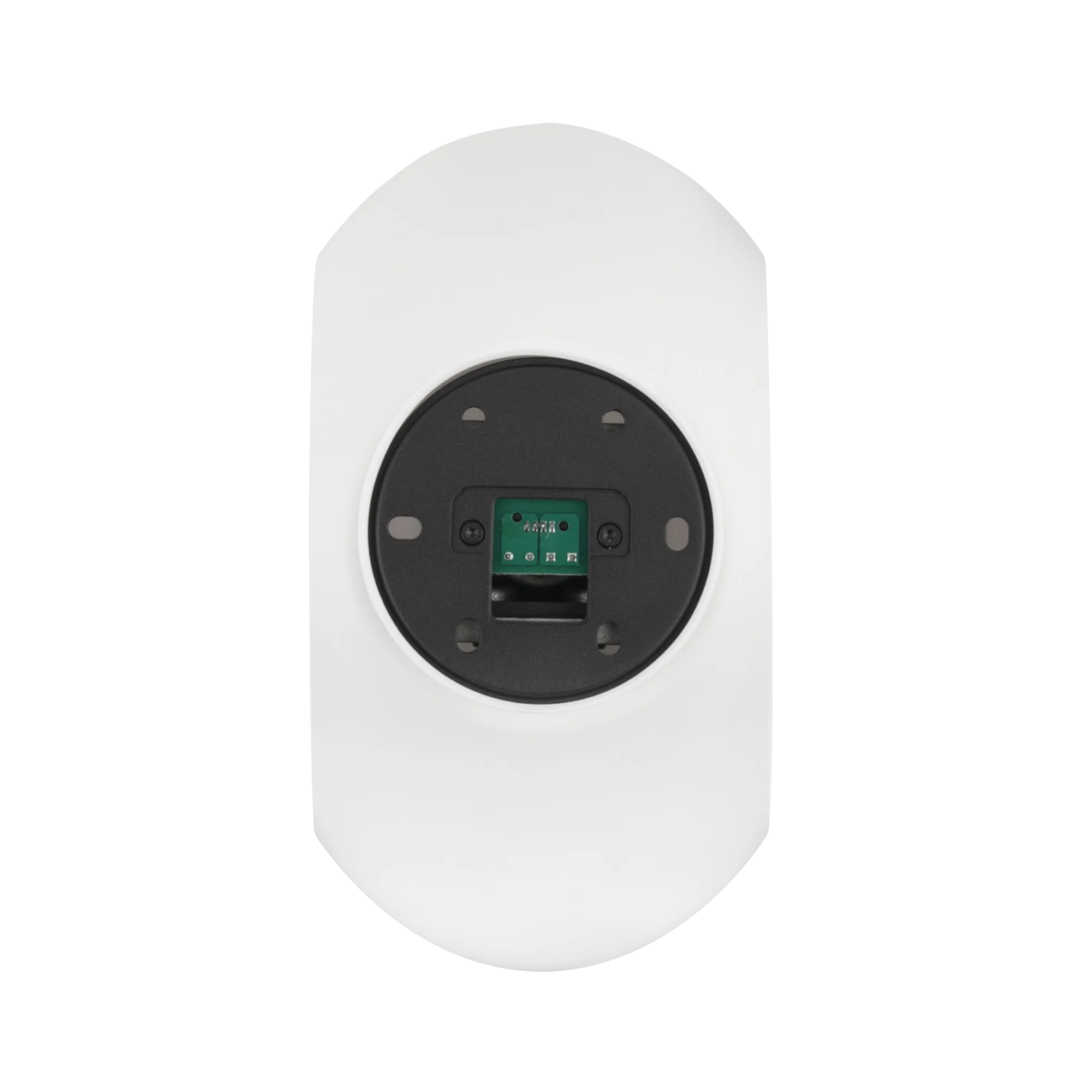

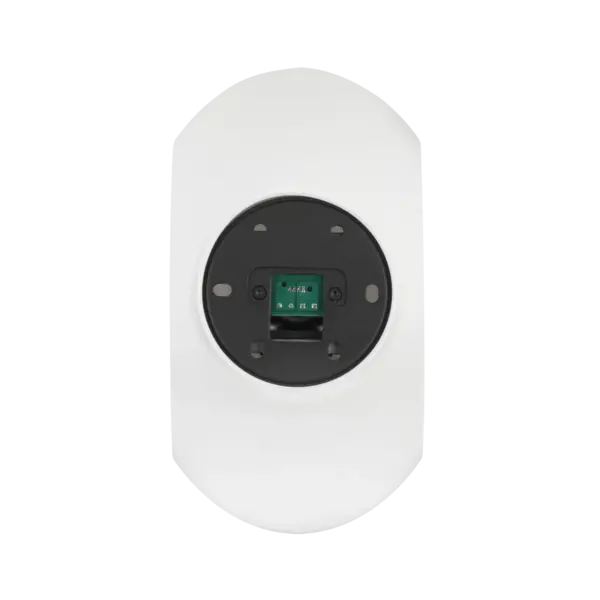

Passive input connector: Terminal
Speaker system: 2-way
Speaker sensitivity (1W/1m): 86.5 dB
Speaker impedance: 8 Ω
Max. SPL/m: 98.5 dB
Minimum frequency response: 90 Hz
Maximum frequency response: 20000 Hz
Low driver diameter: 4"
Low driver voice coil: 1"
High driver voice coil: 0.7"
Radiation horizontal: 60°
Radiation vertical: 30°
Height (mm): 260 mm
Width (mm): 144 mm
Length (mm): 180 mm
Installation depth (excl. Connector): 180 mm
Weight: 1.9 kg
IP rating: IP54
