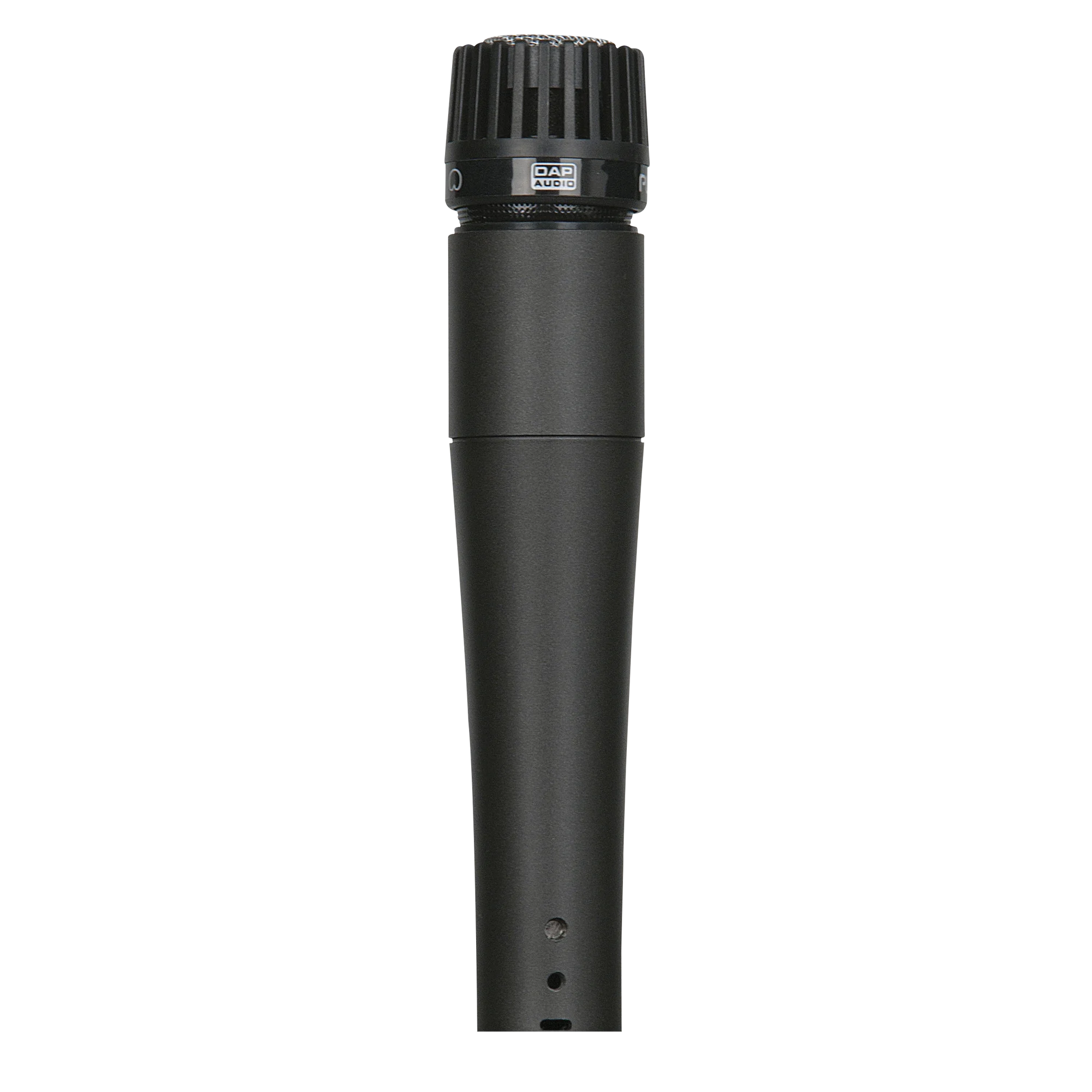

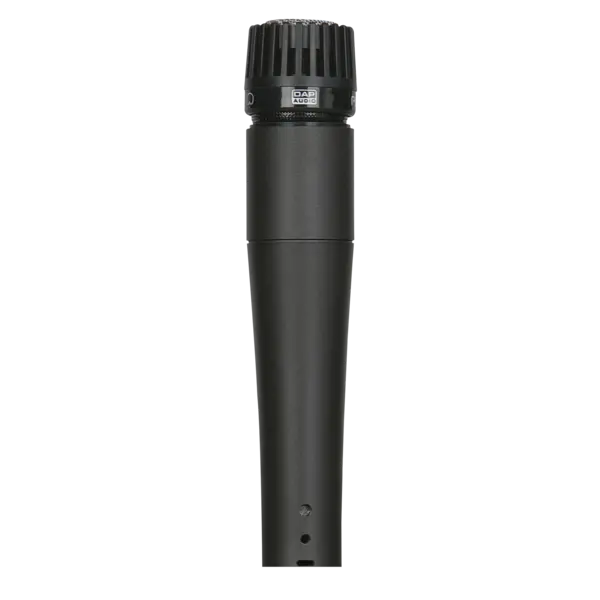

DAP | PL-07 | Cardioid Dynamic Instrument Microphone
Description

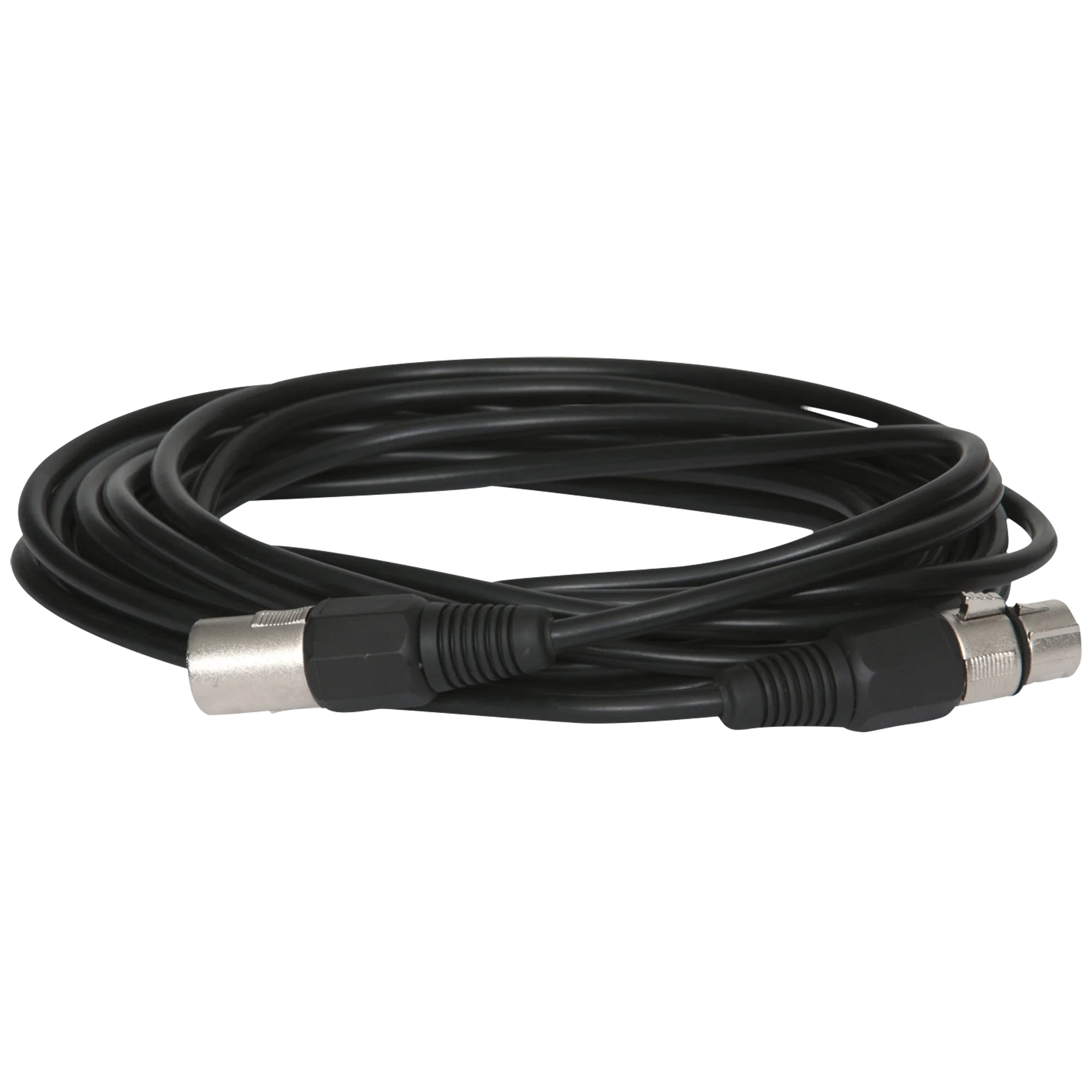

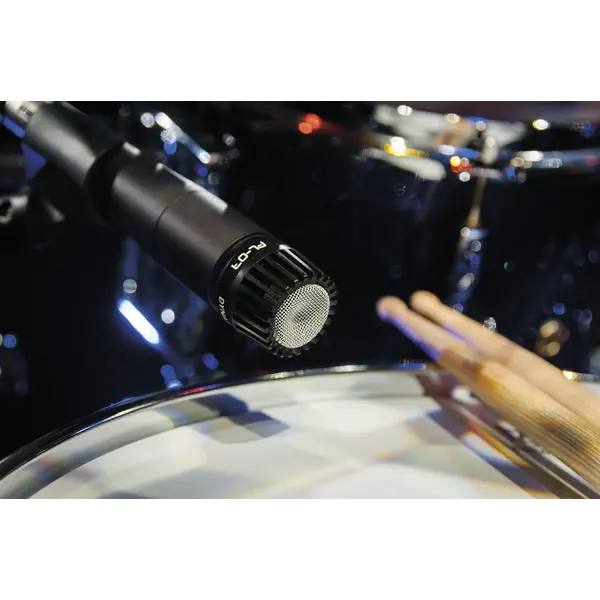

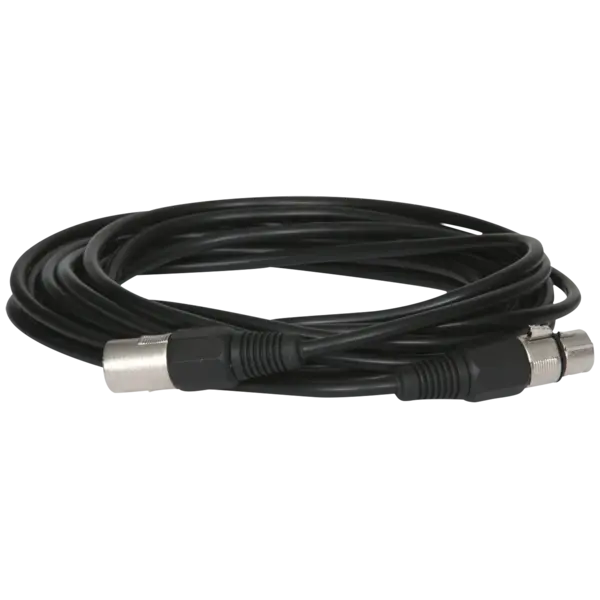

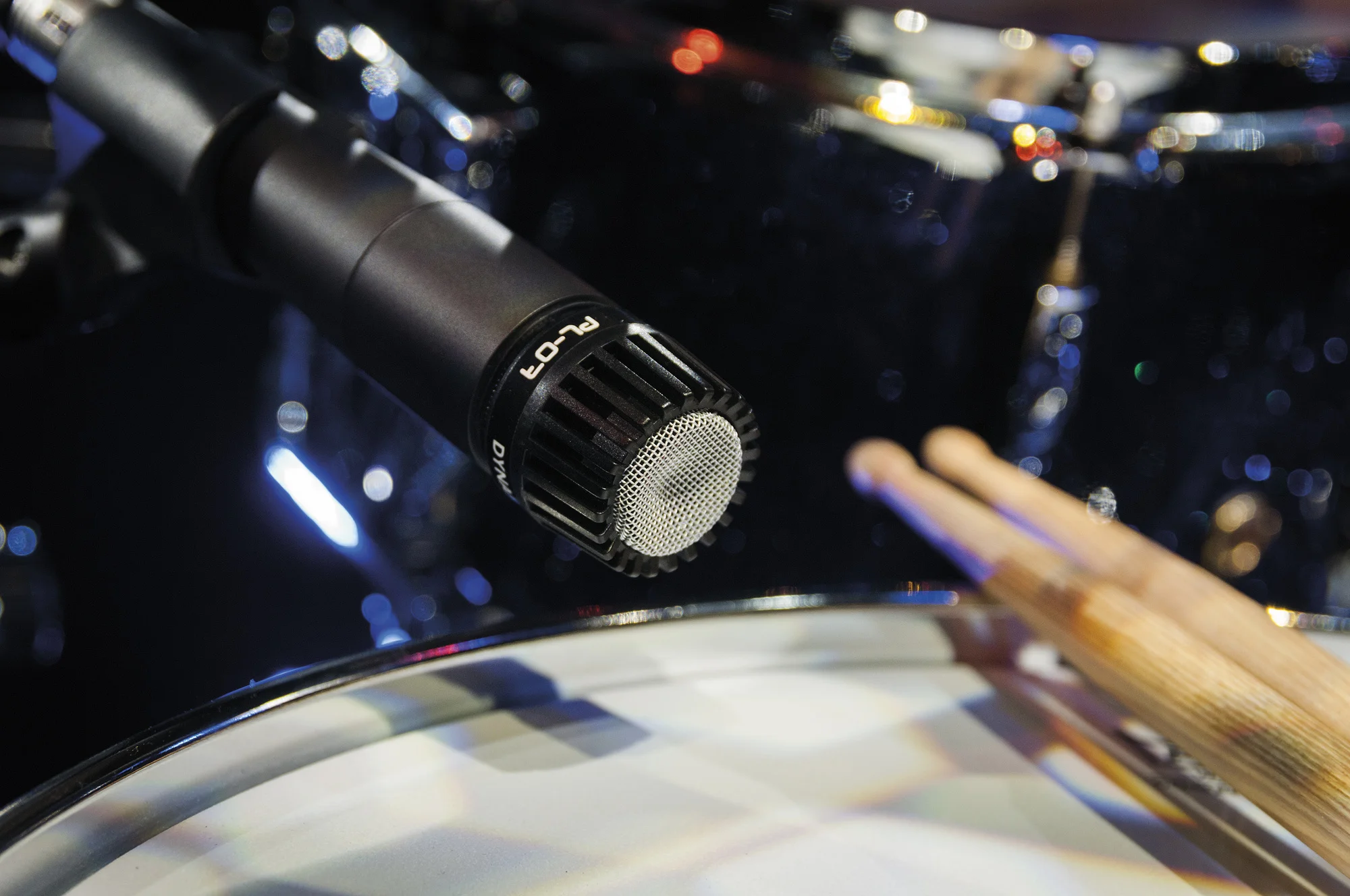

The DAP PL-07 is a slim cardioid dynamic microphone. It picks up sounds in the direction it points and suppresses any sound coming from behind. This limits the recording of background noise by the microphone and prevents feedback to a high gain level. It is designed for capturing instruments in live situations, such as guitar amps, bass amps, acoustic guitars, saxophones, snares, congas and woodwinds.For best results, we recommend keeping the instrument a short distance from the PL-07. It can handle high sound pressure levels without distortion thanks to its high maximum SPL. A six-metre XLR cable and a leather case are included.
Technical specifications
Microphone output jack: 3-pin XLR
Microphone impedance: 600 Ω
Microphone type: Dynamic moving coil
Microphone sensitivity: 1.7 mV
Polar pattern: Cardioid
Max. SPL: 137 dB
Minimum frequency response: 40 Hz
Maximum frequency response: 16500 Hz
Phantom power: No
Height (mm): 32 mm
Width (mm): 32 mm
Length (mm): 157 mm
Weight: 0.245 kg
Specifications
Output connection | 3-pin XLR |
Microphone impedance | 600Ω |
Microphone type | Dynamic moving coil |
Microphone sensitivity | 1.7 or 2.6mV |
Polar pattern | Cardioid |
Max. SPL | 137dB |
Frequency response minimum | 40 or 50Hz |
Frequency response maximum | 16000 or 16500Hz |
