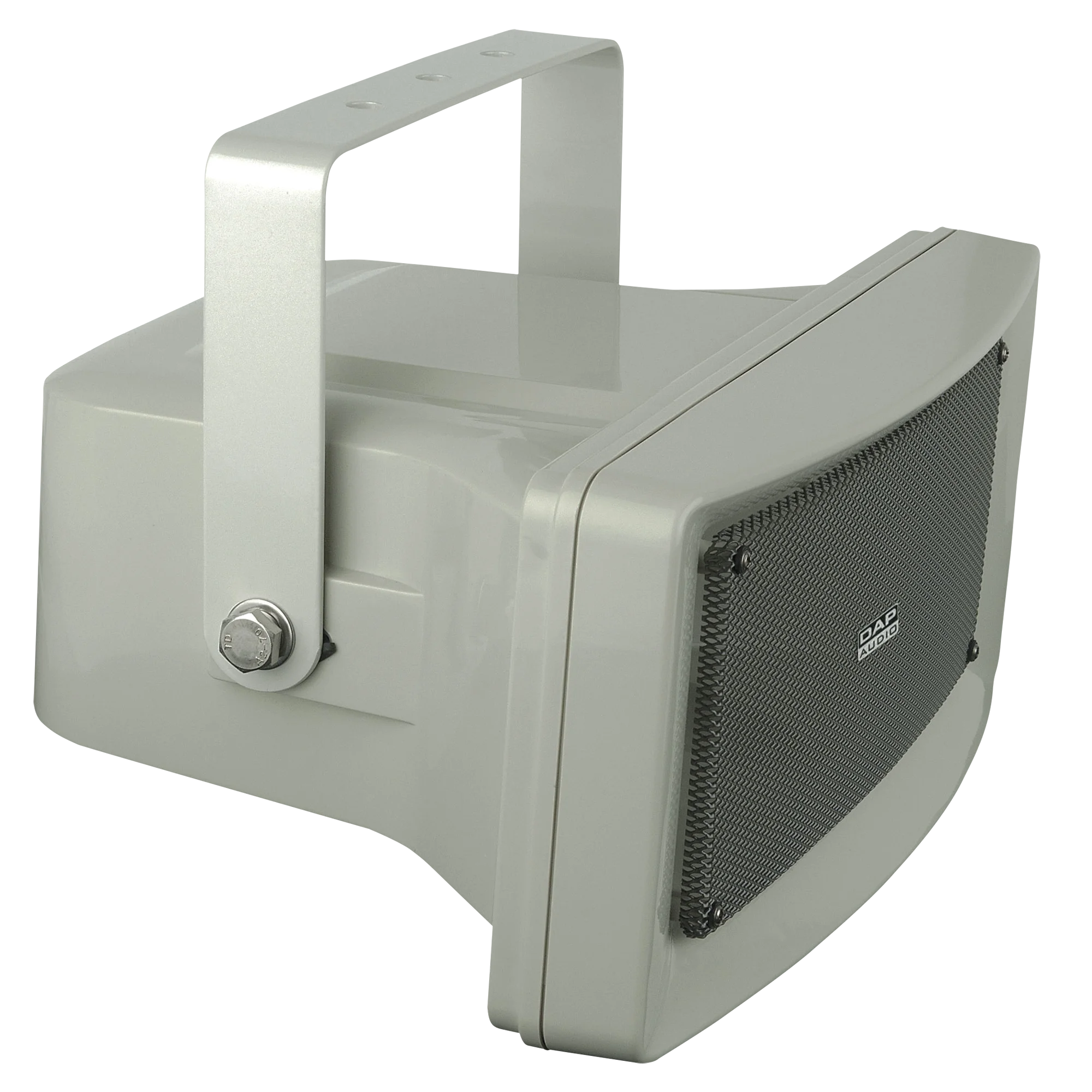

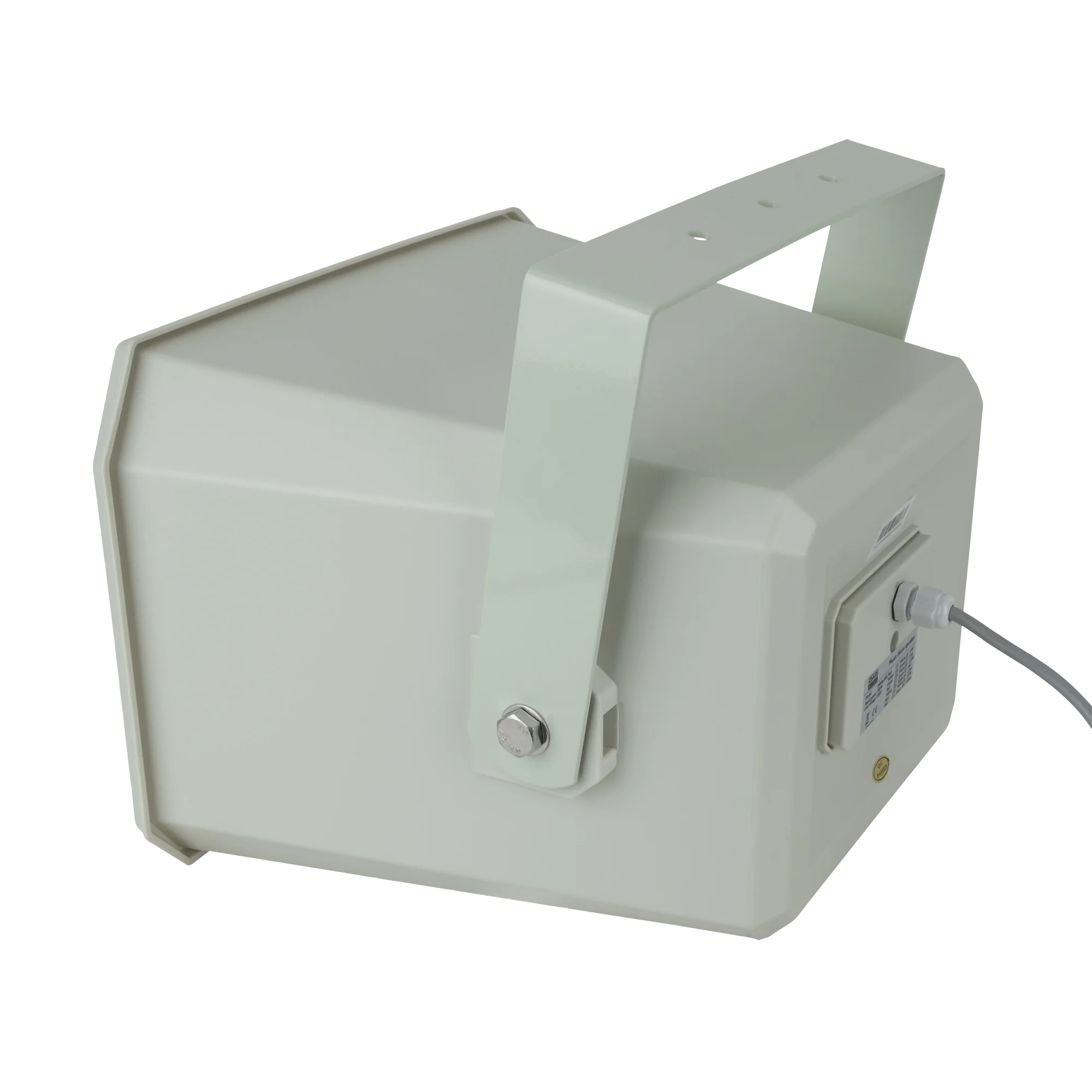

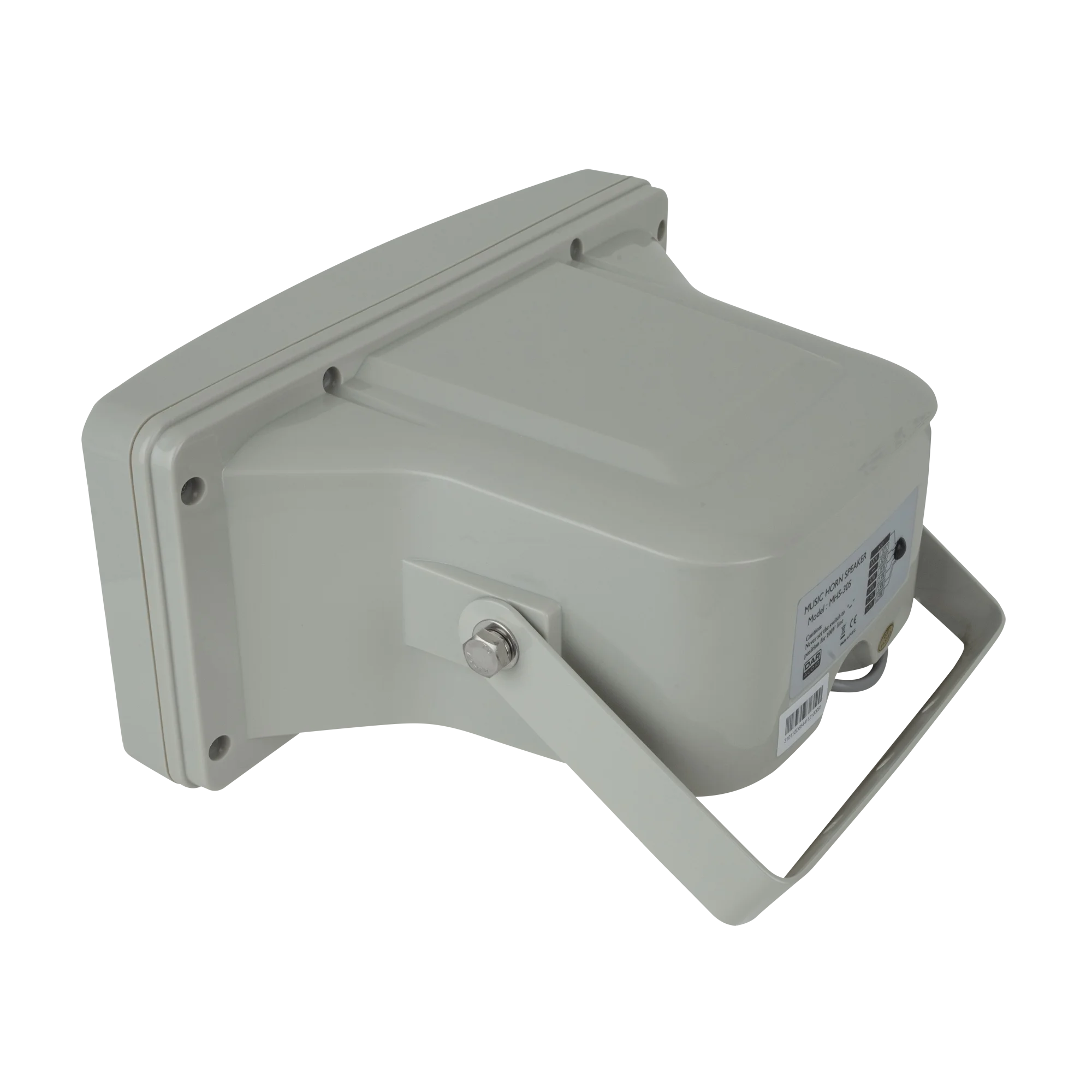

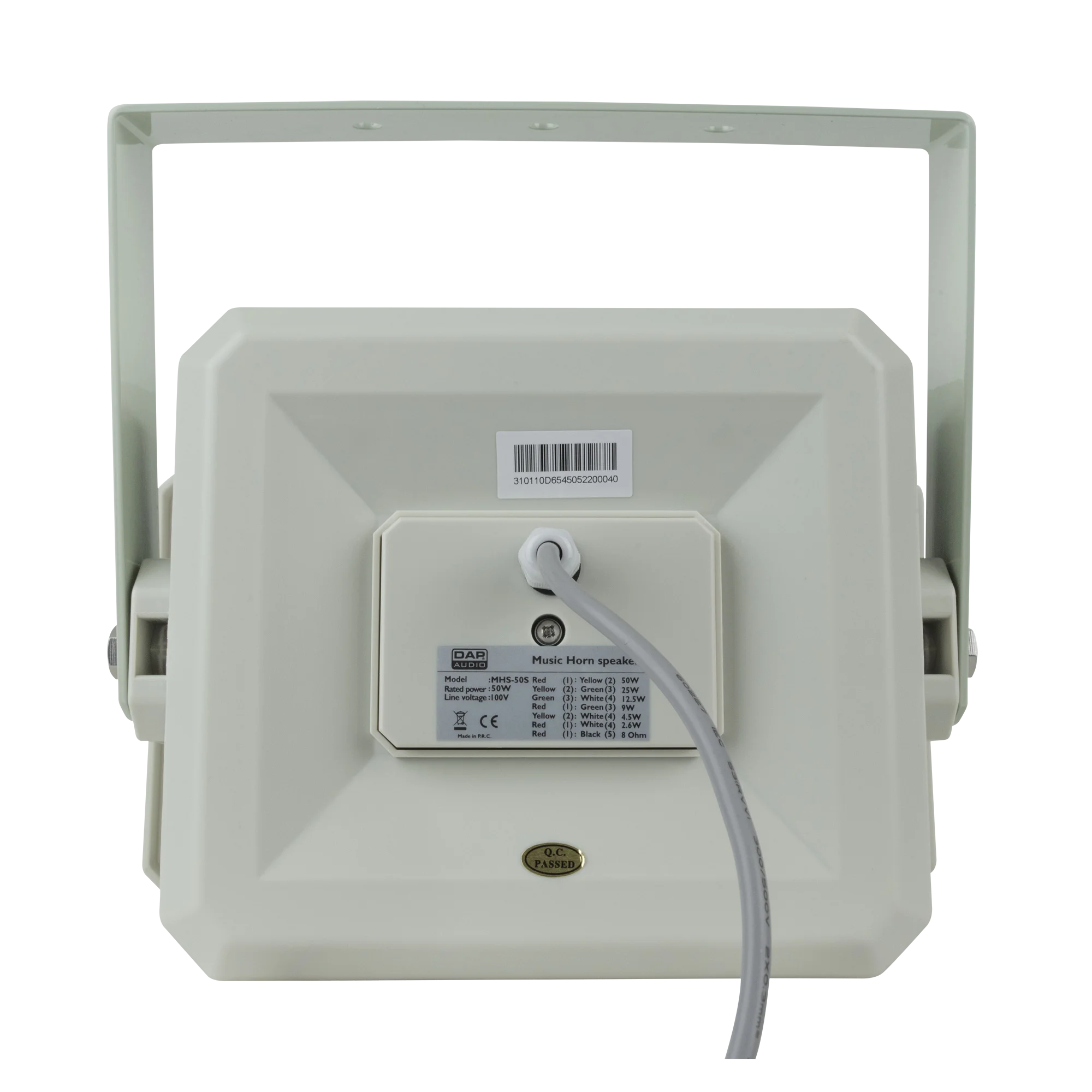

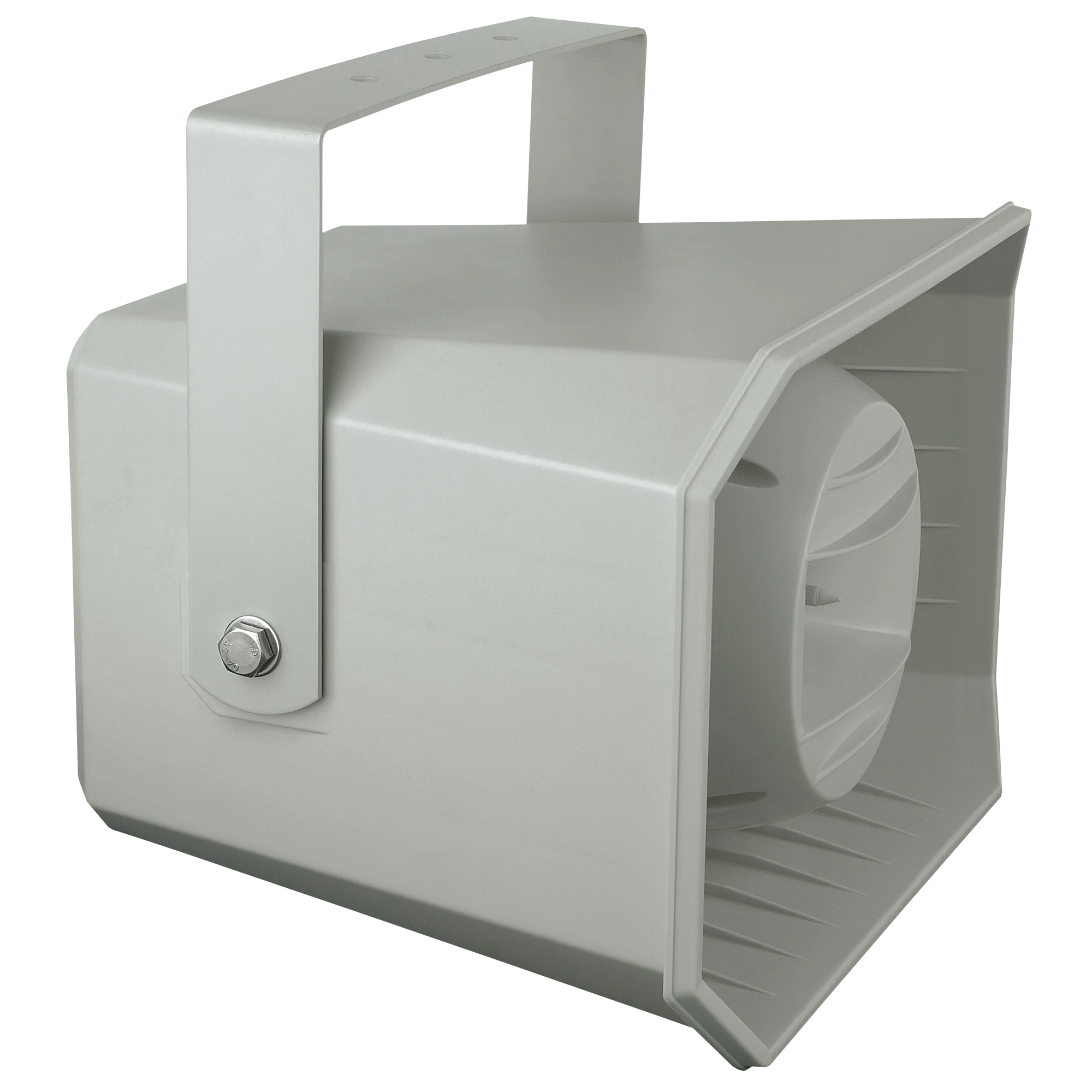

The DAP MHS-S is a passive 30- or 50-watt square horn loudspeaker suitable for 70V/100V outdoor installations in public places such as shopping centres, terraces and theme parks. You can match the volume to the other components in the system thanks to its line transformer with multiple power taps. It has a strong ABS housing and a bracket is included.
Technical specifications
Peak input power: 30/50 W
Transformer: 70+100 V

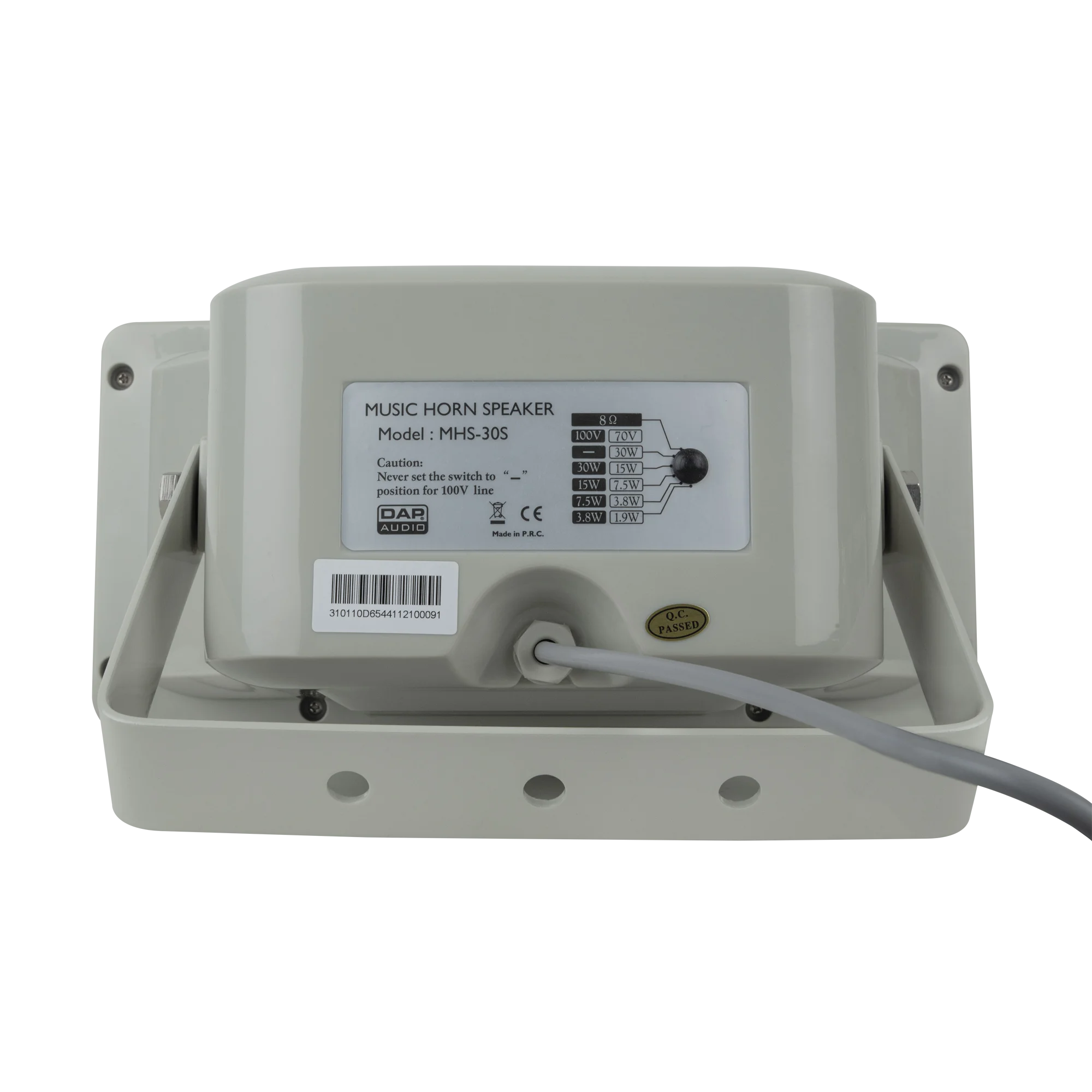

Line transformer steps: 3.8 / 7.5 / 15 / 30 W
Passive input connector: Open End
Speaker system: Horn
Speaker sensitivity (1W/1m): 97 dB
Speaker impedance: 8 Ω
Minimum frequency response: 100 Hz
Maximum frequency response: 10000 Hz
Speaker driver diameter: 25.9 mm
Height (mm): 253 mm
Width (mm): 310 mm
Length (mm): 363 mm
Weight: 3 kg
IP value: IP66
RMS input power | W |
Peak input power | 30 or 50W |
Speaker impedance | 8Ω |
Max. SPL | 113dB |
Frequency response minimum | 90 or 100Hz |
Frequency response maximum | 10000 or 20000Hz |
Crossover frequency low | Hz |
Crossover frequency high | Hz |
Woofer voice coil diameter | 6.5" |
Compression driver voice coil | 1" |
Dispersion angle (horizontal) | 105° |
Dispersion angle (vertical) | 140° |
Height | 253mm |
Width | 310mm |
Depth | 363mm |
Material | |
Weight | 3 or 3.9kg |
