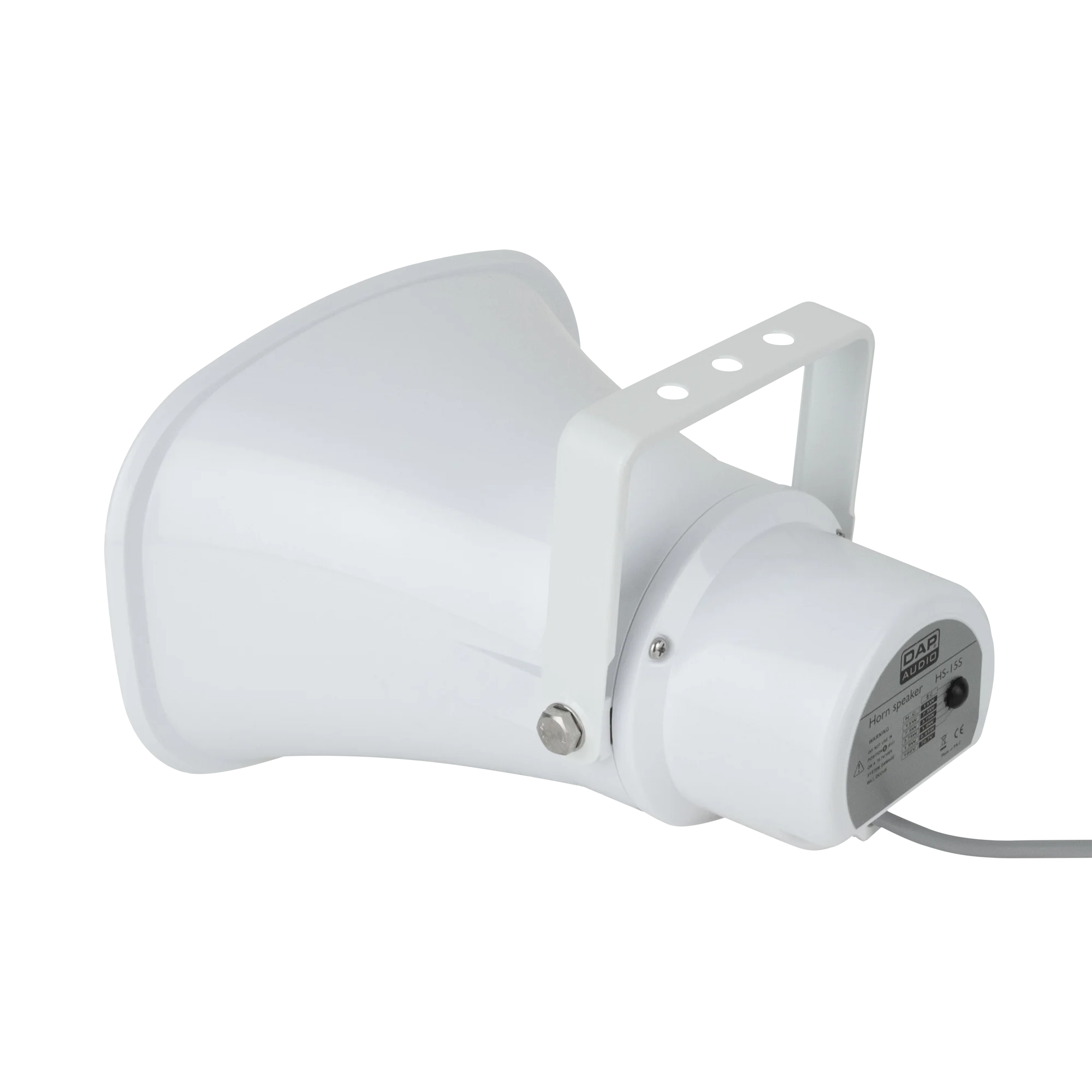

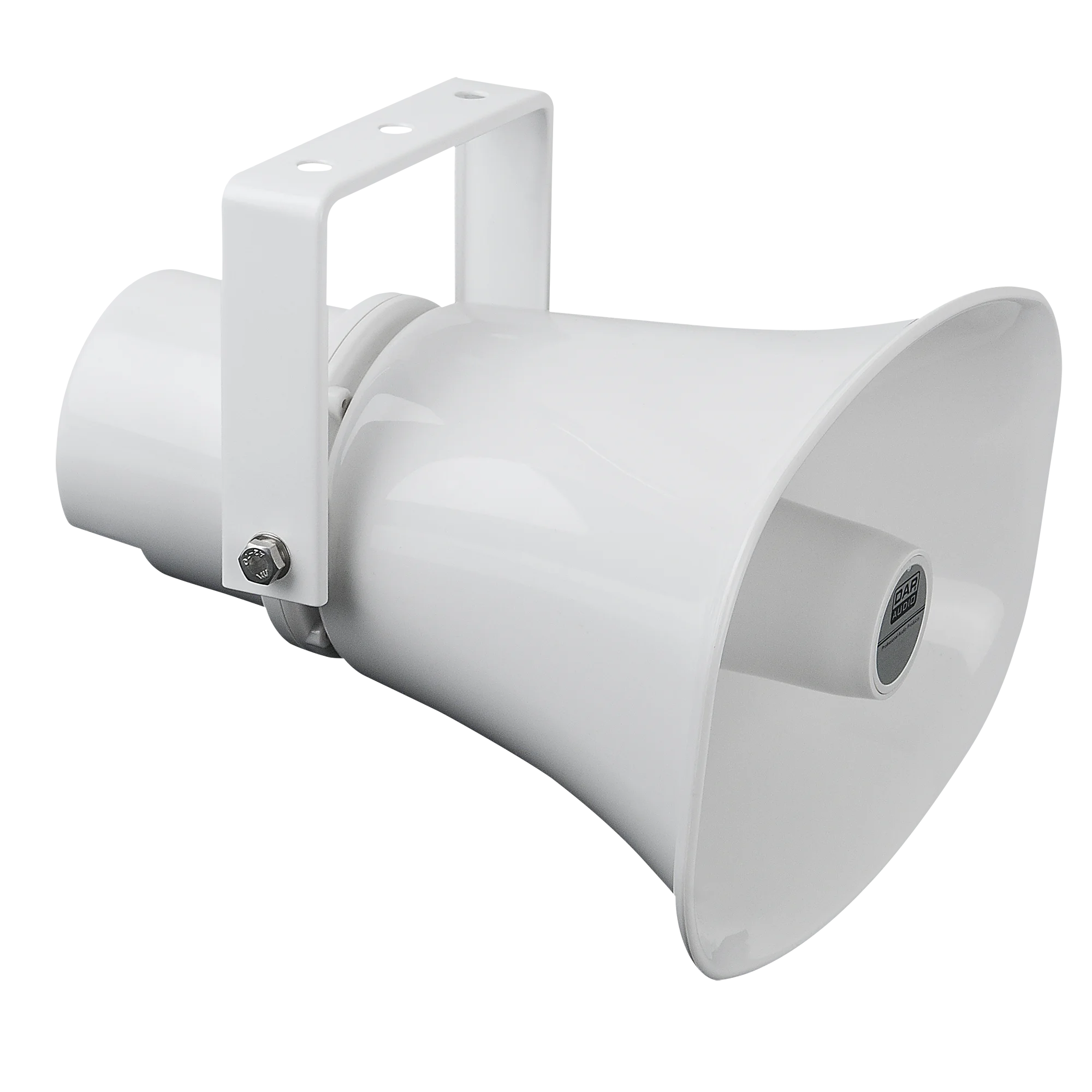

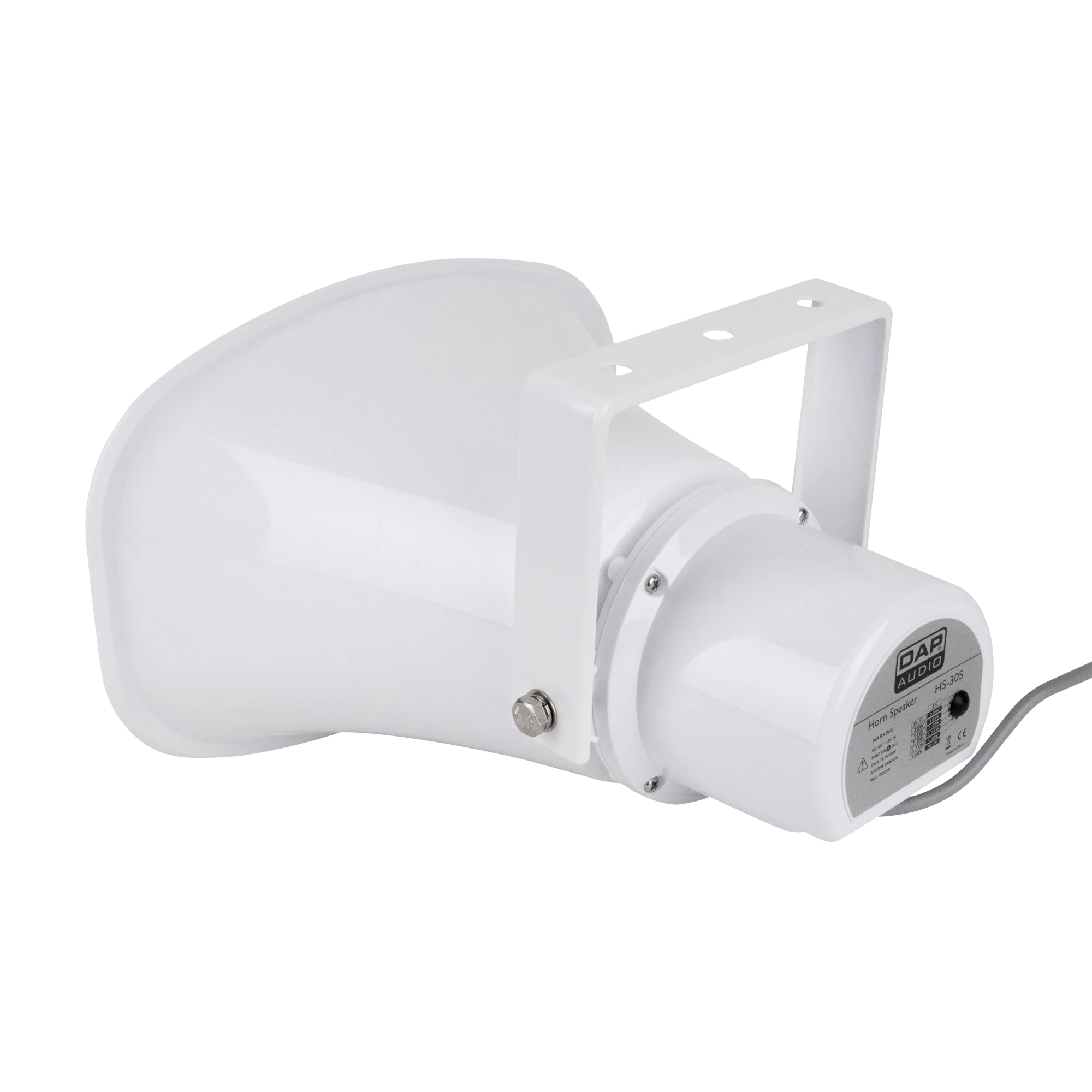

The DAP HS-S is a light grey passive 15- or 30-watt square horn loudspeaker suitable for public addressing. Because its horizontal dispersion is better than its vertical dispersion, it is often used for short-range applications.

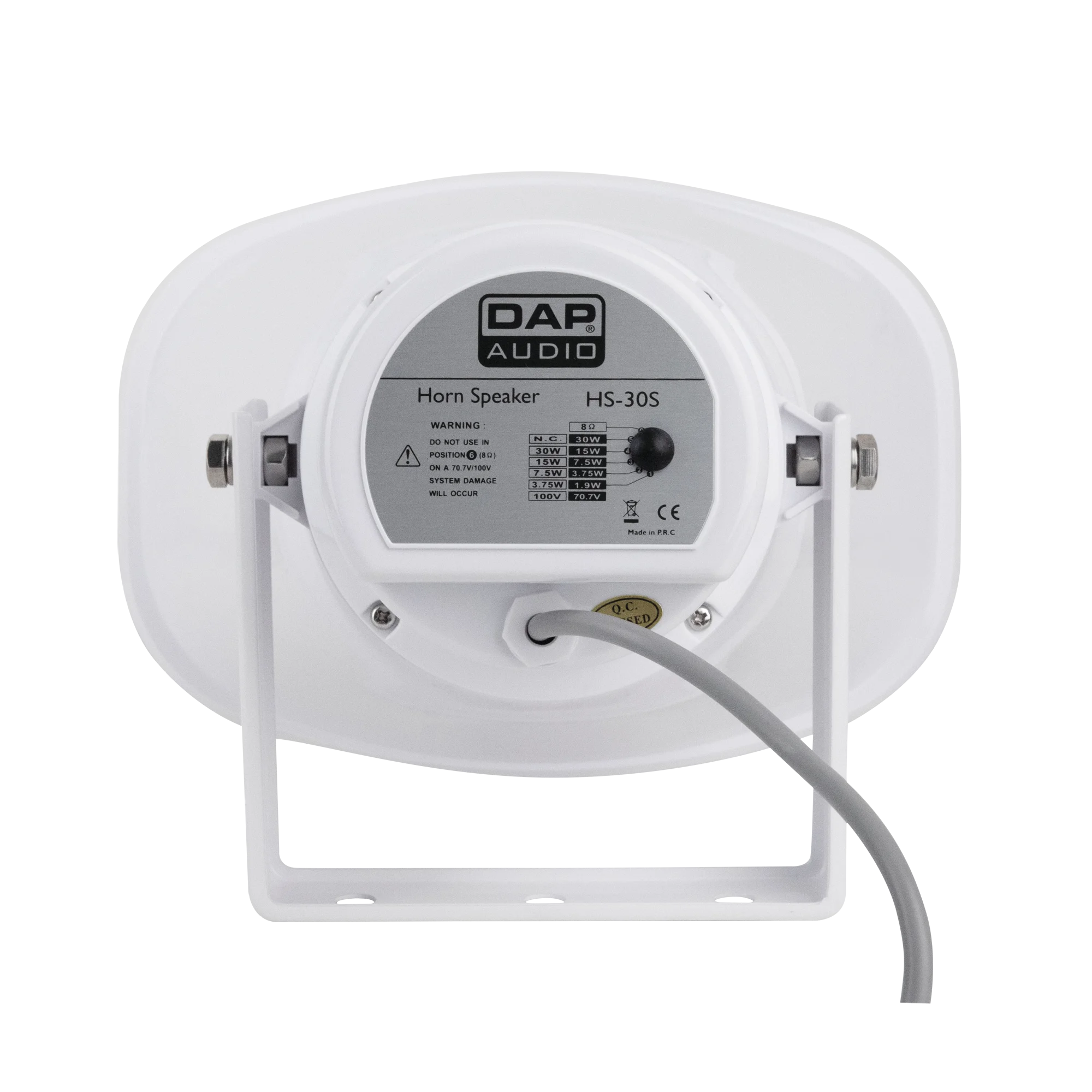

You can use the HS-30S in a 70V/100V installation to produce nice mid to high frequencies with a maximum SPL of 105 dB at 1 metre distance. You can match the volume to the other components in the system thanks to its line transformer with multiple power taps. With IP66 certification, it is suitable for outdoor applications. An included bracket ensures easy installation.
Technical specifications
Peak input power: 15/30 W
Transformer: 70+100 V
Line transformer steps: 1.9 / 3.75 / 7.5 / 15 / 30 W
Passive input connector: Open End
Speaker system: Horn
Speaker sensitivity (1W/1m): 105 dB
Speaker impedance: 8 Ω
Minimum frequency response: 350 Hz
Maximum frequency response: 8000 Hz
Height (mm): 215 mm
Width (mm): 280 mm
Length (mm): 285 mm
Weight: 2.25 kg
IP value: IP66
RMS input power | W |
Peak input power | 15 or 30W |
Speaker impedance | 8Ω |
Max. SPL | dB |
Frequency response minimum | 300 or 350Hz |
Frequency response maximum | 8000Hz |
Crossover frequency low | Hz |
Crossover frequency high | Hz |
Woofer voice coil diameter | " |
Compression driver voice coil | " |
Dispersion angle (horizontal) | ° |
Dispersion angle (vertical) | ° |
Height | 215 or 232mm |
Width | 162 or 280mm |
Depth | 222 or 285mm |
Material | |
Weight | 1.4 or 2.25kg |
