DAP | EVO 5T | Passive 5" 100 V speaker set

The DAP Evo range offers solid 4" to 8" wall-mounted speaker sets with multi-angle brackets that are easy to install and adjust, suitable for background music in public places, businesses and theme parks. They are available in three versions: active indoor, passive outdoor and 100 V outdoor sets. The speakers have different mounting options for both horizontal and vertical placement and are available in black and white versions. This makes them suitable for any environment.

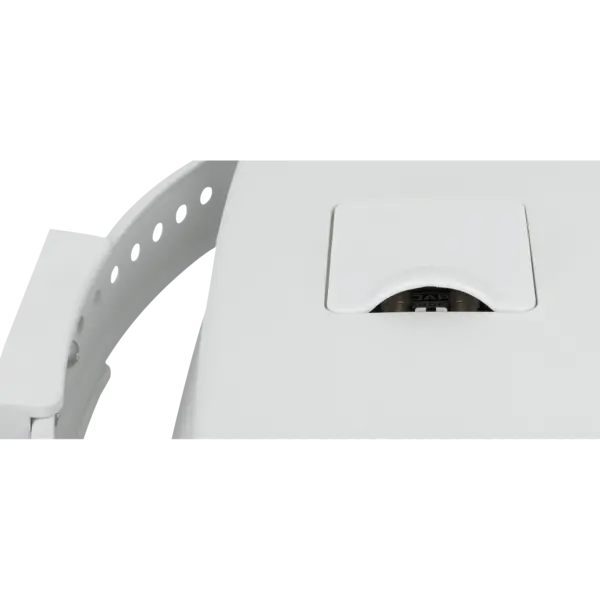

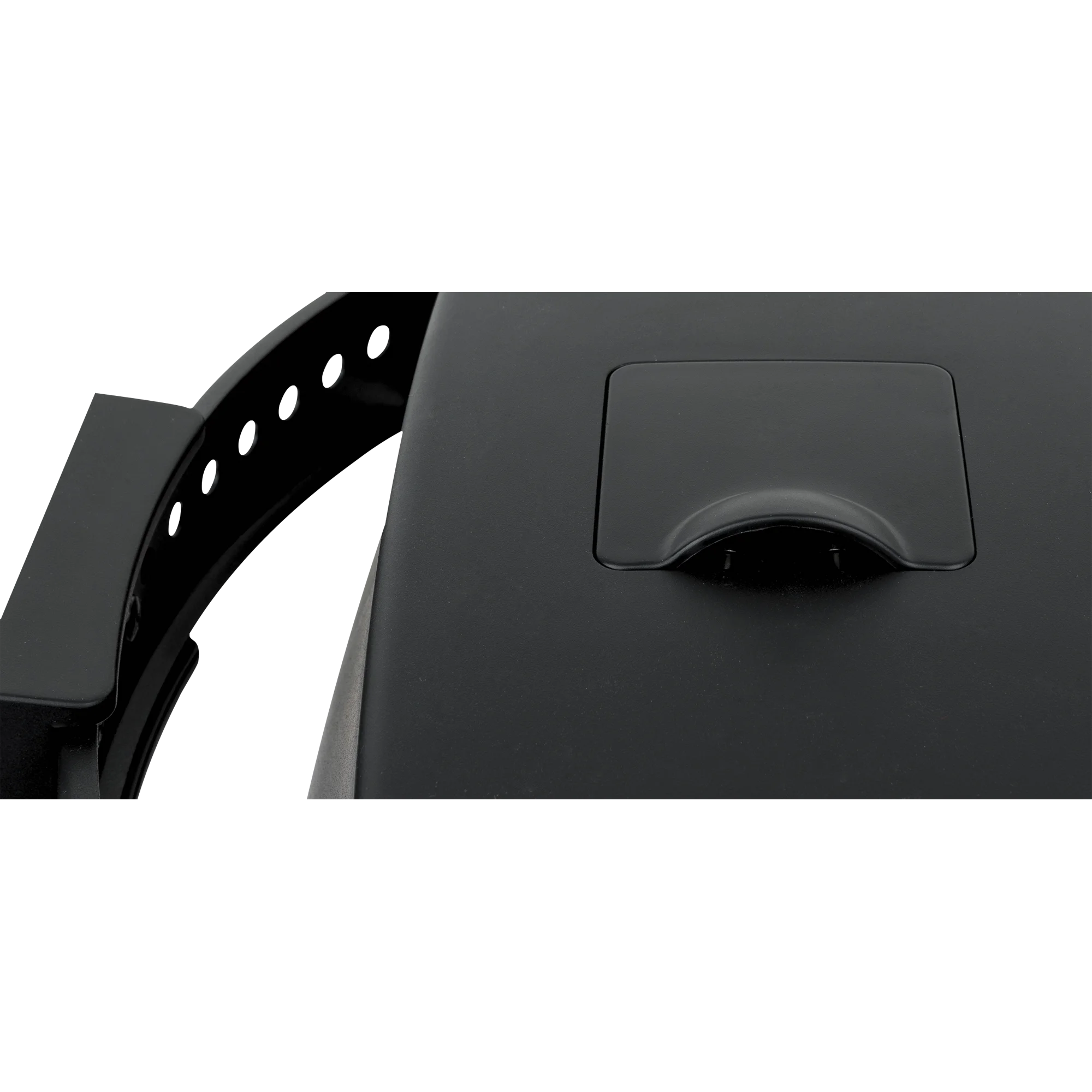

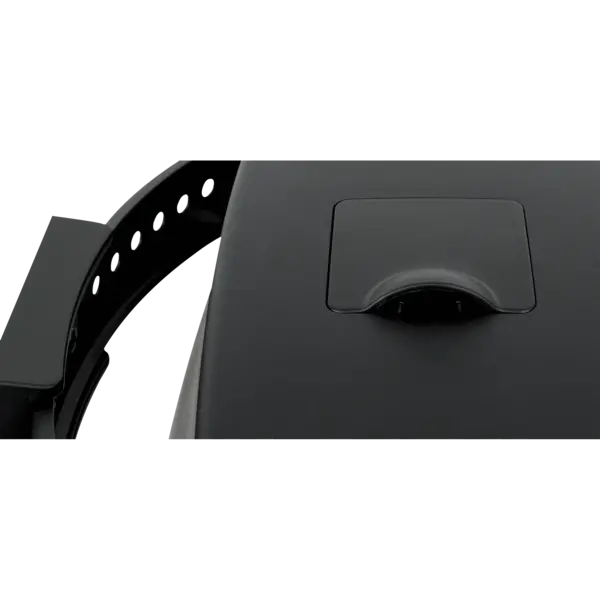

The active Evo speakers feature a built-in Class-D amplifier with 2-band equaliser and volume control. The RCA and balanced green terminal inputs allow quick and cost-effective installation. The passive Evo speakers are suitable for outdoor installations. In fact, they have an IP54 rating and are equipped with a cap to protect the connectors from heavy rain. The 100 volt Evo speakers are also IP54 rated and are suitable for both 70 and 100 volt installations with 5 power taps and low impedance.

Interested in our DAP Evo range? Then contact us now for free advice and receive an offer you can't refuse or check out our product pages for more information.

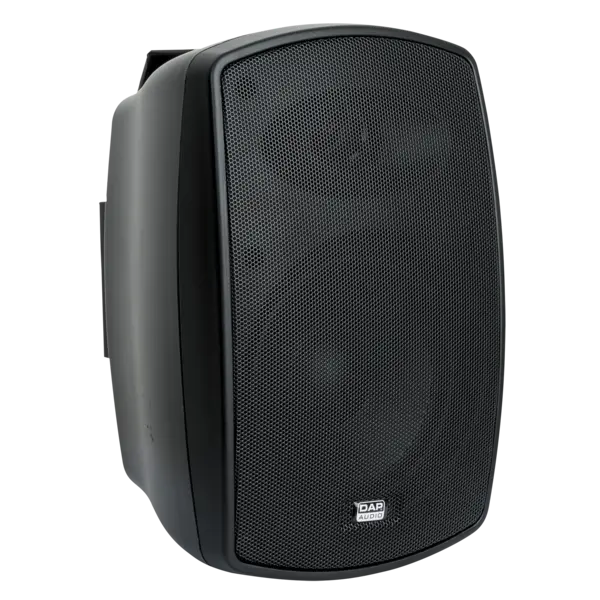

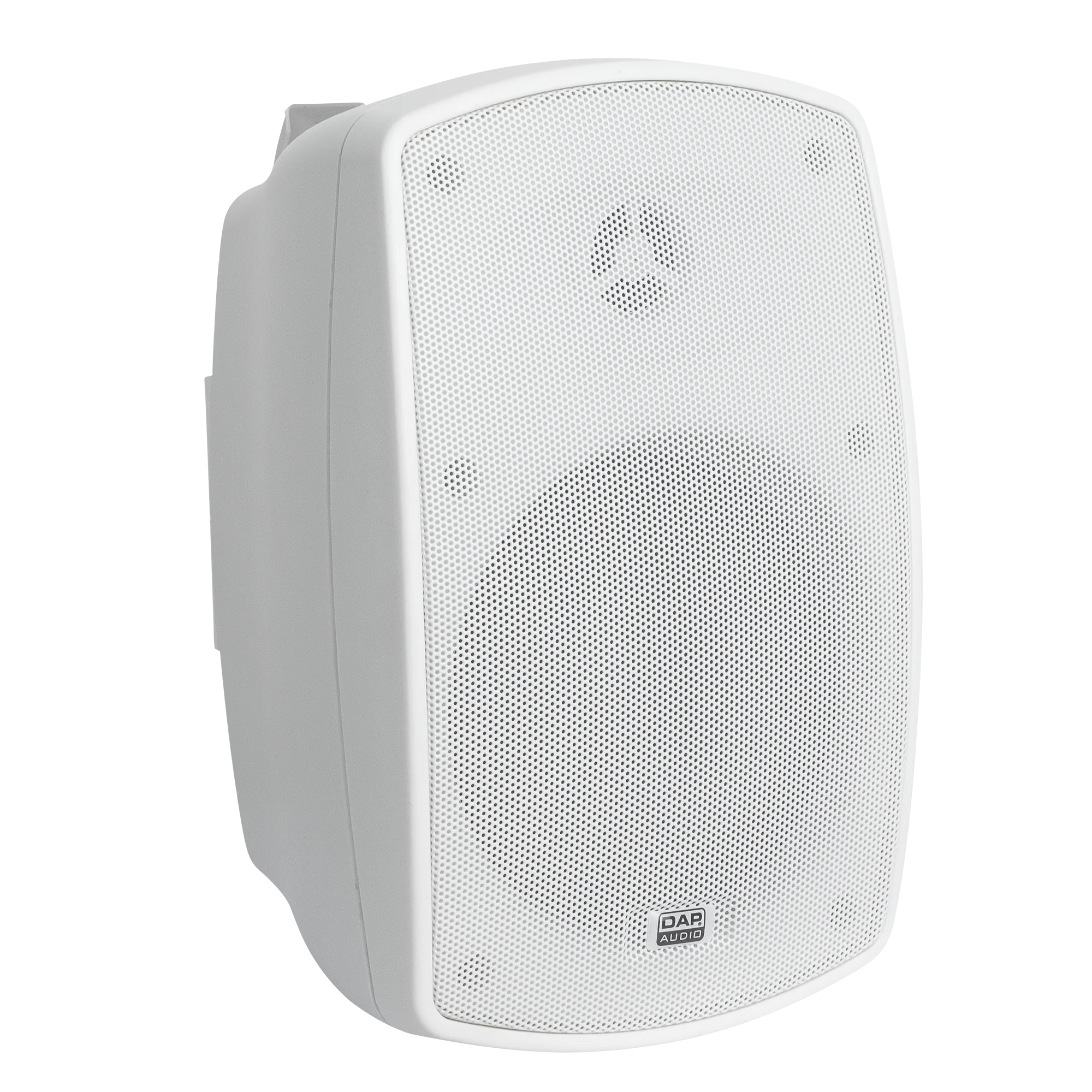

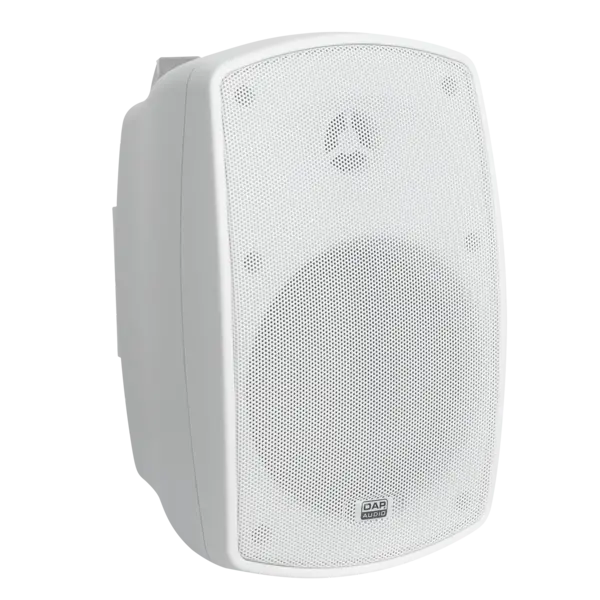

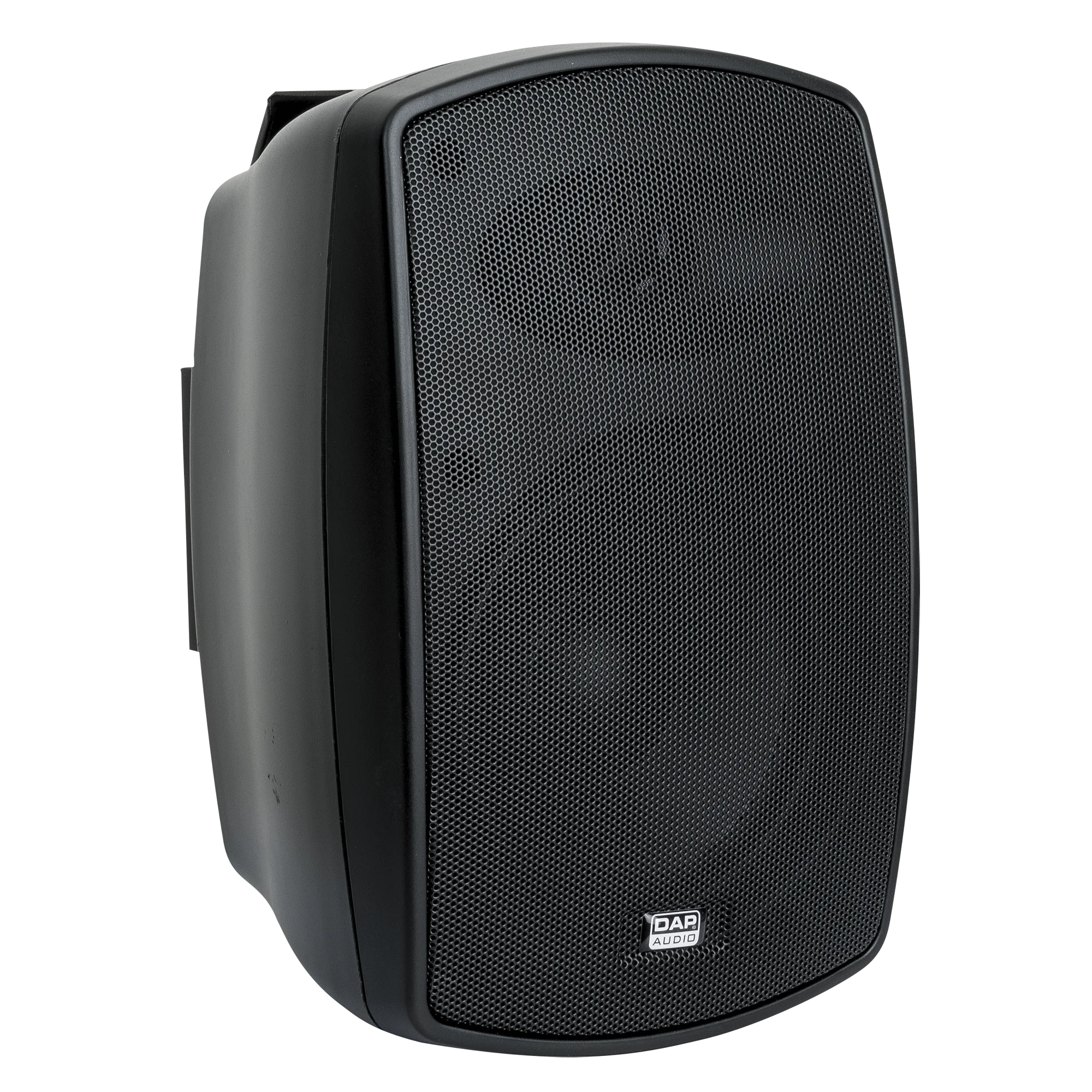

The DAP EVO 5T is a set of two 5.25-inch passive 70/100V installation speakers for producing excellent sound quality up to 113 dB at one metre distance. With a peak power of 120 watts each, these 2-way Hi-Fi speakers have a high load capacity considering their size. This speaker set is therefore a perfect full-range audio solution for many public spaces and commercial areas such as offices, shopping malls and conference halls.

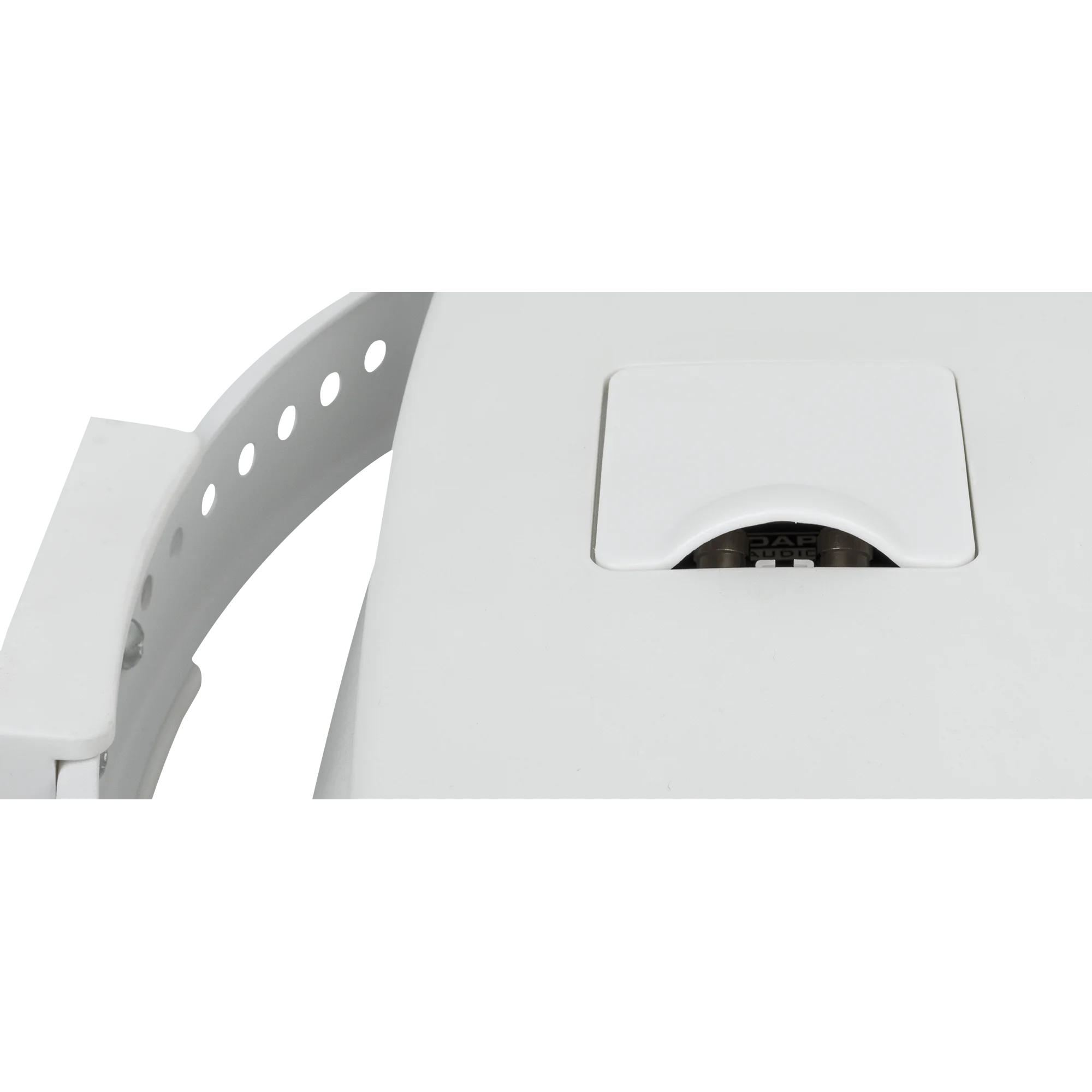

The EVO 5T fits into any indoor or outdoor location thanks to its elegant design (available in black and white finishes), strong ABS enclosure and IP54 rating for protection against heavy rain, penetrating dust and splashing water.

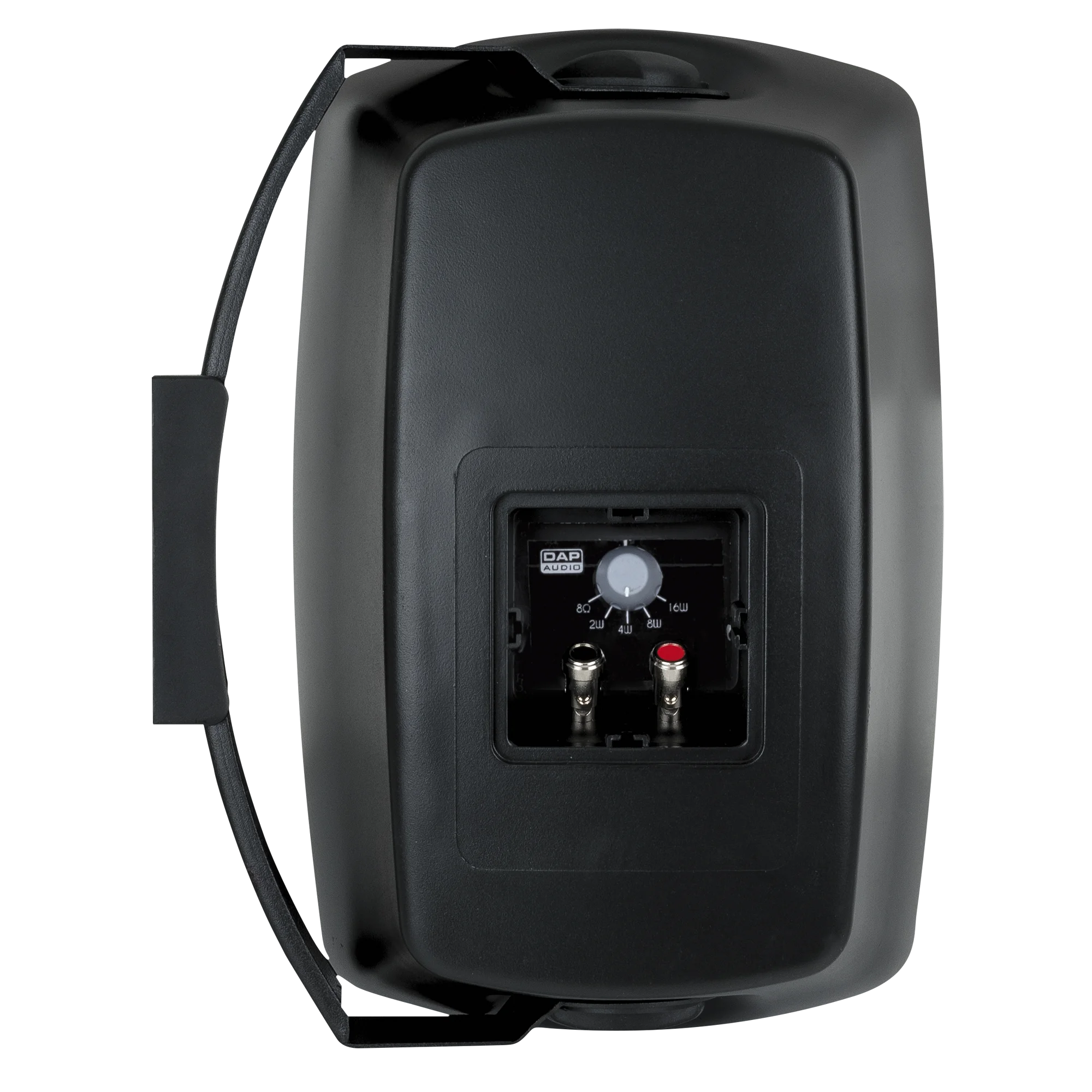

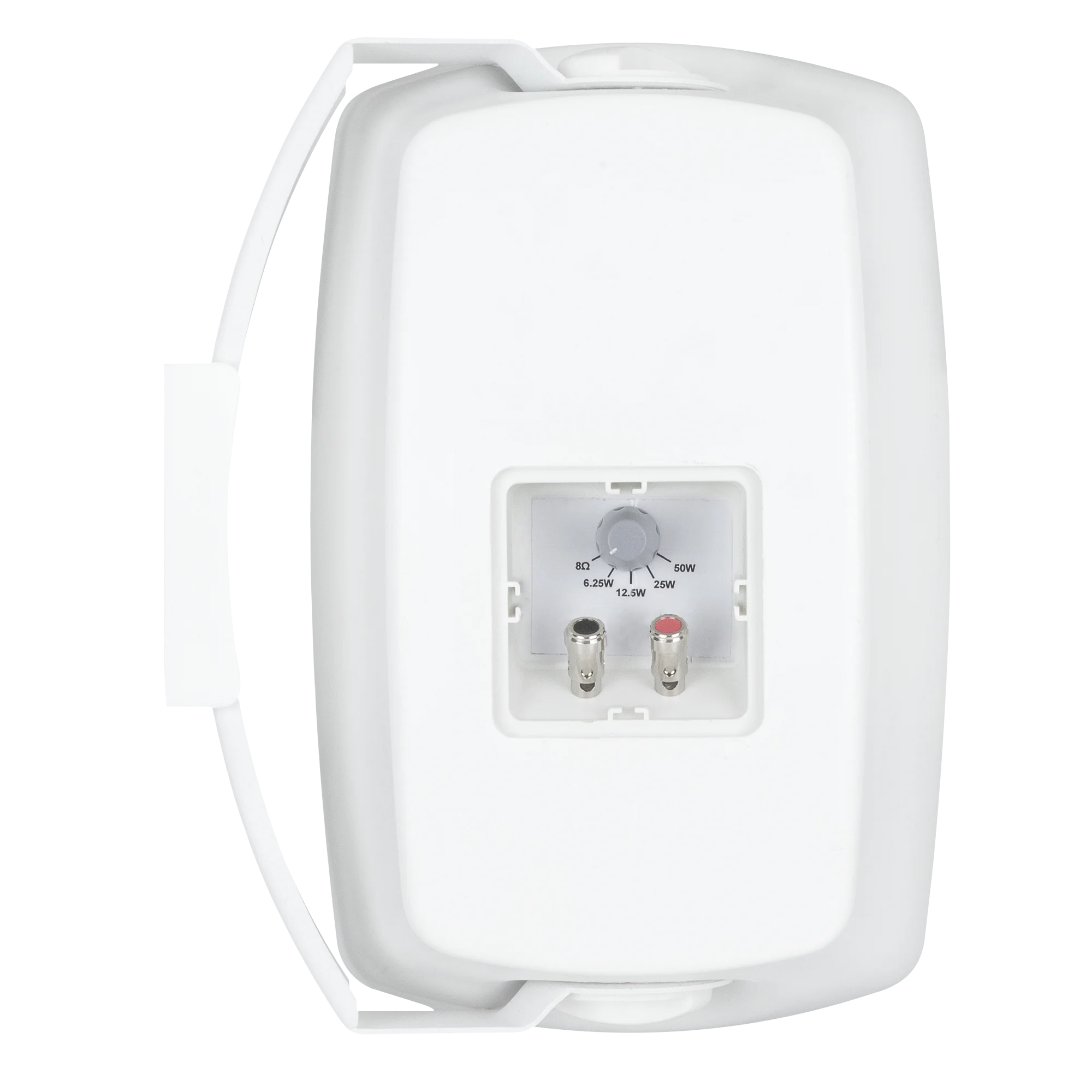

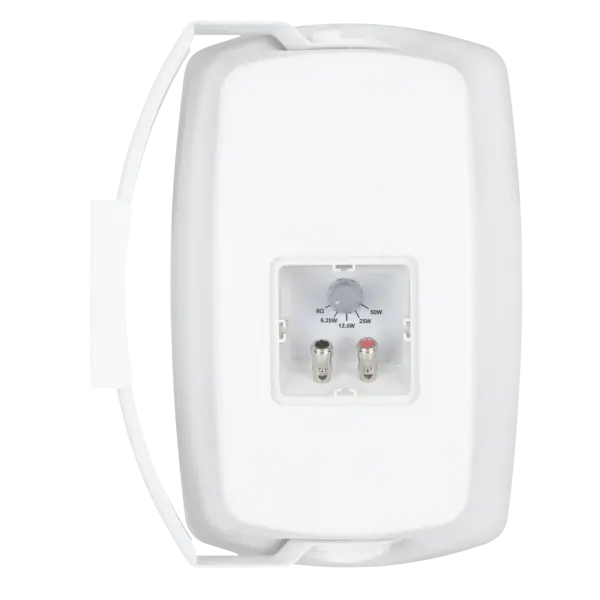

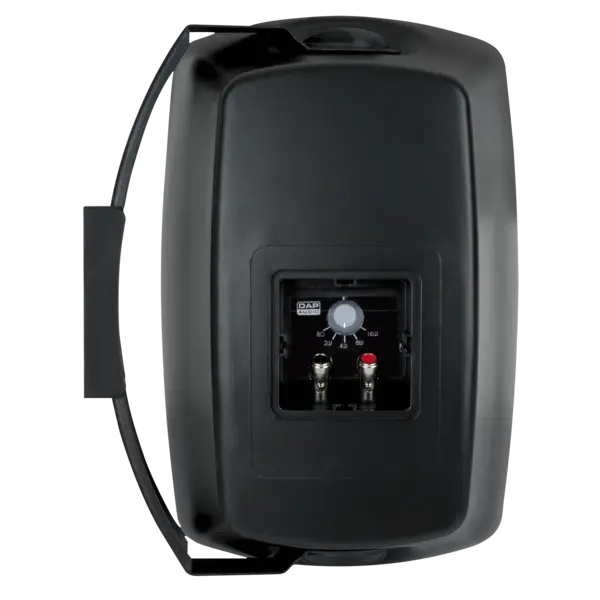

Quick and easy installation is possible with a terminal connector and included brackets suitable for both horizontal and vertical mounting. Moreover, a button on the back lets you choose from one of four power taps.

Technical specifications
RMS input power: 60 W
Peak input power: 120 W
Transformer: 70+100 V
Line transformer steps: 2 / 4 / 8 / 16 W
Passive input connector: Terminal
Speaker system: 2-way
Speaker sensitivity (1W/1m): 89 dB
Speaker impedance: 8 Ω
Minimum frequency response: 80 Hz
Maximum frequency response: 20000 Hz
Low driver diameter: 5.25"
High driver diameter: 1"
Radiation horizontal: 110°
Radiation vertical: 90°
Height (mm): 250 mm
Width (mm): 165 mm
Length (mm): 150 mm
Installation depth (excl. Connector): 205 mm
Weight: 2.7 kg
IP rating: IP54
