DAP | EDCS-8210 | Passive 8" Ceiling Speaker

The DAP EDCS-8210 is an 8-inch flush-mount ceiling loudspeaker suitable for 100V installations. Thanks to the line transformer with two power connections, you tune the volume to the other components of the system. The DAP EDCS series combines good sound quality and stylish design in an affordable solution for commercial audio installations.

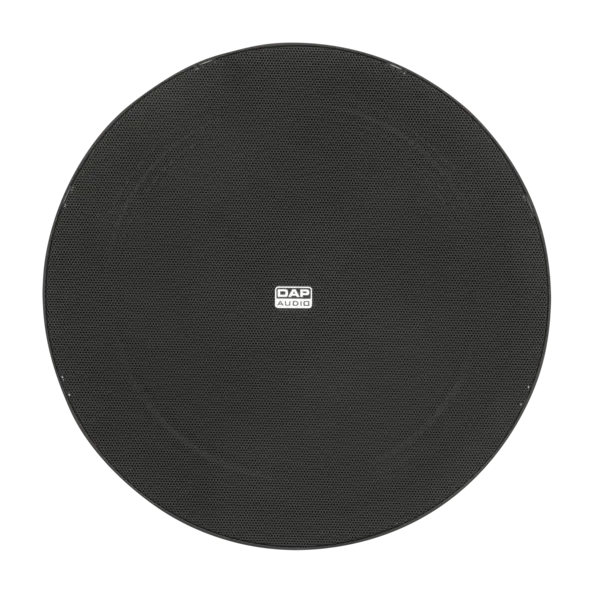

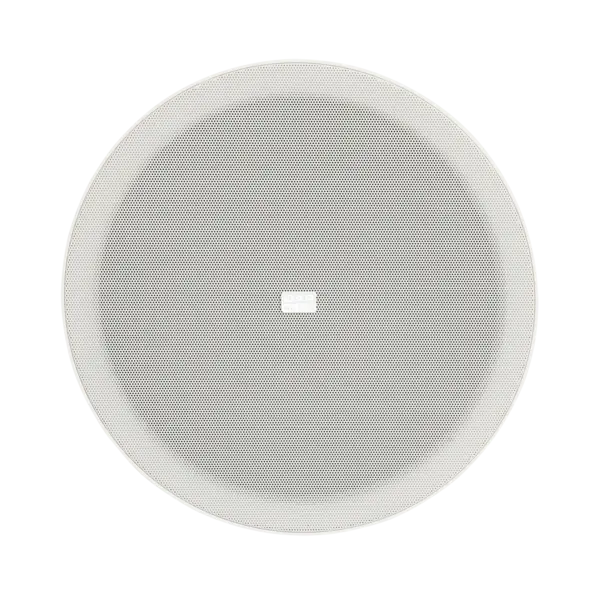

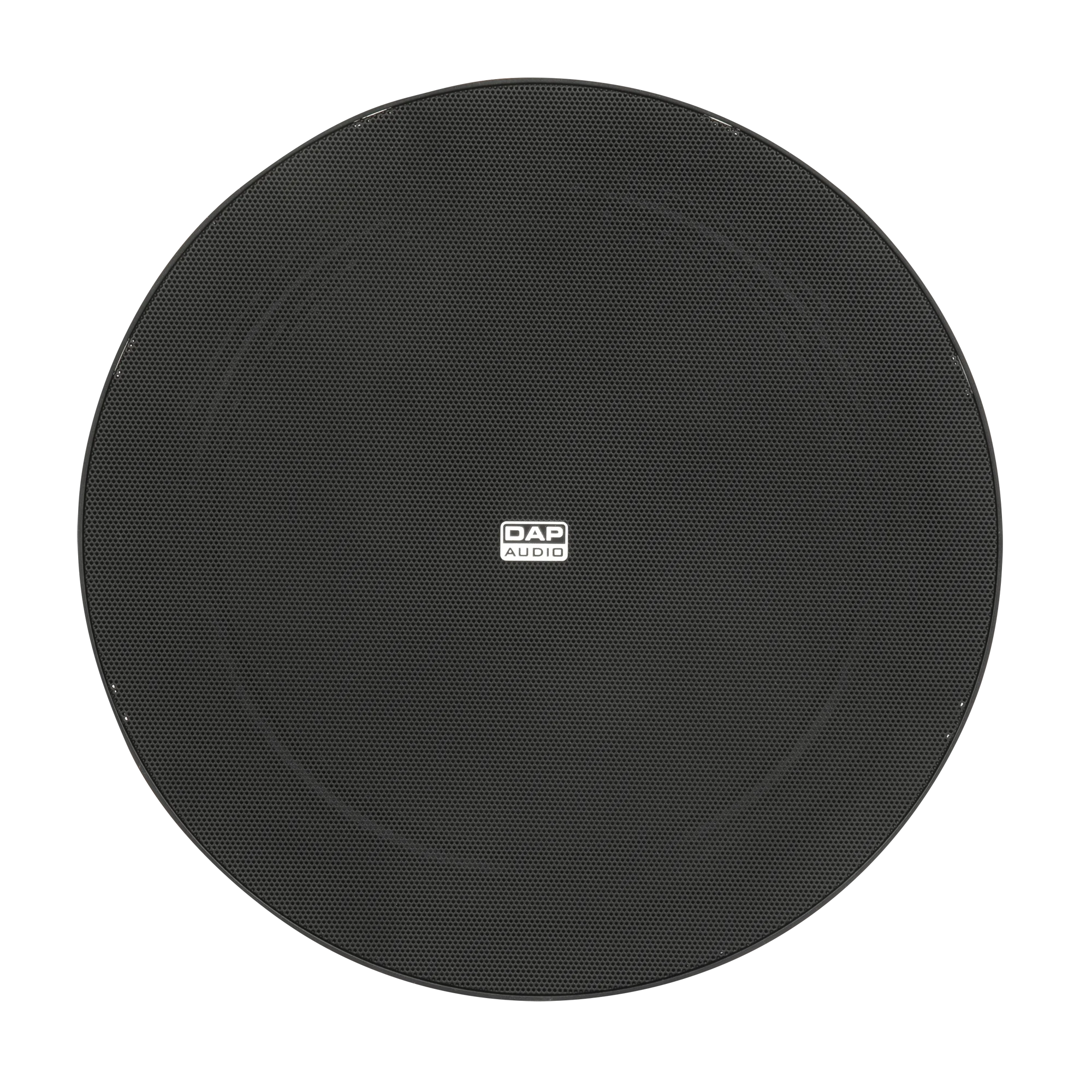

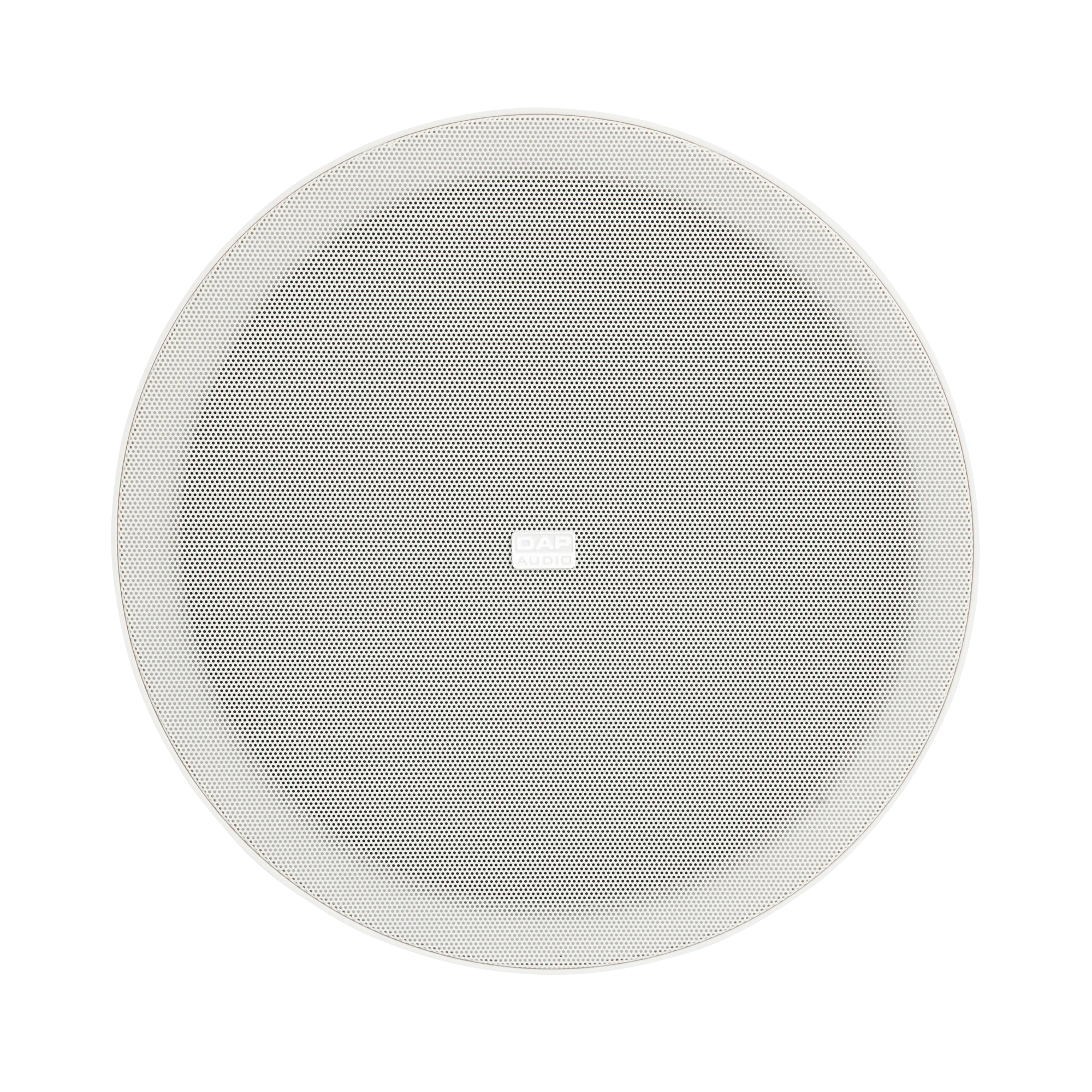

Available in both white and black enclosures, the EDCS-8210 is the right tool for any audio installation job. It has a small Ø 145 mm mounting size and mounting is easy due to the integrated clamp.

Technical specifications
Peak input power: 10 W
Transformer: 100 V
Line transformer steps: 5 / 10 W
Passive input connector: Open End
Speaker system: Coaxial
Speaker sensitivity (1W/1m): 93 dB
Speaker impedance: 8 Ω
Max. SPL / m: 98 dB
Minimum frequency response: 100 Hz
Maximum frequency response: 15000 Hz
Low driver diameter: 8"
Radiation horizontally: 360°
Radiation vertically: 180°
Height (mm): 88 mm
Width (mm): 232 mm
Length (mm): 232 mm
Weight: 0.9 kg
IP value: IP20 (indoor use only)
Mounting dimension: Ø 210 mm
