DAP | D6590 | CST-6506 | Passive 6" Evacuation Ceiling Speaker - white
Description

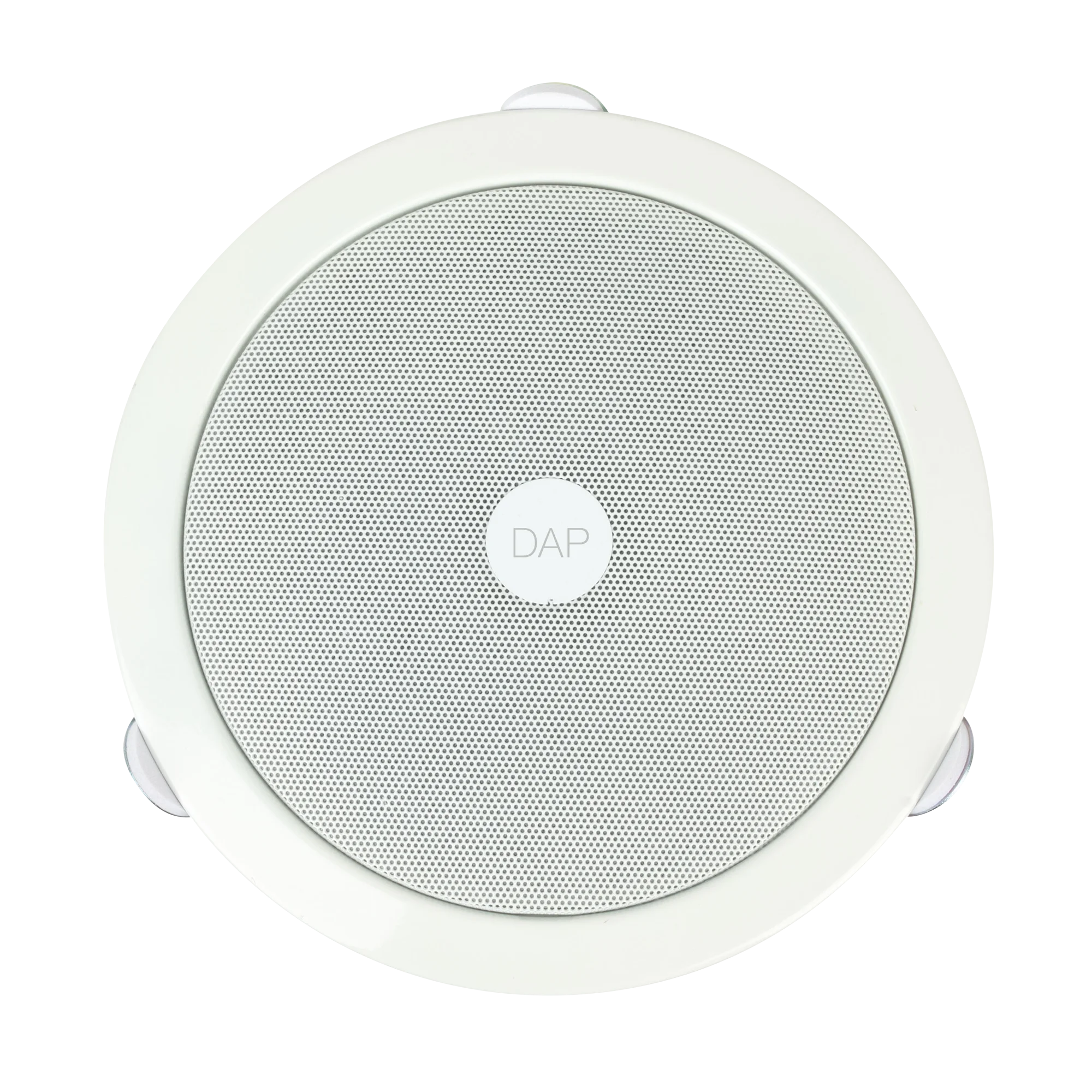

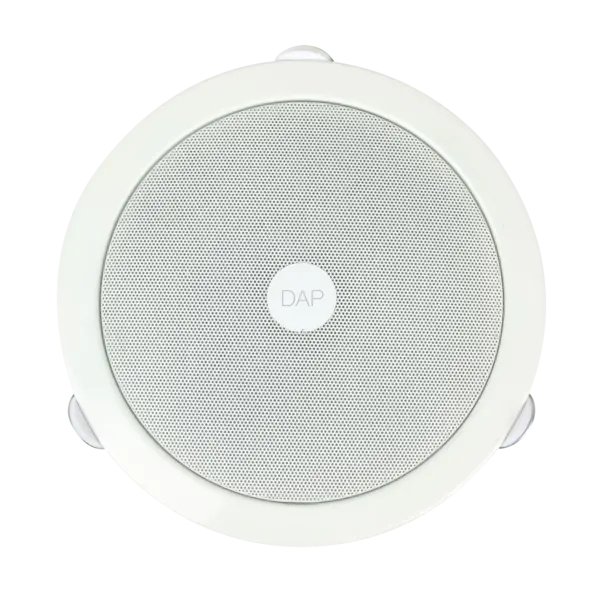

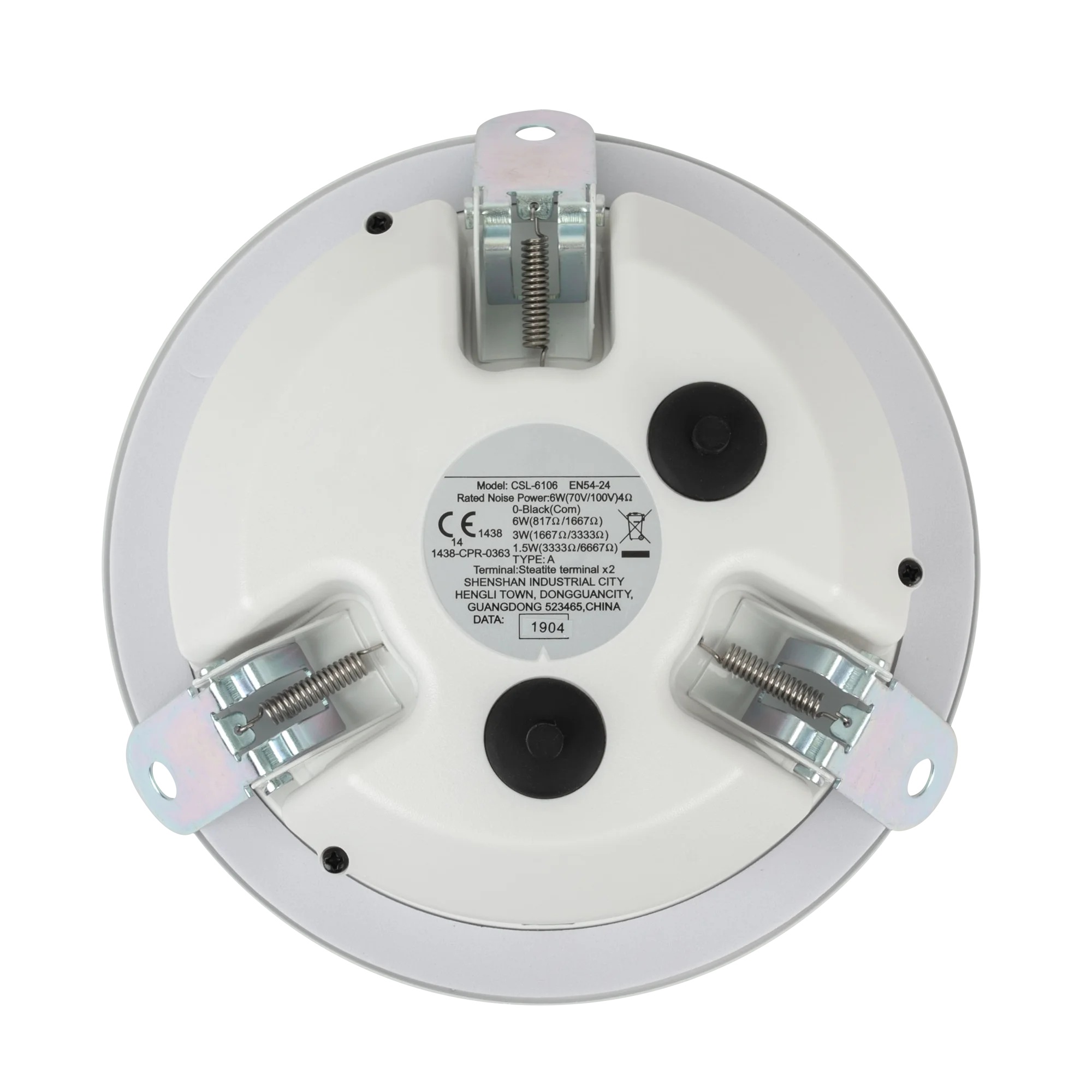

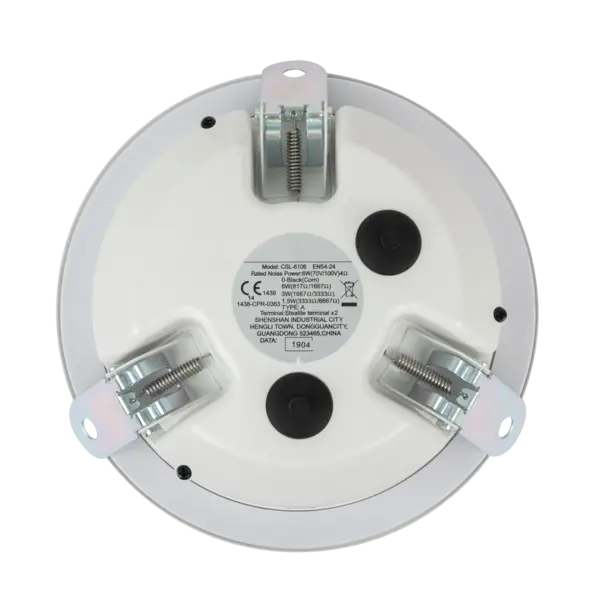

The DAP CST-6506 is a 6-inch passive evacuation ceiling speaker for buildings such as an airport, hotel, school or office. The white 6-watt speaker has a EN 54-24 certificate and can therefore be used in all of Europe. It is suitable for 100 V installations. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer.The CST-6506 has a strong metal housing and grille that can be mounted easily in a Ø 164 mm hole due to its integrated clamps.
Technical specifications
Peak Input Power: 6 W
Transformer: 100 V
Line Transformer Taps: 1.5 / 3 / 6 W
Passive Input Connection: Open End
Speaker System: Coaxial
Speaker Sensitivity (1 W/1 m): 92 dB
Frequency Response Minimum: 110 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"

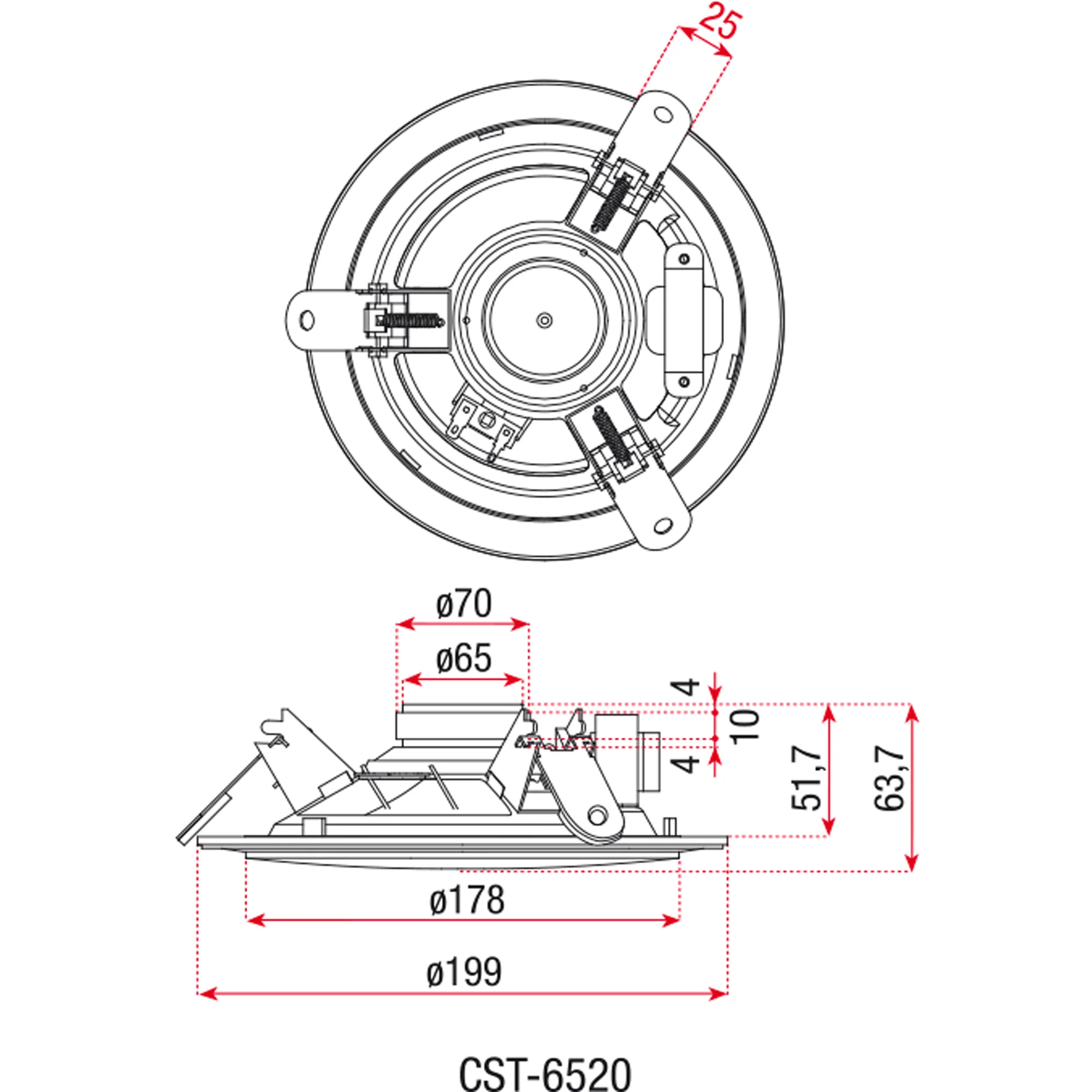

Height (mm): 74 mm
Width (mm): 198 mm
Length (mm): 198 mm
Weight: 0.9 kg
IP Rating: IP40
Mounting Size: Ø164mm
Fire Retardant: Yes
Specifications
RMS input power | |
Peak input power | |
Speaker impedance | |
Max. SPL | |
Frequency response minimum | |
Frequency response maximum | |
Crossover frequency low | |
Crossover frequency high | |
Woofer voice coil diameter | |
Compression driver voice coil | |
Dispersion angle (horizontal) | |
Dispersion angle (vertical) | |
Height | |
Width | |
Depth | |
Material | |
Weight |
