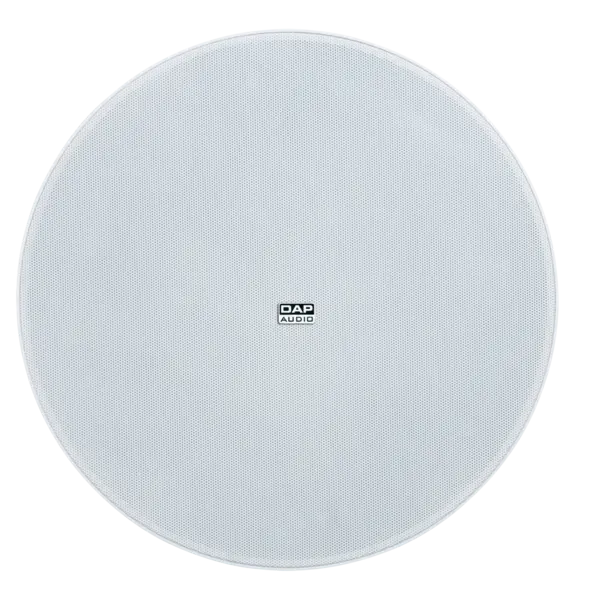

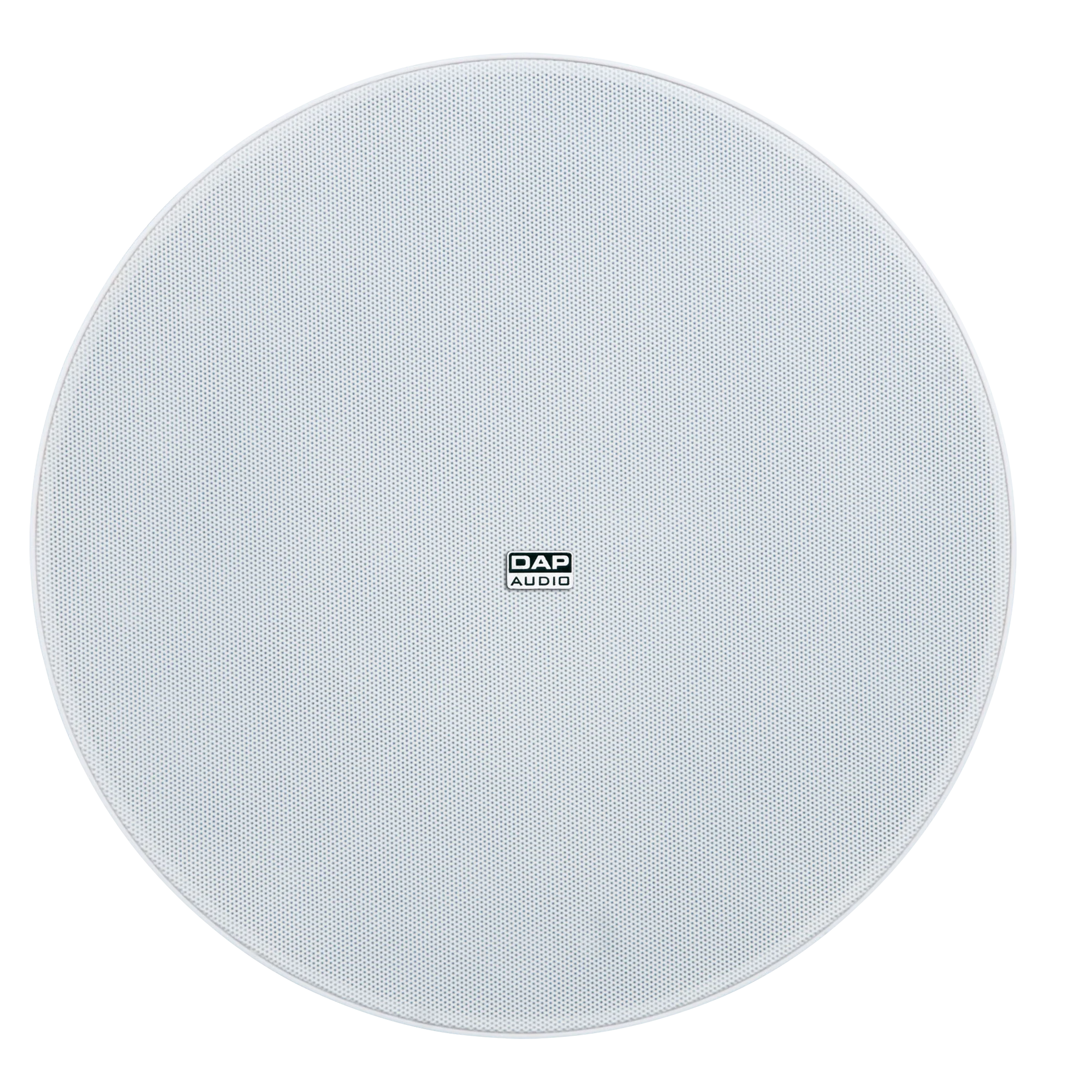

DAP | D6586 | DCS-6230BC | Passive 6" Ceiling Speaker with Back Can - white
Description

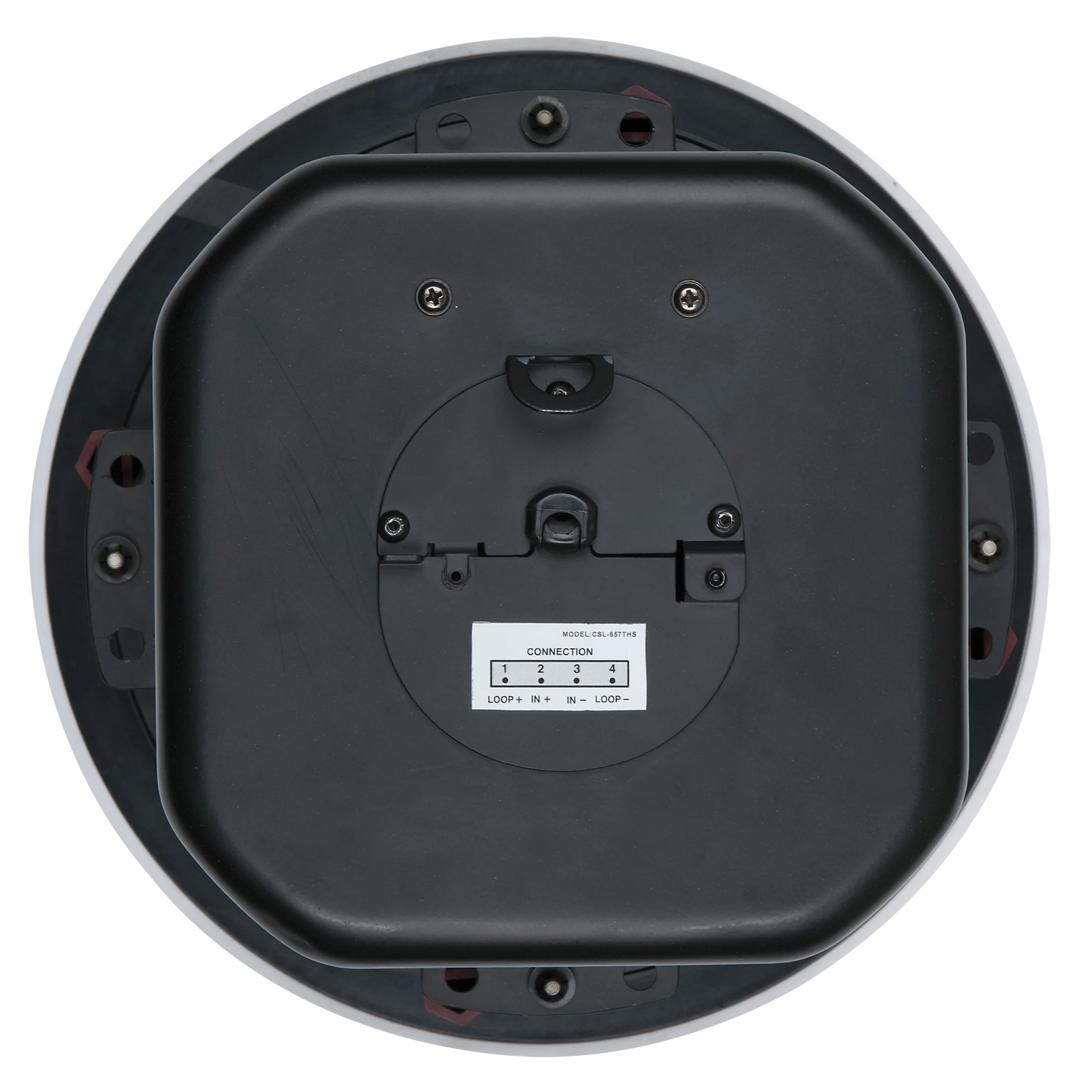

The DAP DCS-6230BC is a passive 6-inch ceiling speaker suitable for 70/100 V installations in outdoor applications. This white 30-watt recessed speaker with thin edge is protected from dust ingress and water jets (IP55). Besides, it is equipped with a 2-way system and back can for providing a rich full-range sound. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer.The system is designed with a very small rim around the grille and the depth of the grille is also very limited. This makes this recessed speaker almost invisible after mounting in a Ø 240 mm hole.
Technical specifications
Peak Input Power: 30 W
Transformer: 100 V
Line Transformer Taps: 1.8 / 3.75 / 7.5 / 15 / 30 W
Passive Input Connection: Terminal
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 88 dB
Speaker Impedance: 8 Ω
Frequency Response Minimum: 60 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"
Compression Driver Diameter: 1"
Height (mm): 190 mm
Width (mm): 226 mm
Length (mm): 226 mm
Installation Depth (Excl. Connector): 190 mm
Weight: 2.7 kg
IP Rating: IP55
Mounting Size: Ø 240 mm
Specifications
RMS input power | |
Peak input power | |
Speaker impedance | |
Max. SPL | |
Frequency response minimum | |
Frequency response maximum | |
Crossover frequency low | |
Crossover frequency high | |
Woofer voice coil diameter | |
Compression driver voice coil | |
Dispersion angle (horizontal) | |
Dispersion angle (vertical) | |
Height | |
Width | |
Depth | |
Material | |
Weight |
