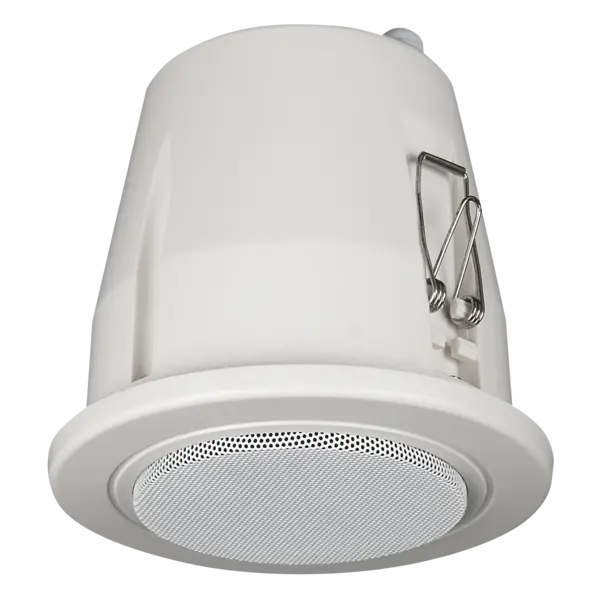

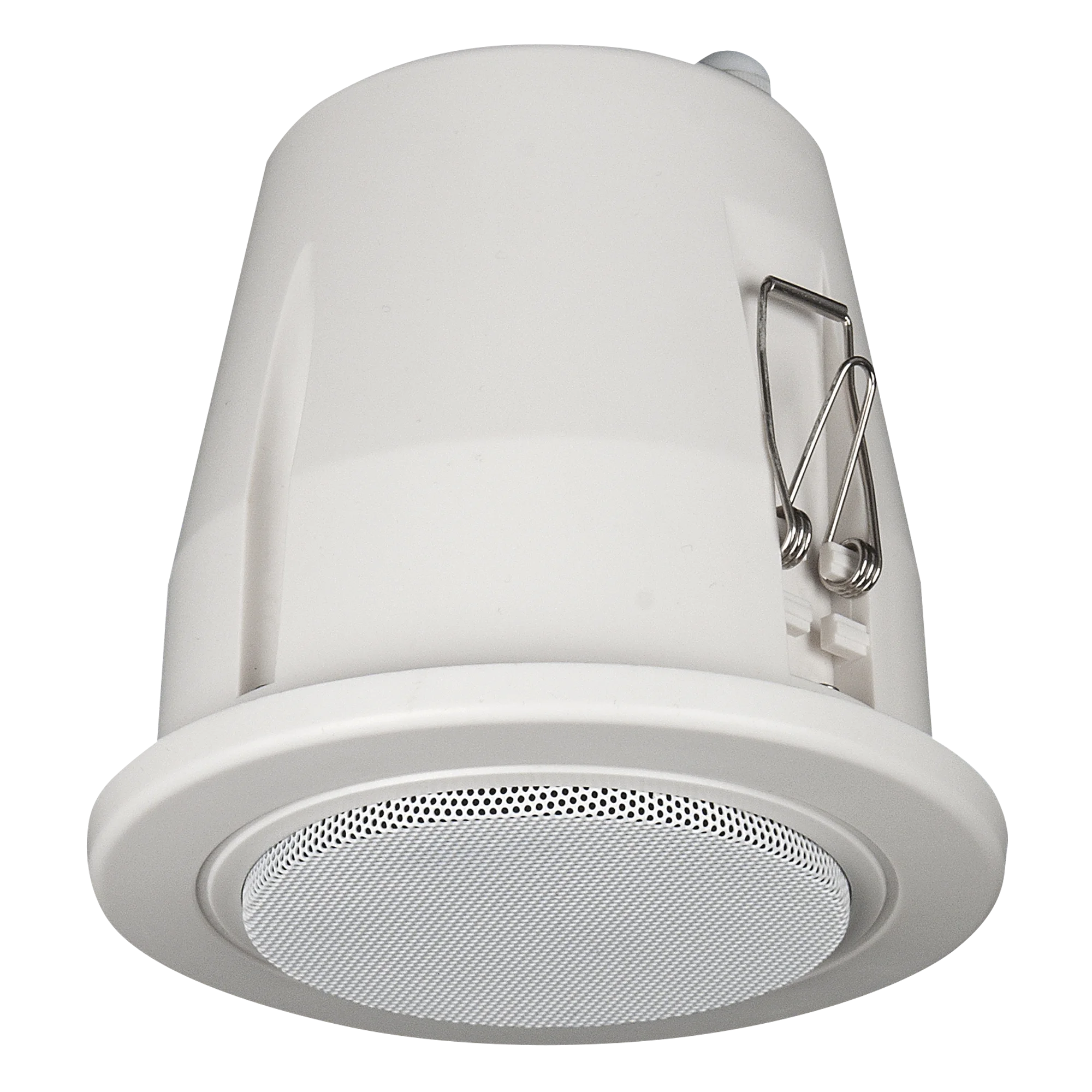

DAP | D6577 | WCS-46 | Passive 4" Waterproof Ceiling Speaker with Back Can - white
Description
The DAP WCS-46 is a passive 4-inch ceiling speaker suitable for 100 V installations in humid environments such as a swimming pool or terrace. This white 6-watt recessed speaker has a strong ABS housing, small mounting size and is protected against dust ingress and water jets (IP55). The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer.Technical specifications
Peak Input Power: 6 W
Transformer: 100 V
Line Transformer Taps: 3 / 6 W
Passive Input Connection: Open End
Speaker System: Coaxial
Speaker Sensitivity (1 W/1 m): 91 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 95 dB
Frequency Response Minimum: 150 Hz
Frequency Response Maximum: 18000 Hz
Woofer Diameter: 4"
Height (mm): 130 mm
Width (mm): 140 mm
Length (mm): 140 mm
Weight: 0.9 kg
IP Rating: IP55
Mounting Size: Ø 125 mm
Specifications
RMS input power | |
Peak input power | |
Speaker impedance | |
Max. SPL | |
Frequency response minimum | |
Frequency response maximum | |
Crossover frequency low | |
Crossover frequency high | |
Woofer voice coil diameter | |
Compression driver voice coil | |
Dispersion angle (horizontal) | |
Dispersion angle (vertical) | |
Height | |
Width | |
Depth | |
Material | |
Weight |
