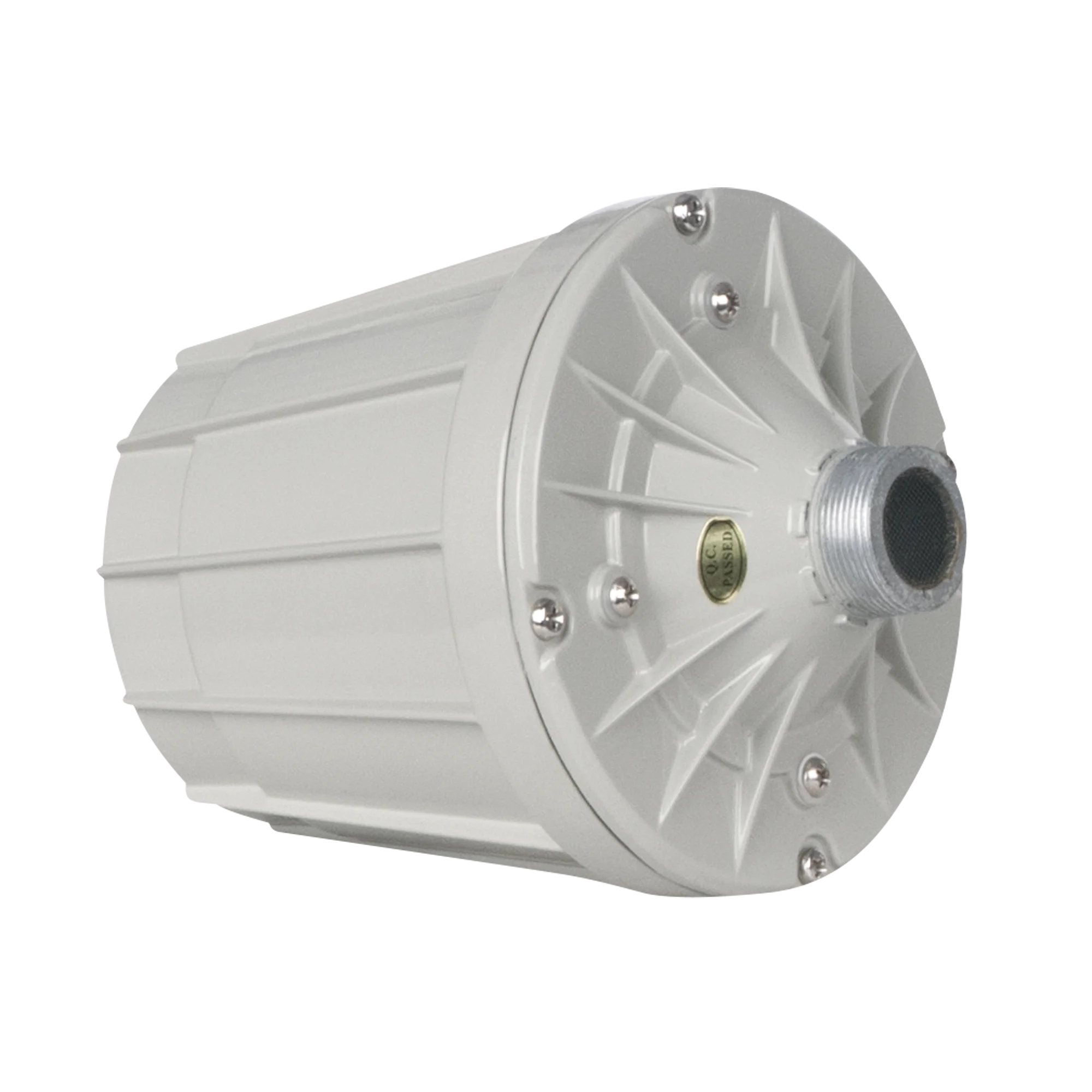

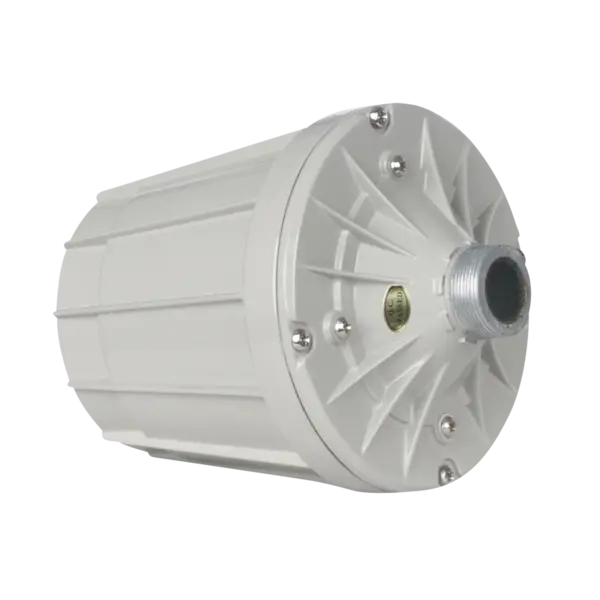

DAP | D6547D | D-100 | Passive Driver 100 V
Description

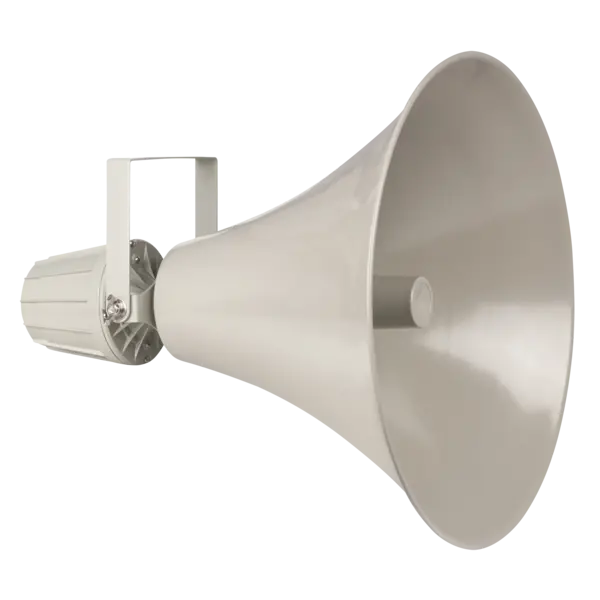

100 W 100 V Separate driver without horn. Use the dedicated H-500 horn to create a powerful 100 V projector.Technical specifications
Peak Input Power: 100 W
Transformer: 100 V
Line Transformer Taps: 50 / 100 W
Passive Input Connection: Open End
Speaker System: Horn
Speaker Sensitivity (1 W/1 m): 110 dB
Speaker Impedance: 16 Ω
Frequency Response Minimum: 150 Hz
Frequency Response Maximum: 6000 Hz
Height (mm): 145 mm
Width (mm): 135 mm
Length (mm): 173 mm
Weight: 4.2 kg
IP Rating: IP66
