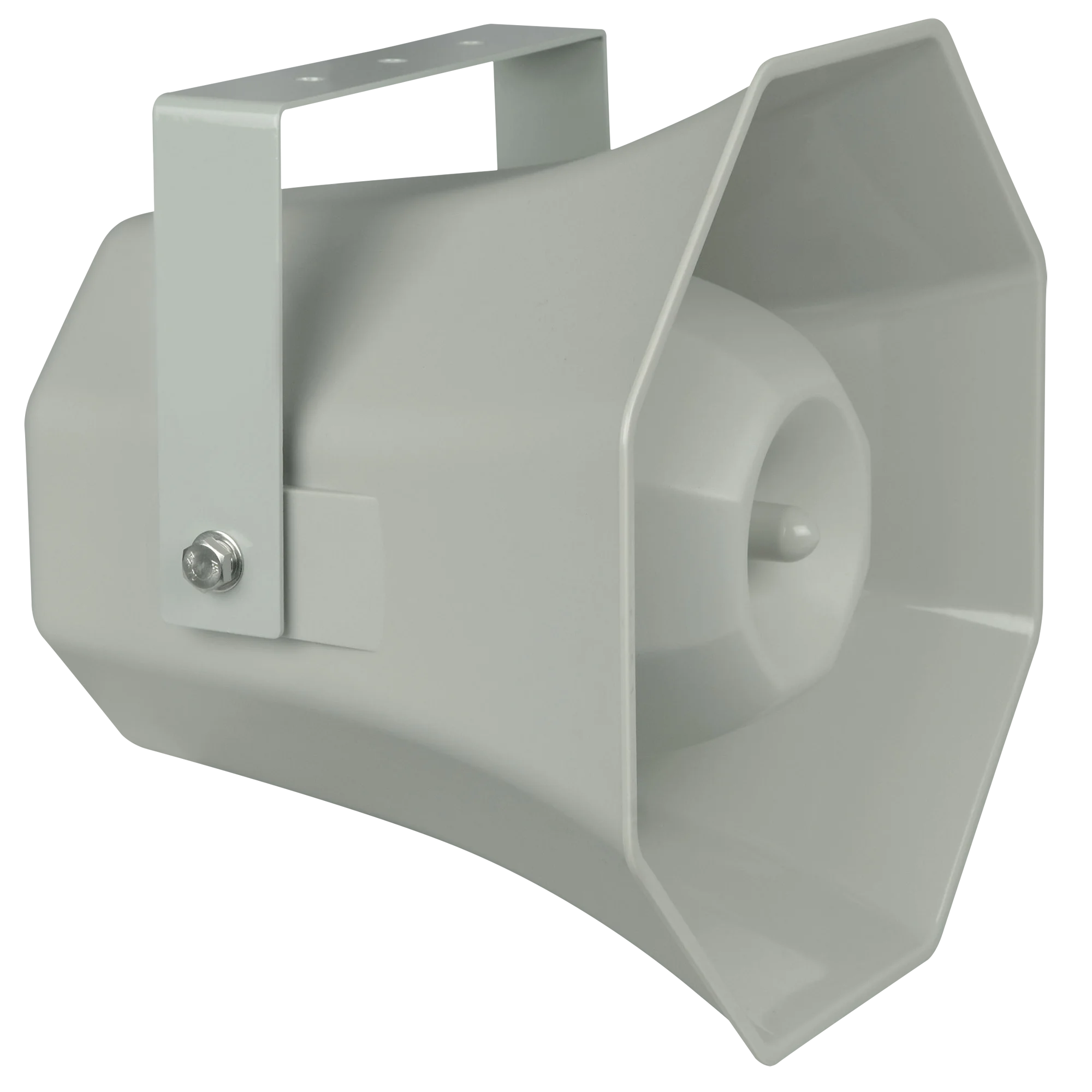

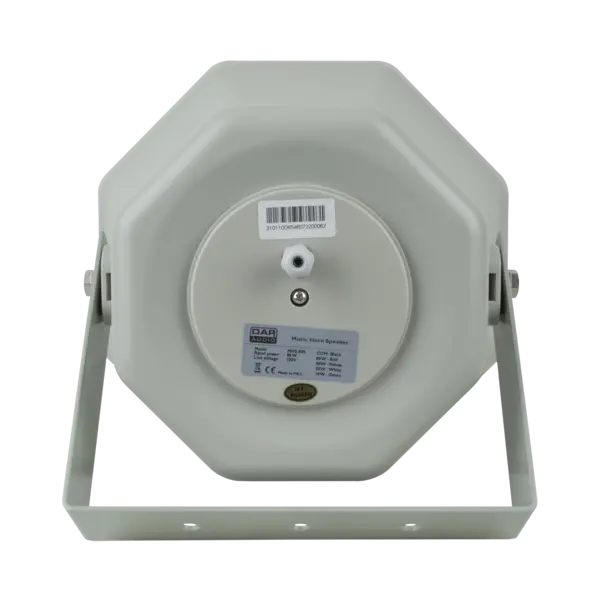

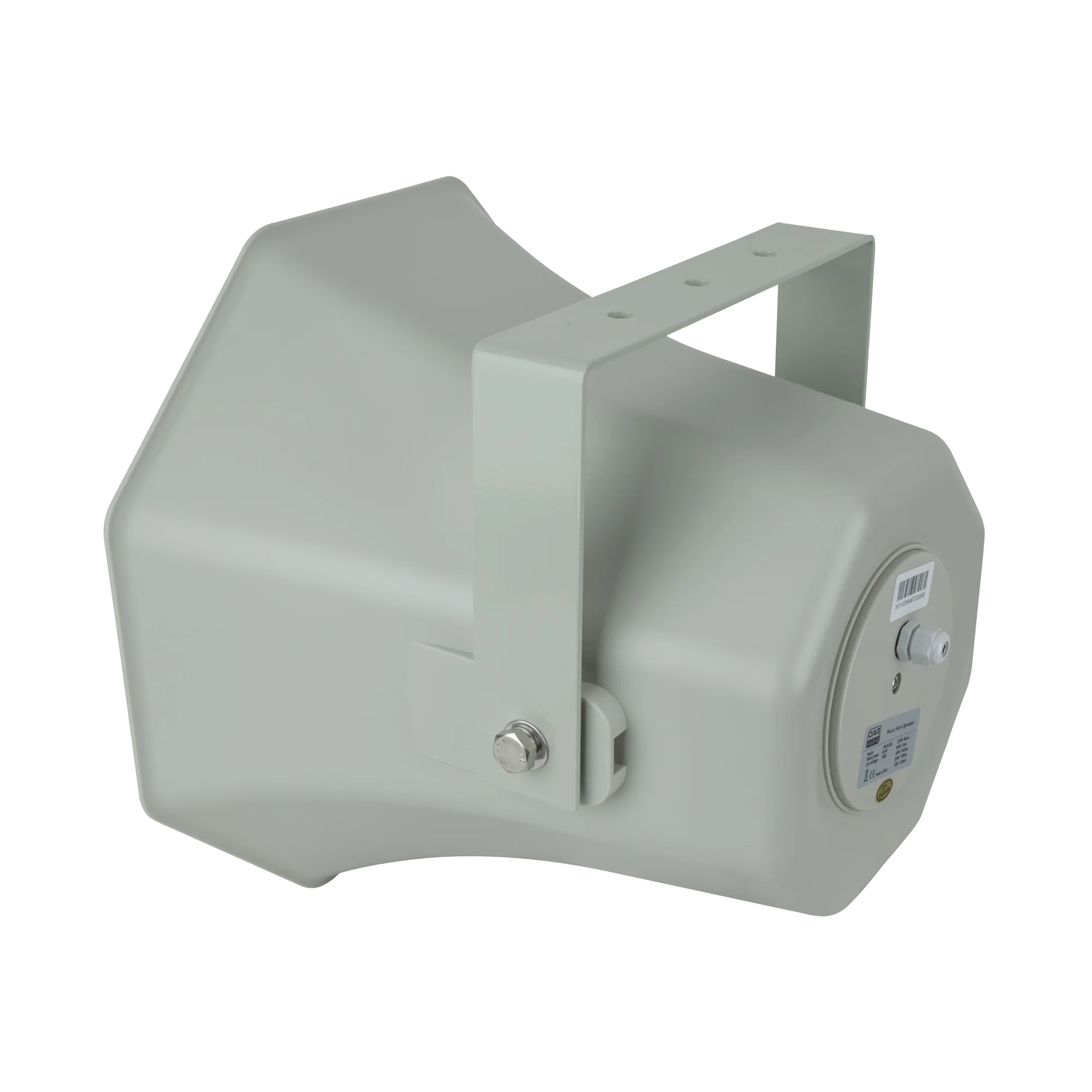

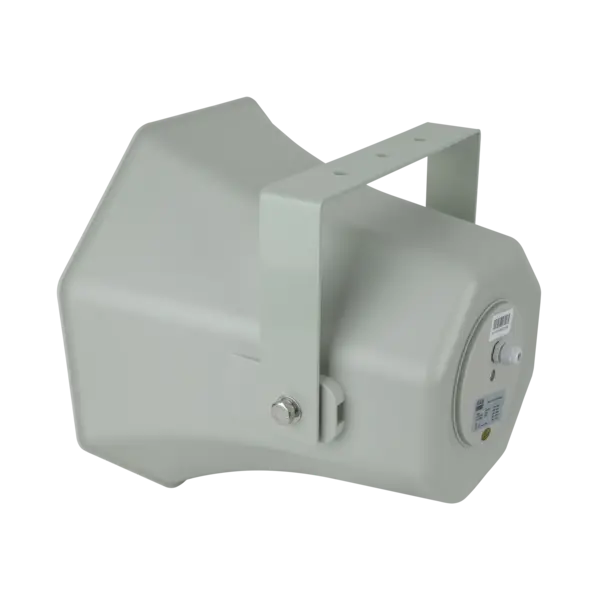

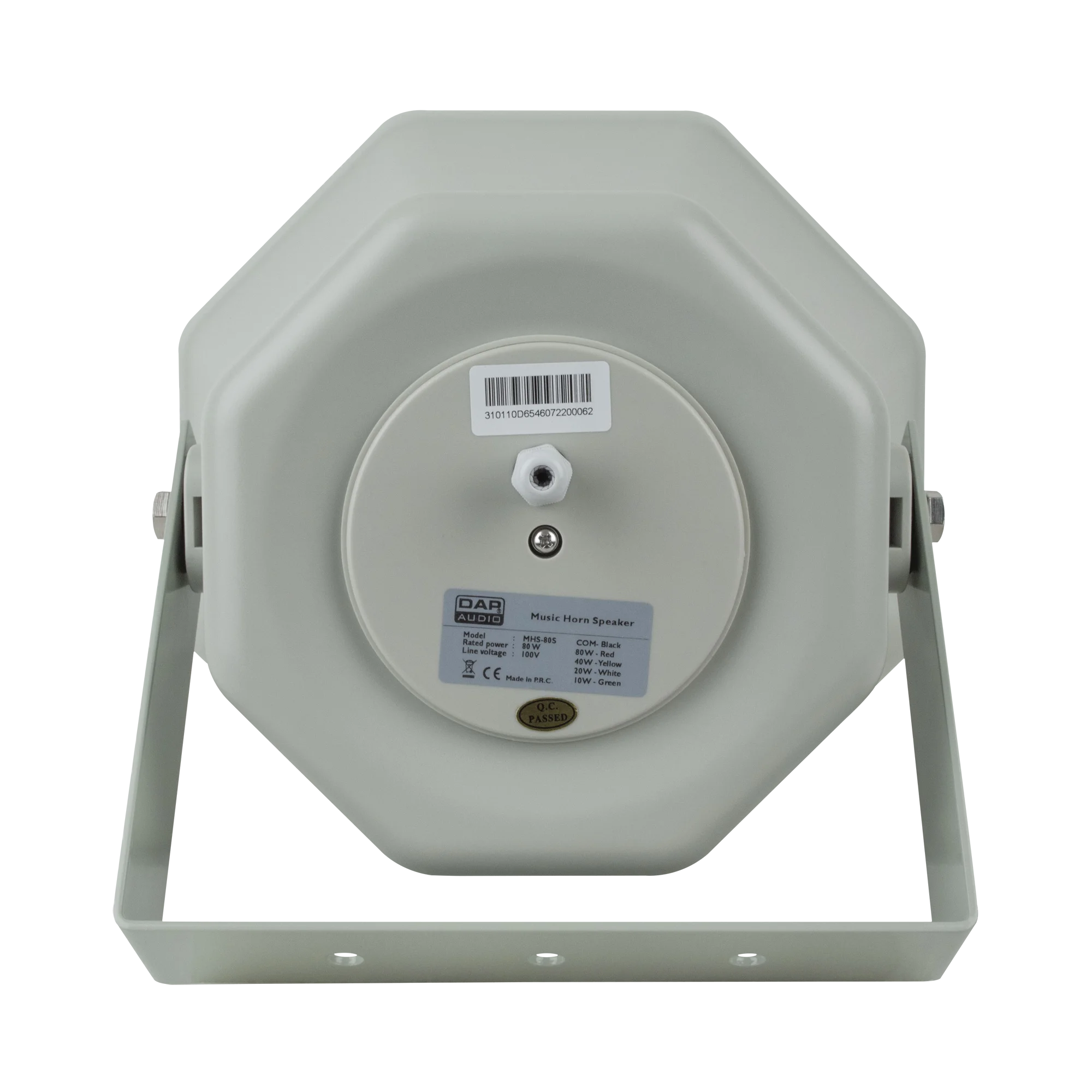

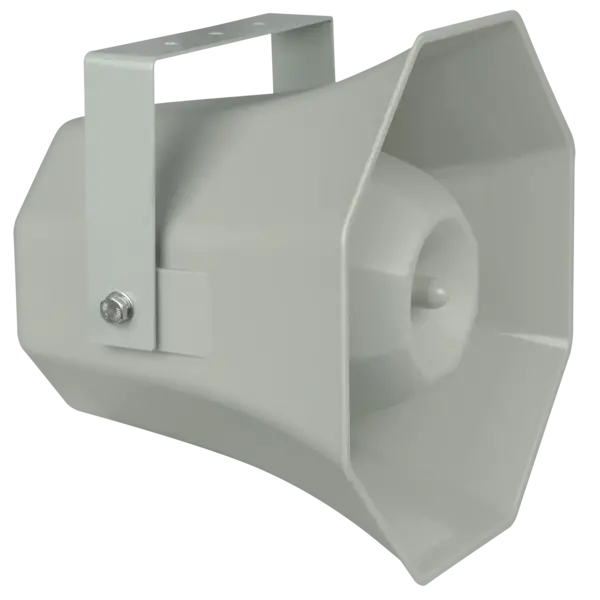

DAP | D6546 | MHS-80S | Passive 80 W Hexagon Horn Speaker - light gray
Description
The DAP MHS-80S is a passive 80-watt square horn speaker suitable for 100 V outdoor installations in public places such as shopping malls, terraces and theme parks. The light gray installation speaker is a 2-way system with a 6.5-inch low driver and a 1" high driver for a clear full-range sound.The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. It has a strong ABS housing and a bracket is included.
Technical specifications
Peak Input Power: 80 W
Transformer: 100 V
Line Transformer Taps: 10 / 20 / 40 / 80 W
Passive Input Connection: Terminal
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 99 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 114 dB
Frequency Response Minimum: 90 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"
Compression Driver Diameter: 1"
Height (mm): 353 mm
Width (mm): 353 mm
Length (mm): 325 mm
Weight: 5.4 kg
IP Rating: IP66
Specifications
RMS input power | |
Peak input power | |
Speaker impedance | |
Max. SPL | |
Frequency response minimum | |
Frequency response maximum | |
Crossover frequency low | |
Crossover frequency high | |
Woofer voice coil diameter | |
Compression driver voice coil | |
Dispersion angle (horizontal) | |
Dispersion angle (vertical) | |
Height | |
Width | |
Depth | |
Material | |
Weight |
