DAP | D6150 | PA-530TU | 3-channel 30 W 100 V Mixer Amplifier

The DAP PA-530TU is a compact 30-watt 100 V/8Ω mono mixing amplifier with 4 selectable sources and 2 microphone inputs. Both microphone inputs feature phantom power and can also be used as line inputs. An integrated speech filter can be used to improve intelligibility.

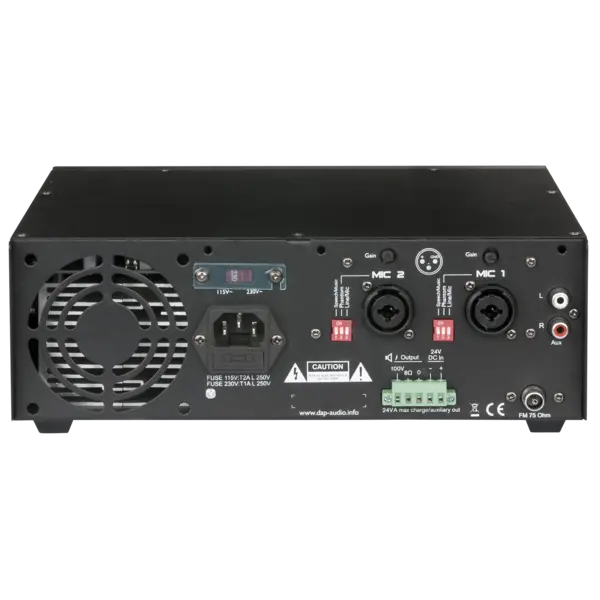

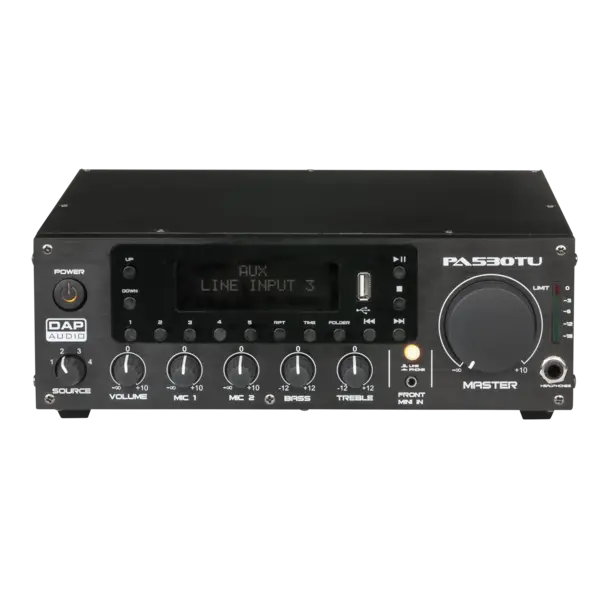

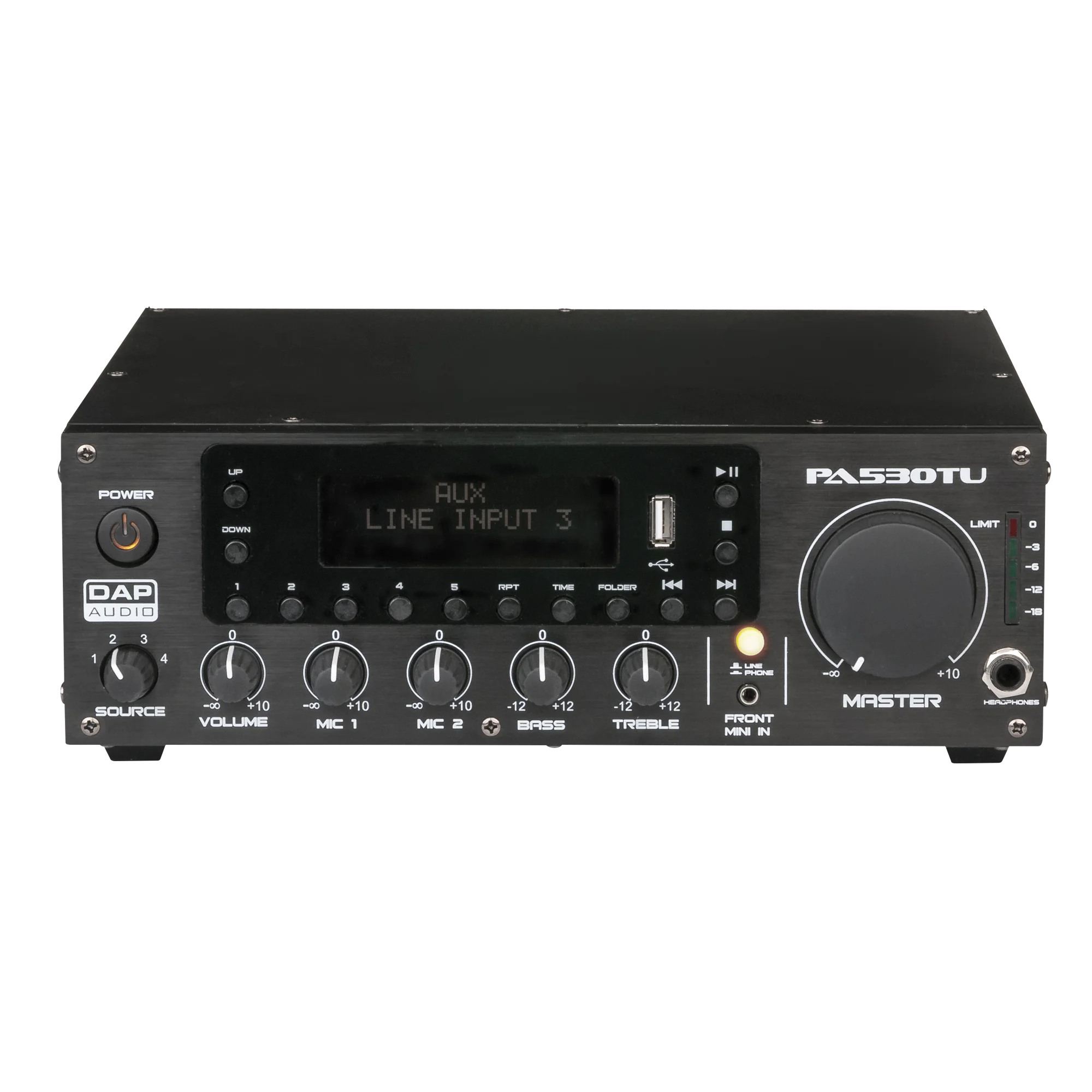

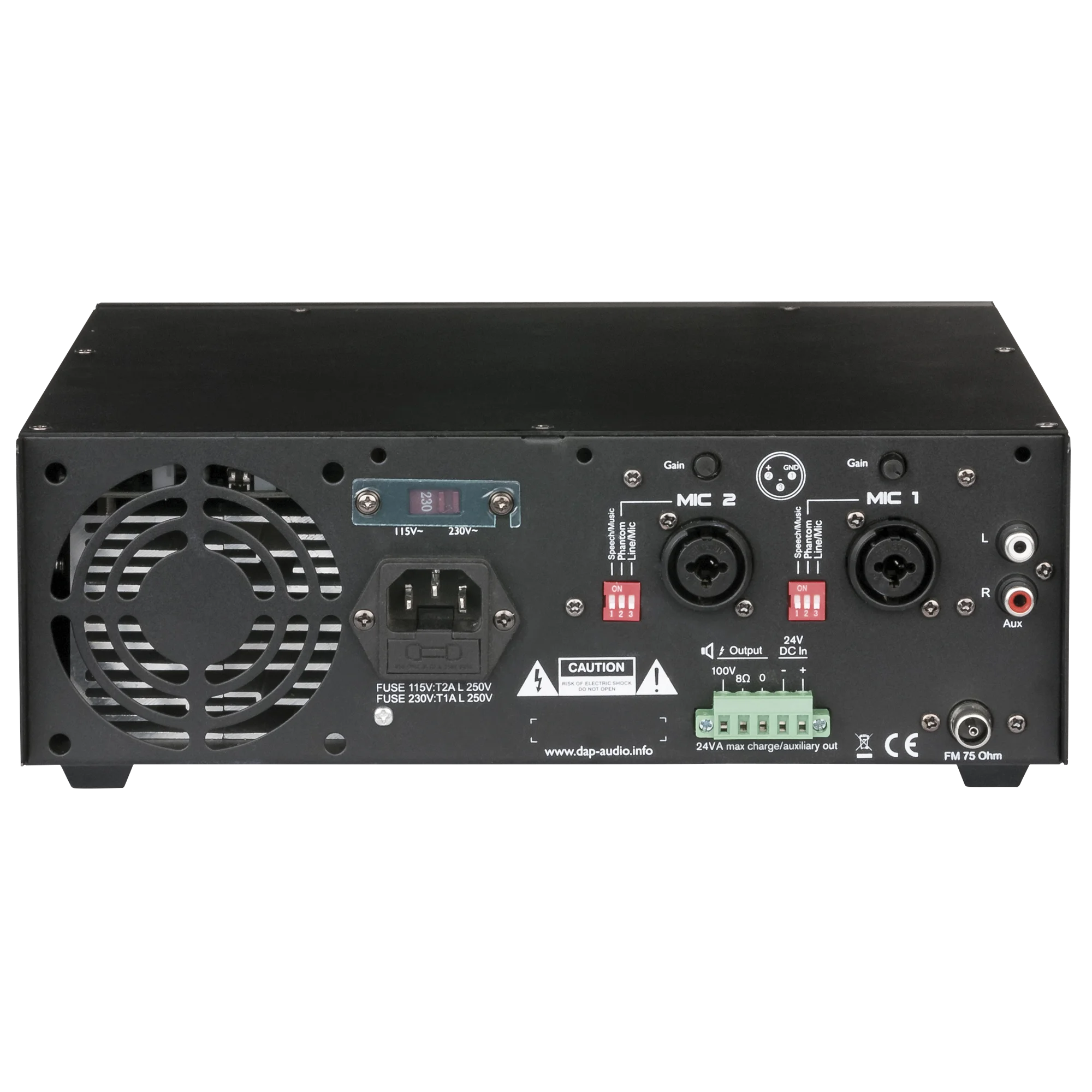

The PA-530TU has a line input on the rear and an easy accessible Mini-Jack input on the front for connecting MP3 players or mobile devices. It also has a built-in USB audio player and FM tuner with a large LCD screen that displays the active source, tuner information and ID3 tags. The built-in FM tuner can store up to 10 preset stations.

This 100 V mixer amplifier is suitable for small installations up to 30 W. It is designed to support a PA system that is intended for intercommunication or background music in public areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. These amplifiers have an integrated protection to protect against overload and short circuit of the output. This results in very high reliability and easy installations without additional audio processors.

Technical specifications
Power Amplifier RMS Output: 30 W
Output per Channel at 70/100 V at 1 kHz: 30 W
Output Channels: 1
Output Mode: Parallel
Output Connector: Terminal
Mono Inputs: 2
Mono Input Connector: 3-pin XLR / TS unbalanced 6.3 mm
Stereo Inputs: 1
Stereo Input Connector: TRS balanced 3.5 mm
Auxiliary Inputs: 1
Auxiliary Input Connector: RCA
Transformer: 100 V
Supported Audio Files: MP3 / WAV
Media Input/Output: USB-A
Phantom Power: 18 V
Parametric Main Equalizer: 2 Bands
Speech Filter Attenuation: 6 dB
Speech Filter Frequency: 300 Hz
FM Frequency Start: 87.5 MHz
FM Frequency End: 108 MHz
Power Supply: 240 VAC 50-60 Hz
Backup Power Supply: 24 VDC
Power Consumption: 69 W
Power Connector In: IEC
Data Connector In: USB
Height (mm): 95 mm
Width (mm): 270 mm
Depth (mm): 262 mm
Weight: 6 kg
Chime: No
Electronic Protection: Overload / Short circuit
