DAP | D3971 | Odin S-18 | Passive Line Array Subwoofer

The DAP Odin Line Array Series is a versatile sound system suitable for high-energy indoor and outdoor events for up to 2500 visitors. It is a scalable and rental-friendly solution for both stackable and suspended setups, suitable for almost any venue of any size. Odin systems have a robust design and can deliver incredible sound quality at an unprecedented low price. With DAP Odin, DJs, bands, actors and other performers can quickly and easily create deep, punchy bass, subtle instrument details and true vocal emotions.

The Odin Passive Series consists of a passive line array satellite and a passive 18” subwoofer, equipped with robust and powerful Celestion drivers to ensure excellent sound quality in any location and setup. Multiple stacking and hanging solutions are available with dedicated fly bars, stack bars, pole mount adapters and fly towers. Safe transportation/storage is also ensured with dedicated flight cases, transport covers and castor boards. IP covers protect your speakers from heavy rain, making them a reliable and trustworthy companion in all conditions.

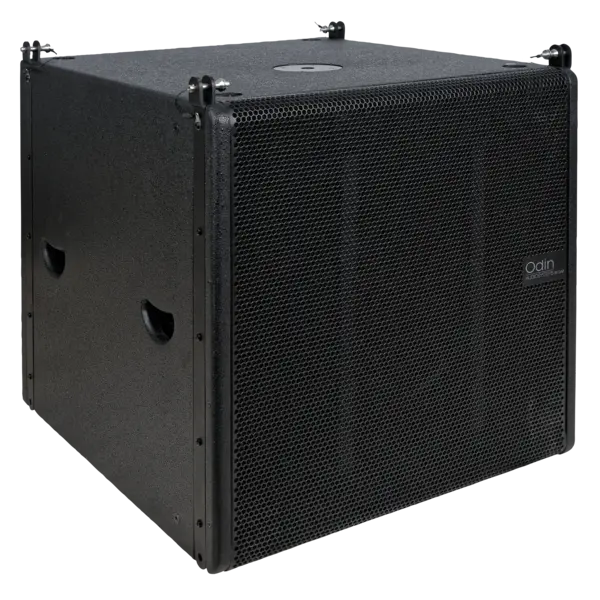

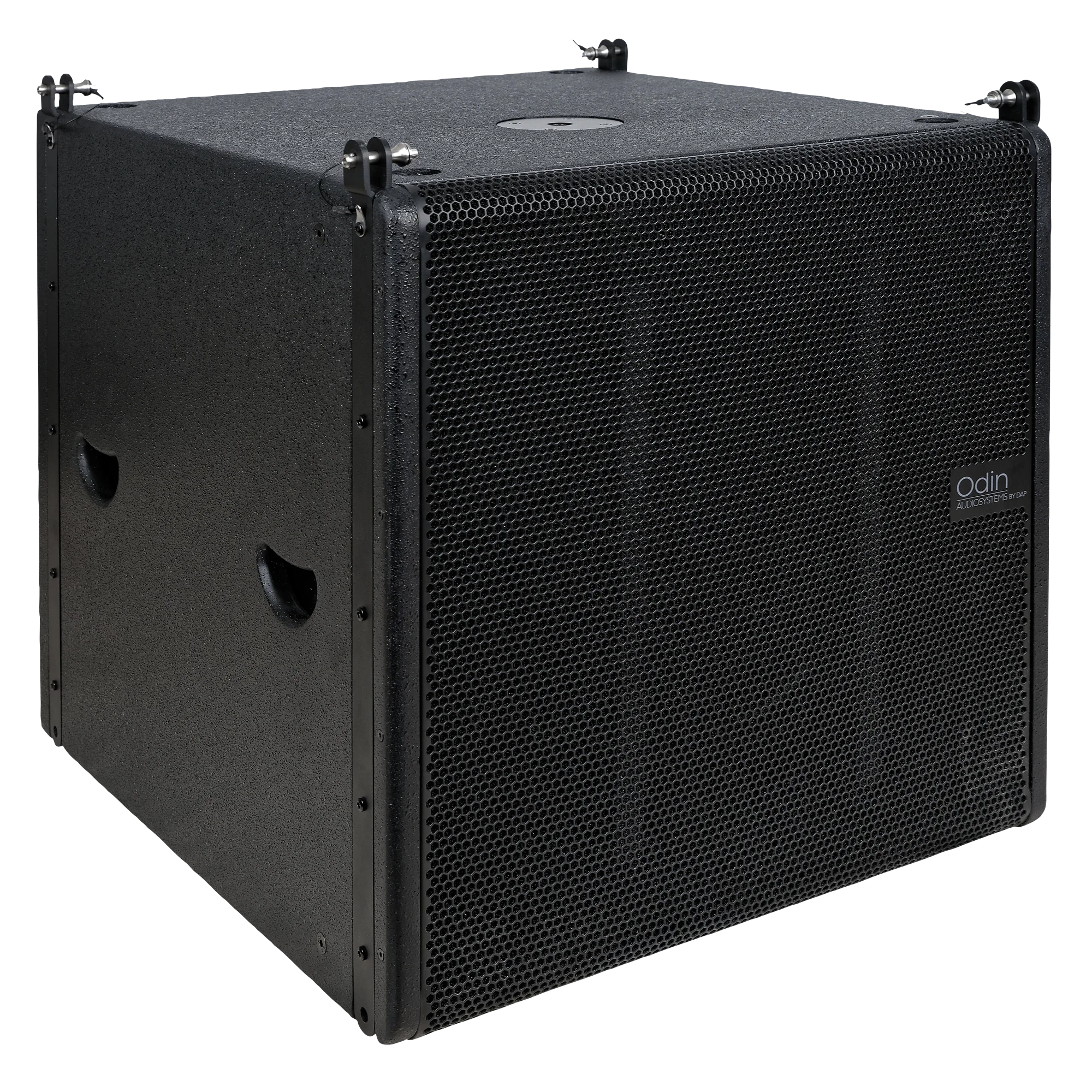

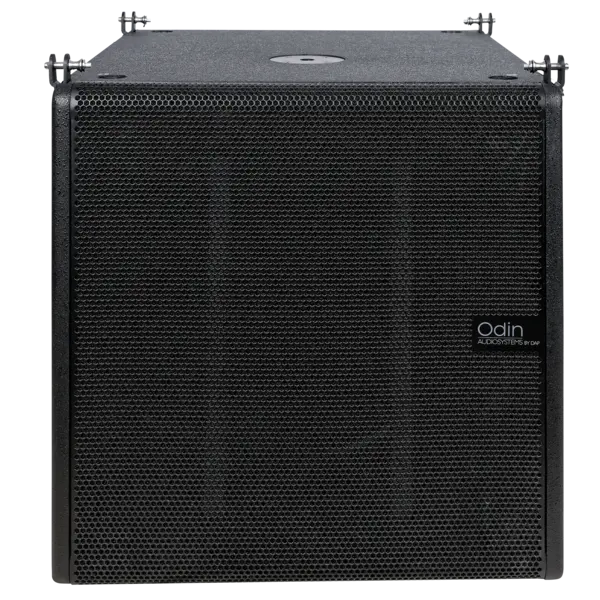

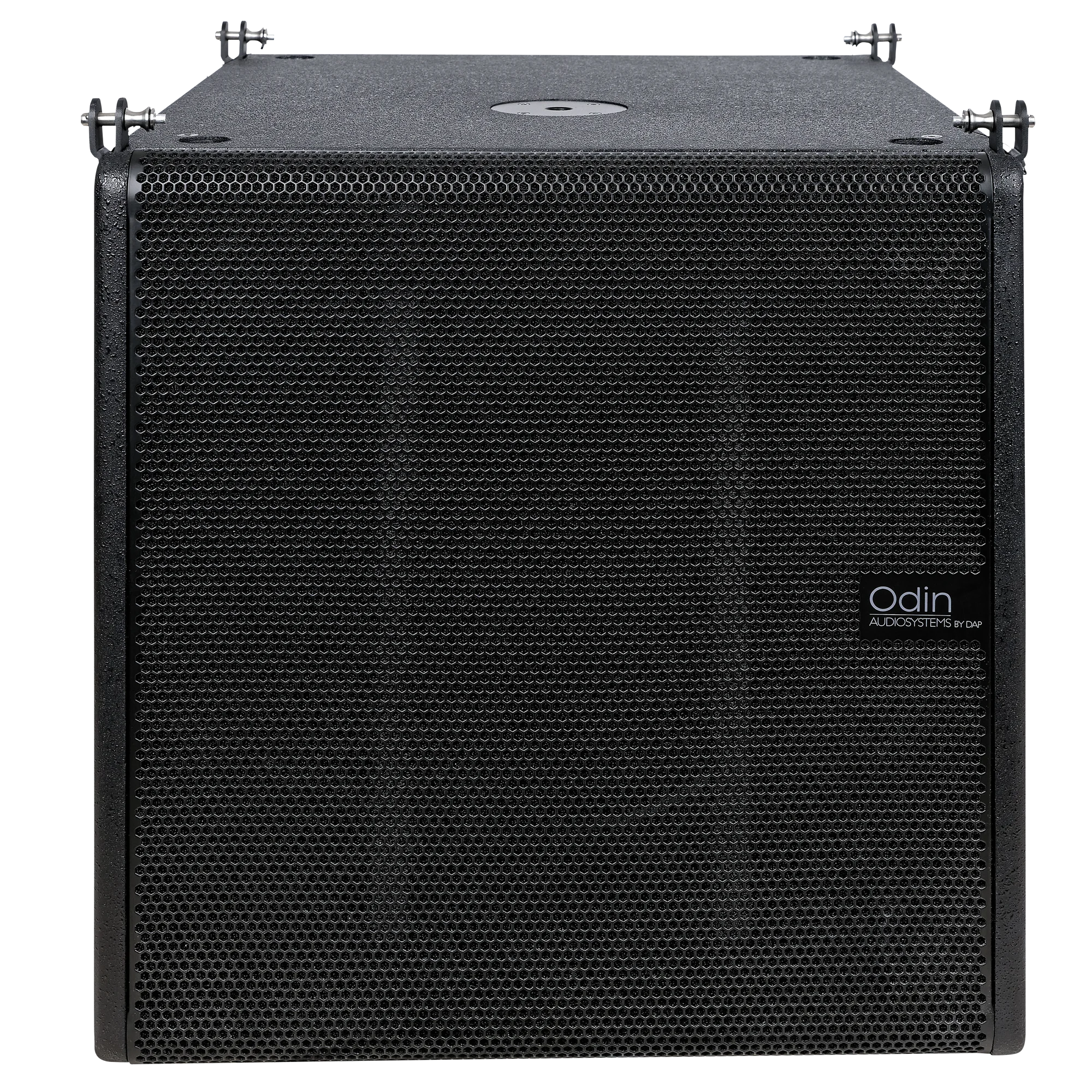

The DAP Odin S-18 is a versatile passive Line Array Subwoofer suitable for small to big crowds. For a punchy full-range sound, you can fly or stack this 1200 W (2400 W peak) subwoofer together with DAP Odin T-8 or T-8A satellites by using the DAP Odin FB-02 stack frame as adapter and the DAP Odin FB-01 as a fly bar.

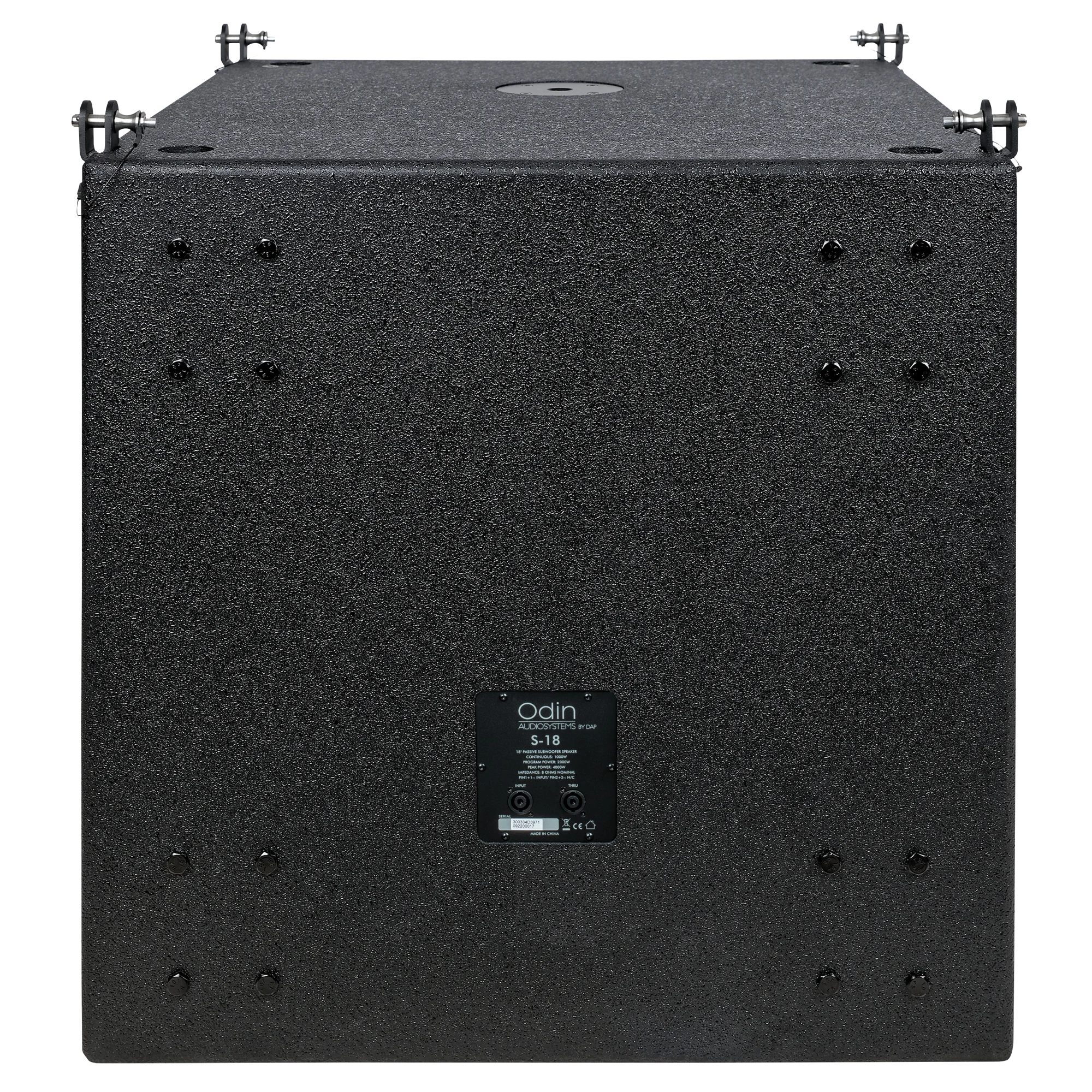

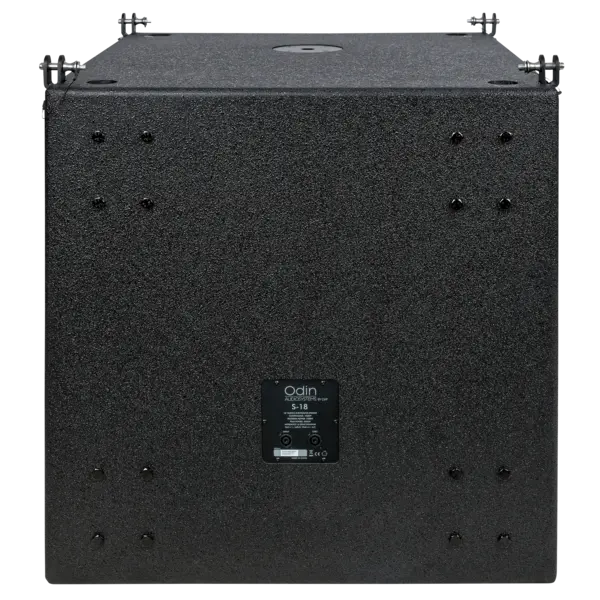

The S-18 has a high-excursion 18” Celestion Ferrite Magnet subwoofer with a 4” voice coil. It produces up to a staggering 136 dB SPL at 1 meter distance. The sturdy plywood enclosure is coated with a very scratch-resistant black paint and has an M20-threaded adapter for mounting a speaker distance pole. Dual solid two-pole Speaker Connectors offer a sturdy loop through for connecting multiple woofers to a single amplifier channel.

A single person can set up a complete Odin Line Array set thanks to its 4-point suspension system. Not only is the setup quick and labour-saving, it also is a very modular system, allowing different setups to fit any location. You can use the optional 35 mm pole mount adapter to arrange a satellite setup. Or integrate the optional stack frame or fly bar and use the suspension points to arrange a stack or line array setup that best suits your venue.

Technical specifications
RMS Input Power: 1200 W
Peak Input Power: 2400 W
Passive Input Connection: Speaker Connector 4 pole
Speaker System: Subwoofer
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 136 dB
Woofer Voice Coil Diameter: 4"
Height (mm): 665 mm
Width (mm): 663 mm
Depth (mm): 700 mm
Material: Plywood
Weight: 56.9 kg
Rigging Options: Flying / Stacking
