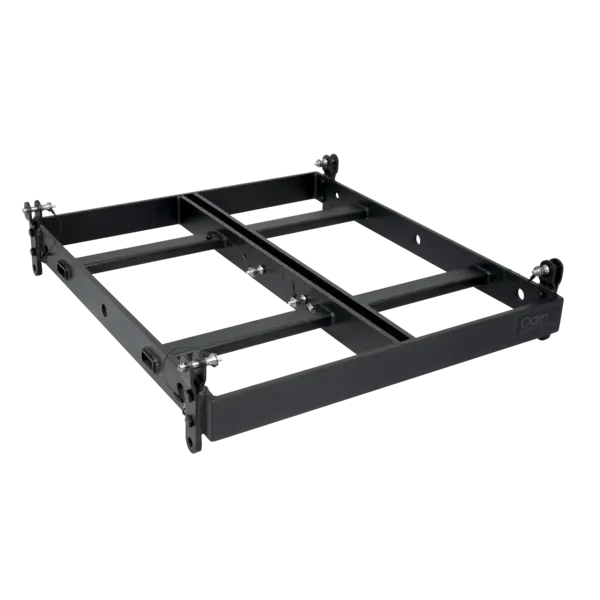

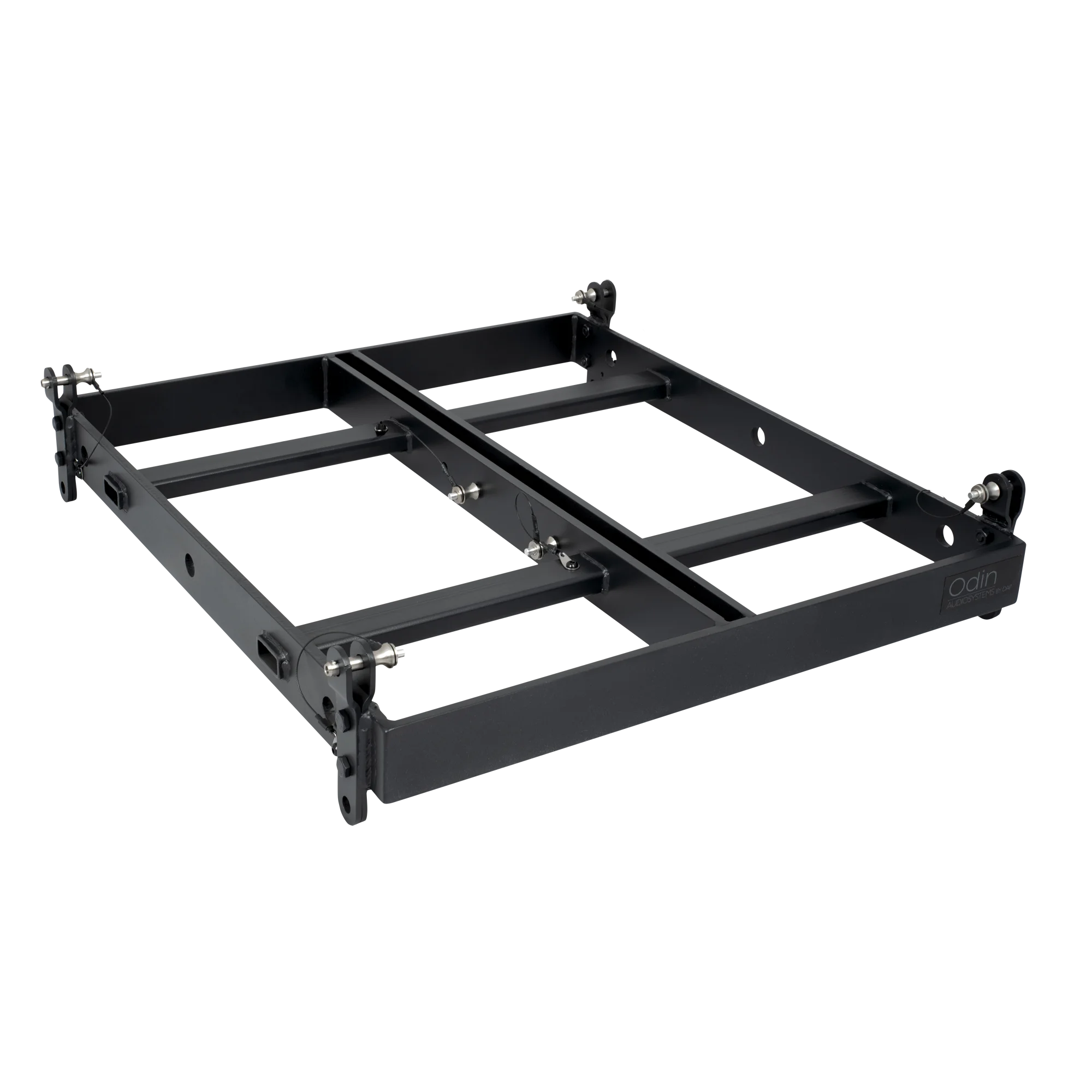

DAP | D3911 | Odin FB-02 | Rigging Stack Bar
Description
The DAP Odin FB-02 is a multifunctional Line Array Stack Bar for your DAP Odin system. This enables you to connect a T-8(A) satellite with 3-point suspension to an S-18(A) subwoofer with 4-point suspension. The FB-02 allows you to stack up to four T-8(A) satellites on S-18(A) subwoofers. In combination with the FB-01 fly bar, you can hang up to eight satellite speakers under S-18(A) subwoofers. Using the FB-02 as a flybar is possible for up to four T-8(A) satellites, but with limited hang and tilt options. Please be aware that this is only done in exceptional settings.This stack bar ensures that you can securely connect Odin speakers and subwoofers. This allows you to hang them under each other or stack them on top of each other and you are assured of a safe and robust installation.
Technical specifications
Height (mm): 140 mm
Width (mm): 617 mm
Length (mm): 690 mm
Weight: 22 kg
WLL (kg): 350 kg
Material: Steel
IP Rating: IP20 (indoor use only)
Mounting Options: 3-point suspension / 4-point suspension
Rigging Options: Flying
