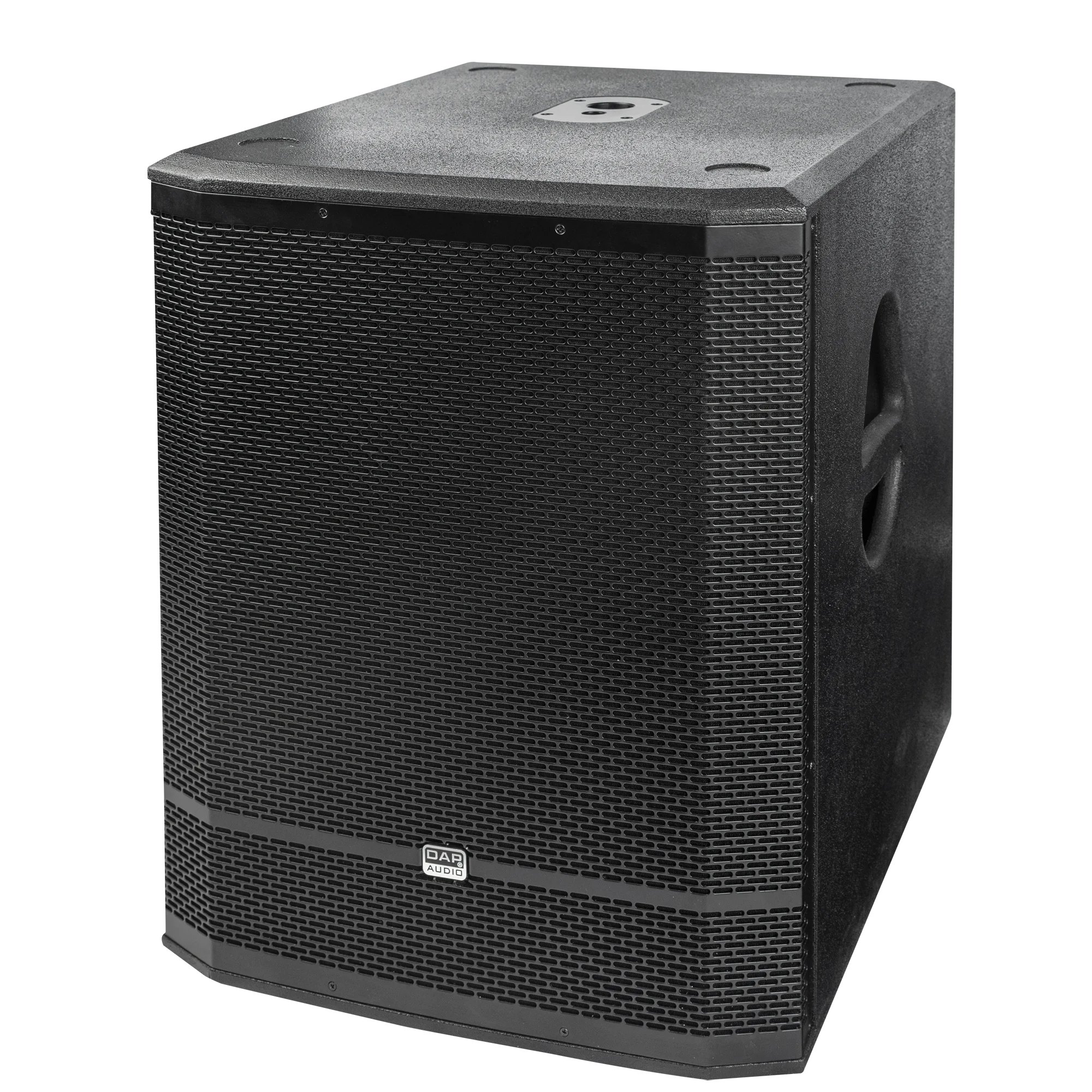

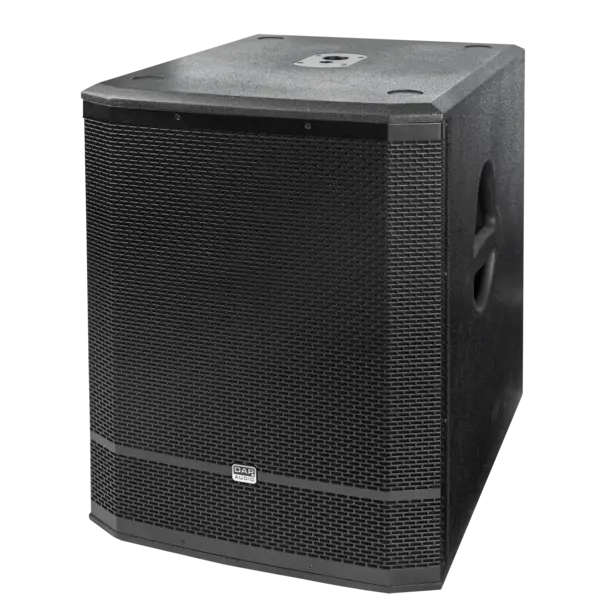

DAP | D3744 | Pure-18S | Passive 18" Subwoofer
Description

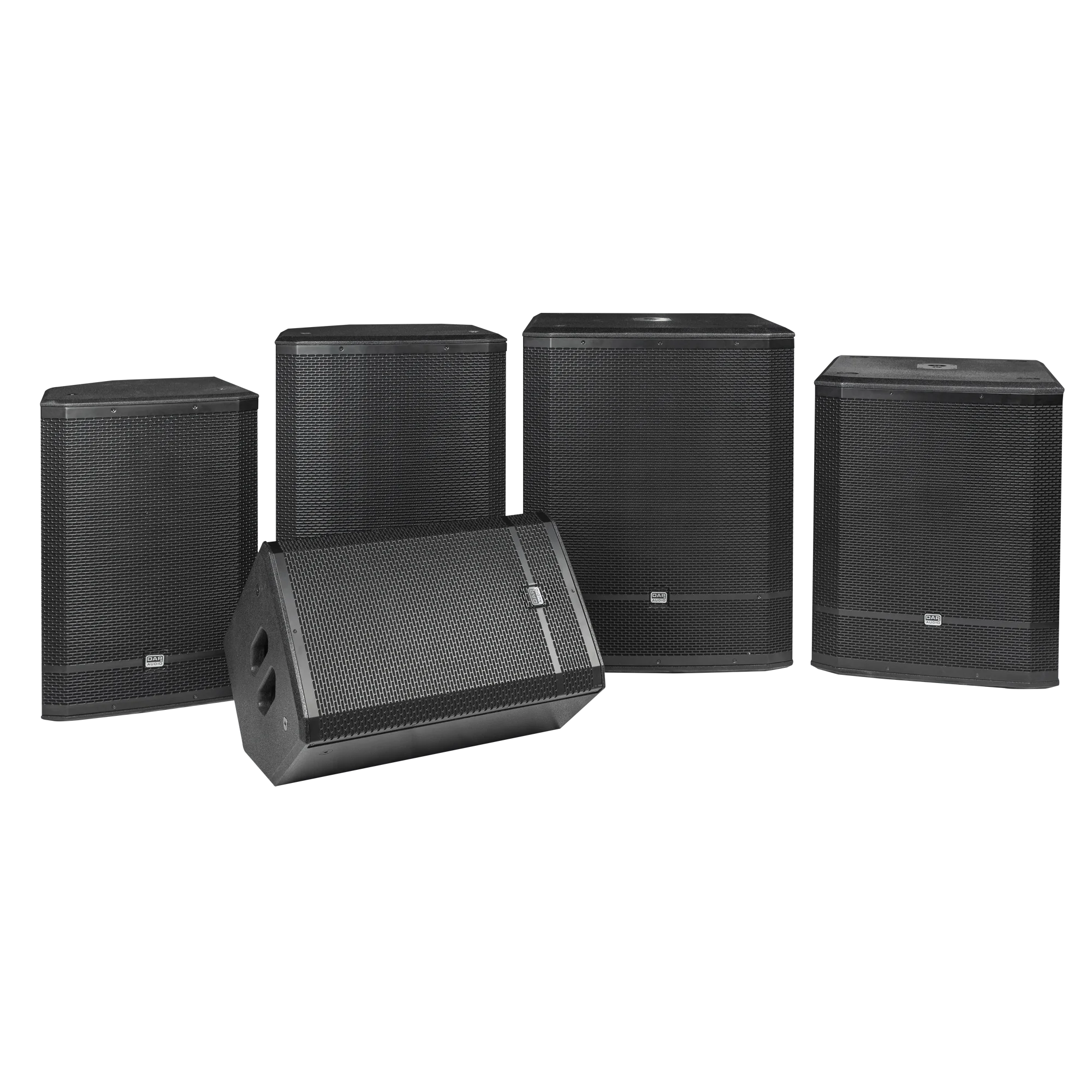

The passive speakers from DAP’s Pure-range offer powerful and road-ready solutions for various venues. You can choose between full range speakers from 10” to 15” and add high-power 15” or 18” bass-reflex subwoofers to complete the audio-picture. The full-range 2-way speakers are designed around a 12mm birchwood enclosure while the subwoofers have an 18mm birchwood construction. Each speaker is equipped with speakon connectors which ensure and strong and safe connections every time.DAP's passive Pure-Range offers high-power passive 15" and 18" subwoofers to complement the 10", 12" and 15" units perfectly. Add your favorite amplifiers and processing and you will be able to create a Rock-Steady sound system. If you are looking for a way to add Pure Sound to your party-place, then here's your answer.
Technical specifications
RMS Input Power: 800 W
Peak Input Power: 1600 W

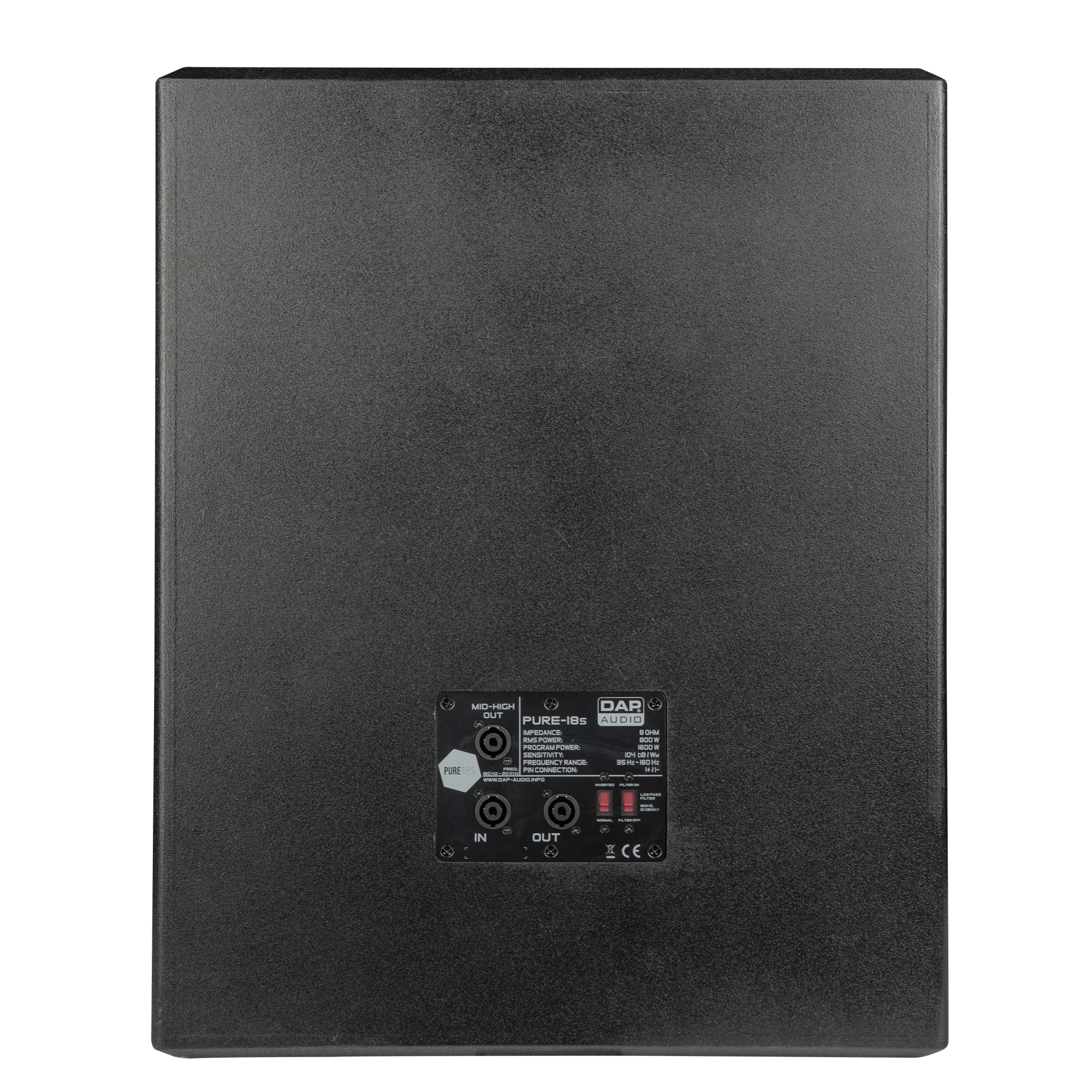

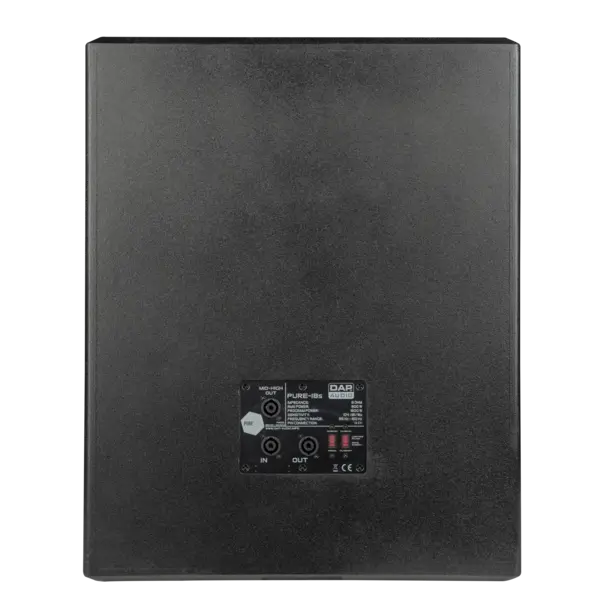

Passive Input Connection: Speaker Connector 4 pole
Speaker System: Subwoofer
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 133 dB
Frequency Response (-10 dB) Minimum: 32 Hz
Frequency Response (-10 dB) Maximum: 200 Hz
Crossover Frequency (Low): 32 Hz
Woofer Voice Coil Diameter: 4"
Height (mm): 655 mm
Width (mm): 520 mm
Depth (mm): 602 mm
Material: Wood
Weight: 36 kg
Rigging Options: Stacking
Specifications
RMS input power | |
Peak input power | |
Speaker impedance | |
Max. SPL | |
Frequency response minimum | |
Frequency response maximum | |
Crossover frequency low | |
Crossover frequency high | |
Woofer voice coil diameter | |
Compression driver voice coil | |
Dispersion angle (horizontal) | |
Dispersion angle (vertical) | |
Height | |
Width | |
Depth | |
Material | |
Weight |
