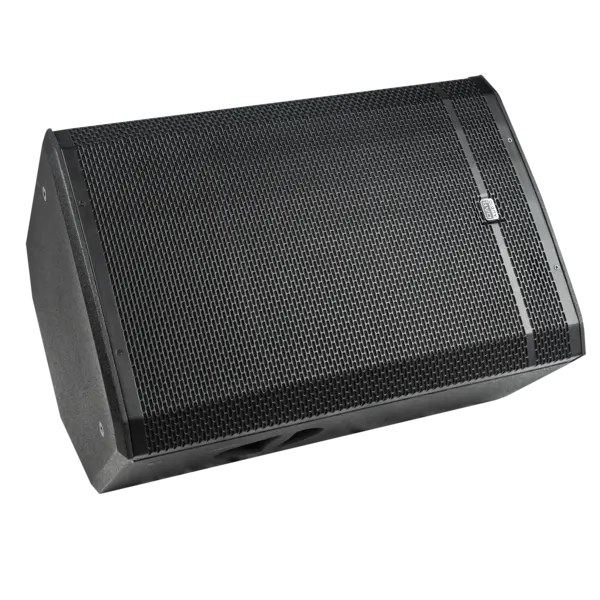

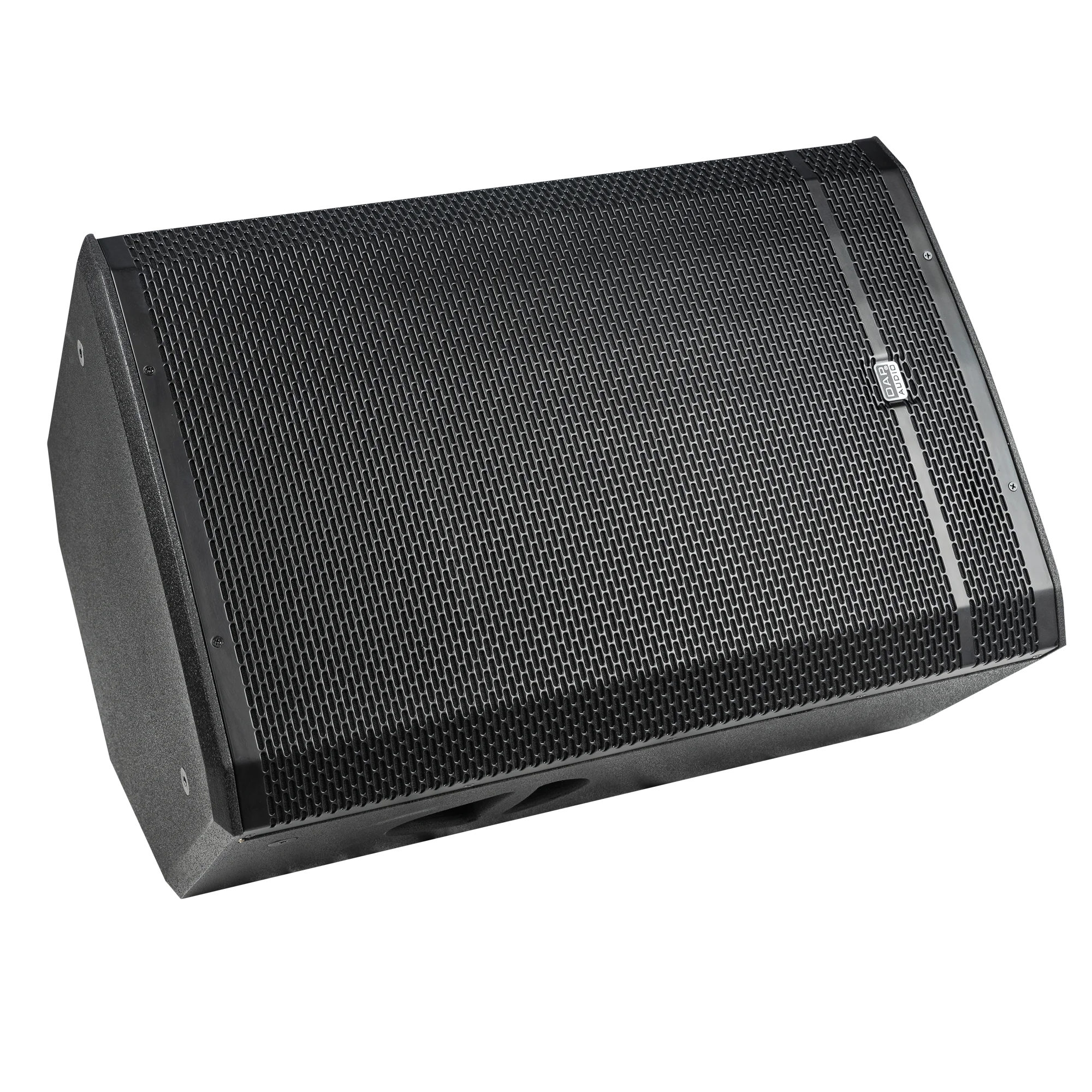

DAP | D3742 | Pure-15 | Passive 15" full-range speaker

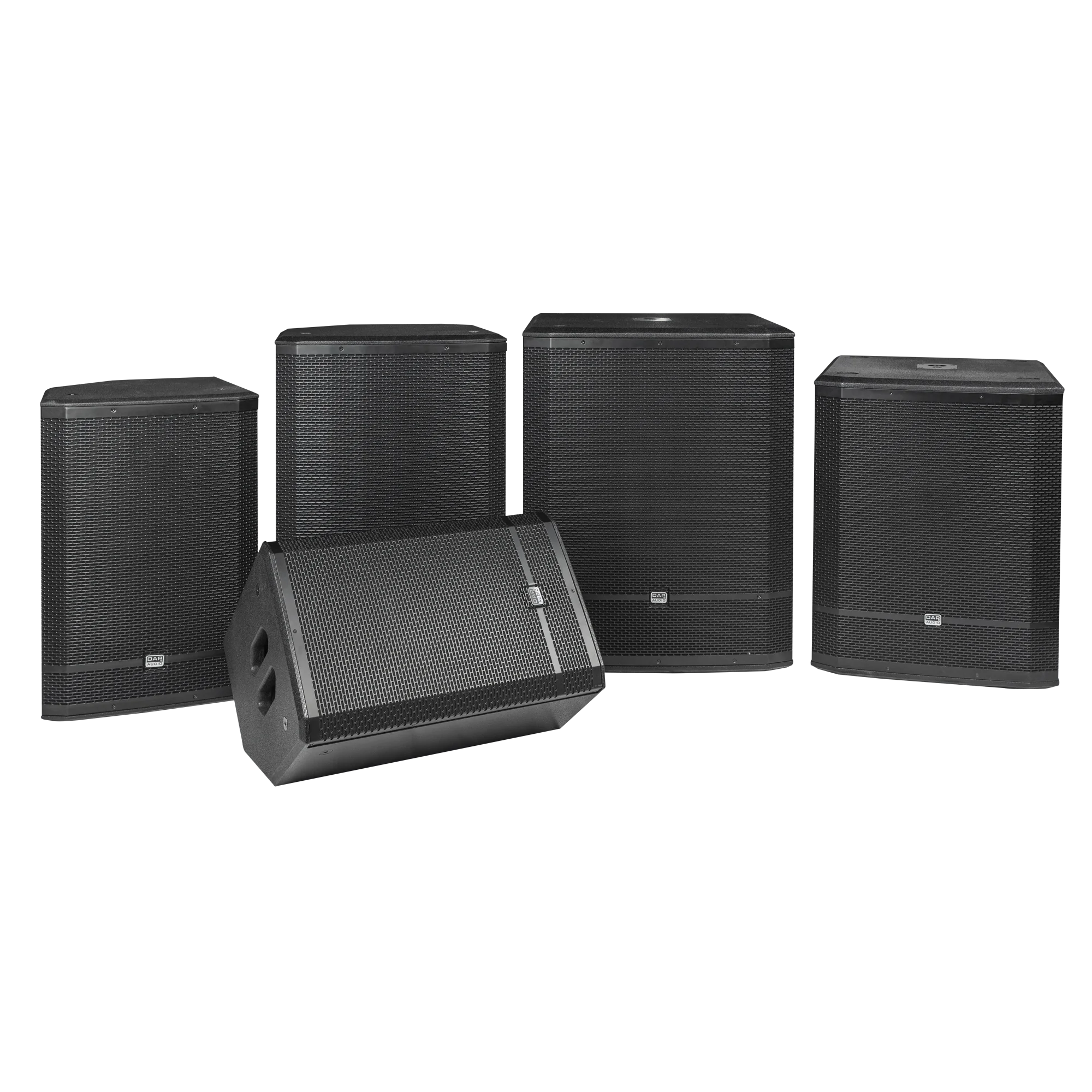

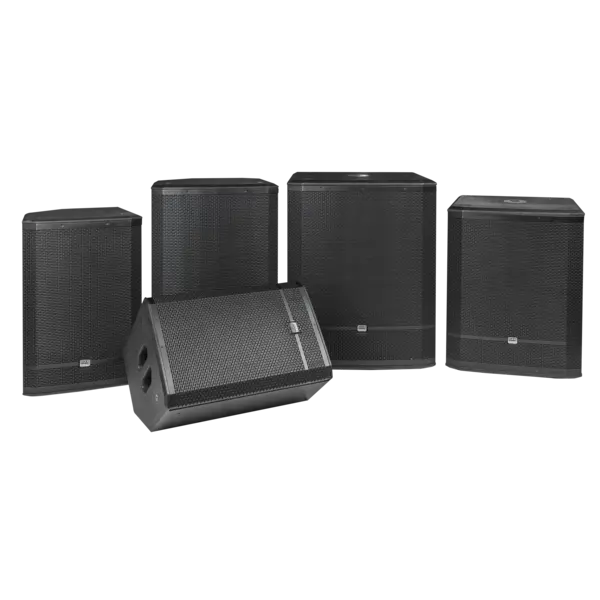

The passive speakers from DAP’s Pure-range offer powerful and road-ready solutions for various venues. You can choose between full range speakers from 10” to 15” and add high-power 15” or 18” bass-reflex subwoofers to complete the audio-picture. The full-range 2-way speakers are designed around a 12mm birchwood enclosure while the subwoofers have an 18mm birchwood construction. Each speaker is equipped with speakon connectors which ensure and strong and safe connections every time.

The DAP Pure-15 is a passive full-range 15-inch speaker with a peak power of 800 watt (400 W RMS), designed for mobile multi-purpose applications. It can be used as a mobile PA or stage (floor) monitor due to its lightweight, compact and multifunctional design.

The sound dispersion of the Pure-15 can be set at 75°x50° in both horizontal and vertical position since it has a rotatable horn. In addition, it can function well as a floor monitor. The 30° angled cabinet allows you to point the speaker up towards the artist. A universal pole mount adapter allows vertical installation. You can think of a speaker stand or distance tube/speaker pole. Finally, you also have the option to hang the speaker from a ceiling or truss using M8 rigging eyes.

The Pure-15 is constructed from 15 mm birch plywood and coated with a black scratch resistant finish for longevity.

Technical specifications
RMS Input Power: 400 W
Peak Input Power: 800 W
Passive Input Connection: Speaker Connector 4 pole
Speaker System: 2-way
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 128 dB
Frequency Response (-10 dB) Minimum: 40 Hz
Frequency Response (-10 dB) Maximum: 20 Hz
Crossover Frequency (Low): 42 Hz
Crossover Frequency (High): 2000 Hz
Woofer Voice Coil Diameter: 2.5"
Compression Driver Diameter: 1"
Compression Driver Voice Coil: 1.75"
Dispersion Angle (Horizontal): 75°
Dispersion Angle (Vertical): 50°
Height (mm): 648 mm
Width (mm): 407 mm
Depth (mm): 415 mm
Material: Wood
Weight: 25 kg
Rigging Options: Flying
