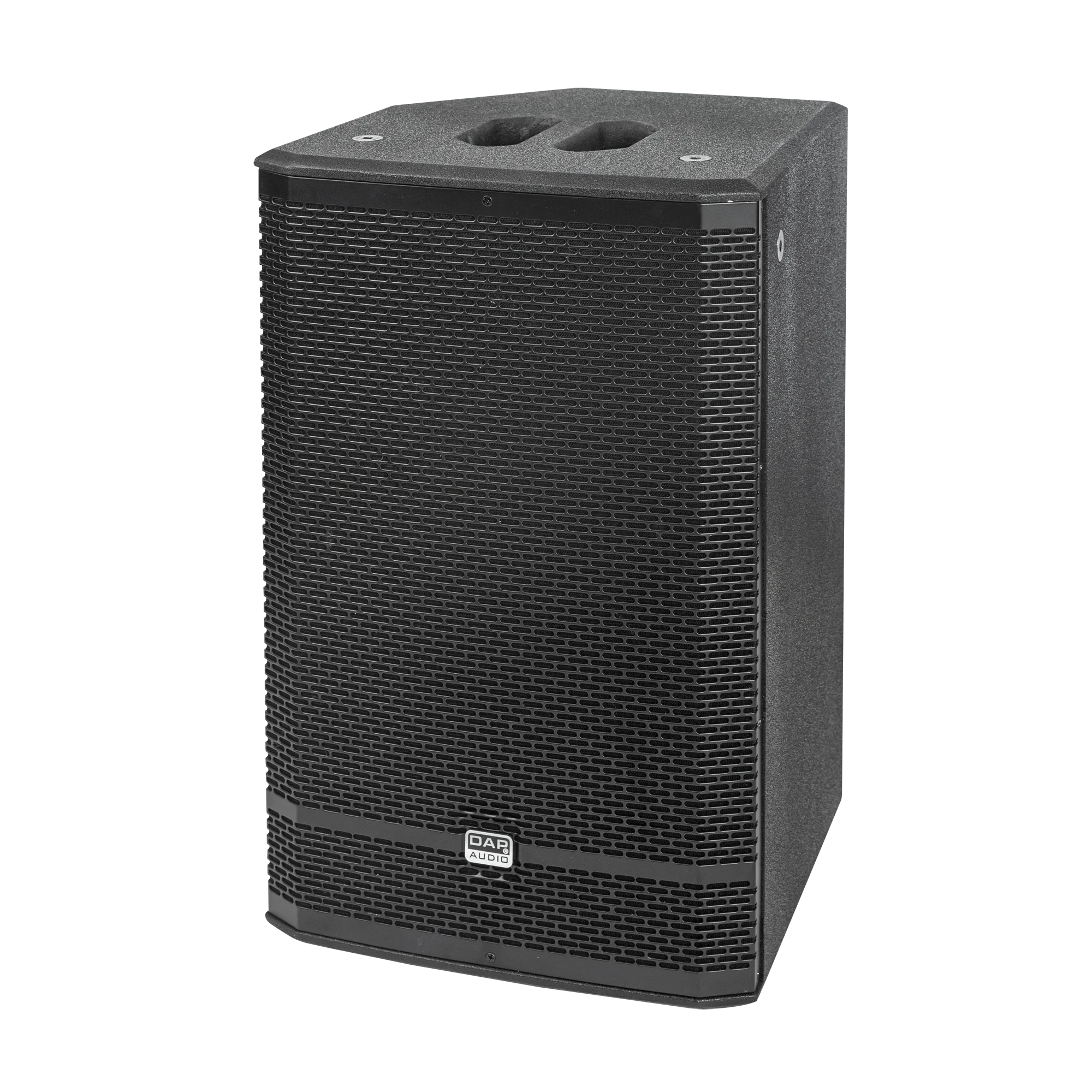

DAP | D3719 | Pure-10A | Active 10" full-range speaker

The DAP Pure Series produces the most Pure sound in its class. A bi-active lightweight speaker range consisting of a 10”, 12” and 15” full range speaker and a dedicated 18” active subwoofer. With these powerful cabinets you have the right tool for mobile and live sound, applicable for bands, DJs, presentations and more. The on-board Class-D bi-amp amplification offers pure power and keeps these cabinets lightweight and easy to handle. Each unit is equipped with a sophisticated 24bit, 96Khz DSP Processor giving the user the opportunity to select various presets and still be able to tune, store and recall your own sound settings. Tools like running hours, editable company name and delay settings, all lockable make the Pure Series ideal for rental as well. It offers two combined line microphone inputs with a link output which can be set to channel 1, channel 2 or a mix of both. The advanced protection system including thermal, overload protection and a custom compressor limiter will make sure that Pure keeps delivering on any event.

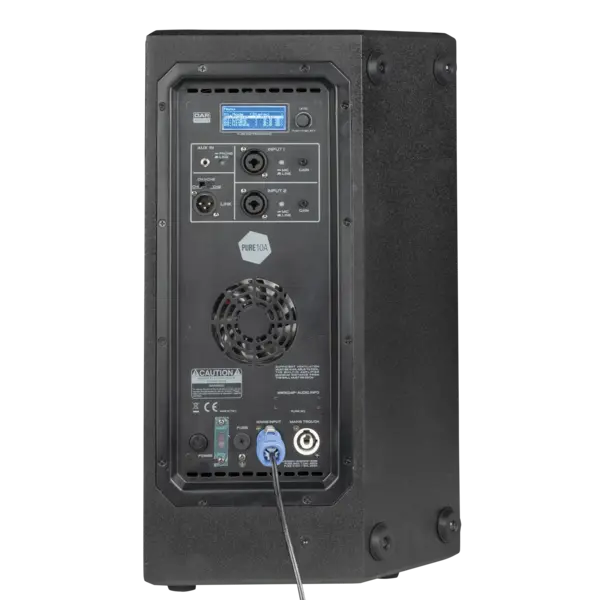

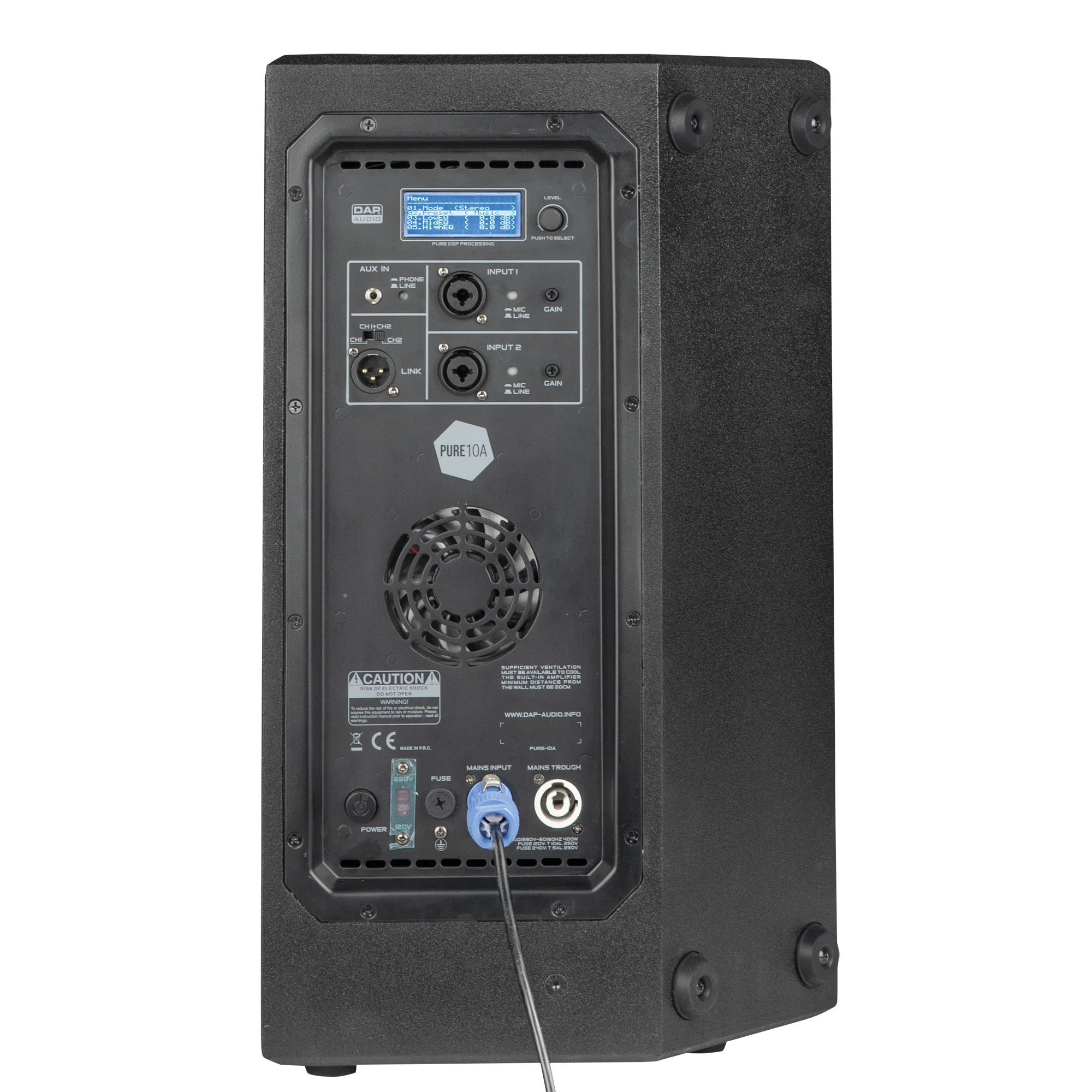

The DAP Pure-10A is a versatile 10-inch active full-range speaker with a 260 watt peak power. Its multifunctional design allows you to use it as a PA speaker, top cabinet or floor monitor. Presets are available for music, live, voice DJ and monitor. You can also set the 24-bit DSP to personal preference. You can adjust various settings, such as EQ, delay, limit and phase. This can be easily done by means of the LCD screen in combination with the turn-push button.

The Pure-10A has an impressive maximum SPL of 125 dB at 1 meter. You can use it in combination with the Pure-15S to add a pure and deep bass sound. This combination is guaranteed to help you get the party started.

The Pure series is suitable for touring and other on-the-road applications due to its sturdy design with handle and optional transport cover. The cabinets are equipped with a 35 mm tripod adapter, suitable for universal tripod adapters, but you can also hang them using M8 suspension eyes. A Power Pro cable is included.

Technical specifications
Low Driver Power: 130 W
High Driver Power: 20 W
Power Amplifier RMS Output: 150 W
Power Amplifier Peak Output: 600 W
Mono Inputs: 2
Auxiliary Inputs: 1
THD Level: < 0.5 %
Signal-to-noise Ratio: > 105 dB
Amp Technology: Class D
Speaker System: 2-way
Maximum SPL at 1 m: 125 dB
Frequency Response (-6 dB) Minimum: 52 Hz
Frequency Response (-6 dB) Maximum: 20000 Hz
Crossover Frequency (High): 2100 Hz
Woofer Voice Coil Diameter: 2"
Compression Driver Voice Coil: 1.75"
Dispersion Angle (Horizontal): 90°
Dispersion Angle (Vertical): 60°
User Presets: Yes
User Presets Capacity: 6
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 300 W
Power Connector In: Power Pro Blue
Height (mm): 500 mm
Width (mm): 320 mm
Depth (mm): 324 mm
Material: Wood
Weight: 13 kg
Electronic Protection: Compressor / Convection-fan / Digital limiter / Overload / Thermal
