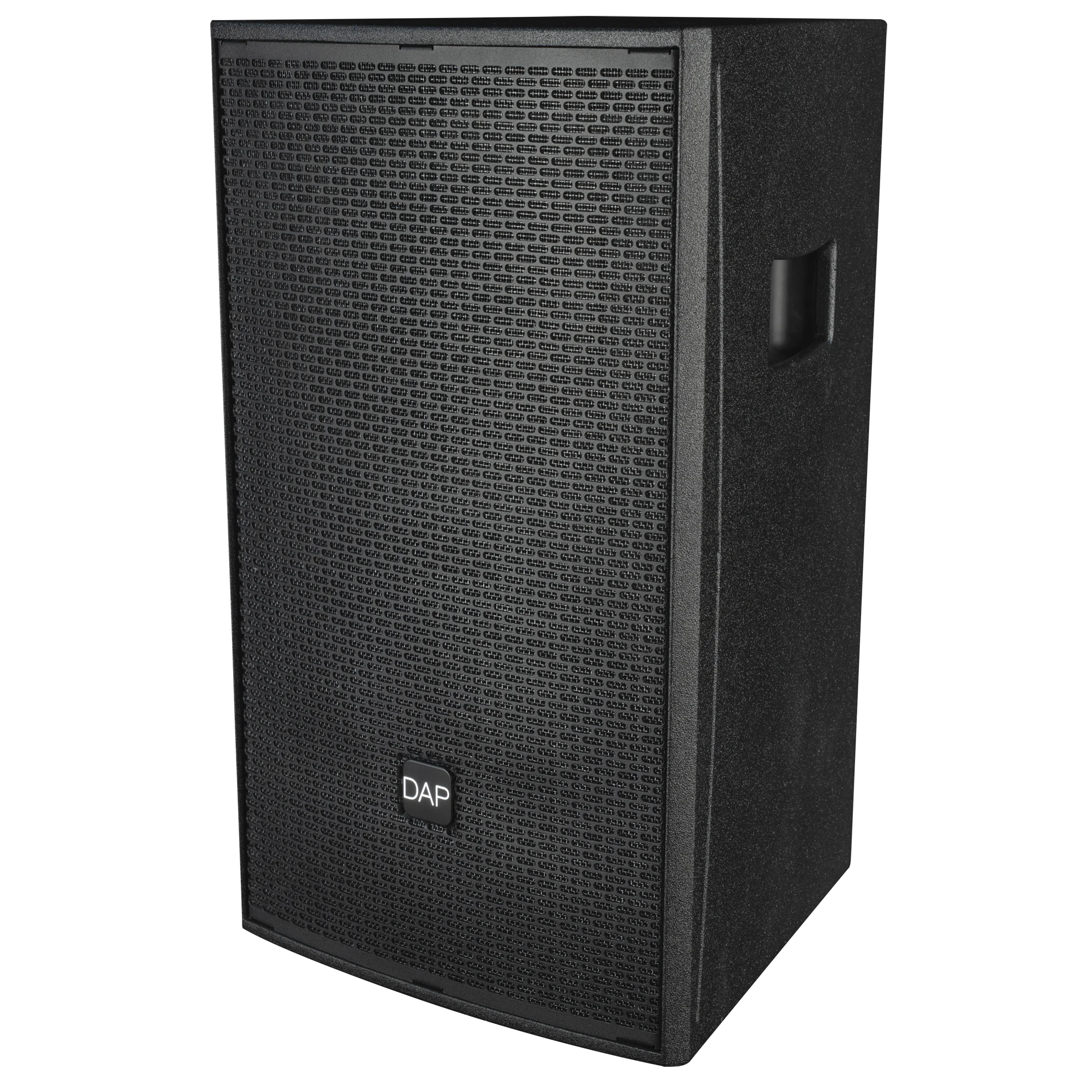

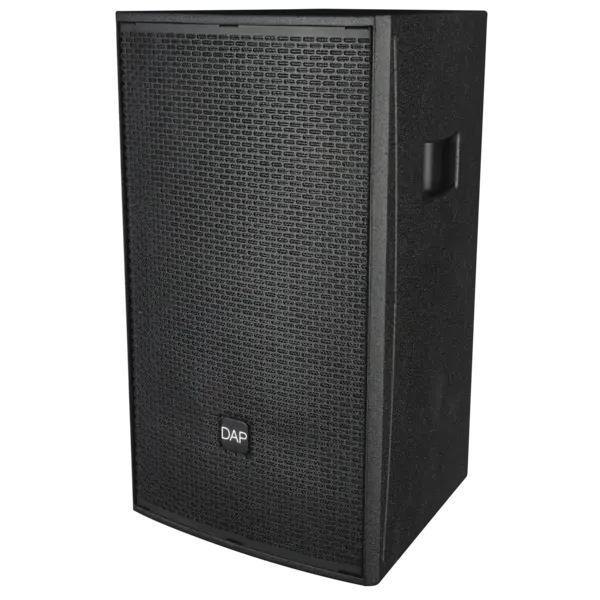

DAP | D3624 | NRG-10 | Passive 10” full-range speaker

The DAP NRG series consists of lightweight full-range loudspeakers with 8” to 15” woofers and subwoofers with 12” to 18” drivers, available in passive and active versions. The series is designed for mobile DJ applications or permanent installations in small to medium-sized venues. All NRG speakers use robust but lightweight plywood enclosures, double-angled pole mounts and M10 fly points on the full range speakers, M20 adapters on the subwoofers, a professional-grade wear-resistant polyurea coating and rugged 4-pole speaker connectors as well as terminal connectors to deliver great ease of use and sound quality at a very competitive price.

The DAP NRG-10 is a passive full-range loudspeaker rated at 550 watts peak (150 watts continuous RMS). It uses a 10” woofer and a 1” compression driver. With a sensitivity of 94 dB/W/m, the NRG-10 comfortably plays up to 115 dB with peaks of up to 127 dB. The compression driver is coupled to a rotatable horn with a directivity of 90°x 60°. The woofer has a low cut-off point of 70 Hertz (-6 dB).

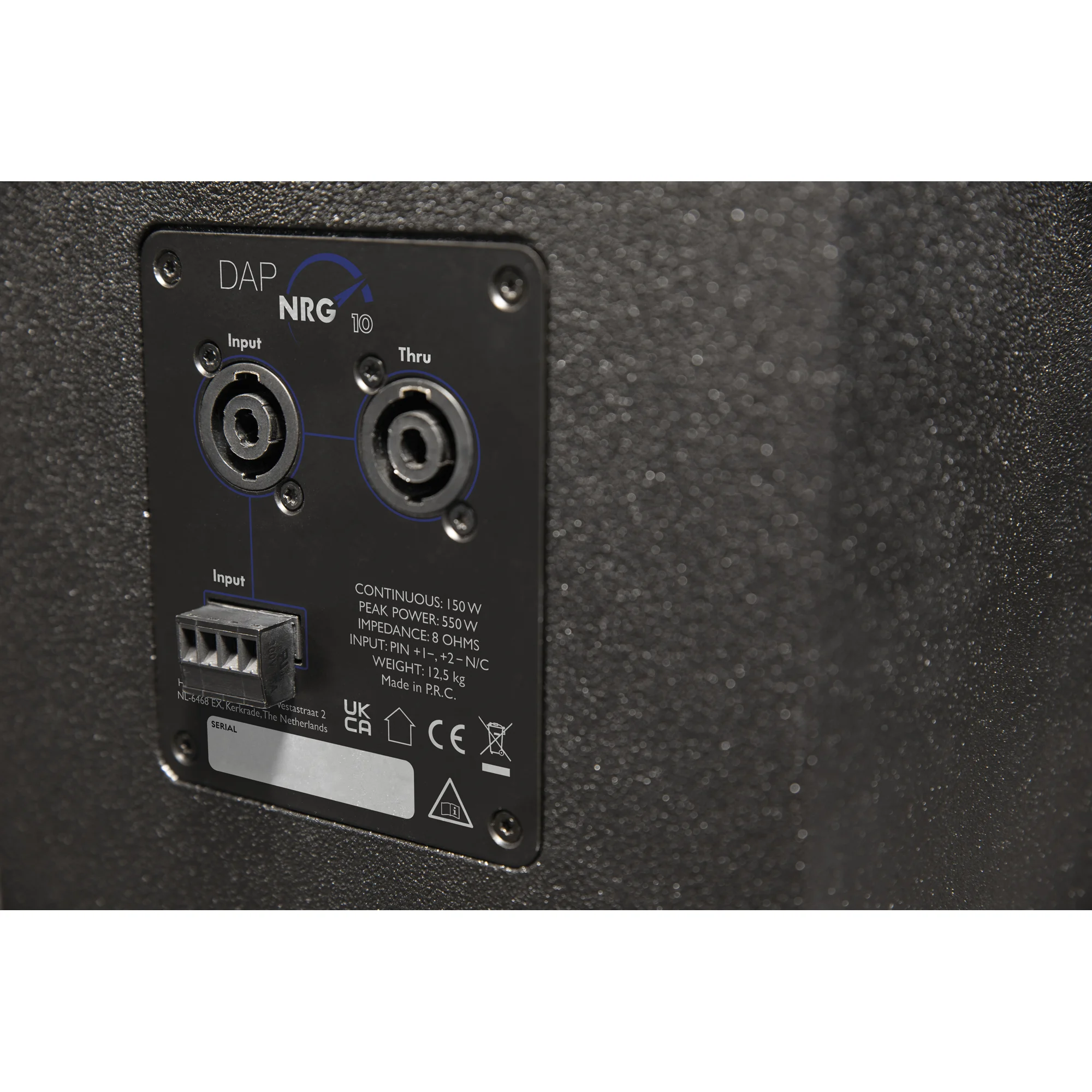

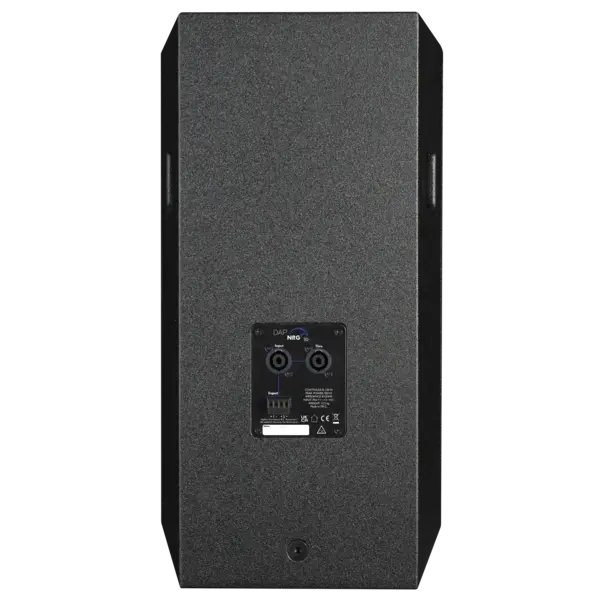

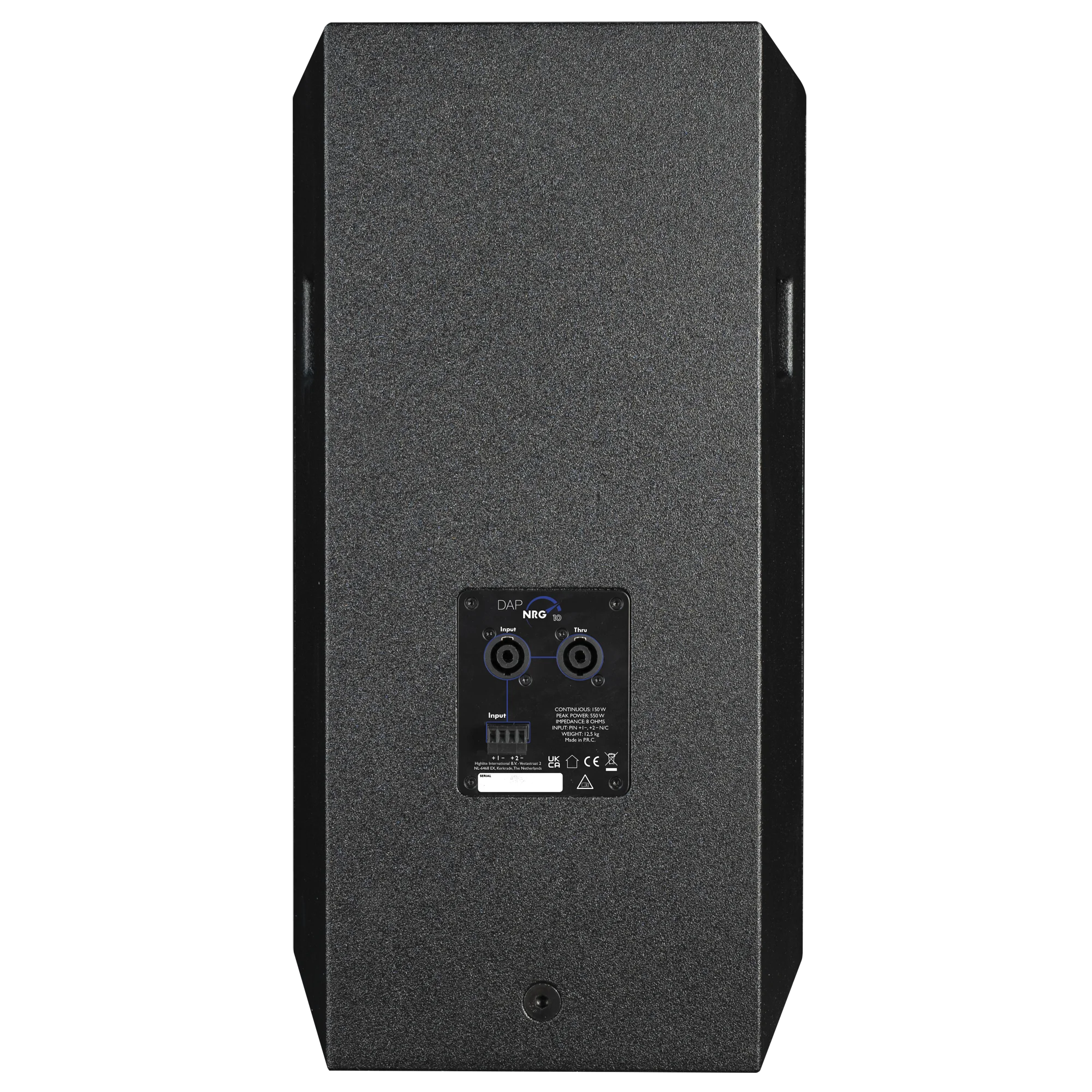

The sturdy, lightweight plywood cabinet has a double-angled top hat (0° and 5°), allowing you to point the cabinet downwards when mounting it on a pole. It uses 4-pole speaker in and thru connectors and offers an additional 4-pin terminal connector, which is especially useful for permanent installation applications. To get the most out of the NRG-10, we recommend using a 4th order high-pass filter at 50 Hertz and adding an NRG series subwoofer.

Technical specifications
RMS Input Power: 150 W
Peak Input Power: 550 W
Passive Input Connection: Speaker Connector 4 pole / Terminal
Speaker System: 2-way
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 115 dB
Frequency Response (-6 dB) Minimum: 70 Hz
Frequency Response (-6 dB) Maximum: 20000 Hz
Woofer Voice Coil Diameter: 2"
Compression Driver Diameter: 1"
Compression Driver Voice Coil: 1.4"
Dispersion Angle (Horizontal): 90°
Dispersion Angle (Vertical): 60°
Height (mm): 550 mm
Width (mm): 322 mm
Depth (mm): 320 mm
Material: Plywood
Weight: 12.5 kg
