DAP | D3589 | Splash 10A | Active 10" full-range speaker
Description

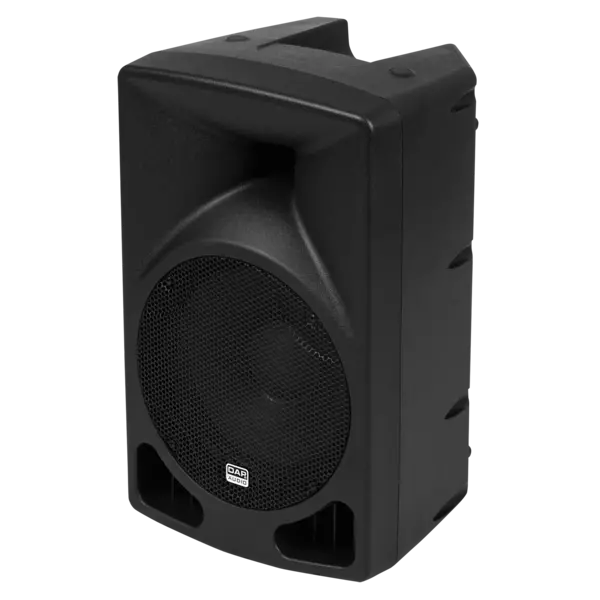

The DAP Splash 10A is an active 10-inch full-range on-the-road speaker with a maximum SPL of 116 dB at 1 meter. This speaker with built-in 240 watt amplifier can be used perfectly as a floor monitor or as a PA speaker for small locations. It has a versatile design and gives a clear sound. The Splash 10A is compact and has a narrow dispersion angle to minimize potential feedback and maximize its output.The Splash series is designed to last and outperform. It has a sturdy ABS housing and has handles, a universal pole mount adapter and rubber feet for a quick and safe installation.
Technical specifications
Low Driver Power: 90 W
High Driver Power: 30 W
Power Amplifier RMS Output: 120 W
Power Amplifier Peak Output: 240 W
Mono Inputs: 1
THD Level: < 0.5 %
Signal-to-noise Ratio: > 80 dB
Amp Technology: Class D
Speaker System: 2-way
Maximum SPL at 1 m: 116 dB
Frequency Response (-6 dB) Minimum: 65 Hz
Frequency Response (-6 dB) Maximum: 20000 Hz
Crossover Frequency (High): 2800 Hz
Woofer Voice Coil Diameter: 1.5"
Compression Driver Voice Coil: 1"
Dispersion Angle (Horizontal): 90°
Dispersion Angle (Vertical): 45°
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 75 W
Power Connector In: IEC
Height (mm): 460 mm
Width (mm): 285 mm
Depth (mm): 265 mm
Material: ABS
Weight: 6.92 kg
Electronic Protection: Clip limiter (fixed) / DC voltage / Softstart / Thermal
