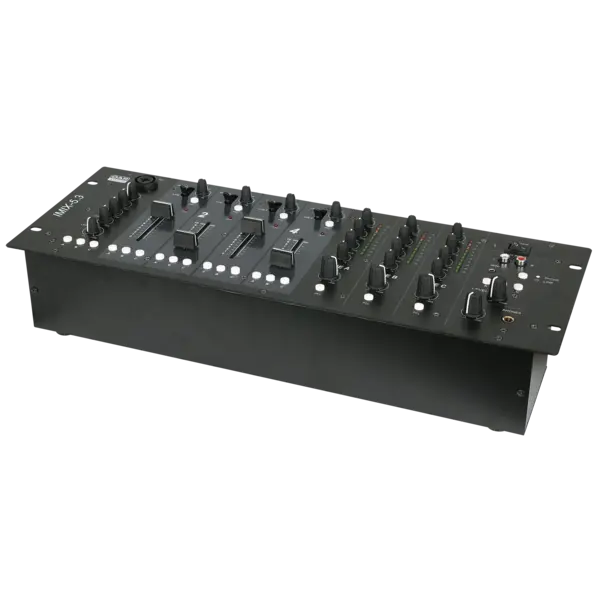

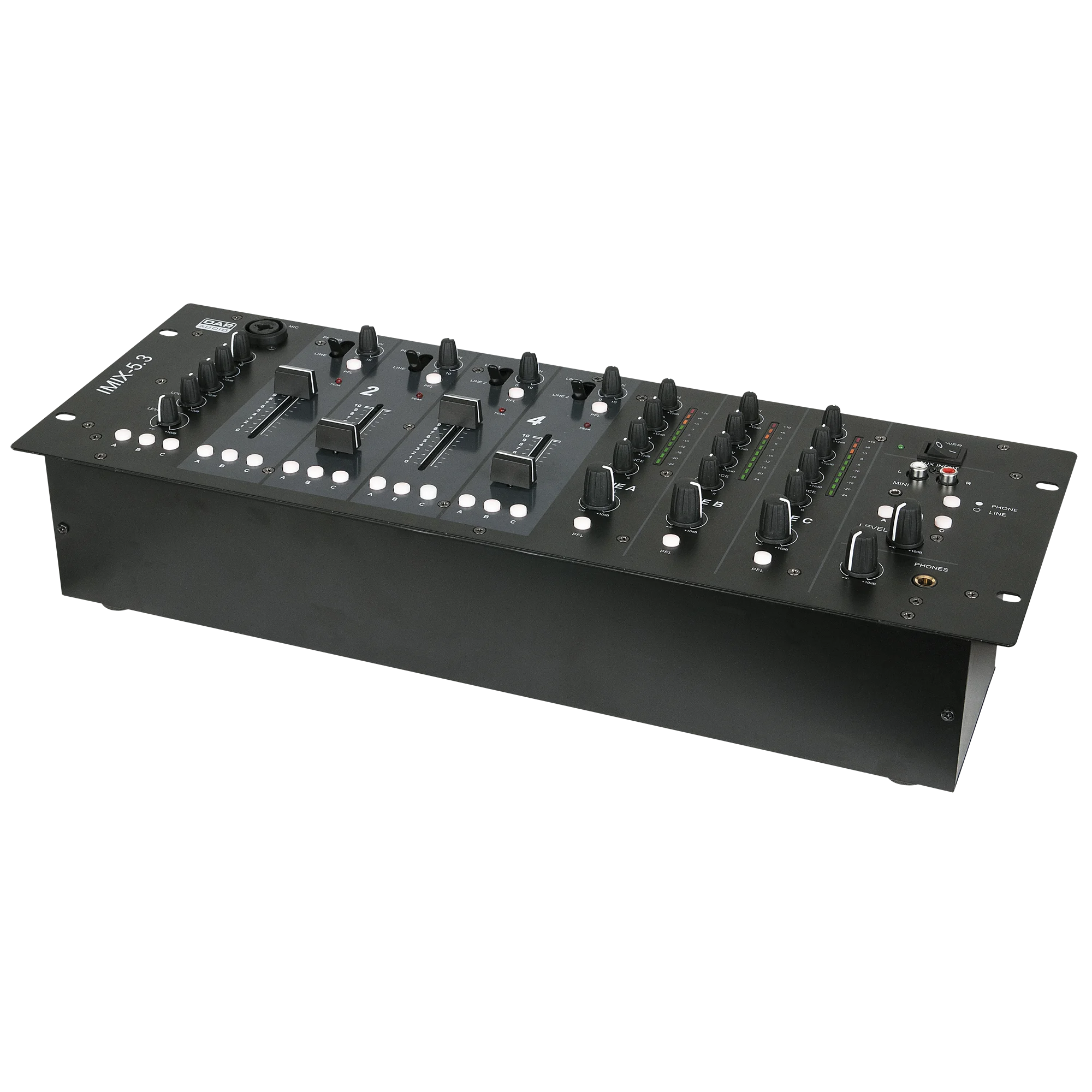

DAP | D2352 | IMIX-5.3 | 5-channel 4U install mixer - 3 zones
Description

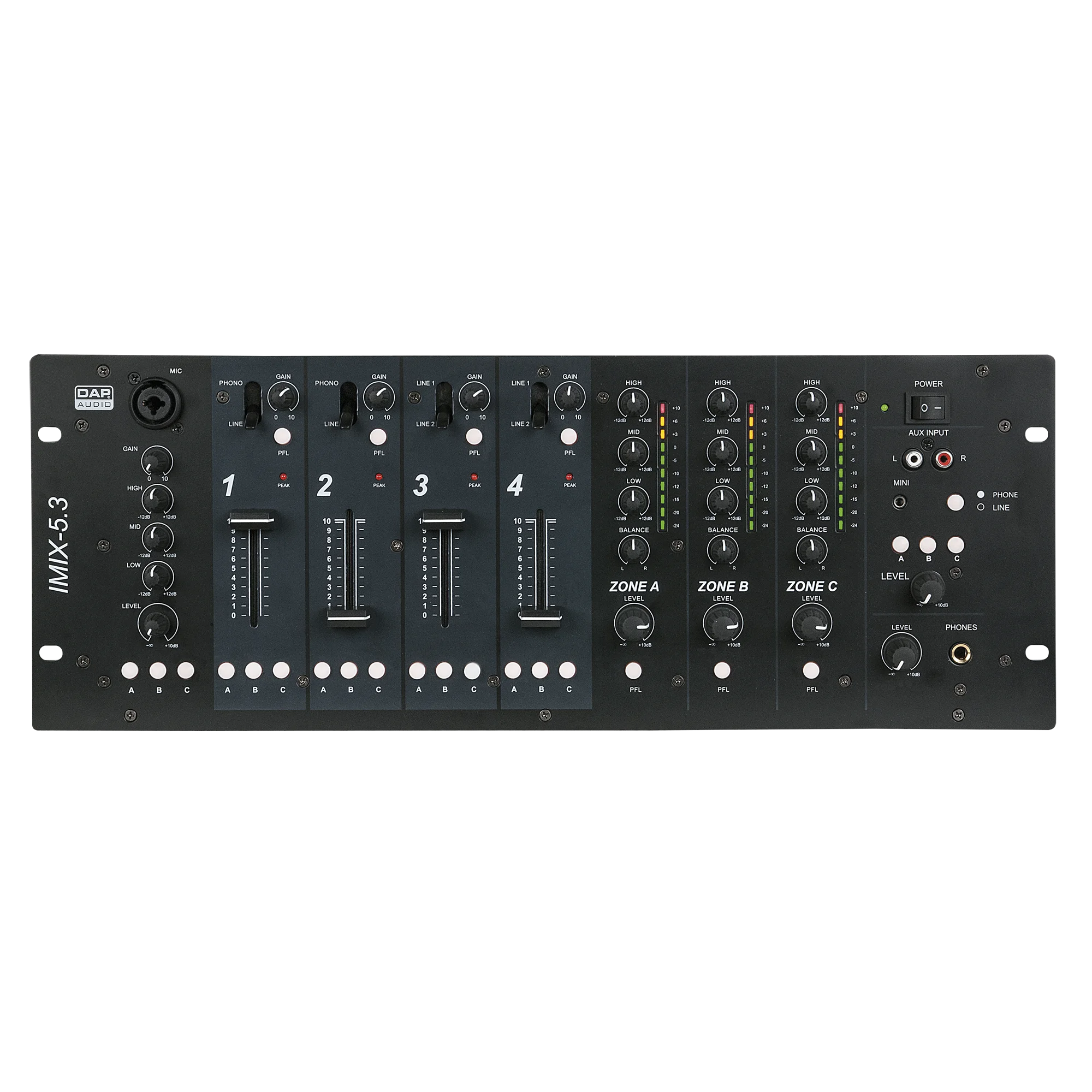

The DAP IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.Technical specifications
Mono Inputs: 1
Stereo Inputs: 8
Phono Audio Inputs: 2
Main Outputs: 3
Zone Outputs: 3
Headphone Output: 1
THD Level: < 0.05 %
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Parametric Microphone Equalizer: 3 Bands
Parametric Zone Equalizer: 3 Bands
Power Supply: 240 V AC 50-60 Hz
Power Consumption: 15 W
Height (mm): 176 mm
Width (mm): 89 mm
Length (mm): 481 mm
