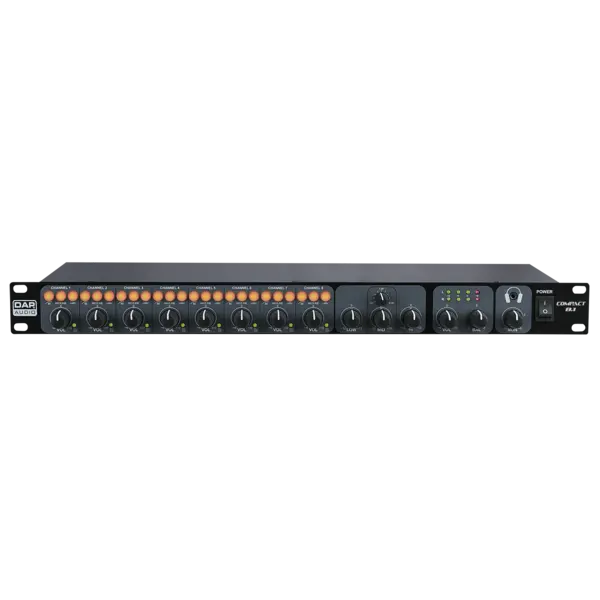

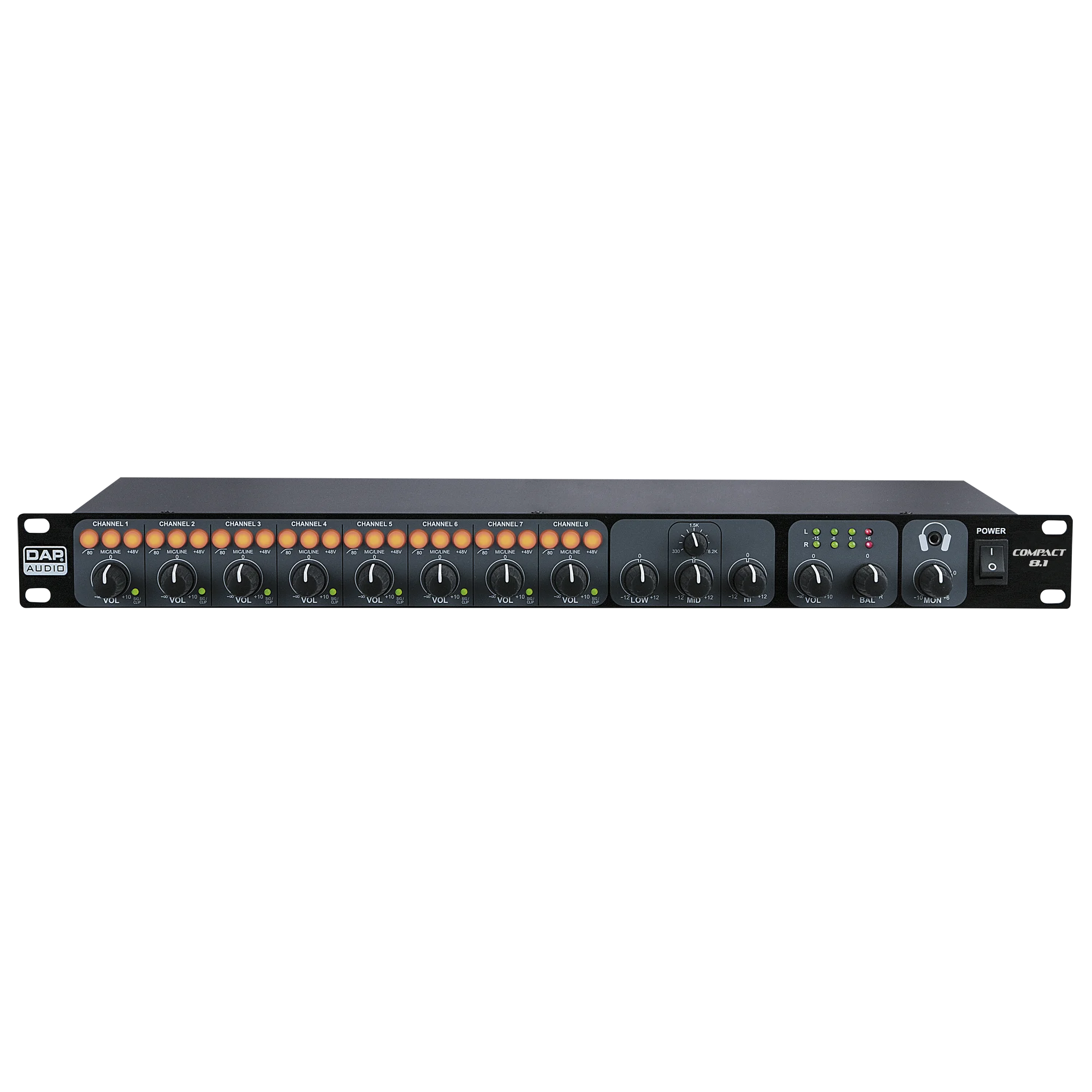

DAP | D2321 | Compact 8.1 | 8-channel 1U install mixer - 1 output

The DAP Compact 8.1 is a high quality 19” 1U microphone line mixer. With some smart features it distinguishes itself from other compact mixers. All inputs can be used for microphone or line level inputs and have high pass filters and phantom power selections for each input separately. It has a balanced master output, a record output and a monitor output. The headphones level also influences the monitor output which makes this an independent extra output for a second area or zone.

The main EQ has a mid-frequency sweep which helps you to eliminate the feedback frequency of your system if you use the Compact 8.1 as a microphone mixer. All channels have signal / Clip indicators which gives you a direct overview of your input signals even from a long distance. The Compact 8.1 combines a clear user interface with maximum inputs and smart functionalities on a 1U mixer.

Technical specifications
Mono Inputs: 8
Stereo Inputs: 8
Main Outputs: 1
Monitor Outputs: 1
Headphone Output: 1
Record Output: 1
THD Level: < 0.01 %
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Phantom Power: 48 V
Parametric Main Equalizer: 3 Bands
Power Supply: 240 VAC 50-60 Hz
Power Consumption: 12 W
Height (mm): 44 mm
Width (mm): 175 mm
Length (mm): 481 mm
