DAP | D2304 | CORE MIX-4 USB | 4-channel DJ mixer with USB interface

DAP CORE is a DJ series including DJ Mixers and a Table Top. They are all made of high quality materials and built to last and outperform. It's a durable range of DJ gear with a high price-to-quality ratio suitable for club, mobile, karaoke and home DJs from beginner to the more experienced player.

DAP Audio has created two DJ Mixer models which are available in 2, 3 and 4-channel versions. The basic and latest set of mixers are the CORE Scratch (2-Ch), Beat (3-ch) and Club (4 Ch). Next to its basic functionalities, each model has bluetooth playback, a VU channel indication and both a Master and Booth output with separate volume control.

More advanced mixers are the CORE MIX-2 (2-Ch), MIX-3 (3-Ch) and MIX-4 (4-Ch). They are equipped with a USB record module, two built-in USB audio interfaces for MAC/PC and variable FX send / return for each channel. This allows you to record your set, add audio effects and play music from your laptop, table top or even Vinyl player.

The DAP CORE CDMP-750 Table Top is a CD/USB player for completing your DJ setup. It enables you to scratch, Cue, pitch, play memory loops, add built-in audio effects and more! It supports CDs and USB sticks of up to 2 terabyte and works perfectly fine together with the CORE DJ Mixers by using the digital output. Interested in our DAP CORE series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

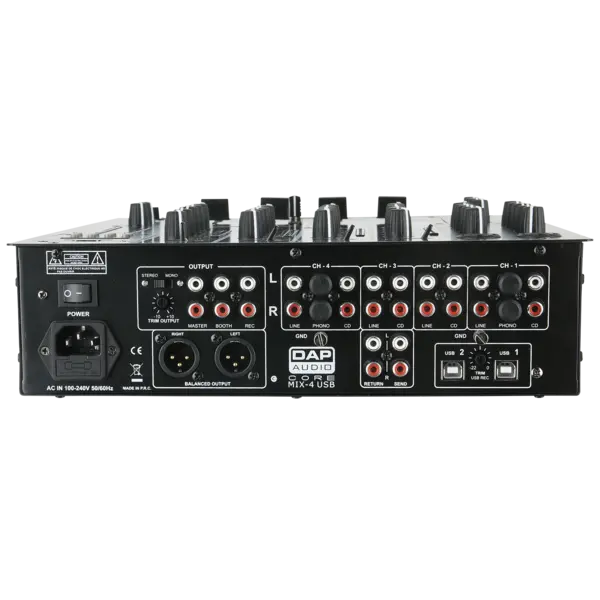

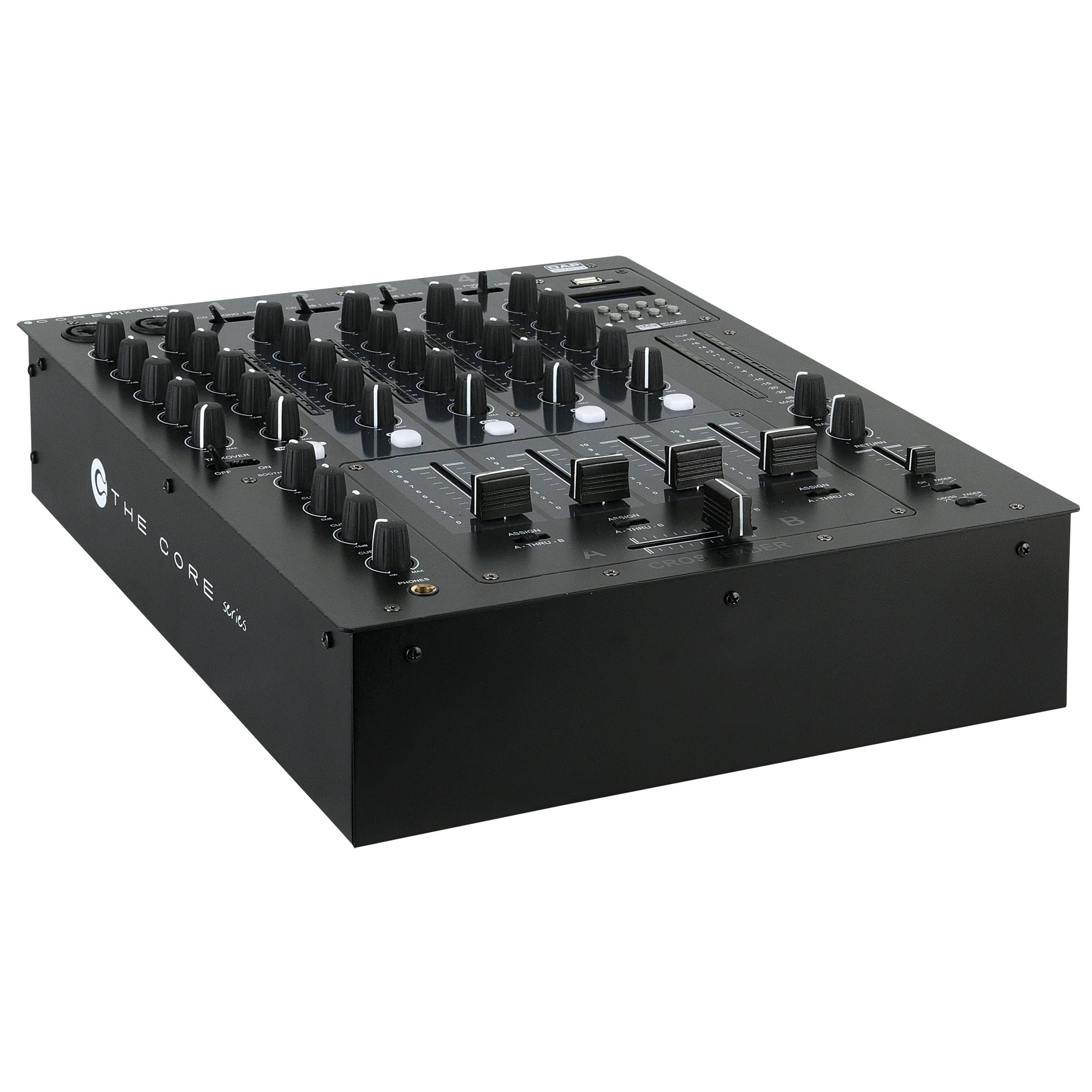

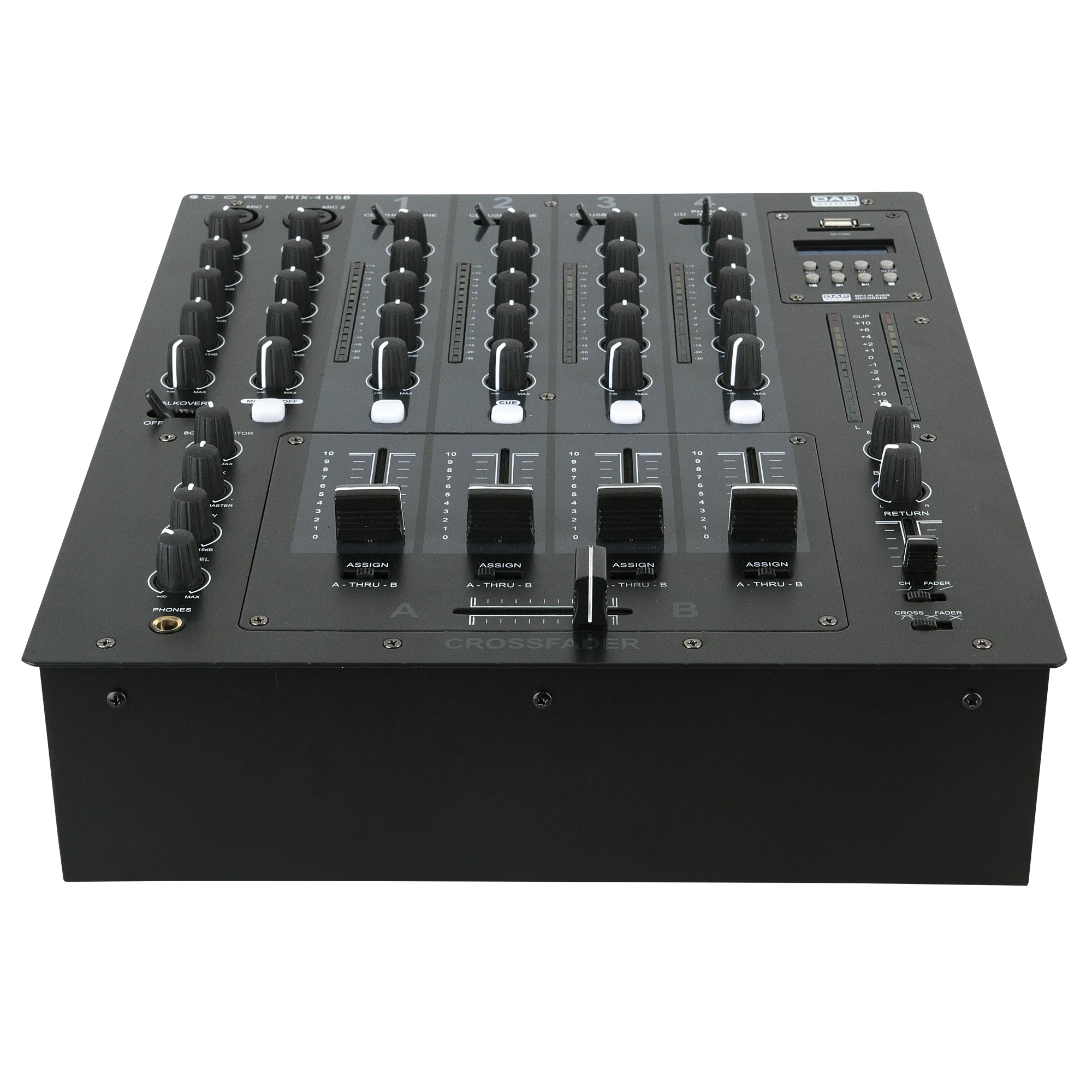

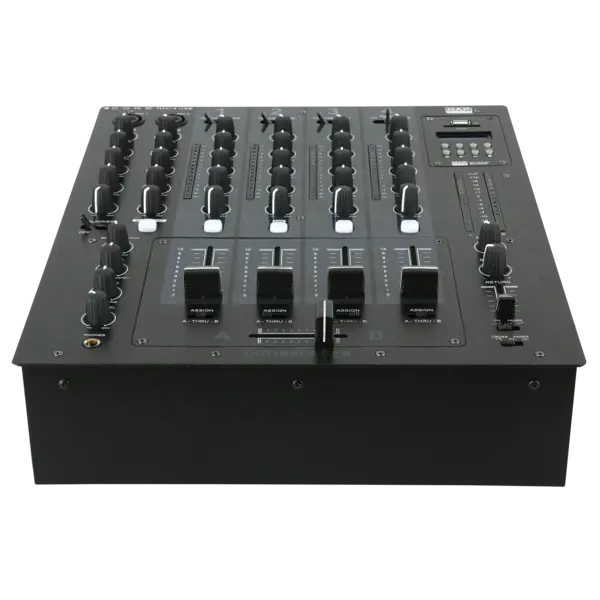

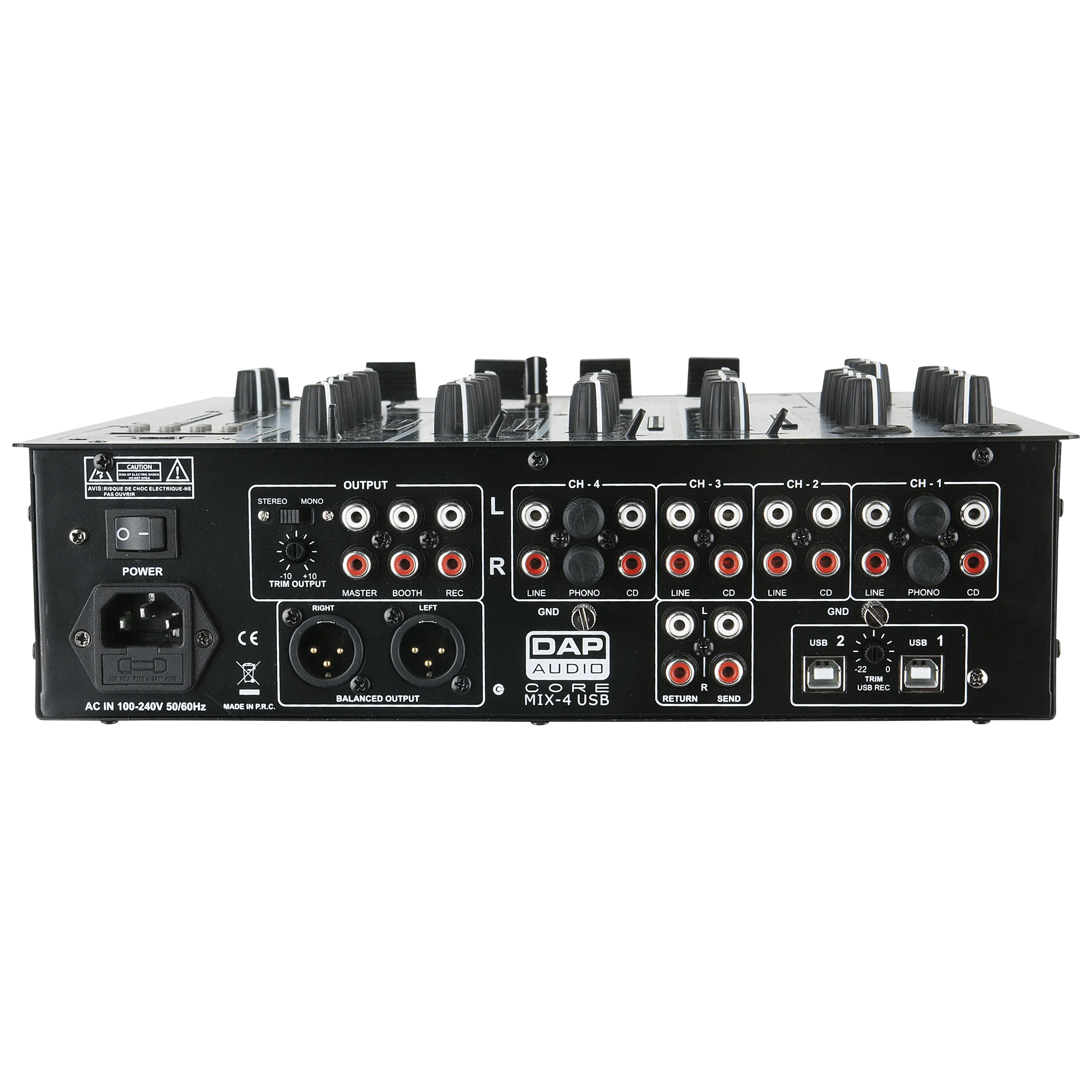

The DAP CORE MIX-4 USB is a 4-channel DJ club mixer with 12 analogue inputs and 2 independent USB-Audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-4USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a short fader. It has 2 microphone channels with a 3 band EQ, talk-over function and an on/off switch to make MC-ing safe and easy for party jocks & MC’s. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot metres are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and a MP3 player-recorder. The MP3 module can record and playback your life performance directly on an USB or SD device.

Technical specifications
Mono Inputs: 2
Stereo Inputs: 8
Phono Audio Inputs: 2
FX Return Inputs: 1
Main Outputs: 2
FX Send Outputs: 1
Monitor Outputs: 1
Headphone Output: 1
Record Output: 1
Audio Interface USB Input: 2
Audio Module Supported Files: MP3
Audio Module Media In/Out: SD Card / USB-A
THD Level: < 0.1%
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Input Channel Equalizer Gain Range: 12 dB
Microphone Input Equalizer Gain Range: 12 dB
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 13 W
Height (mm): 100 mm
Width (mm): 310 mm
Length (mm): 378 mm
