DAP | D2083 | DCP-24 MKII | 4-channel digital crossover

The DAP DCP-24 MKII is a 4-channel digital crossover, suitable for your 4-part sub/top speaker combination. It is equipped with a variety of functions, such as a 5-band equalizer, volume control, X-over, reverse, limiter and delay. This allows you to achieve optimal sound quality at any location.

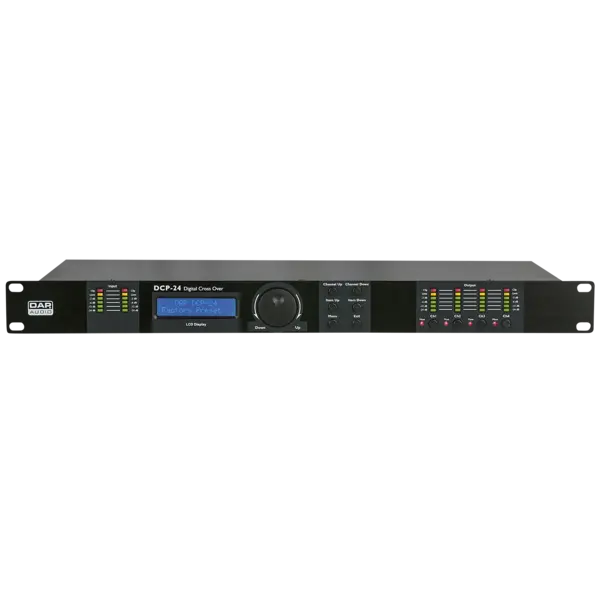

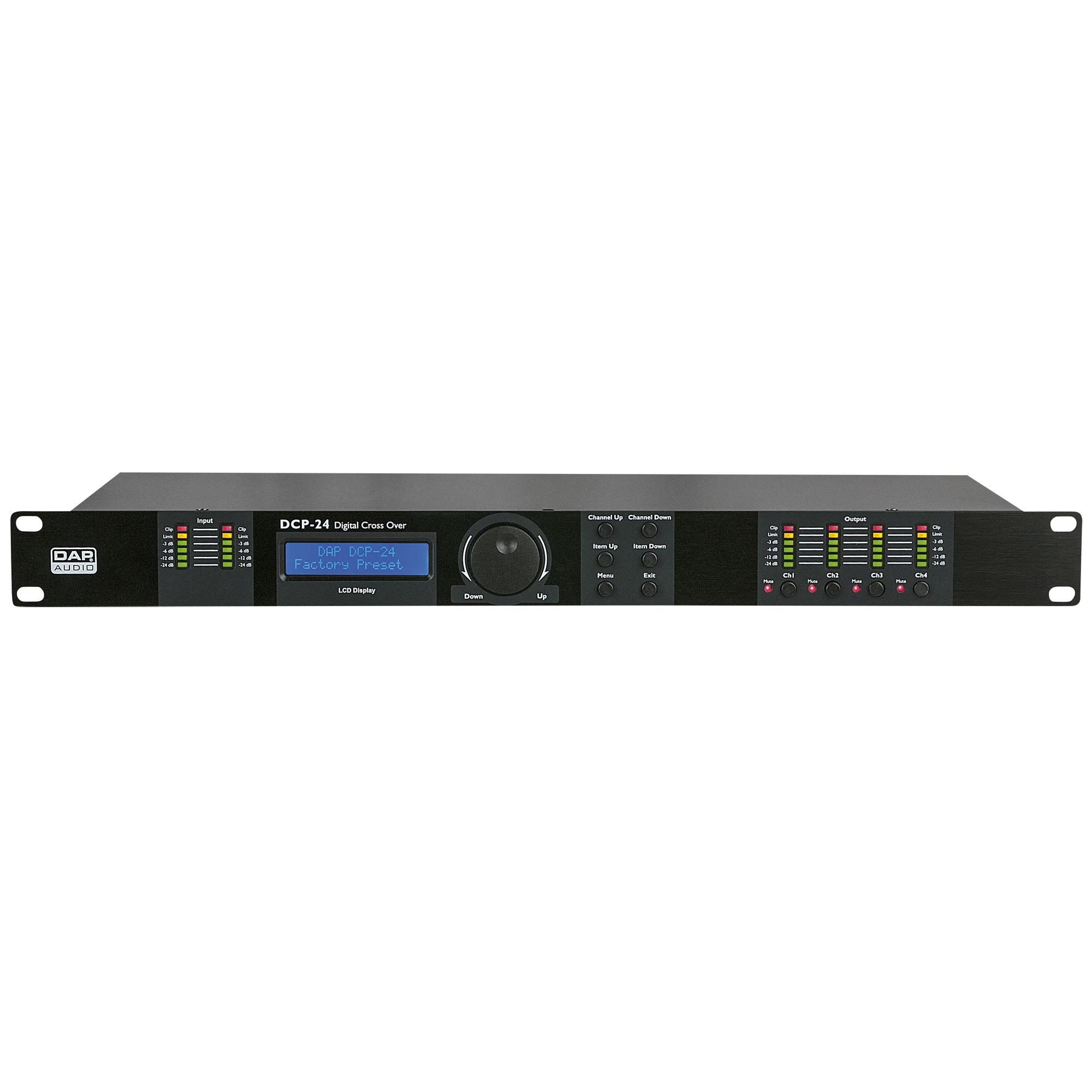

In one view you have insight into all the necessary information thanks to audio signal indicators for inputs and outputs in combination with an LCD display. The DCP-24 MKII is suitable for PA as well as line arrays, audio installations and sound distribution networks.

Using the DAP DSP Control software, available for Windows and MacOS, you can use advanced settings to fine-tune and protect your sound system. You can also easily save or recall presets. The DCP-24 MKII can be connected to your PC/laptop using a USB-A to USB-B cable.

Not familiar with speaker processors? Our DAP technicians will help you get started with the basic settings. Ask your supplier or contact person for help and you will receive the right guidance.

Technical specifications

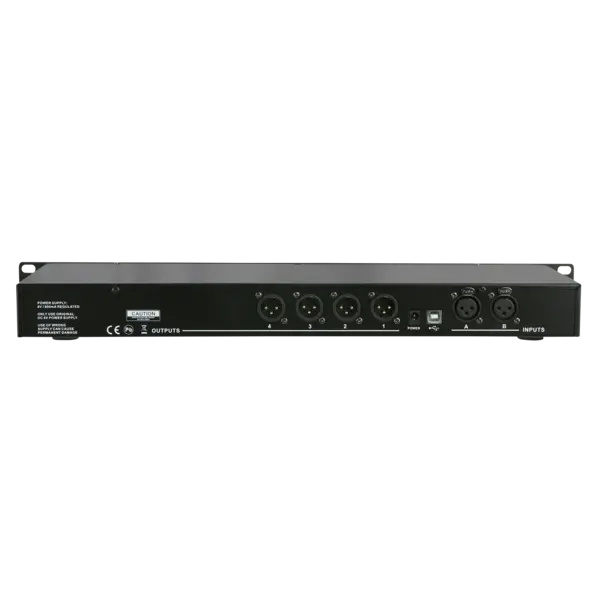

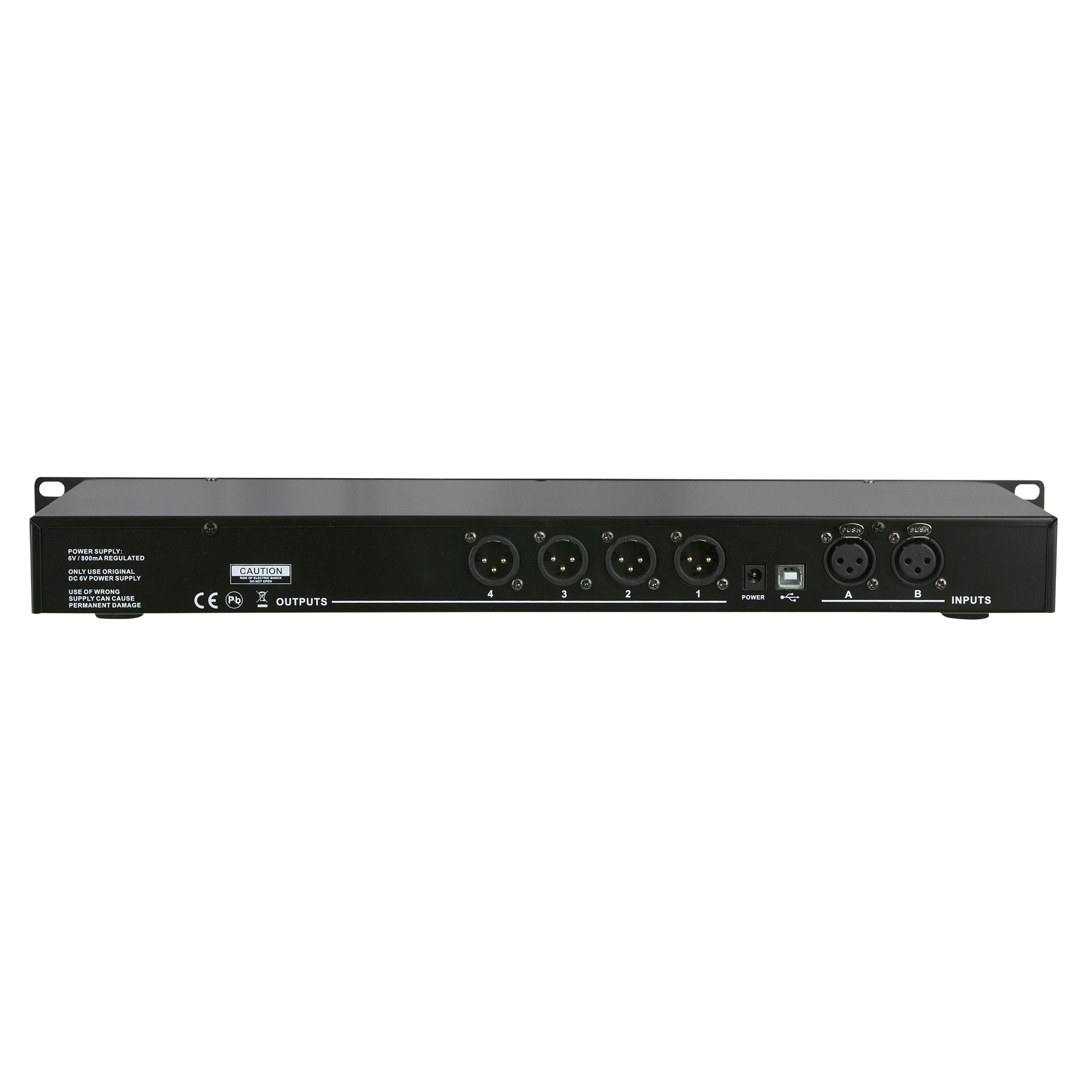

Mono Inputs: 2
Balanced Mono Input Maximum Level: 22 dBu
Main Outputs: 4
THD Level: < 0.01 %
Signal-to-noise Ratio: > 90 dB
DSP Processor Bitrate: 64-bit
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Supported Operating Systems: Windows
Equalizer Gain Range: 12 dB
Parametric Input Equalizer: 5 Bands
Parametric Output Equalizer: 5 Bands
Crossover Filter Types: Bessel / Butterworth / Linkwitz Riley
Crossover Slopes: 6 / 12 / 24 / 48 dB
Output Delay (Max.): 8 ms
Control Mode: Manual / PC Software

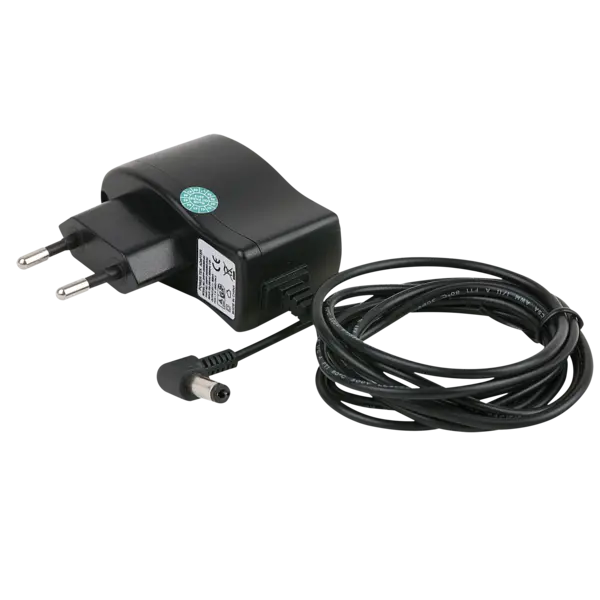

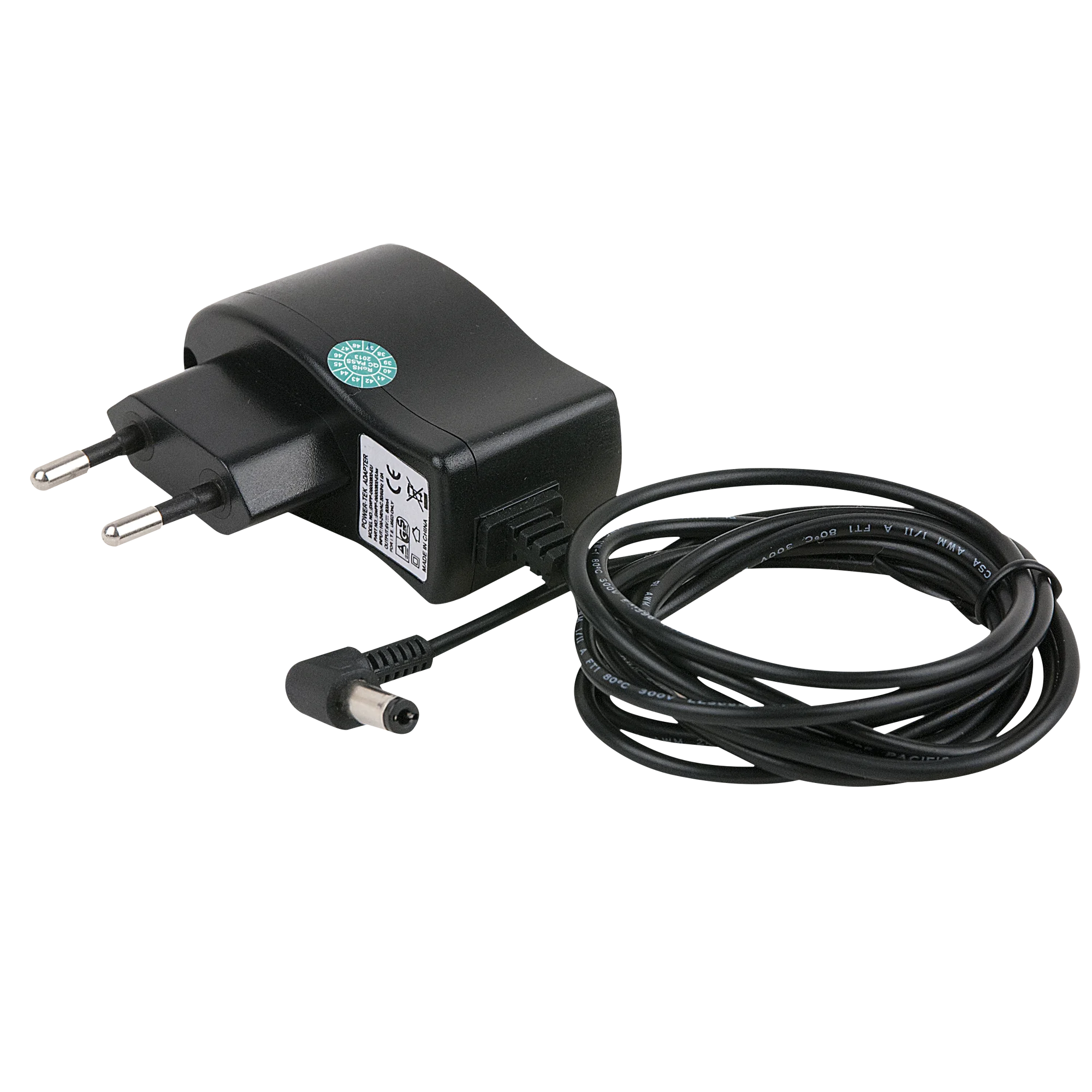

Power Supply: 220V-240 VAC 50 Hz
Power Consumption: 4 W
Height (mm): 44 mm
Width (mm): 483 mm
Length (mm): 155 mm
Rack Units: 1 U
