DAP | D1418 | ECLM-70 | Clip-On Condenser Instrument Microphone
Description

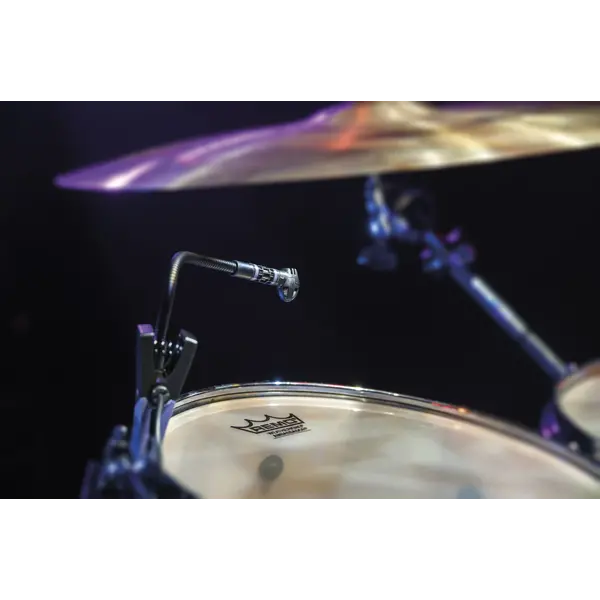

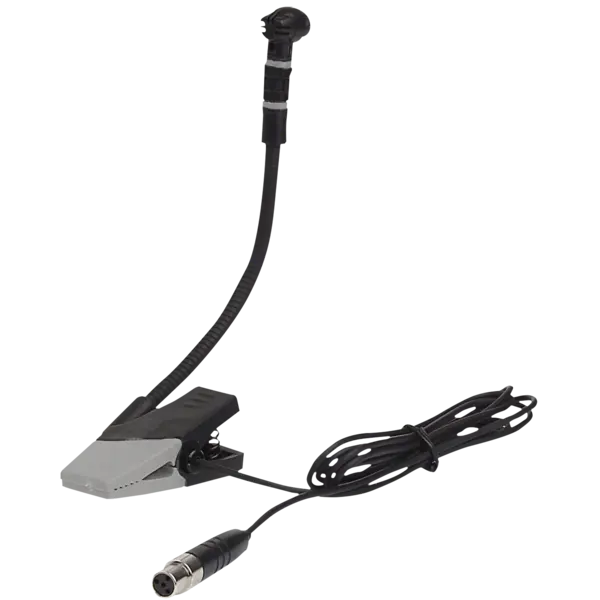

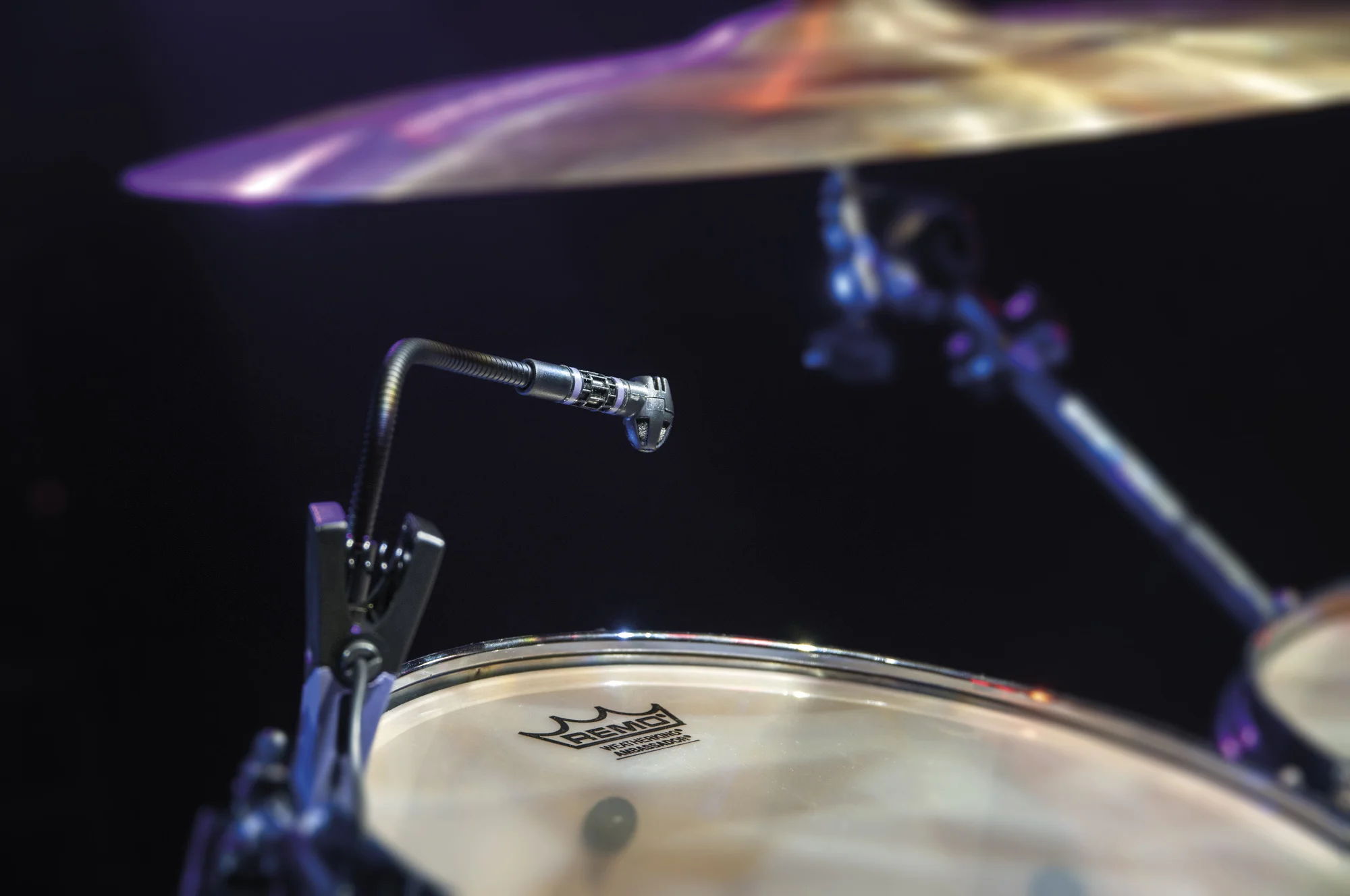

The DAP ECLM-70 is a miniature clamp-on condenser microphone designed for amplifying percussion, brass and woodwind instruments. It has a wide dynamic frequency range for capturing natural sound.The soft clamp is designed to be placed on the bell of a trumpet, saxophone and other wind instruments without causing any damage. The cardioid pickup pattern design provides a very low feedback response to prevent speakers from squealing quickly. The flat response with a slight presence peak in the higher frequencies ensures a natural and clear reproduction without discoloration.
A transport case, microphone clamp and windscreen are included.
Technical specifications

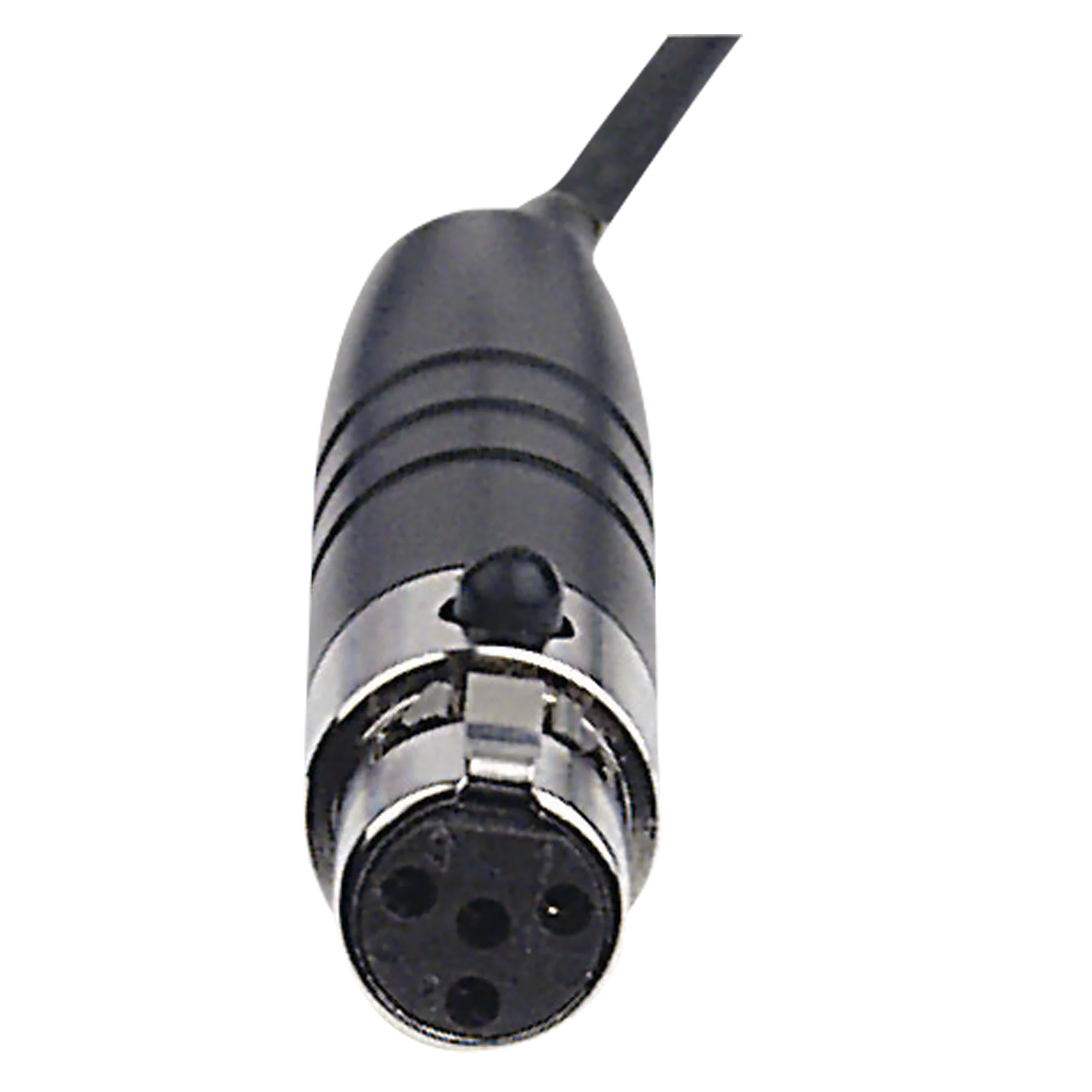

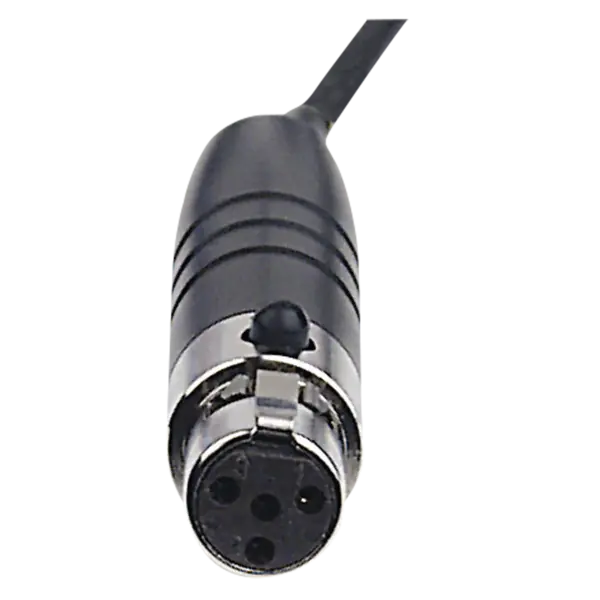

Microphone Output Connection: 4pole Mini XLR
Microphone Impedance: 220 Ω
Microphone Type: Back-electret Condenser
Microphone Sensitivity: 3.9 mV
Polar Pattern: Cardioid
Max. SPL: 130 dB
Frequency Response Minimum: 50 Hz
Frequency Response Maximum: 18000 Hz
Phantom Power: 5 V
Length (mm): 125 mm
Weight: 0.071 kg
Specifications
Output connection | |
Microphone impedance | |
Microphone type | |
Microphone sensitivity | |
Polar pattern | |
Max. SPL | |
Frequency response minimum | |
Frequency response maximum |
