DAP | D1354 | CM-45 | Condenser Overhead Microphone
Description

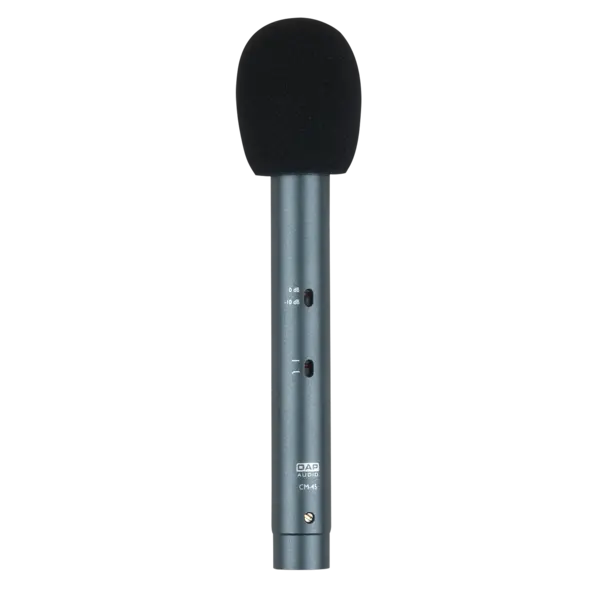

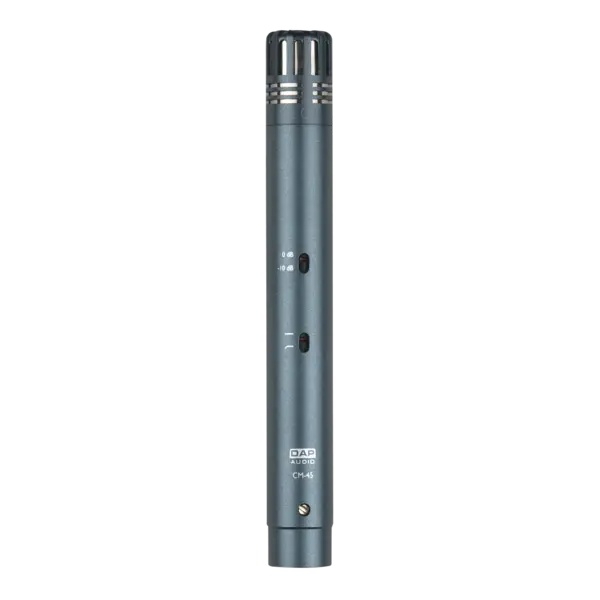

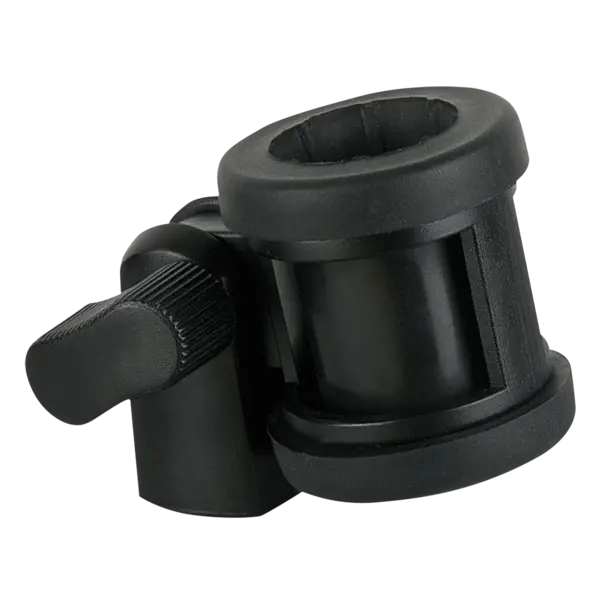

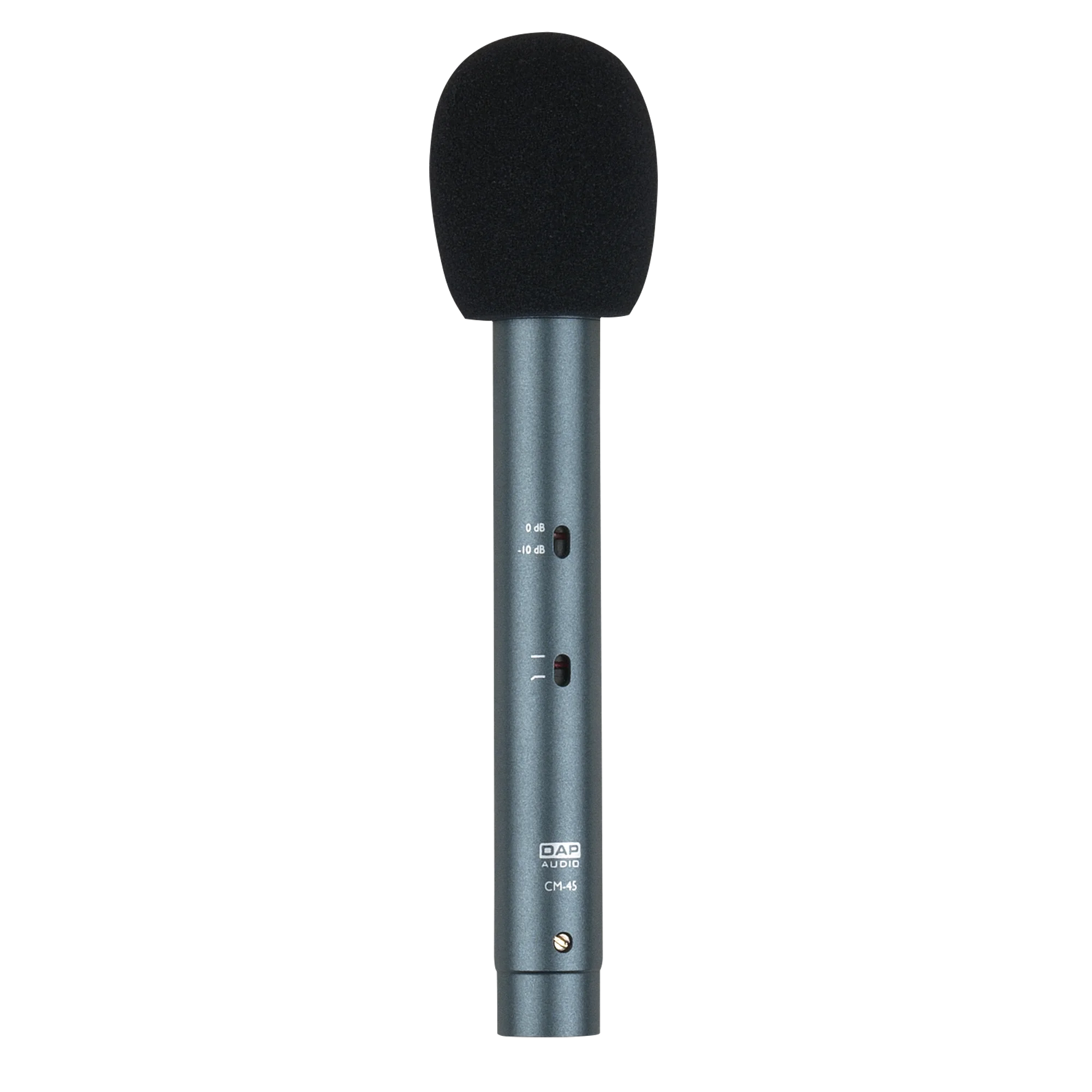

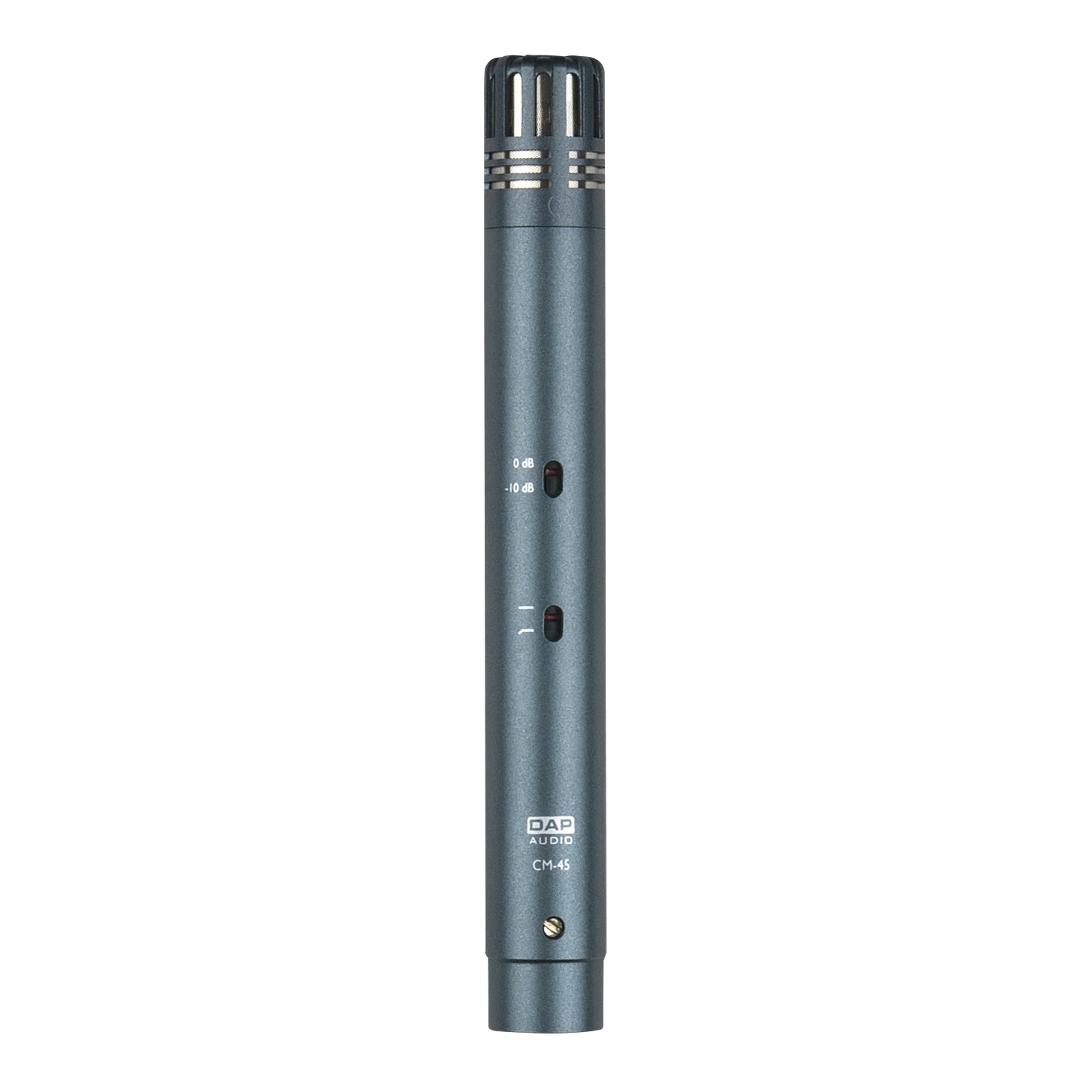

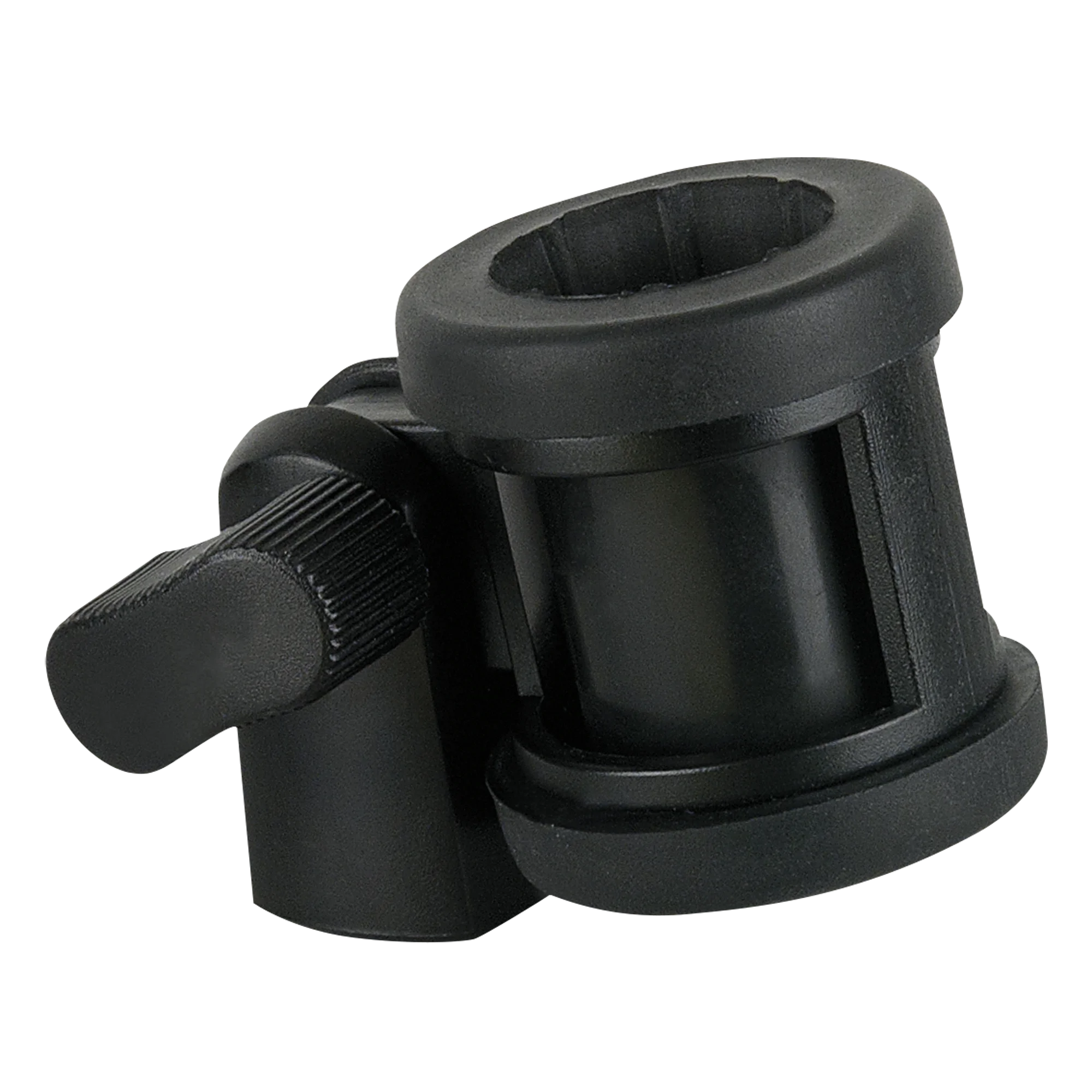

The DAP CM-45 is a condenser overhead microphone with -10 dB pad switch and low cut filter switch, suitable for recording drum overheads. The construction is based upon the back electret principle allowing it to handle high sound pressure levels without causing distortion. In addition, it mainly records medium and high-frequency sounds. As a result, background noise with this microphone is minimal.The CM-45 comes with a microphone clamp, windscreen, thread adapter and leather pouch. This makes it easy to use at any location and to place it on any universal microphone stand.
Technical specifications
Microphone Output Connection: 3-pin XLR
Microphone Impedance: 200 Ω
Microphone Type: Back-electret Condenser
Signal-to-noise Ratio: > 69 dB
Microphone Sensitivity: 7.1 mV
Polar Pattern: Cardioid
Max. SPL: 140 dB
Frequency Response Minimum: 40 Hz
Frequency Response Maximum: 20 Hz
Phantom Power: 12 V / 48 V
Low-cut Filter: Yes
Equivalent Noise Level: 25 dB
Dynamic Range: 115 dB
Attenuation: -10dB
Height (mm): 20 mm
Width (mm): 20 mm
Length (mm): 155 mm
Weight: 0.3 kg
