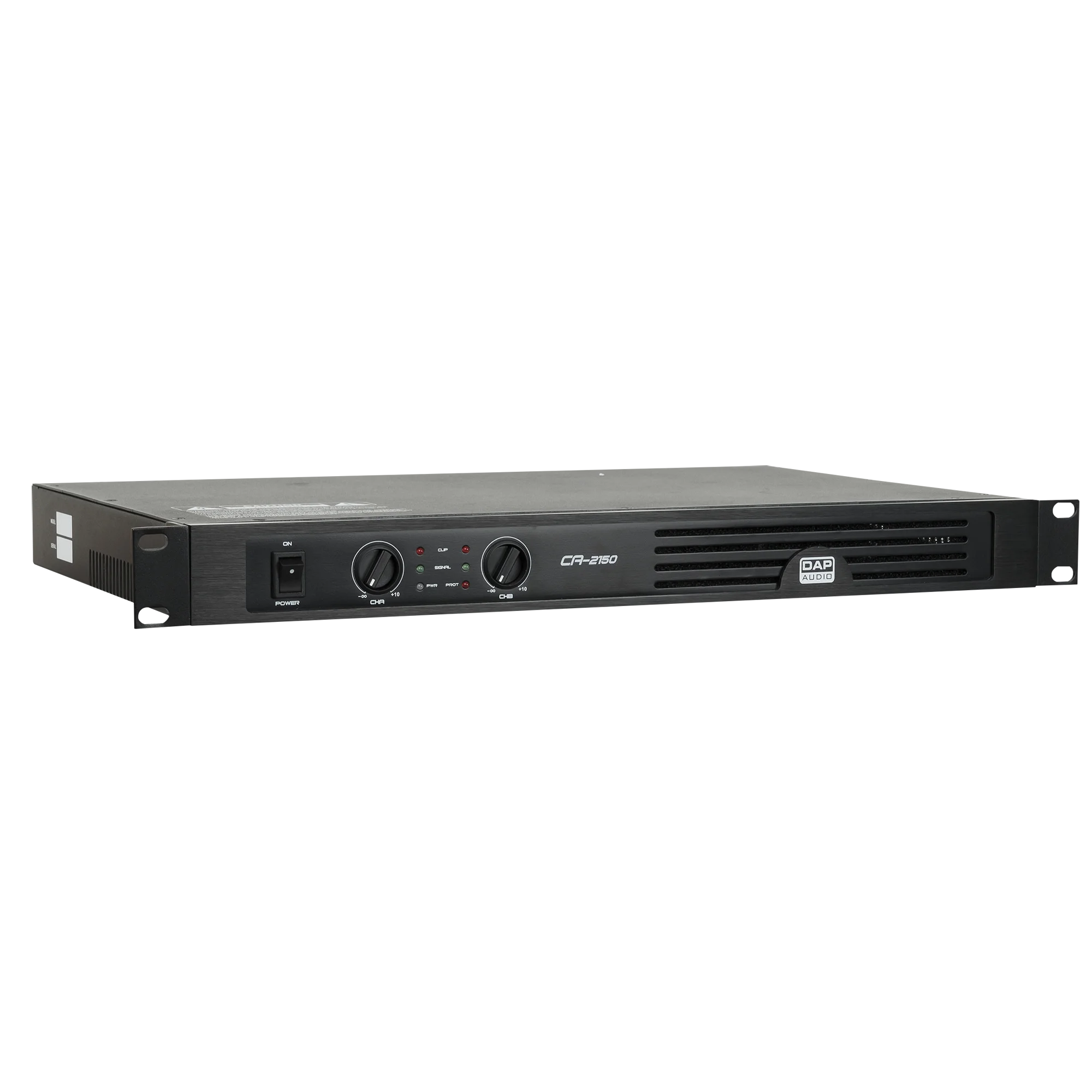

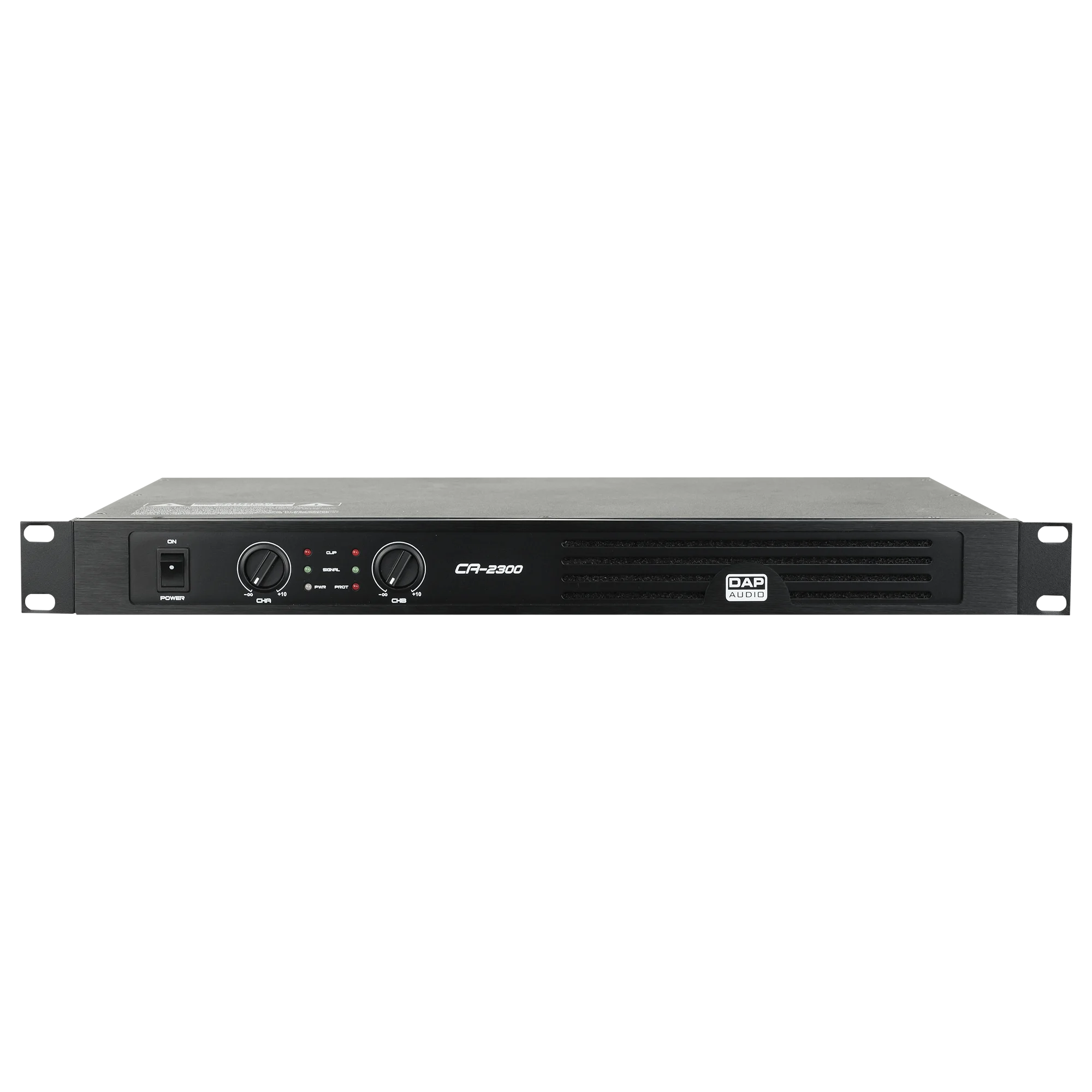

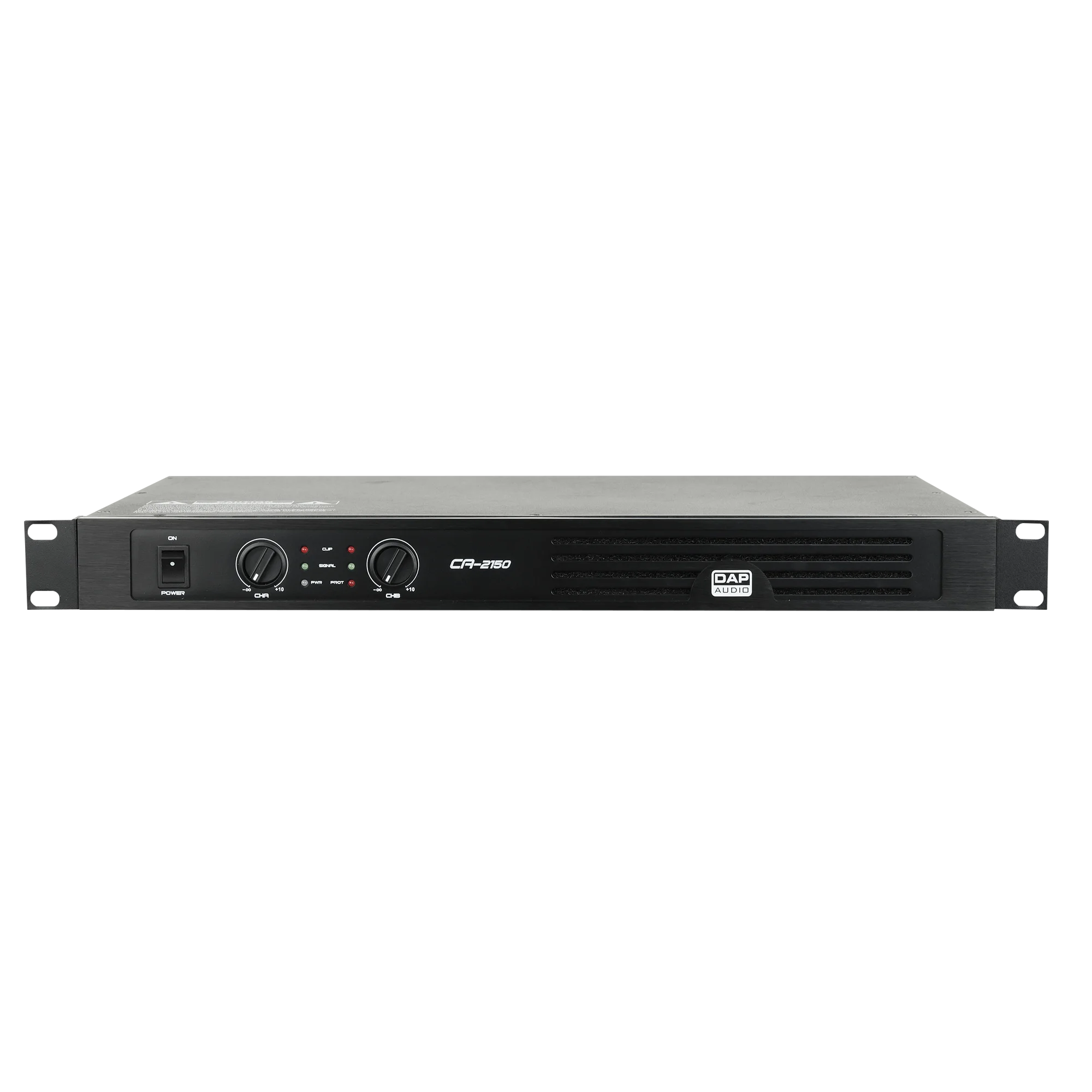

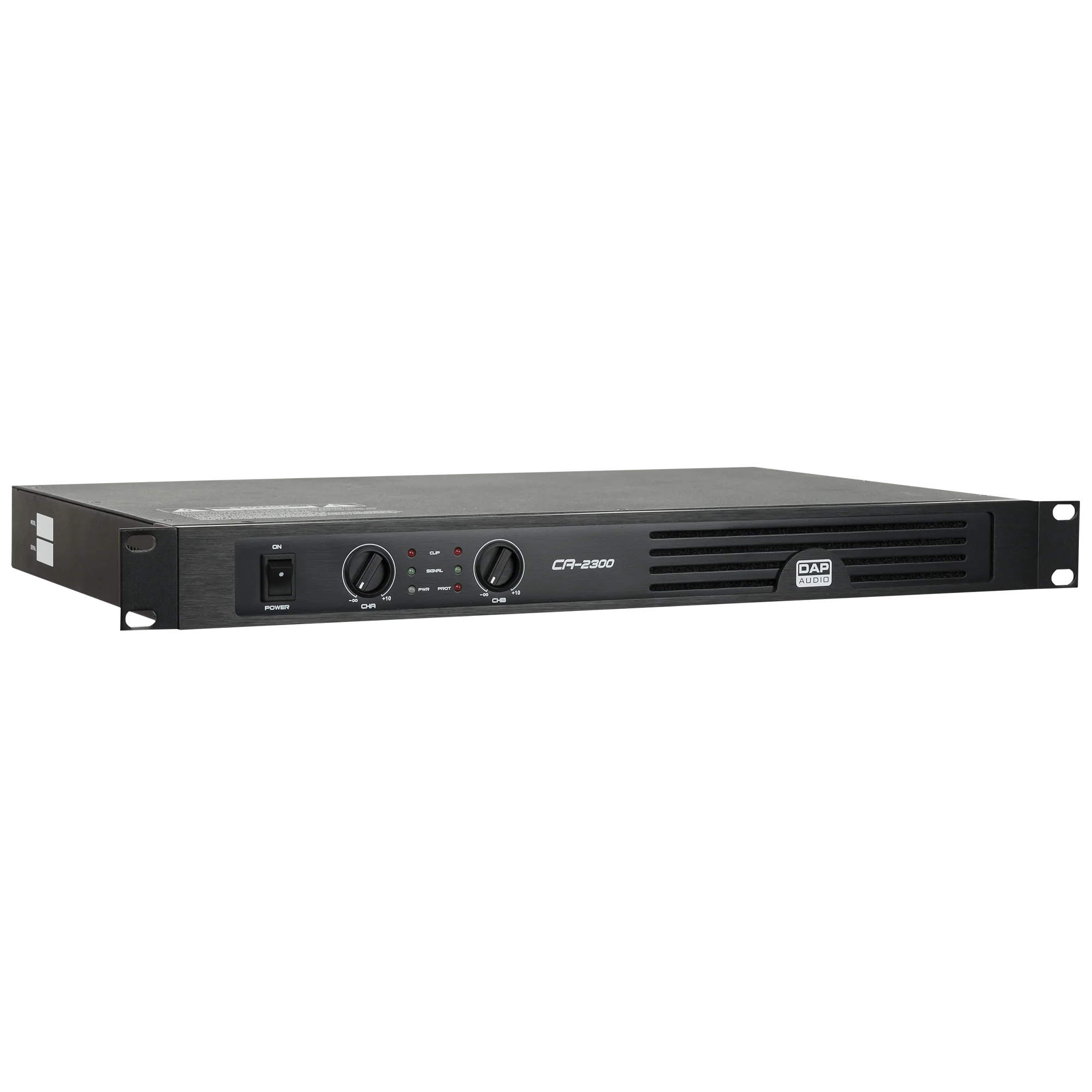

The DAP CA is a compact amplifier for installation in a 19" rack with a height of only 1U. The CA-2150 is equipped with Class D technology, SMPS and all the necessary functionalities for today's user.

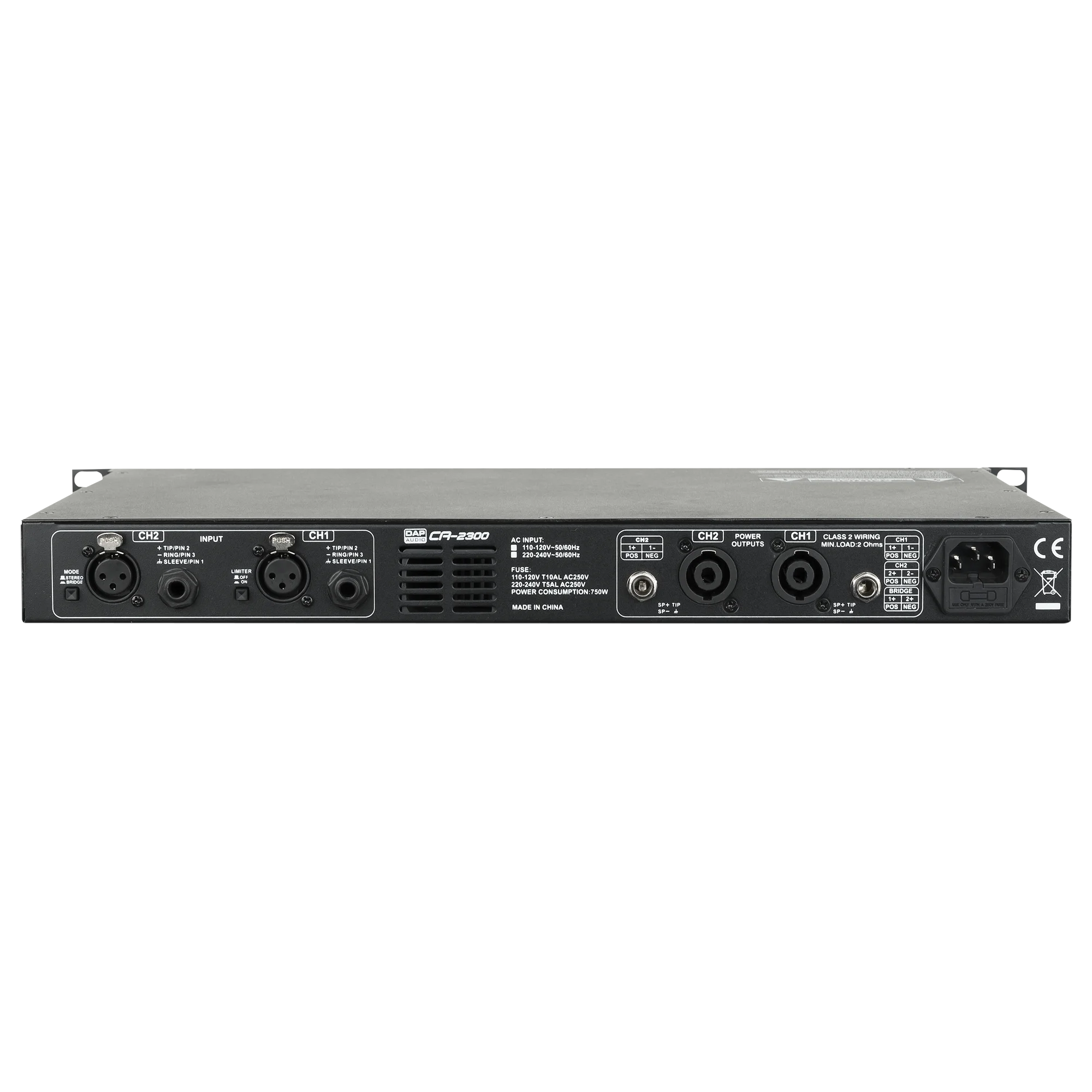

This 2-channel model has XLR and Jack inputs. Available outputs are speakON and 6.3 mm Jack. Here you have the choice of switching between stereo and bridge mode. In addition, you can easily adjust the gain for each channel.
As soon as a channel's signal becomes distorted (clipping), an LED signal alerts you to immediately reduce the gain. It is not only protected against clipping, but also against overheating thanks to soft start technology.
Technical specifications
2 Ohm stable: Yes
Output power per channel 8 Ohms at 1 KHz: 90 W
Output power per channel 4 Ohms at 1 KHz: 150 W
Output power per channel 2 Ohms at 1 KHz: 230 W
Bridged output power 8 Ohm at 1 KHz: 190 W
Bridged output power 4 Ohm at 1 Khz: 275 W
Output channels: 2
Output mode: Bridge / Stereo
Output connector: Speaker Connector 4 pole / TS unbalanced 6.3 mm
Mono input connector: 3-pin XLR / TRS balanced 6.3 mm
THD distortion level: < 0.1%
Signal-to-noise ratio: > 96 dB
SLEW rate: 15 V/μs
Amplifier technology: Class D
Damping factor: 180 :1
Minimum frequency response: 20 Hz
Maximum frequency response: 20000 Hz
Input voltage: 220V-240 VAC 50 Hz
Power consumption: 425 W
Height (mm): 44 mm
Width (mm): 484 mm
Length (mm): 281 mm
Height units: 1 U
Weight: 3.7 kg
Electronic protection: Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Soft start
