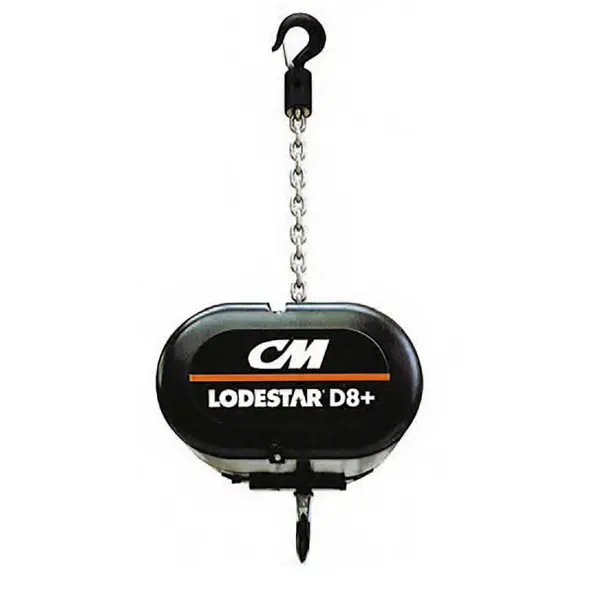

CM Lodestar L | 3194NH | 1t DC | 400V | D8+
hh 10m
€ --,--
Audio
Cabling
Light
Power distribution
Rigging
Consumables
Video & projection
Stage
Data distribution
Business
Sale
CM Lodestar Direct Control (without limit switches);D8plus with safety factor 8:1 in accordance with DIN 56950:2012; With double brake; Model L, code 3194NH, 1 chain rope; Operating voltage: 400V-3Ph-50Hz; Working load: 1t; (hoist-up application); Power: 0.75kW; FEM class: 2m; Lifting speed: 4m/min; Lifting height: 24m; Also fitted with: -4pin red 16A CEE plug on 0.8m cable -Available "soft" handles mounted on the body -Companying chain bag
| Article code | TLN-1000-10-DCD8+ |
| SKU | TLN-1000-10-DCD8+ |
| Power supply | 400 VAC 3 Phase |
| Type of control | DC |
| Power connector in | CEE4P 16 A |
| Speed | 4m/min |
| Lifting height | Different heights |
| WLL | 1t |
