CHP | Shrink tubing box H-1 | Transparent | 5m | 9.5/4.8 or 12.7/6.4

CHP | Shrink tubing box H-1 | Transparent | 5m | 9.5/4.8 or 12.7/6.4

Protection and Insulation

Shrink tubing is a flexible and versatile product used to protect, insulate and bundle wires, cables, connectors and electronic components. It provides a reliable solution for preventing short circuits, corrosion, humidity and mechanical damage.

Easy Installation and Effective Protection

Installing heat shrink tubing is easy: just slide the heat shrink tubing over the object to be protected and heat it with a heat source, such as a heat gun or hair dryer. The shrink tubing shrinks evenly and forms a tight, seamless sleeve around the object, providing effective protection without leaving any residue.

Various applications

Shrink tubing is used in a wide range of applications, including electronics, automotive, aerospace, hobbies and more. It is ideal for insulating and protecting wiring in cars, boats and aircraft, marking cables for identification purposes, and bundling wires in electronic circuits.

Quality and reliability

When choosing heat shrink tubing, it is important to invest in high-quality products that offer reliability. Quality heat shrink tubing is made of materials such as polyolefin and offers excellent insulation and mechanical protection. It ensures long-term performance and peace of mind even under the most demanding conditions.

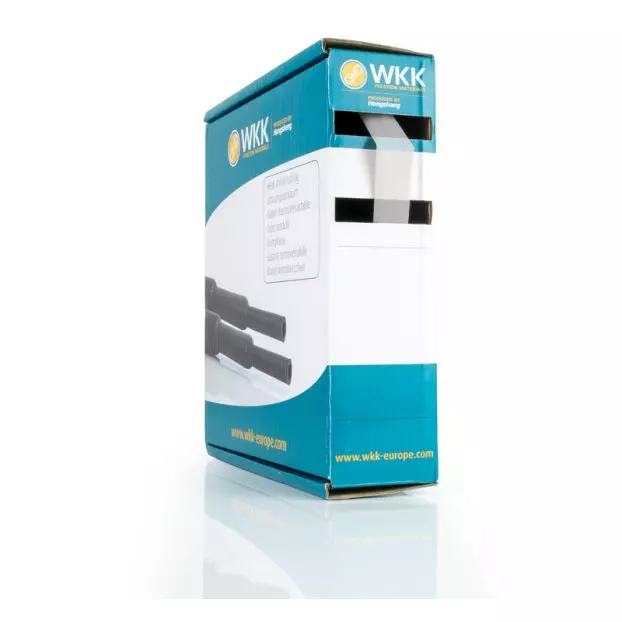

CHP H-1 shrink tubing

WKK's H-1 thin-walled heat shrink tubing is a versatile solution for various applications in the automotive industry and consumer goods, thanks to its glossy surface. This shrink tubing, with a shrink ratio of 2:1, is available in two sizes: 9.5/4.8 mm and 12.7/6.4 mm. The material, crosslinked polyolefin, is UV-resistant, halogen-free and RoHS compliant. The sleeving has a length of 5 metres and offers flexibility with a flat shape.

Specifications

• Heatshrink tubing type: thin-walled flexible tubing
• Heatshrink tubing type: H-1
• Colour: transparent
• Inner diameter before shrinkage: 9.5 mm (9.5/4.8) or 12.7 mm (12.7/6.4)
• Inner diameter after shrinkage (max): 4.8 mm (9.5/4.8) or 6.4 mm (12.7/6.4)
• Wall thickness after shrinkage: 0.56 mm
• Flame retardant: no
• With adhesive: no
• Printable: yes
• Operating temperature: -55 to +105 degrees Celsius
• Shrinkage temperature: +70 to +95 degrees Celsius
• Longitudinal shrinkage: 0 to 10%
• Material quality class: Crosslinked polyolefin
• UV-resistant: yes
• Halogen-free: yes
• Conforms to: RoHS

Shrink tubing is an indispensable product for anyone looking for reliable protection, insulation and bundling of wires and cables. With its easy installation, effective protection and diverse application possibilities, heat shrink tubing is the ideal choice for many projects and industries. Invest in quality heat shrink tubing for optimum performance and peace of mind.

We also offer shrink tubing H-5 from CHP: H-5(3X) | transparent | 2.5 or 3m | 9.0/3.0 or 12.0/4.0 mm
