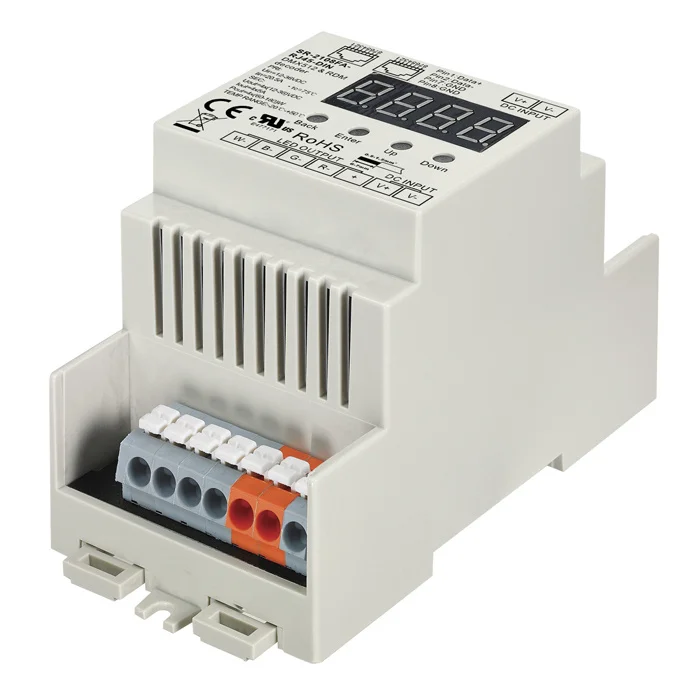

Artecta | A9915860 | Play-III DMX Din Rail Decoder | Constant voltage
Description
The Play-III DMX is a din rail mounted constant voltage DMX&RDM LED controller which features full support to the latest DMX512, DMX512-A and RDM V1.0 protocols. The RDM controller is designed with 4 channels, 5 A per channel constant voltage output.The LED DMX controller is designed with easy wiring terminals without screws and RJ45 ports for data transmission.
Technical specifications
Control Mode: DMX
DMX Channels: 4
Power Supply: 12-36 V DC
Output Voltage: 12-36 V DC
Maximum Output Current (A): 5 A
Length (mm): 106 mm
Height (mm): 65 mm
Width (mm): 55 mm
IP Rating: IP20 (indoor use only)
