Artecta | A0866792 | Cayenne 145 | Chain of 20 pieces

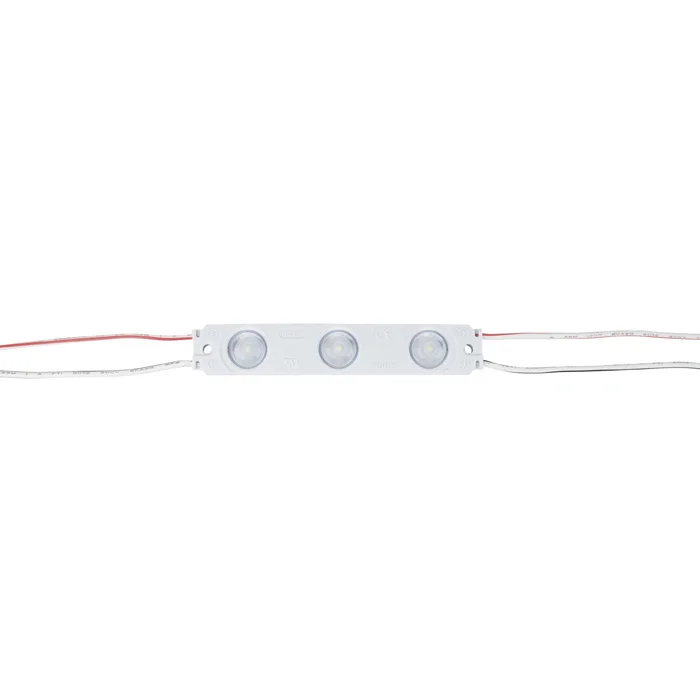

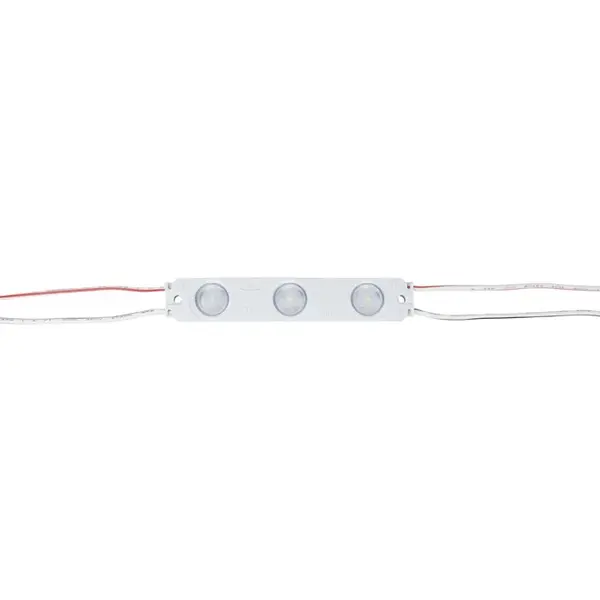

The Artecta Cayenne 145 is especially designed for use in signage solutions. They can be used in signs with a depth of 6 to 15 cm. Each module is 83 mm wide and contains 3 LEDs. The power of each module is 1.5 W and one string contains 20 modules. A single string consumes 30 W and can be powered by any 12 V DC power supply. The strings are daisy-chainable, meaning that multiple strings can be connected parallel to a single power supply.

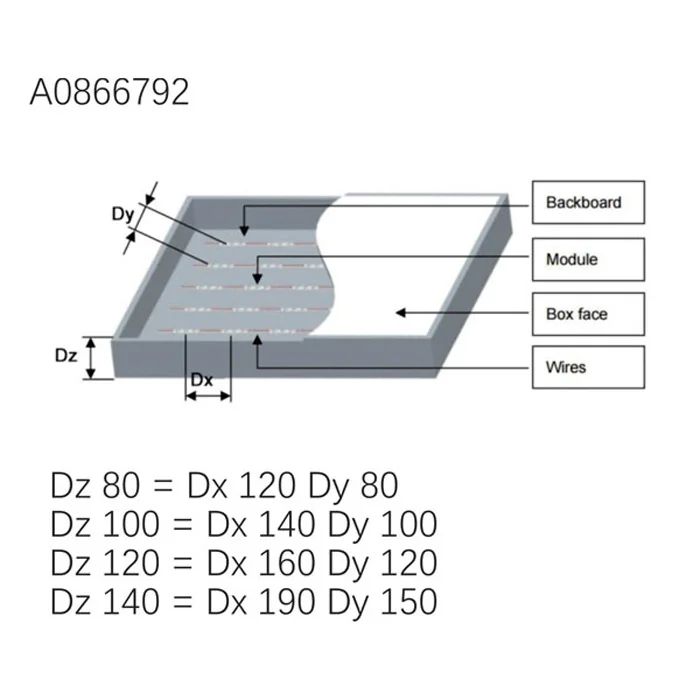

The ideal distance between modules are:
8 x 12 cm for 6 cm deep signs
10 x 14 cm for 8 cm deep signs
12 x 16 cm for 10 cm deep signs
19 x 15 cm for 15 cm deep signs

Technical specifications
Light Source Type: LED
Light Source Quantity/m: 6
LED Colour Type: White
Luminous Flux (Total): 2900 lm
CCT: 10000 K
Power Supply: 12 VDC
Power Consumption: 30 W
Power/1 m: 10 W
Length (m): 3.6 m
Width (mm): 15 mm
IP Rating: IP65
