JB-Lighting | P12 | LED Moving Head Profile Spot | 640W | 17,000 – 25,000 lm | CMY | 29 dB(A) | 12 gobos | 5.7° – 60° | 23 kg | CRI ≥91 – ≥70

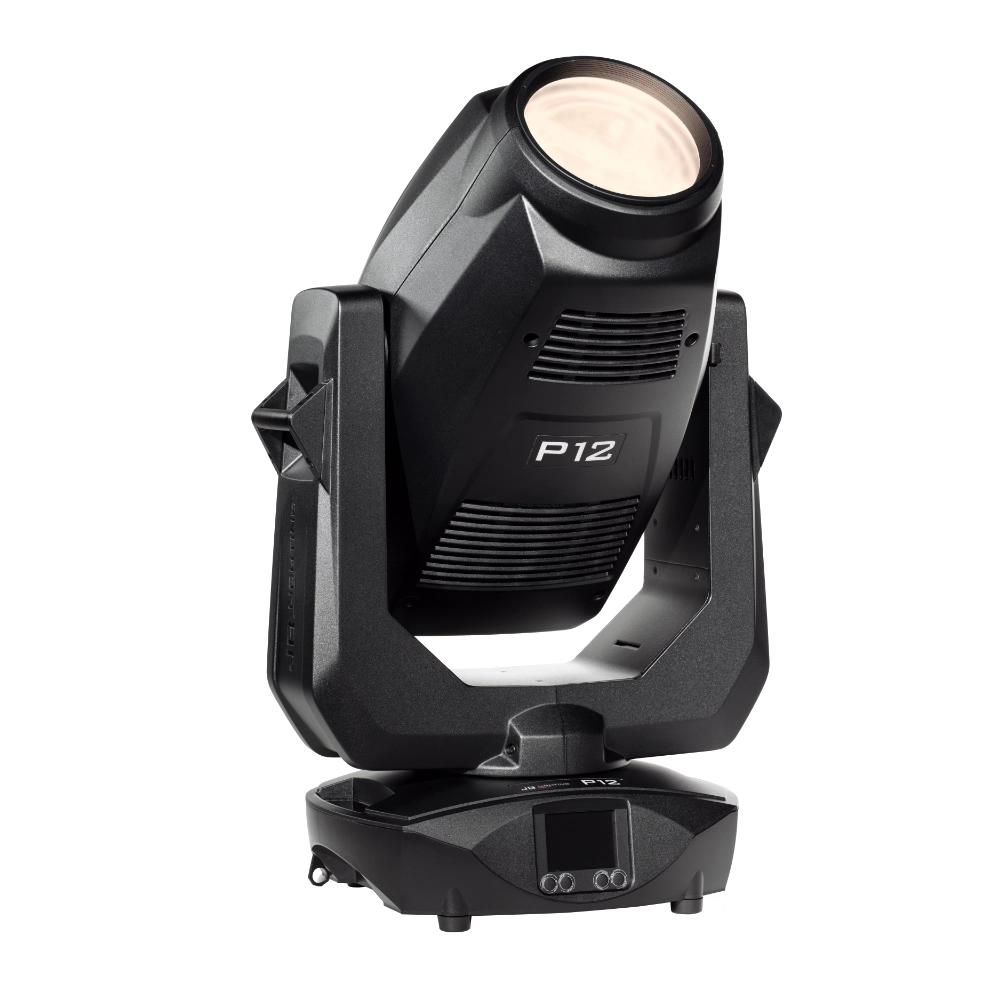

The all-rounder: the JB-Lighting P12 Profile Spotlight

The P12 Profile Spot from JB-Lighting is a true powerhouse in a compact format. With an output of 25,000 lumens, a 640 W white LED source and an impressive zoom range of 5.7° to 60°, this spotlight delivers impressive brightness and versatility. Thanks to its integrated blade set, extensive colour correction options and innovative Slide-In technology, the P12 is the perfect choice for events, theatres, television productions and more. Its quiet operation and robust construction also make it a reliable partner for demanding applications.

Powerful performance and impressive light quality

The P12 delivers exceptional brightness that rivals traditional 1,200 W fixtures, but with significantly lower energy consumption (just 800 W). Thanks to the different variants (High Power, High CRI and Warm White), the spotlight can be precisely tailored to the desired application: maximum light output, perfect colour fidelity or halogen-like warmth. The combination of CMY colour mixing, linear CTO or CTB correction and a 7-colour wheel makes the creation of rich, smooth colour gradients simple and powerful.

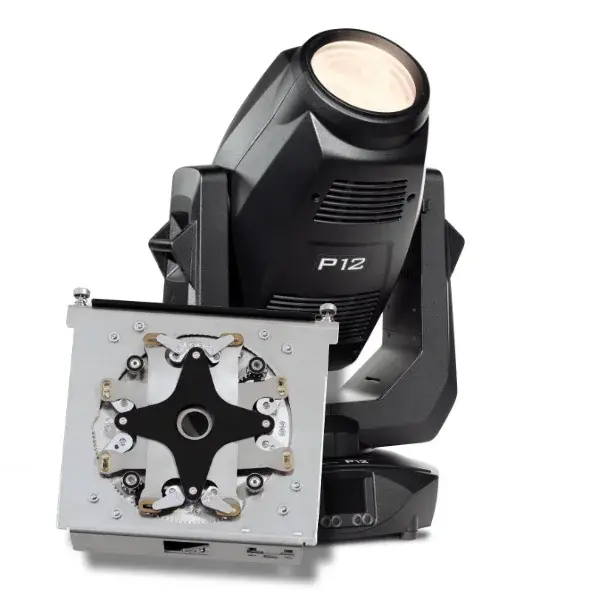

Maximum control thanks to the blade set

The integrated blade set offers designers unrivalled freedom in shaping the light beam. Each of the four blades can be individually adjusted in position and angle and closed completely for a tight, precisely defined light pattern. The entire blade module can also be rotated by ±55° (110° in total), allowing you to precisely cut out geometric shapes regardless of the luminaire’s orientation. Combined with frost filters and focus functions, this creates endless creative possibilities, ranging from razor-sharp patterns to subtle wash effects.

Fully equipped for creative light shows

With two gobo wheels (each with 6 rotating gobos), two types of prisms (linear and circular) and two continuously adjustable frost filters, the JB-Lighting P12 Profile Spot is a true all-rounder. Whether it’s dramatic textures, colourful beam shows or subtle light veil effects: the P12 makes it all possible. Thanks to JB Slide-In technology, gobos can be changed quickly without tools, making installation and maintenance particularly easy.

Pros and cons

Pros:
Very high light output of 25,000 lumens at just 800 W power consumption
Comes standard with a rotatable blade set for precise beam shaping
Extremely quiet operation at just 29 dB(A)
Highly versatile zoomrange from 5.7° to 60°
Slide-In technology for quick maintenance
Various models available for optimal colour or light output to suit your needs

Cons:
Higher purchase price due to the extensive feature set
Optional filters are required for very specific colour
combinations
May exhibit differences in light colour without additional calibration to other luminaires (e.g. between HP, HC and WW versions)

Innovative Slide-In technology for easy maintenance

The P12 Profile Spot is equipped with the well-known JB Slide-In technology, allowing gobos and filters to be changed without tools. This saves time and minimises downtime during productions. In addition, all essential components are easily accessible for quick cleaning, without the need to disconnect cables or carry out complex dismantling.

Extensive possibilities with gobos, prisms and frost filters

The P12 allows you to combine gobo projections with rotating prisms or frost filters, for dynamic effects or soft wash effects. Both the 3-section circular prism and the 5-section linear prism are infinitely adjustable, allowing each effect to be smoothly adapted to the desired atmosphere of an event.

Specification summary

• Light source: 640 W white LED

• Light output: 25,000 lumens (HP), 19,000 lumens (HC), 15,000 lumens (WW)

• CRI: ≥70 (HP), ≥90 (HC), ≥91 (WW)

• Zoom: 5.7°–60° (1:10.5)

• Colours: CMY colour mixing, linear CTO/CTB, 7 colours on colour wheel

• Gobos: 2 wheels, each with 6 rotating gobos

• Framing module: fully individually adjustable blades, module rotatable through 110°

• Effects: 2 prisms (linear & circular), 2 continuously adjustable frost filters

• Weight: 23 kg

• Noise level: Just 29 dB(A)

• DMX, Art-Net, sACN and wireless DMX via CRMX

• Dimensions: 421 x 264 x 682 mm (W x D x H)

• Made in Germany

Applications

• Live concerts and festivals
  Extremely powerful output and wide range of effects, ideal for large-scale stages.

• Theatre and opera
  Extremely quiet operation and a set of lenses ensure subtle and targeted lighting.

• Television recordings
  Flicker-free mode and High CRI options make the P12 suitable for recording in HD and 4K.

• Corporate events and trade fairs
  The P12 delivers impressive performance for both dynamic shows and elegant presentations.

Conclusion

The JB-Lighting P12 Profile Spot is one of the most versatile, powerful and advanced fixtures in its class. With its wide range of features, optional light colours, extremely quiet operation and innovative framing module, the P12 offers designers complete freedom to realise creative and technically perfect lighting designs. From concert halls to theatres and TV studios: the P12 brings every stage to life with its brilliant light quality and unprecedented flexibility.

NEW: JB-LIGHTING P15: The worthy successor to the P12!

The JB-Lighting P15 Profile Spot builds on the success of the popular P12 Profile Spot and takes performance, light quality and features to an even higher level. With greater light output, quieter operation and a more advanced blade module, the P15 represents a logical and powerful next step for those already familiar with the P12.

Curious about the possibilities of the JB-Lighting P12 Profile Spot, or the JB-Lighting P15 Profile Spot? Request a free, no-obligation demo via [email protected] or use the contact form on our website!
