JB-Lighting Sparx 18: A versatile all-rounder with TwinZoom and unrivalled light quality

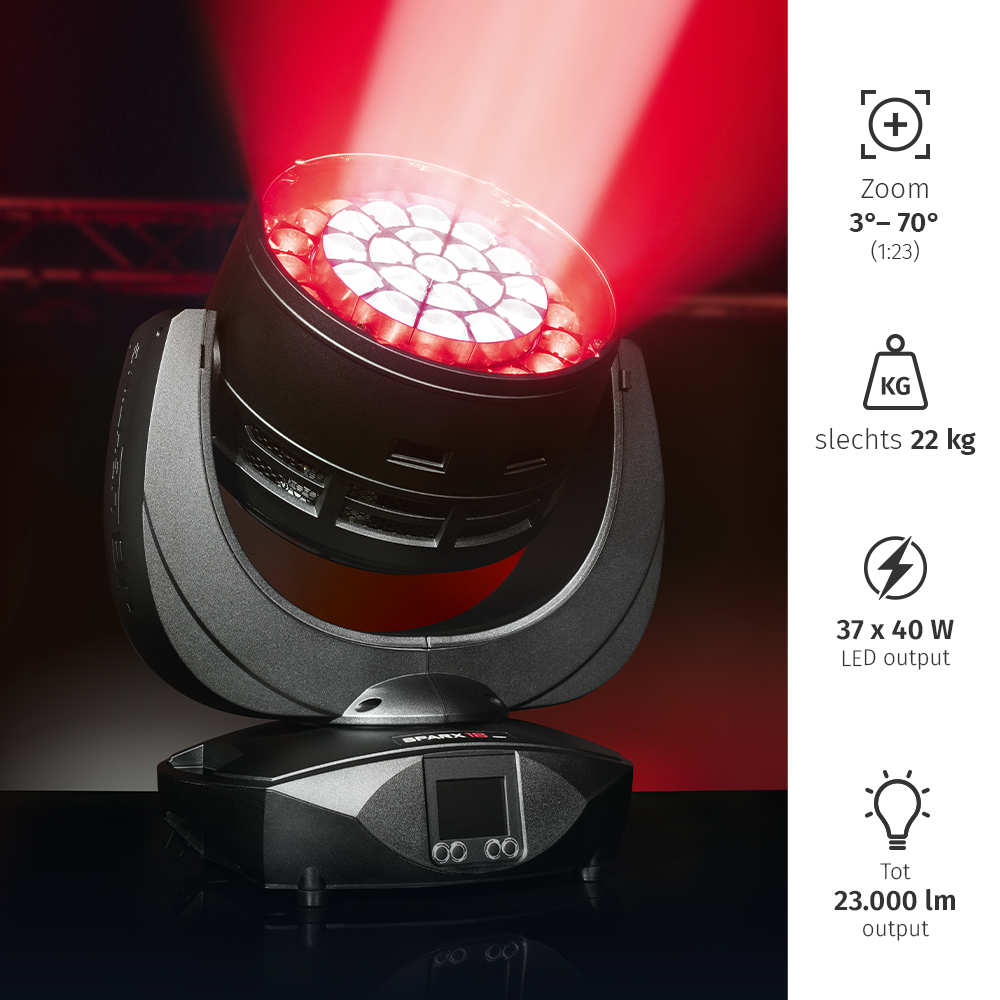

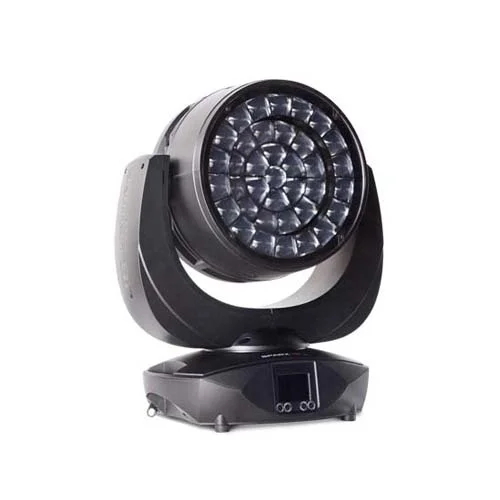

The Sparx 18 Washbeam from JB-Lighting is an LED moving head that is at home on virtually any stage. With 37 powerful 40W RGBW LEDs, a zoom range of 3° to 70° and JB’s patented TwinZoom technology, it offers unrivalled control over beam and shape. This versatile wash unit combines precision, power and creative freedom in a compact and robust housing weighing just 22 kg. Ideal for touring, theatre, broadcast and events.

TwinZoom and pixel control: freedom in shape and colour

Thanks to TwinZoom, the inner and outer LED segments can be zoomed in on separately, allowing you as a designer to create different beam shapes and dynamic animations with a single fixture. Combined with single pixel control, a sparkle channel and the ability to stack patterns in multiple layers, the Sparx 18 offers an unprecedented variety of effects.

The separately adjustable base colour temperature (from 2700K to 8000K) ensures that the unit integrates effortlessly into any lighting design, regardless of the type of light source or atmosphere. This makes the fixture just as suitable for subtle theatre lighting as it is for expressive live shows.

Light quality that stands out

The Sparx 18 delivers 23,000 lumens of light output, with a CRI of ≥85, making it suitable for use in situations where colour rendering is of paramount importance, such as in film and television productions or fashion shows. The optical system is fully optimised for homogeneous colour mixing and minimal stray light, with razor-sharp transitions from hard to soft edge. Thanks to heat pipe cooling, the luminaire operates whisper-quietly: at just 29 dB(A), it is barely audible even in recording environments.

Pros and cons

Pros
Patented TwinZoom from 3°–70° for unlimited creative applications
Perfectly homogeneous light beam with minimal stray light
Whisper-quiet (29 dB(A)) thanks to advanced heatpipe cooling
Individual pixel control with sparkle, glow and colour spread effects
Prepared for wireless DMX via built-in Lumen Radio

Cons
Beamshape and honeycomb modules are only available as accessories
Higher price range due to extensive functionality
No built-in framing or frost module available

Creative extensions: beam shape and honeycomb modules

For those who want even more control over the beam shape, optional accessories are available. The continuously rotatable beamshape module transforms the round beam into an oval projection, ideal for aisle lighting in theatres or highlighting stands at trade fairs. The honeycomb accessory further minimises light spill in sensitive applications.

Future-proof design and maximum connectivity

The Sparx 18 is equipped with all modern control options: DMX, RDM, sACN, Art-Net, Kling-Net and Lumen Radio CRMX are included as standard. The robust housing, replaceable LEDs and silent ventilation also make the fixture maintenance-friendly and future-proof. Thanks to the generous power supply and quick-lock mounting, installation is quick and easy.

Summary of specifications

• 37 RGBW 40W LEDs

• Light output: up to 23,000 lumens

• Zoom: 3°–70° (1:23)

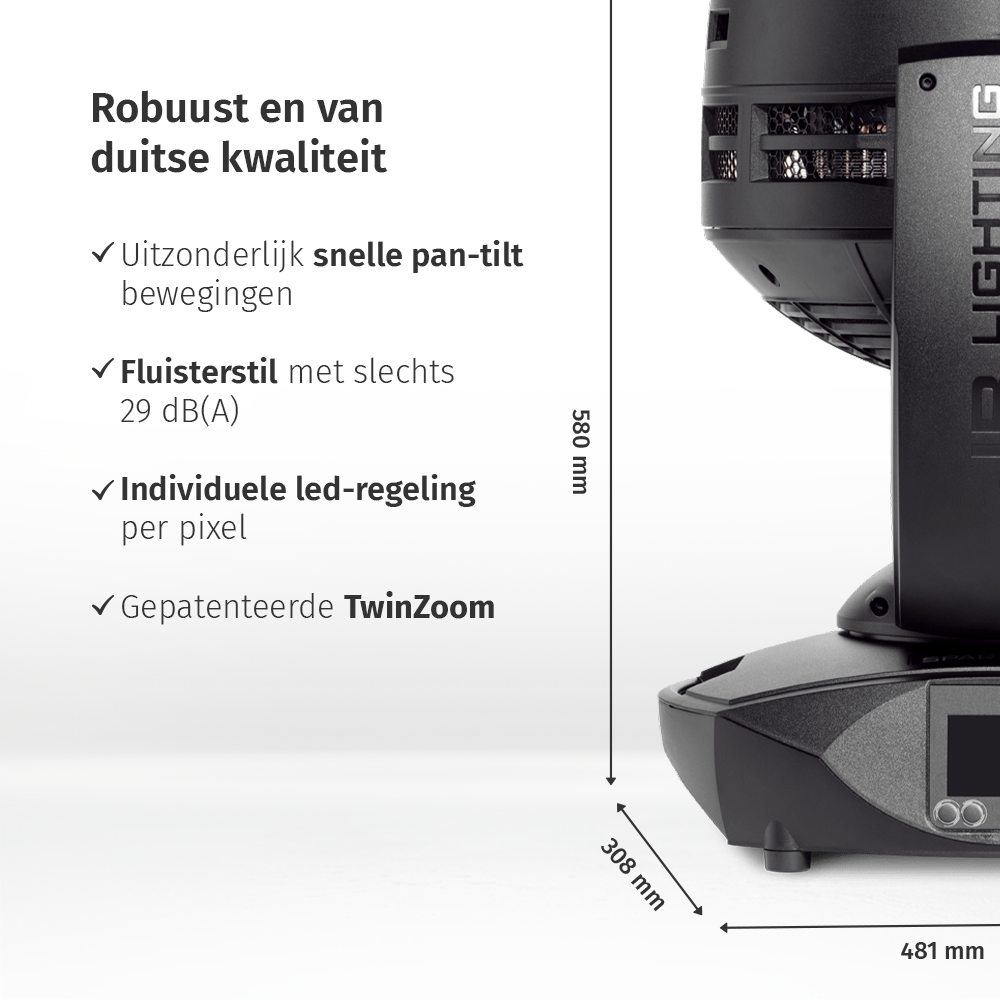

• Weight: 22 kg

• Noise level: 29 dB(A)

• Base colour temperature: adjustable from 2700K – 8000K

• CRI: ≥85

• TwinZoom technology and pixel control

• Equipped with wireless DMX (Lumen Radio)

• Control via DMX, RDM, Art-Net, sACN, Kling-Net and CRMX

Applications

• Theatre: Extremely quiet operation, subtle colour rendering and adjustable beam shape make it ideal for stage lighting

• TV and broadcast: Flicker-free operation up to 600 Hz and CRI ≥85 guarantee professional results for cameras

• Live events and concerts: The versatility of TwinZoom and individual pixel control ensure creative freedom and impactful shows

• Trade fairs and installations: Accessories such as beam shapers or honeycomb grids allow the beam to be precisely adapted to complex spaces or object lighting.

Conclusion

The JB-Lighting Sparx 18 Washbeam is an impressive all-rounder that offers modern lighting designers unprecedented creative control. With a combination of powerful output, advanced zoom technology, excellent colour mixing and maximum flexibility, this fixture is a logical choice for those who demand top quality. The optional accessories broaden the range even further, without compromising on ease of use or reliability.

See for yourself what the Sparx 18 can do for your production; request a no-obligation demo today via [email protected] or the contact form on the website.
