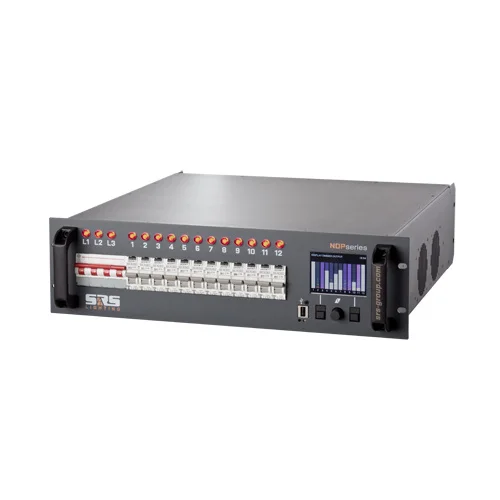

SRS Lighting | Dimmer 12-channel NDP | 19-inch | Circuit breakers: RCBO | Main: Main switch | DMX 5pin | Excluding backplate

SRS Lighting | Dimmer 12-channel NDP | 19-inch | Circuit breakers: RCBO | Main: Main switch | DMX 5pin | Exclusive backplate

The Dimmer 12-channel NDP with network and RCBO is one of the most advanced and comprehensive dimmers SRS Light has to offer. Equipped with a bright TFT display, this NDP networked dimmer can be remotely managed and read via the Ultisense software included. Ultisense makes it possible to set and monitor dimmers remotely via Ethernet, ArtNet or sACN networks.

The NDP dimmer can be controlled via various methods, including ArtNet, sACN, DMX-A and DMX B lines, with both LTP and HTP control. The dimmer offers 3 customised dimming curves as standard, allowing you to adjust the dimming curve for each dimmer channel, which is especially useful when dimming LED lamps.

The NDP dimmer excels at perfectly dimming 230V retrofit LED sources, and can accurately control light levels from 0 to 100%. Moreover, the NDP dimmer is fully prepared for the rise of LED lighting in theatres, with two additional options to choose from.

Additional Options for the NDP Dimmers:

With the first option (switch), the outputs of the dimmer can be separately supplied with fixed voltage by built-in relays. This can be set via the TFT display on the dimmer or using the Ultisense Software. The outputs can then serve as DMX-switched power supply by selecting switch mode or as continuous power supply for LED lighting or moving fixtures, for example.

The second option is the Zeroload option, which requires no minimum load. This allows lamps or other low-power light sources to be dimmed without the need for additional ballast.

The NDP dimmer can be ordered with a connection plate of your choice and comes with a gland plate as standard. In addition, it is possible to configure the dimmer with a connector plate, which can be ordered separately.

Tailor-made dimmer installations

If required, we offer the possibility to customise dimmer installations (both installation and tour versions) to your specifications. We are ready to help you discuss your exact needs. Feel free to contact us by phone or email, and we will get back to you as soon as possible.

Technical specifications:

• Available in 10A, 13A and 16A versions.
• Control with ArtNet and/or DMX
• Readout via RDM/ArtNet/Ethernet via Ultisense software
• 2 DMX in- and outputs
• 30mA earth fault or main switch on fixed voltage.
• 1Pole or 1P Neutral circuit breakers
• Equipped with both 3 pin and 5 pin DMX connection
• Available with the following connection:
  • Schuko
  • Socapex
  • Harting
• Weight 28 kg
• Dimensions LxHxD 483x132x460 mm.
• 5-year warranty!
