Neutrik | NLT8MXX-BAG | speakON 8-polig kabeldeel Touring male zwart IEC62368-1
Neutrik NLT8MXX-BAG: 8-polige speakON kabeldeel, zwart, IEC62368-1 gecertificeerd voor robuuste tourtoepassingen in de audio-industrie. Lees meer
Neutrik | NLT8MXX-BAG | speakON 8-polig kabeldeel Touring male zwart IEC62368-1
Product omschrijving:

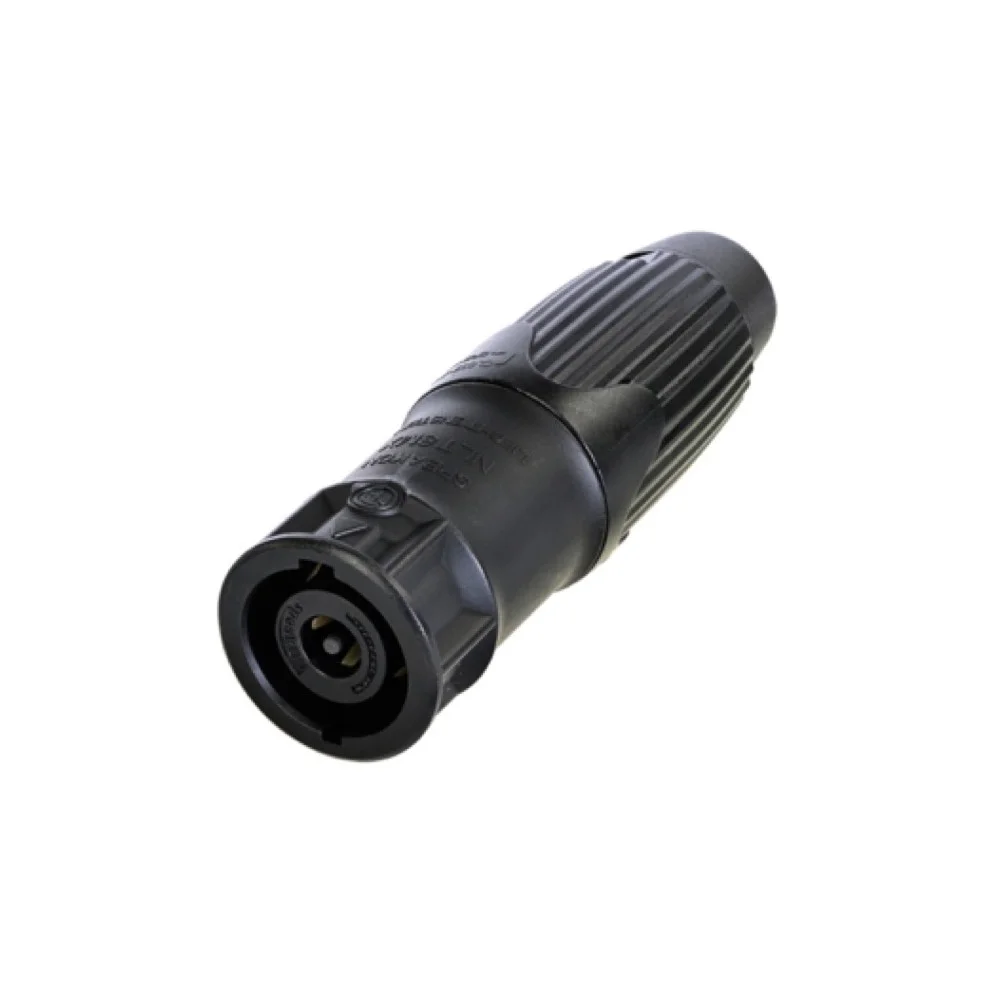

De Neutrik NLT8MXX-BAG is een 8-polig speakON kabeldeel met een male connector, voorzien van een robuuste zwarte metalen behuizing en ¼" platte tabs voor eenvoudige aansluiting. Deze connector is volledig in overeenstemming met de IEC62368-1 norm, dankzij de certificering van de componenten volgens IEC 61984.
De speakON STXX-serie is speciaal ontworpen voor zware toepassingen in de versterker-luidsprekerindustrie, zoals professionele tournee-uitvoeringen. Deze serie staat bekend om zijn duurzaamheid en robuustheid, mede dankzij de volledig metalen behuizing.
Product Information:
- Title: NLT8MXX-BAG
- Gender: Male
Electrical Information:
- Contact Resistance: < 2 mΩ
- Dielectric Strength: 1.5 kVac
- Insulation Resistance: > 0.1 GΩ (after damp heat)
- Rated Current per Contact: 30 A rms continuous (according to IEC 61984)
- Rated Voltage: 250 V AC
- Attention: speakON is NOT to be used as a mains or power supply connector (AC / DC)!
Mechanical Information:
- Cable O.D. (Outer Diameter): 8 - 20 mm
- Cable Retention: ≥ 220 N (subject to cable O.D. and material)
- Lifetime: > 5000 mating cycles
- Wire Size:
- 1.5 mm² - 6 mm²
- 10 AWG
- Termination: ¼" flat tabs
- Locking Device: Quick Lock
Material Information:
- Contact Plating: Ag (Silver)
- Contacts: Copper Alloy
- Shell: Zinc diecast, black chrome plated
- Insert: Polyamide (PA 6.6)
- Strain Relief: Polyacetal (POM)
- Shell Coating: Black KTL
Environmental Information:
- Temperature Range: -30 °C to +80 °C
- Flammability: UL 94 V-0
- Protection Class: IP 50 (mated condition)
Kies voor de NLT8MXX-BAG voor betrouwbare geluidsverbindingen in veeleisende situaties.
